Easy instructions for removing your graphics card to facilitate replacement or upgrade
Essential Knowledge
- Ensure your PC is powered off and disconnected from power before commencing. Disconnect all cables attached to the graphics card. Utilize static wrist straps for safety.
- Open your computer case and detach the cables linked to the GPU. Unscrew the mounting screws, release the lever, and slide out the GPU.
- In most laptops, the graphics card is integrated into the motherboard and cannot be removed.
Steps to Follow
How to Remove a Graphics Card from a Desktop PC
Turn off your PC. Before you start, ensure your PC is completely powered off. You can either press and hold the power button to force it to shut down, or click the Windows start menu and then click the power icon. Click Shut Down.
Disconnect the power cable. Once your PC is completely shut down, disconnect the power cable attached to the power supply.
Disconnect all cables linked to the graphics card. Subsequently, disconnect any video cables connecting the video card to the monitor.
Access your computer case. Most desktop computers have a removable panel. You might need to unscrew the panel, or it may slide off. Each computer case varies.
Ground yourself or use static wrist straps. Static electricity can cause permanent damage to computer parts. Before touching anything inside your computer, it's advisable to ground yourself by touching something metal or wear static wrist straps to prevent electrical discharge.
Detach any internal cables (if present). Some graphics cards have cables connected to the power source or motherboard. If so, squeeze the clip holding the cables to the graphics card and pull to disconnect them.
Remove screws or clips securing the graphics card. Locate and unscrew or unclip the graphics card from the mounting frame. It's recommended to use a magnetic screwdriver to prevent screws from falling into your computer.
Engage the release lever (if available). Certain computers feature a release lever on the PCI slot. If present, press it down and hold.
Carefully extract the graphics card. Gently pull and wiggle until the graphics card is loose. Ensure to support the card to prevent it from falling and damaging the pins. Once removed, place it in an antistatic bag to shield it from static electricity.
Is it Possible to Remove a Graphics Card from a Laptop?

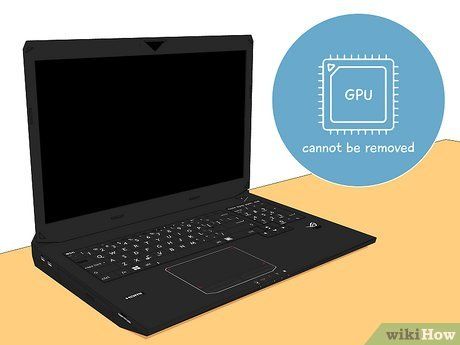

Most laptops lack a removable graphics card. While some older models may feature a PCI or MXM slot enabling you to swap out a graphics card, the majority of newer laptops integrate the GPU into the motherboard to conserve space. Consequently, the GPU cannot be detached. Even if removal is feasible, it may entail more hassle than it's worth and prove less economical than purchasing a new laptop.
