Ensure your vintage Beetle engine maintains a stable and correct idle
When dealing with classic air-cooled Beetles, the Solex carburetors often demand fine-tuning for idle settings. Maintaining an appropriate idle speed is crucial, as it needs to prevent engine stalls while conserving fuel and reducing engine wear. This article outlines the process of adjusting the 34 PICT3 carburetor to modify your idle speed.
Key Points to Consider
- Ensure the engine is warmed up and the choke butterfly valve is in an upright position before adjusting the carburetor.
- Set the fast idle adjuster screw to maintain a 0.004 inch (0.10 mm) distance from the edge of the stepped cam.
- Utilize the volume and bypass screws for fine-tuning the idle engine speed, aiming for an idle range of 850-900 rpm.
Procedural Steps
Adjusting Idle Screw
Position the choke butterfly valve upright. Access the choke located in the center of the carburetor. Move the butterfly valve to an upright position. This action facilitates air intake during engine operation, aiding in accurate idle speed adjustments.
- Ensure the air cleaner remains in place during carburetor adjustments.
Warm up the engine for 3-5 minutes. Start the engine and allow it to run for a few minutes. Then, turn off the engine. This allows the carburetor to settle before adjustments are made.
Set the fast idle adjuster screw to lightly touch the cam. Locate the throttle spring on the left side of the carburetor. Find the fast idle adjuster screw on top of the throttle arm (facing the rear of the car). With the choke fully open, ensure the screw rests on the bottom of the stepped cam, just below the screw.
- Loosen the fast idle adjuster screw until it clears the stepped cam.
- Tighten it until it barely touches the bottom of the stepped cam—avoiding contact with any steps.
- Turn it an additional 1/4 turn. This sets the throttle butterfly to open by 0.004 inch (0.10 mm).
- This screw collaborates with the choke to achieve a smooth idle during cold starts.
- As the engine warms up alongside the choke, the butterfly valve within the carburetor throat opens, and the fast idle adjuster descends the stepped cam, reducing idle speed.
Adjusting Volume and Bypass Screws

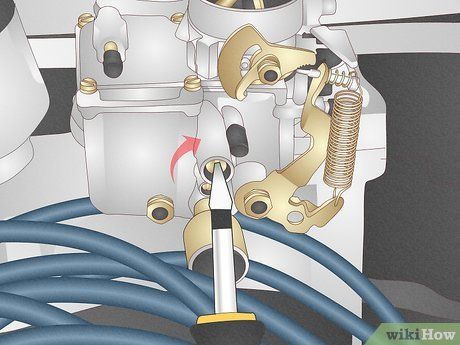

Adjust the volume control and bypass screws located on the left. Locate the screws just behind the throttle spring on the left side. Rotate the bypass screw (the larger one) counterclockwise a few turns. You'll need to adjust this screw multiple times, but start with establishing a baseline.
- The volume control screw is the smaller of the two screws. Turn it in gently until it stops. Then, unscrew it precisely 2.5 turns.
- Next, start the engine and readjust the bypass screw until the idle reaches its maximum speed.
Lower the volume screw to achieve the highest idle minus 25 rpm. Return to the volume screw and gradually adjust it counterclockwise until you achieve the highest idle speed. Monitor the tachometer on the dashboard to ensure you've reached peak rpm. Then, slowly tighten the screw until the revs drop by approximately 25-30 rpm.
- A tachometer is an instrument that measures engine speed in revolutions per minute (rpm). It's usually located on the dashboard alongside the speedometer.
Follow these step-by-step instructions for optimal performance.'I've been working on VWs for years and have a vast collection of repair books. However, the instructions provided here for adjusting the 34 PICT carburetor are clearer than anything I've encountered. I'm not usually one to strictly adhere to instructions, but this time I did. And you know what? My Beetle is running smoothly now. I couldn't be happier with its performance.' - Tracy G.
Simplify complex carburetor adjustments.'Initially, tuning the 34 PICT carburetor seemed daunting as I had no prior experience. However, the detailed diagrams accompanying each step proved invaluable in visualizing the process. Following the instructions closely, I successfully completed the tuning procedure. The result? My Beetle now idles smoothly, a remarkable achievement for my first attempt.' - Chask H.
Apply expertise from heavy equipment to light vehicle maintenance.'Having spent years working on large machinery, I lacked familiarity with small engine repairs. Nevertheless, determined to adjust my VW carburetor correctly, this article provided an excellent starting point. By meticulously following the steps, I could leverage my technical skills, despite the new terrain. I'm immensely grateful for having these comprehensive instructions at my disposal.' - Allen H.
Attain a smooth and steady idle.'Despite owning my Beetle for a considerable time, I struggled with achieving a consistent idle. It frequently sputtered and stalled. However, meticulously following the steps outlined here to adjust the screws correctly yielded significant improvements. Taking my time and ensuring thoroughness, my Beetle now idles effortlessly at 900 rpm. It's a tremendous relief to have resolved that issue at last!' - Michael K.
Did you know that Mytour has amassed over 365,000 reader stories since its inception in 2005? We'd love to hear from you! Share your story here.
Readjust the bypass screw to achieve an idle speed ranging from 850 to 900 rpm. With the engine running, return to the bypass screw. Continuously tweak and monitor your tachometer until you reach an idle speed within the recommended range of 850 to 900 rpm for the 34 Pict-3 carburetors.
- This setting is typically recommended for most Solex 30-34 PICT-3 models.
- If you're unable to attain these rpm settings, it's possible that one of the adjuster screws has stripped threads. Alternatively, you may have a damaged hole for the tapered screw or a damaged needle valve or O-ring.
- If the screws are functioning correctly but the rpm remains unstable, you likely have a vacuum leak causing air to escape from the intake manifold.
Useful Tips
-
The Haynes VW Beetle & Karmann Ghia Repair Manual serves as a valuable resource for those working on vintage Beetles. However, note that the diagram for the adjustment screws on the left side of the carburetor in the book may be reversed. The larger screw on the top is the bypass screw, while the smaller screw at the bottom is the volume control screw.
