Adjusting Your E Z Go Golf Cart Governor

Adjusting the governor can boost your golf cart's speed by 5–10 mph (8.0–16.1 km/h). If you perform this adjustment on an E-Z-GO golf cart, you could potentially increase its speed from 15 mph (24 km/h) to 22 mph (35 km/h). This process can be completed in just about 5 minutes.

• Locate the governor within the 4-stroke engine of your golf cart. Look for a small spring wrapped around a metal rod.
• Enhance your cart's speed by adjusting the nuts connected to the spring. Loosen the smaller nut while tightening the larger one.
• Once satisfied with your cart's speed, tighten the smaller nut securely.
• For other types of cart engines, adjust the small metal rod near your clutch pedal.

To adjust your golf cart's top speed, tighten the governor spring located in the engine. Most EZ Go Carts feature simple springs that limit the engine speed. To increase your cart's speed, simply locate and tighten this spring slightly. If you can't find the spring, you may have a newer model that's less accessible for adjustment, although this is uncommon.

Raise the seat. Remove the seat cushion to access the engine. In newer models, you might need to unscrew the seat.

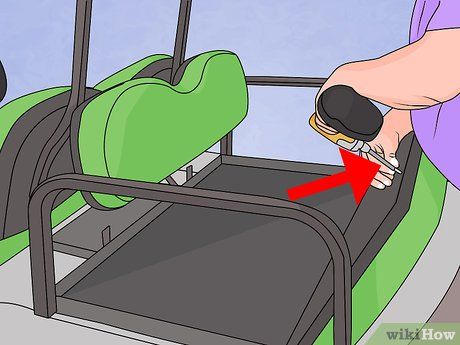

Detach the black plastic cover at the back of the seat by removing the screws. Most models have five screws securing this cover. The engine is located at the front of the golf cart, beneath this panel. Remove the plastic cover and set it aside along with the seats.

Trace the thickest cable from the gas pedal until you find a small spring coiled around a metal rod. This is the governor mechanism. The spring assembly is secured to the rod with two nuts, one small and one larger.

• If you're curious, this is your cart's carburetor.

Loosen the smaller nut and tighten the larger nut. Increasing the tightness of the larger nut will boost your cart's speed. Begin gradually, tightening the nut by a quarter turn initially. Trying to accelerate too quickly can strain the engine, potentially causing skipping or burnout.

Secure the small nut on the governor to maintain the spring's position. Test the cart's speed. Once satisfied, retighten the small nut. While testing, listen for any unusual sounds like whining, skipping, or clunking, indicating that the governor is overtightened and needs adjustment.

Reinstall the black cover before driving. Reassemble the cart and enjoy your ride.

Be aware that increasing the cart's top speed will accelerate engine wear. Modified governors may require more frequent repairs and part replacements. Also, carts exceeding 19mph are considered motor vehicles, requiring seatbelts and inspections. Although not a significant issue, it's essential to know the regulations.

Take off the seat and the plastic covering shielding the engine. Some models may require unscrewing, while others have easily removable seats. Uncover the engine to access it for adjusting purposes. If there's no central governor spring, you can still enhance your cart's speed slightly.

Identify your clutch pedal and cable. The clutch, located either as a pedal or a handle near your knee, is used for reversing or changing speeds. Adjusting the clutch can increase the gas flow to your engine, resulting in higher speeds.

Locate the small metal rod next to the clutch along with its attached cable. The cable's length regulates the amount of gas entering your engine. Keep in mind that pushing your cart to move faster may strain the motor. Therefore, test each adjustment carefully and listen for any unusual sounds or stalls to safeguard your engine.

Loosen the nut securing the cable to the metal protrusion to boost speed. You'll notice the cable lengthening slightly, increasing your cart's speed. Conversely, tightening the nut slows down the cart.

Understand that adjusting the governor may not be possible if the cable or governor spring is not visible. This is common in modern all-electric engines. Manufacturers like EZ Go often conceal governors in the spark plug ignition to prevent consumer tampering, making adjustments challenging and risky for untrained individuals.

• Turn nuts and bolts slowly while testing each time. Be cautious not to misplace any of them!

• Adjusting the governor on your own may invalidate your warranty.

• A crescent wrench
• A pair of channel locks
• A set of torx screwdriver bits
• A screwdriver with interchangeable bits
