After downloading, double-click the file to proceed with the installation. The installation process is quite straightforward, so you can easily do it yourself.
Once the installation is complete, open the DWG Trueview application. Then, we will proceed with the steps to convert DWG files.

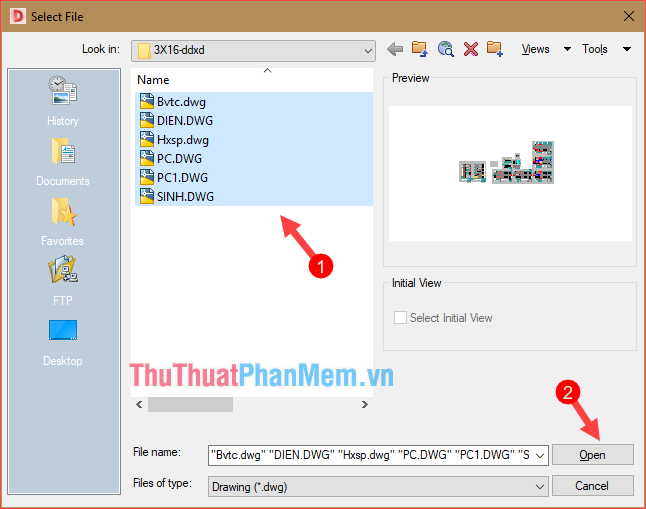

Step 1: On the main interface of the software, you can press Open Files to preview the DWG file before conversion. Note that you can open multiple files at once if desired.

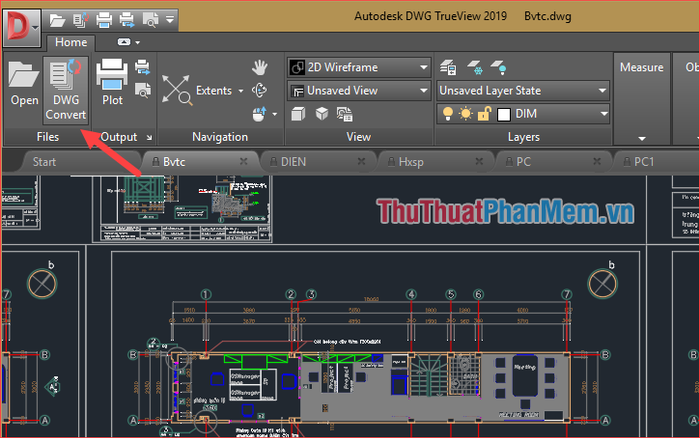

Step 2: After opening the DWG files, press the DWG Convert button to proceed with file conversion.

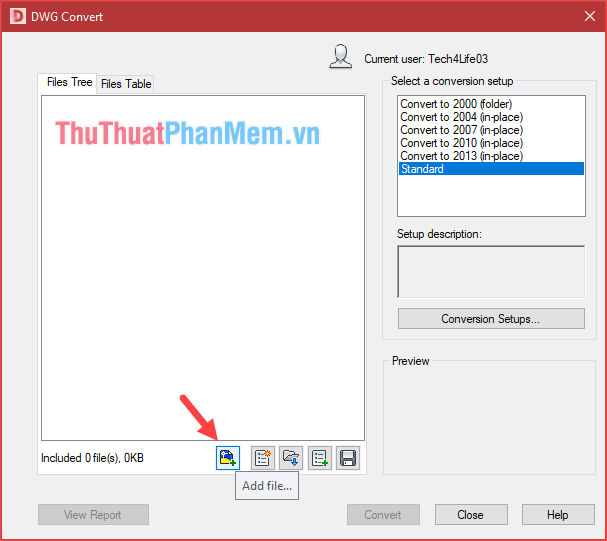

Step 3: A new window will appear, click the Add file... button to select the file you want to convert.

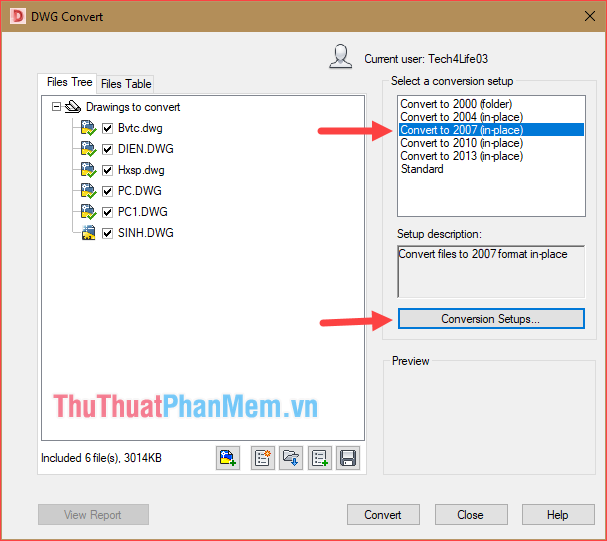

Step 4: After selecting the files, they will appear in the list below. Next, in the right-hand window, select the DWG version you want to convert to. For example, below we will convert to DWG 2007.
After conversion, the files will overwrite the original files. You can press Conversion Setups... to change the settings if needed.

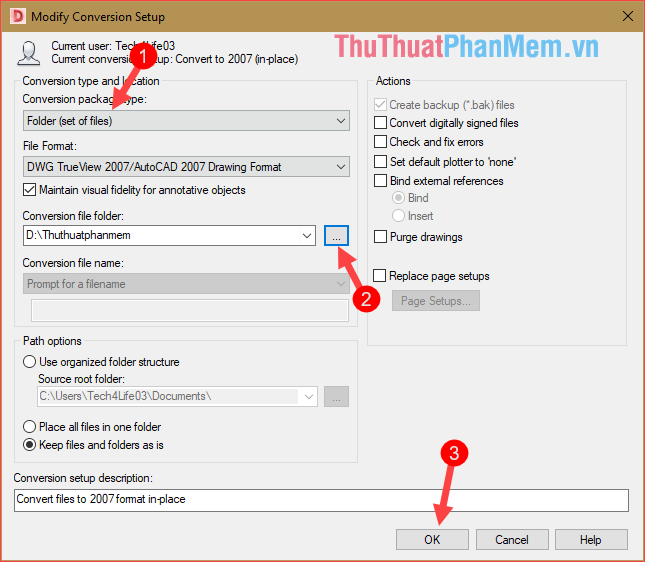

After pressing Conversion Setup, a small window will appear. Click Modify, then a new window like the one below will appear. If you do not want the new file to overwrite the original file, select Folder (set offile).
Next, choose the folder to save the new files in the Conversion file folder section and press OK.

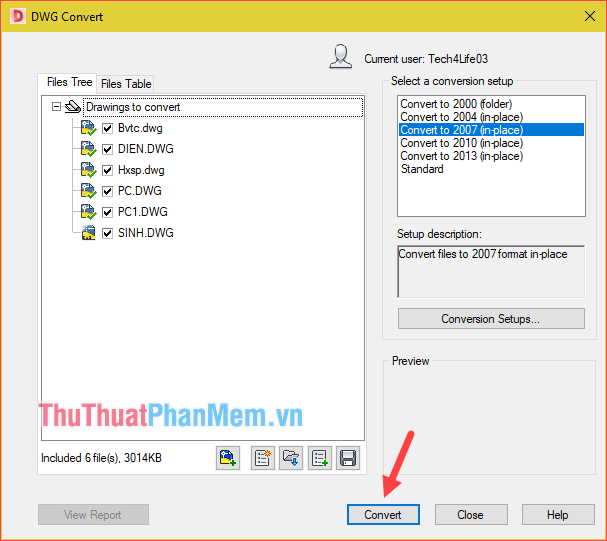

Step 5: Back in the previous window, press Convert to start the file conversion process.

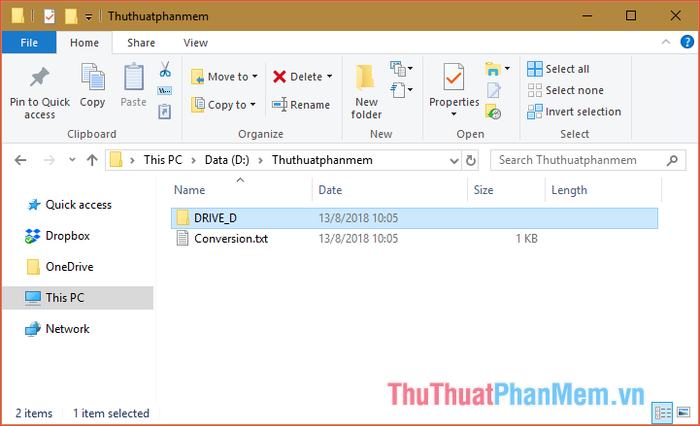

After the conversion is complete, open the folder containing the DWG files. You will find a Conversion.txt file (just a report file, you don't need to worry about it) and a folder as shown below. The new DWG files will be located in this folder. Depending on your computer, you may need to open some subfolders to see the new DWG files.

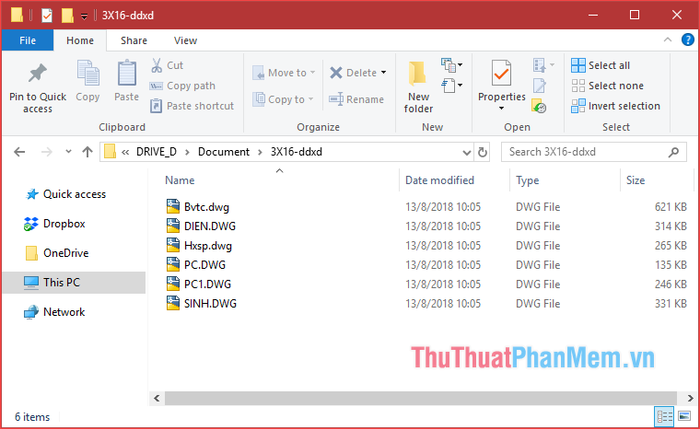

And here is our result:
With DWG Trueview software, we can easily convert high version DWG files to lower versions effortlessly. Thank you for following along.
