Drawing curvy clouds in Cad helps highlight the areas of focus in your images and is utilized in some specific drawings. In the following article, let's explore the quick and accurate method of drawing clouds in Cad.
1. Freehand Cloud Drawing
1.1. Drawing Standard Clouds

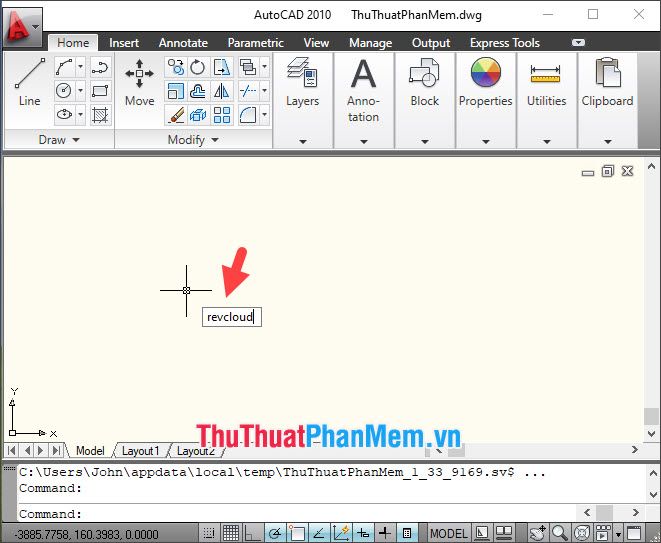

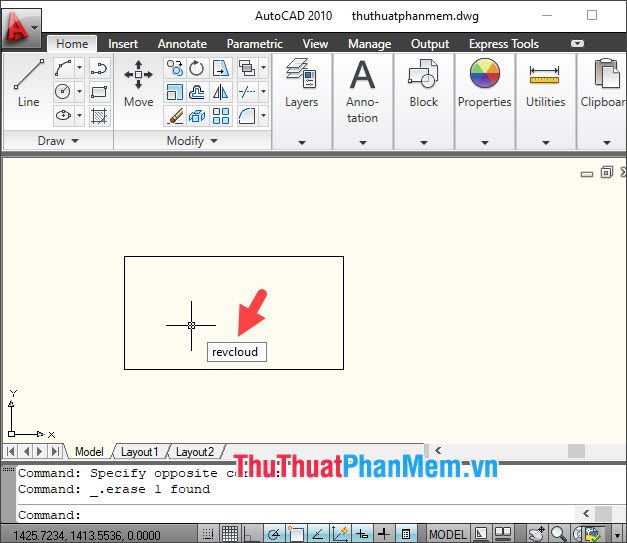

Step 1: Enter the command REVCLOUD => press Enter.

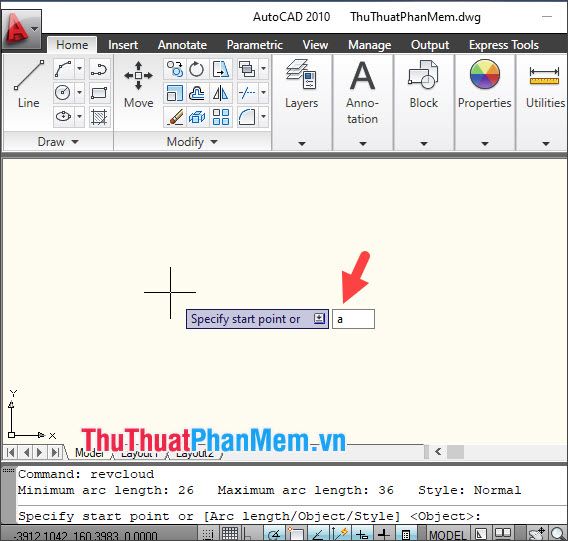

Step 2: Type the command A => press Enter to adjust the size of the cloud border.

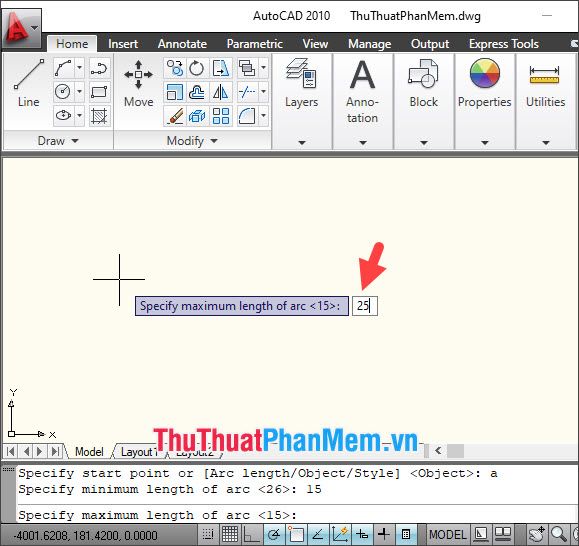

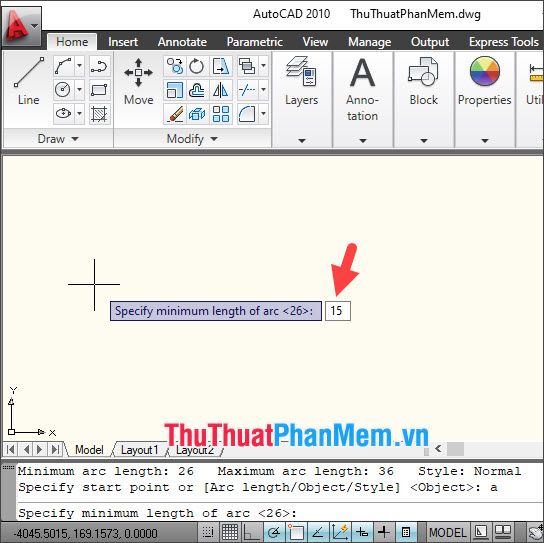

Step 3: Enter the smallest value of the arc => press Enter.
Next, input the largest value of the arc => press Enter.

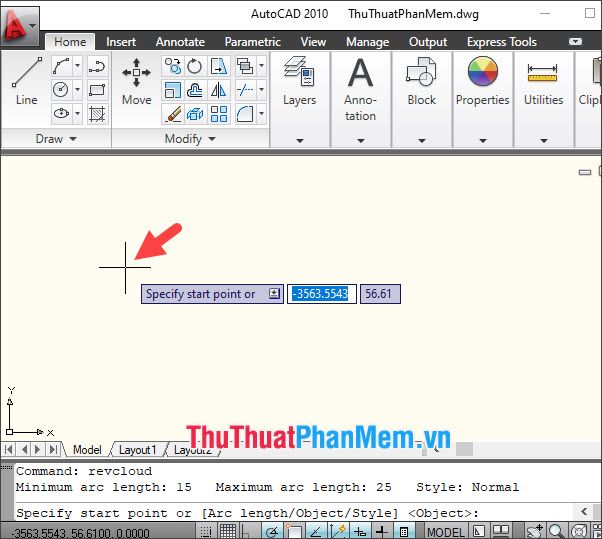

Step 4: Click on any point to start drawing.

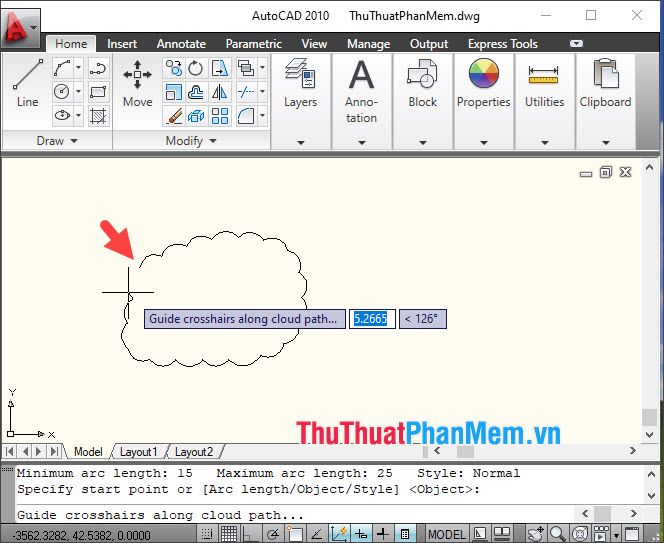

Next, freely draw and move the mouse to the first point you created for the software to automatically complete the cloud drawing.

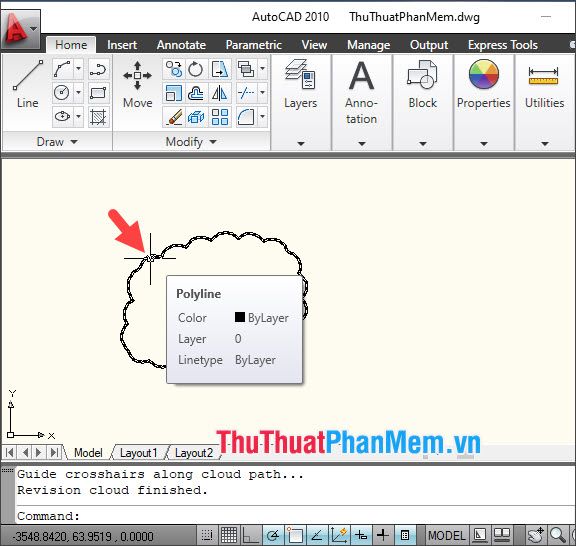

After creating, we have the cloud shape as a Polyline.
1.2. Drawing Bold Clouds
Step 1: Enter the command REVCLOUD => press Enter to draw the cloud.

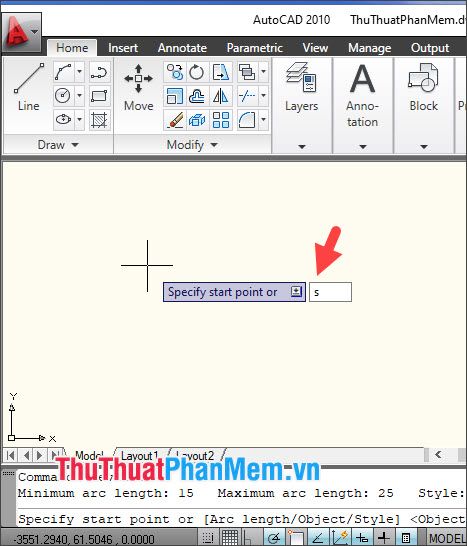

Step 2: Type the command S => press Enter to change the cloud Style.

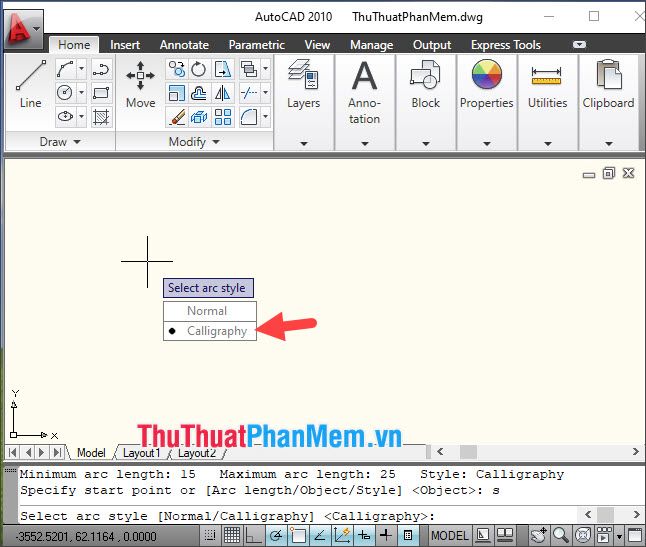

Next, click to select Calligraphy => press Enter.

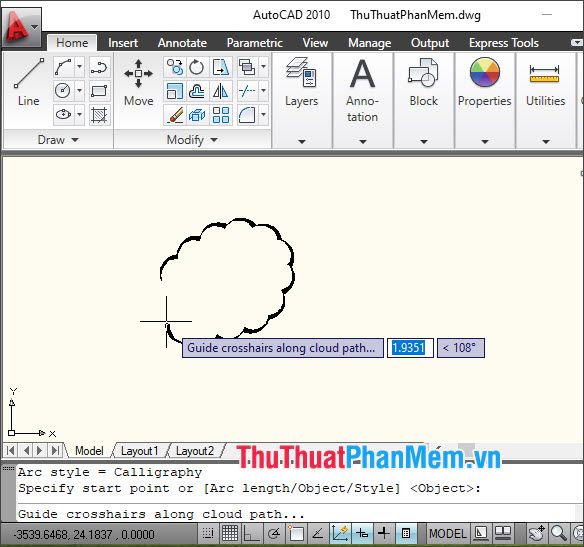

Then, draw the cloud freely as instructed in the section above.

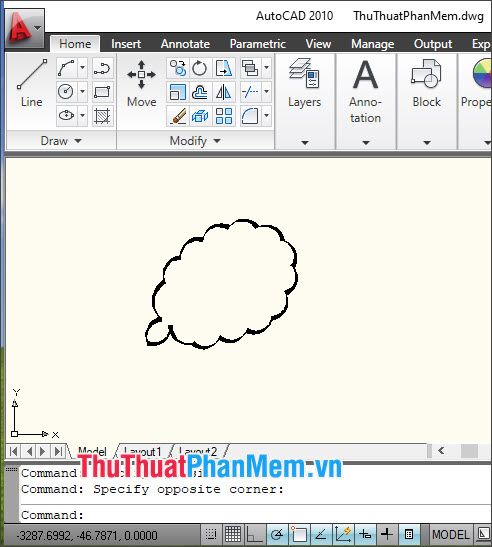

Afterwards, you'll have bold clouds as illustrated below.
2. Drawing clouds from predefined objects

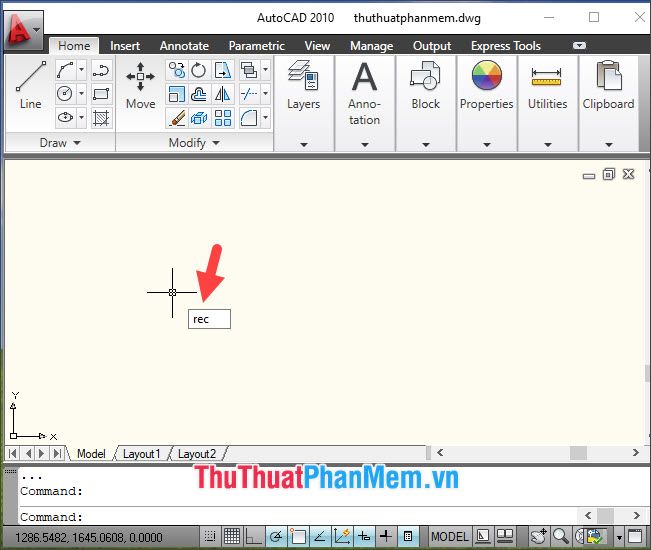

Step 1: Enter the command REC => press Enter to draw squares, rectangles.

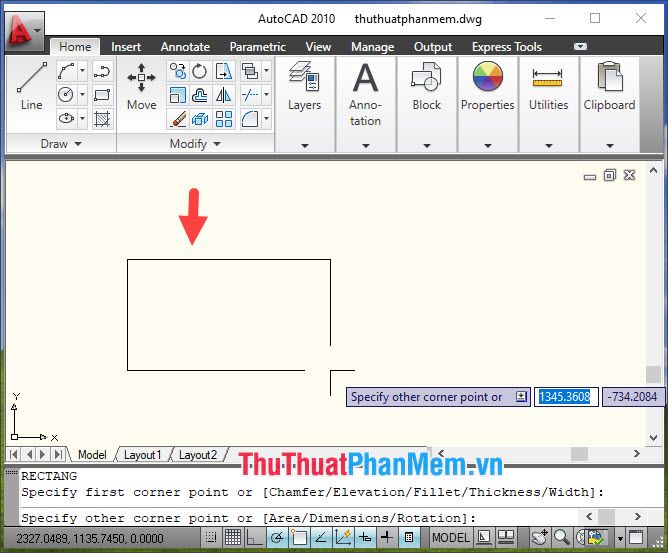

Next, draw squares, rectangles according to your preference.

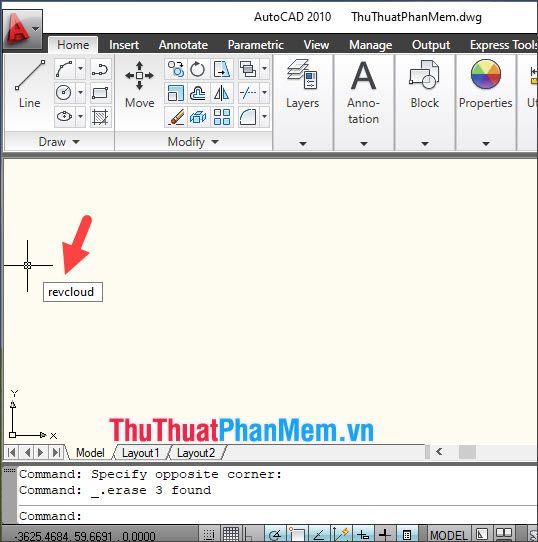

Step 2: Type the command REVCLOUD => press Enter.

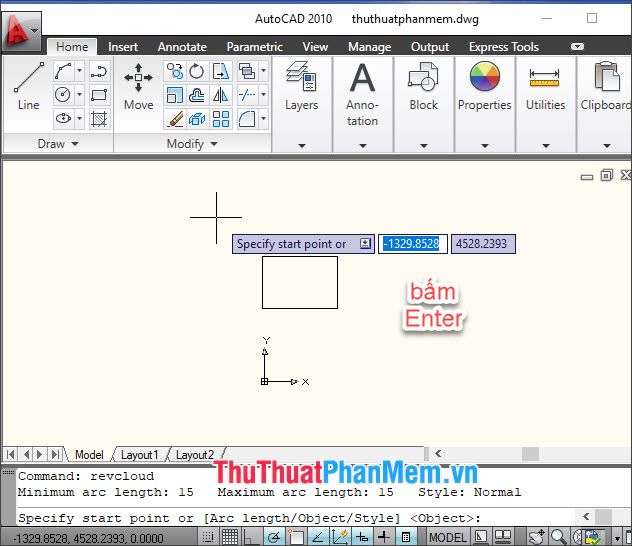

Step 3: Press Enter to proceed to the object selection section.

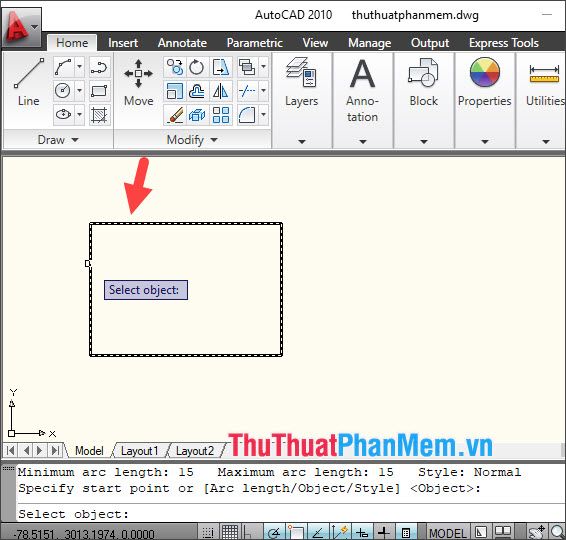

Next, click on the object you want to cloud.
- Creating standard clouds

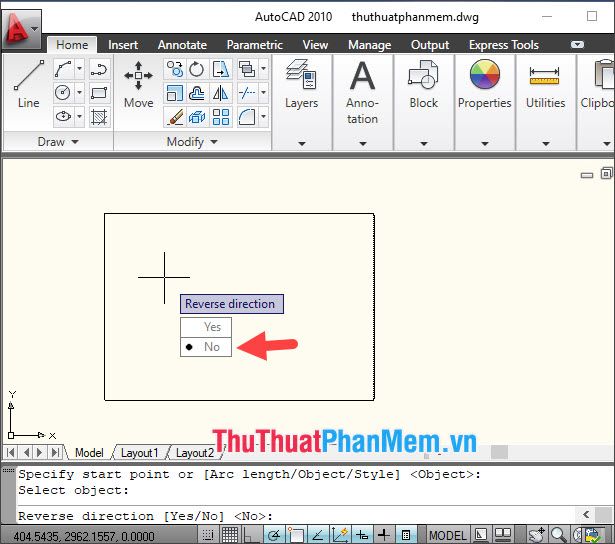

To create standard clouds, click on No => press Enter.

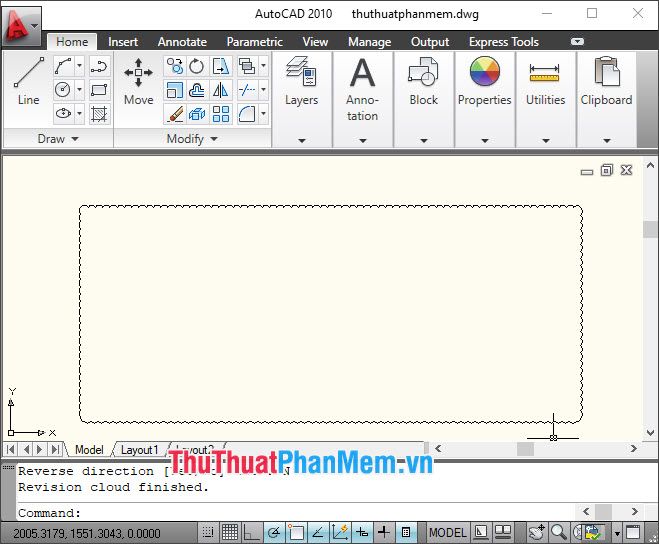

Afterwards, you'll generate standard clouds as shown in the example below.
- Creating inverted clouds

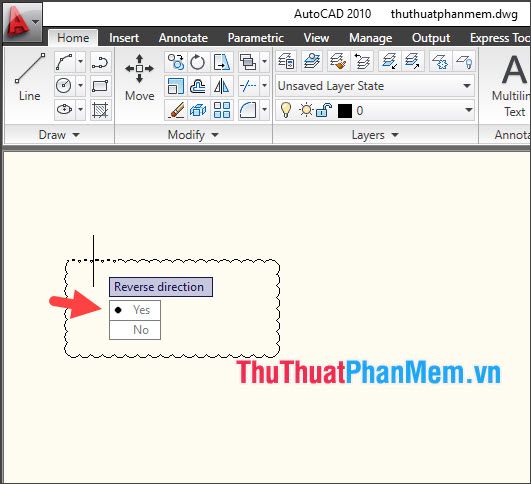

To create inverted clouds, click to select Yes => press Enter.

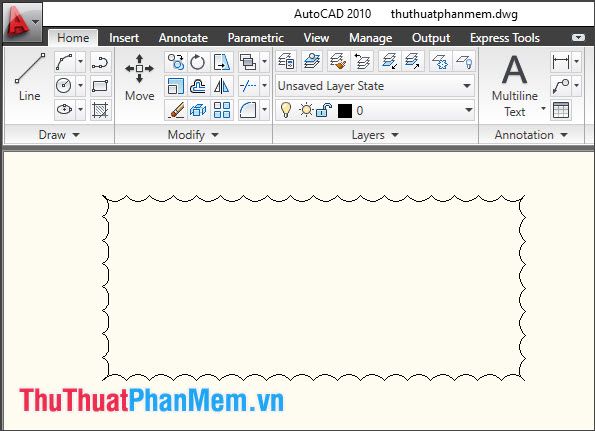

Afterwards, you'll effortlessly craft a reverse cloud as depicted below.
Following the instructions provided in this article, you can utilize the REVCLOUD command to swiftly and easily generate a cloud. Best wishes for your success!
