Detecting Signs of Faulty Power Supply or Motherboard

Identifying a malfunctioning component in your computer can pose challenges, especially when various components exhibit similar symptoms. Fortunately, there are specific methods available to ascertain the functionality of your power supply and motherboard. This Mytour article will guide you through testing both your power supply and motherboard for potential faults.

Recognize indications of PSU failure: If your computer fails to power on, continuously restarts, displays blue screens, emits unusual noises, or emits a burning odor, it may indicate a failing power supply unit.

Power down your PSU and disconnect it from the power outlet. Set the switch located at the rear of your PSU to the “Off” position, then unplug it from the wall outlet.

Access your PSU by opening your computer case. Most cases feature a removable side panel that provides access to the computer's internal components.

Unplug all cables from the PSU. If you're not familiar with computer hardware, consider taking photos of your setup to aid in reconnecting the cables later.

Create a “U” shape with a paperclip. This paperclip will be used to trick your PSU into thinking it's powered on, allowing for testing purposes.

Locate the green pin and a black pin on the PSU’s 24-pin connector. The 24-pin connector, the largest among PSU connectors, is plugged into the motherboard. Look for a single green pin among several black pins.

Insert one end of the paperclip into each of the pins. Connecting these pins with a metal piece allows you to effectively start your PSU by plugging it in and switching it on.

Plug in your PSU and switch it on. Before doing so, ensure that all other devices are disconnected to conduct a proper PSU test.

Check if the fan is operational.

If the fan is spinning, your PSU is functioning. If not, disconnect the power supply, recheck the placement of your paperclip, and rerun the test. If the fan remains inactive, your PSU may be faulty.

• Even if the fan is spinning, your PSU may not be delivering the correct power levels. To confirm its functionality, proceed to test it using the next method.

Acquire a power supply testing unit. These units are readily available online or at electronics stores and are budget-friendly.

Switch off your PSU and disconnect it from the power outlet. This will eliminate any remaining current and reduce the risk of electric shock.

Attach the PSU’s 24-pin connector to the power supply testing unit. Typically, the 24-pin connector is the largest among the PSU connectors.

Plug the PSU into a power outlet and power it on. If your power supply testing unit has a button to activate the PSU, press it. Alternatively, the PSU should activate automatically, and you'll start receiving readings on the testing unit.

Verify the voltage levels within acceptable ranges. Four main voltage measurements should be within specific acceptable ranges. If any measurement falls outside these ranges, it indicates a need for PSU replacement.

• +3.3 VDC (within +/- 5%)
• +5 VDC (within +/- 5%)
• +12 VDC (within +/- 5%)
• -12 VDC (within +/- 10%)

Test the functionality of other cables. If the 24-pin connector is providing power correctly, proceed to test each of the PSU cables. Remember to switch off and unplug the PSU between each test. If all cables are functioning properly, your PSU is likely operational!

Look for signs of a malfunctioning motherboard. If your computer fails to detect peripherals like the mouse and keyboard, experiences slower boot times, or emits a burning smell, it could indicate a failing motherboard.

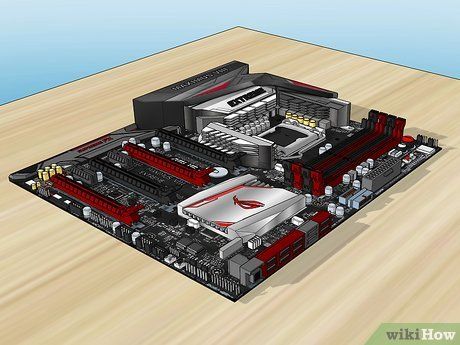

Place your motherboard on a flat surface. If you're utilizing an external graphics card, ensure the motherboard rests on the edge of the surface to prevent damage to any protruding components.

• Furthermore, minimize exposure to static electricity. Opt for surfaces like wood or glass, and avoid carpeted areas whenever possible.

Mount the CPU onto your motherboard. Depending on the motherboard model, you might need to remove brackets before installing the CPU. The CPU should fit snugly without requiring excessive force.

Attach the CPU cooler (if available). Although not essential for testing purposes, having the cooler already installed can streamline the process, particularly if you're assembling a new PC and the test proves successful.

Mount your RAM. Ensure that the small notch at the bottom of your RAM aligns with the slot on your motherboard. Apply gentle pressure until you hear a click to secure it in place.

• If you're using multiple RAM sticks but not filling all available slots, consult your manual for the best configuration.

Install your graphics card. Some Intel CPUs and certain Ryzen CPUs come with integrated GPUs, eliminating the need for an external graphics card depending on your setup.

Connect your PSU to your motherboard and graphics card. Prioritize testing your PSU using the methods outlined above to ensure it's functioning correctly. Use a 24-pin connector to link the PSU to the motherboard, and connect the appropriate pins to the graphics card.

Link your motherboard to your monitor. Typically, the motherboard will feature HDMI and/or DisplayPort connectors. Your monitor should come with the necessary cables.

Set the power supply to off, plug it in, then switch it on. Look for lights illuminating on your motherboard to confirm power connection.

Ensure your computer boots to the BIOS settings. If the BIOS screen fails to display on your monitor, there may be an issue. Check that all components are correctly installed and connected, then try again.

• If you hear a series of beeps, it indicates a specific error with a beep code.
• Your computer conducts a POST each time it starts up. If your motherboard is installed, power on the computer. If it boots without issues and there's no beep code, but you suspect motherboard trouble, seek professional assistance.
• Often, diagnosing a faulty motherboard involves testing other components first. After a failed POST, ensure all other parts are functioning before concluding the motherboard is faulty.
