Easy Guide: Installing Remote Control Circuit for Your Fan

Conventional electric fans usually lack remote control functionality. However, if you wish to upgrade your ordinary fan to a remote-controlled one, there's a simple way to do it. Let's explore how to install a remote control circuit for your fan with ease, brought to you by Mega Electronics Superstore - Your Ultimate Home Tech Destination!

Installing a Remote Control Circuit for Your Fan

Nowadays, the variety of fans available in the market offers versatile designs, some even equipped with convenient remote control functionality. This allows you to control the fan from a distance without needing to approach it physically.

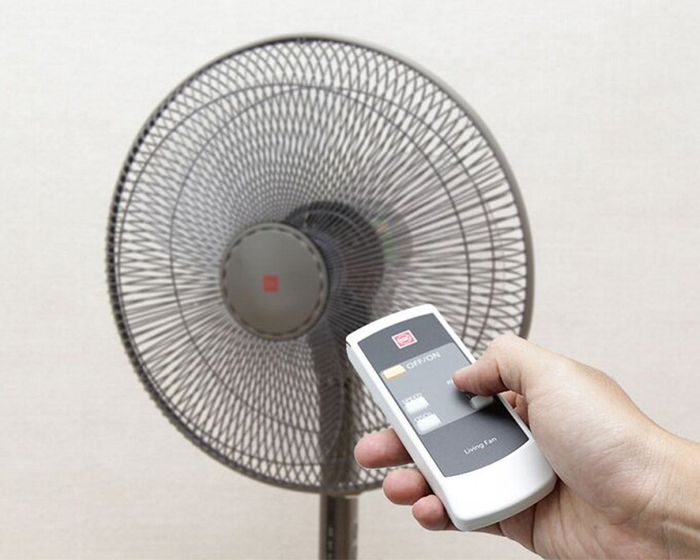

Reasons to Install a Remote Control Circuit for Your Fan

However, older models of fans may not come with this feature. Therefore, knowing how to install a remote control circuit for your fan can significantly enhance its usability. Particularly useful for nighttime use or when your hands are occupied, simply grab the remote and adjust the fan as needed.

- To install a remote control circuit for your fan, you'll first need to purchase a control circuit board and a fan remote. Typically, these circuit boards come with separate infrared sensors that can be extended outside the fan, making control much easier.

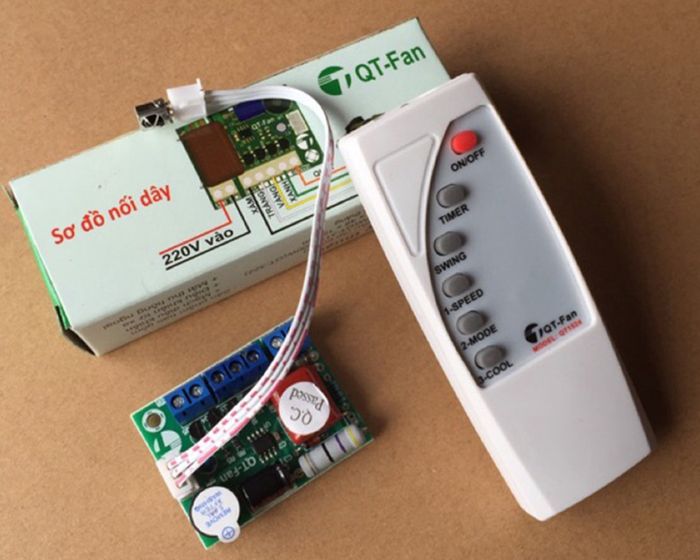

Essential Equipment for Installation

- Additionally, you should also prepare wire connectors and the necessary screws. These items can be found at stores selling electrical components or hardware stores.

Step 1: Open up the fan casing to access the gearbox and power source.

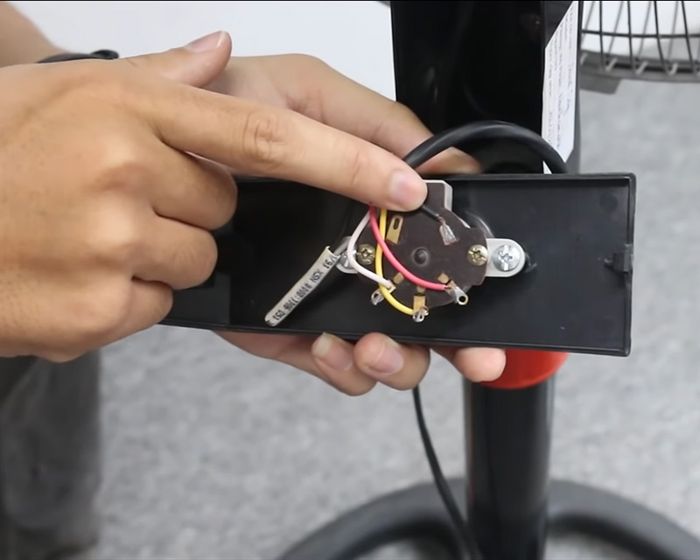

Retrieve Gearbox and Power Source

Step 2: After completing step 1, remove the circuit board from inside and observe three terminals labeled 1, 2, 3 corresponding to speed control buttons 1, 2, 3 on the fan body. Then, cut the three speed wires on the fan and connect them to the labeled terminals on the purchased circuit board.

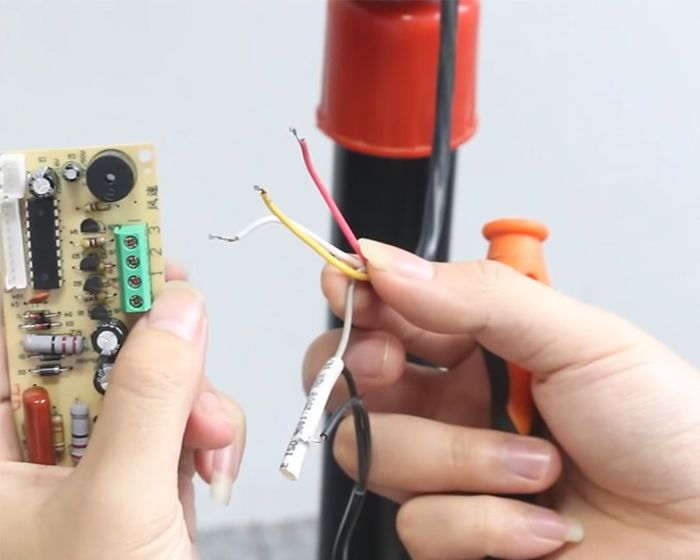

Connect 3 Speed Wires of the Fan to 3 Terminals on the Control Circuit Board

Step 3: Once the connections are made, proceed to cut and connect the power wires from the gearbox to the outermost terminals. Then, cut the remaining portion of the power wire in half and continue to connect it to the remaining two terminals beside.

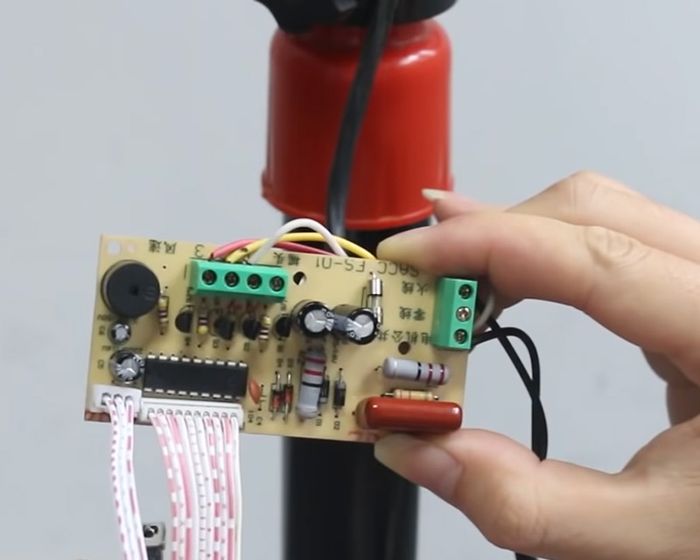

Cut and Connect Power Wires from Gearbox to Outermost Terminals

Step 4: If you have completed the above steps, the final task is to install the circuit board into the fan gearbox. Ensure that the infrared sensor of the circuit board is positioned in an open area to enable effective sensing with the remote.

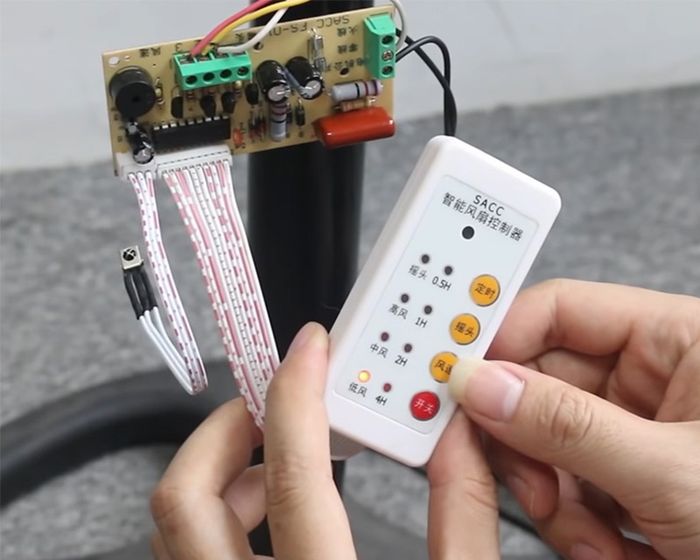

Position the Infrared Sensor of the Circuit Board in an Open Area

Once the installation is complete, you can immediately use it with the remote control. To better understand the functions available on the remote, you can refer to the following:

- Off: Turn off the fan

- SW: Rotate the fan

- Timer: Set a timer

- Swing: Adjust wind intensity (from weak to strong)

- Speed: Activate and control 3 fan speeds

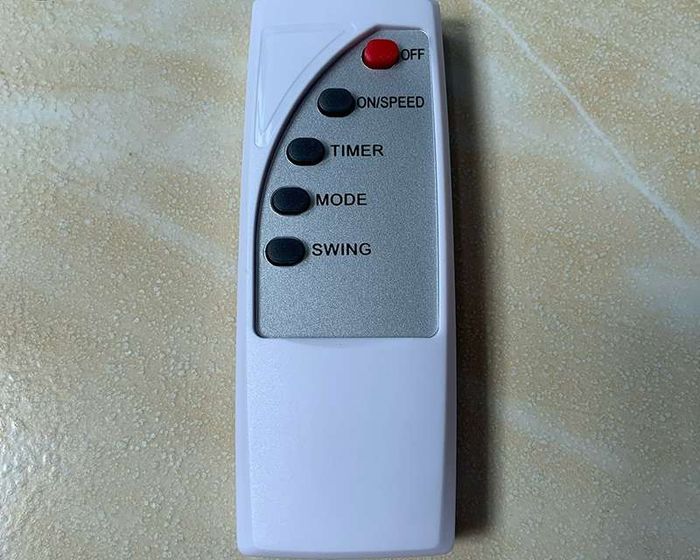

Remote Control for Your Fan

If you intend to install a remote control circuit for your fan, there are certain things to avoid. This will ensure a smoother installation process, free from any issues, and especially eliminate potential dangers. Here are some safety precautions to consider:

- Before starting the installation, ensure that the power source is completely switched off. Additionally, use insulated tools to ensure absolute safety when connecting the circuit.

- Avoid installing the control circuit in damp or high humidity environments. All electronic components, not just the control circuit board, can be affected by moisture, reducing their durability. Therefore, installations should be carried out in dry areas.

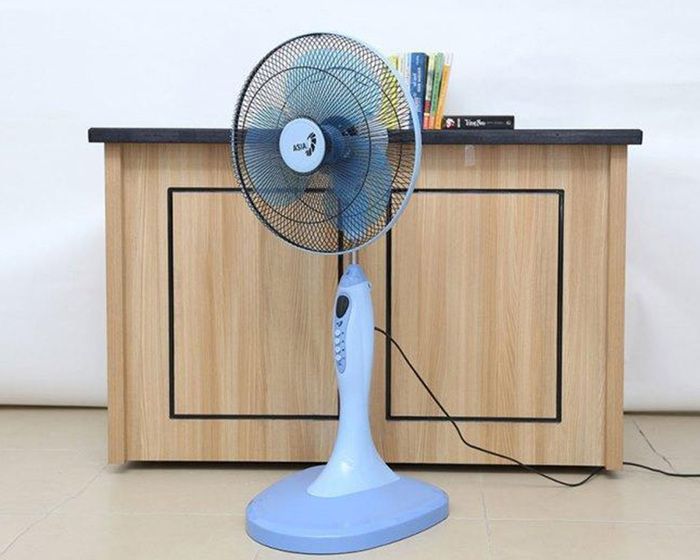

Some Safety Precautions When Installing Remote Control Circuit for Your Fan

- Ensure accurate positioning of the connections to avoid electrical short circuits, fan fires, or potential damage to the device.

- After installation, double-check to ensure the fan is functioning properly. If there are any issues, they can be addressed promptly.

- Handling the remote control should also be done with care. Avoid careless handling or excessive button pressing, as it can damage the control circuitry and the fan. Especially in households with small children prone to curiosity, keep the remote out of their reach.

Above are instructions on how to install a remote control circuit for your fan, which you can refer to. Hopefully, through this article, you will gain valuable insights and successfully apply the provided instructions to transform your ordinary fan into a remote-controlled one with ease!
