Efficient and Accurate Embedding of Excel into CAD

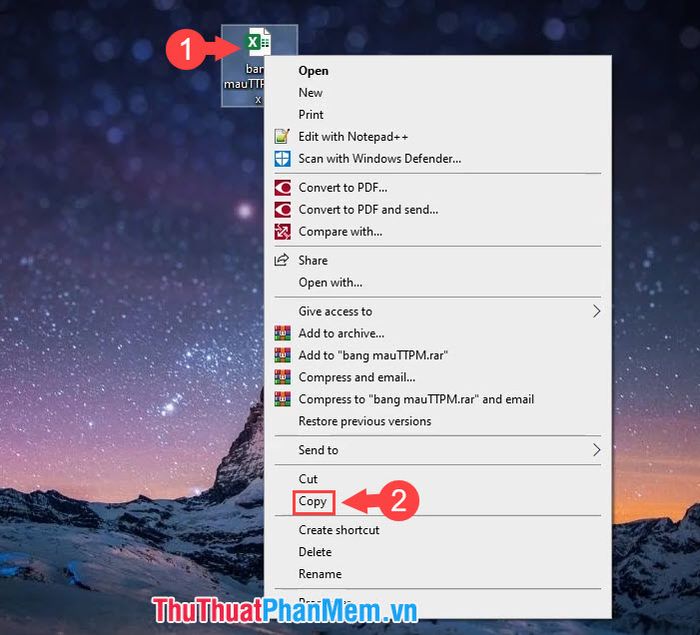

Step 1: Right-click on the Excel file you want to insert (1) and select Copy (2).

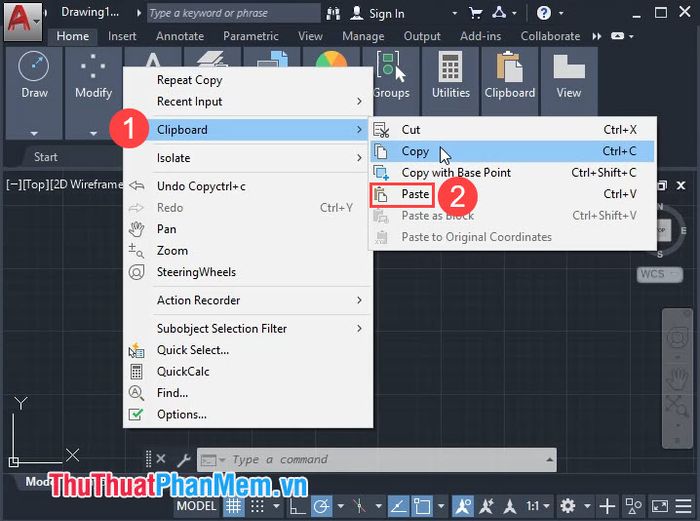

Step 2: Open AutoCAD and right-click on the workspace => choose Clipboard (1) => Paste (2).

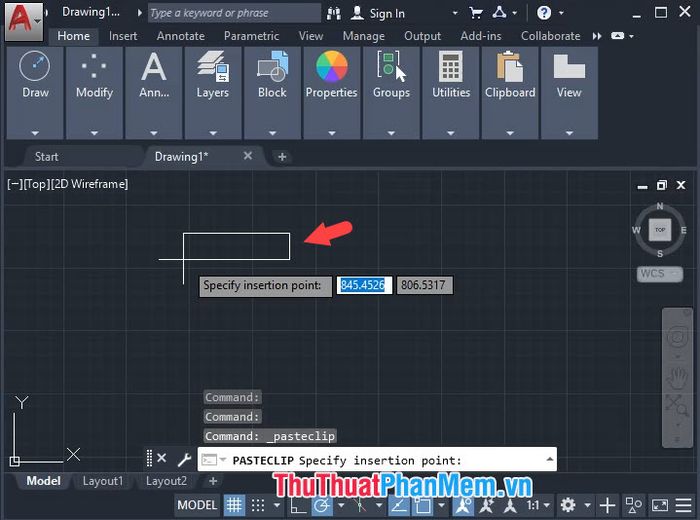

Step 3: Left-click and create a table area to insert data from Excel.

Step 4:

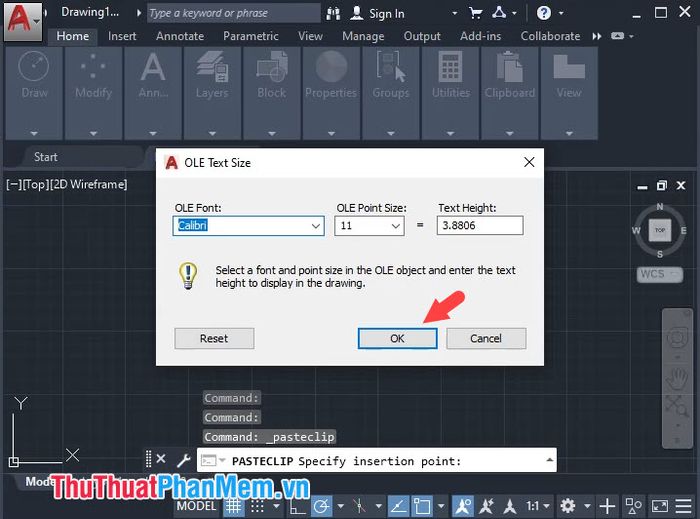

Once the notification window appears, click OK to finish.

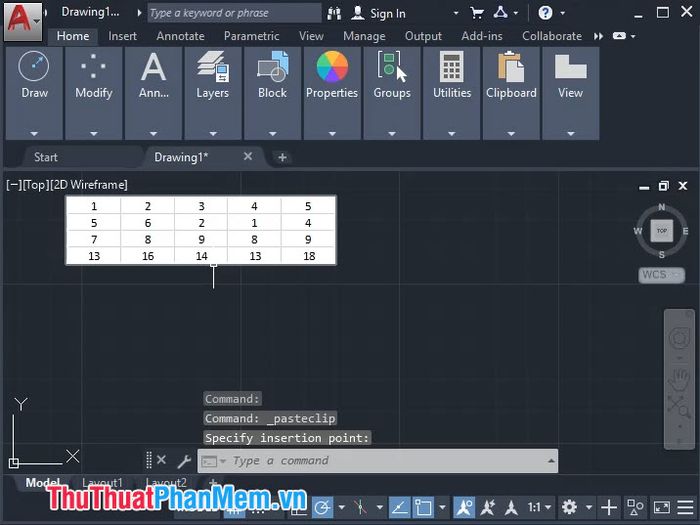

Finally, we have successfully integrated the complete Excel sheet into AutoCAD as shown below.

2. Inserting Excel into AutoCAD using Data link

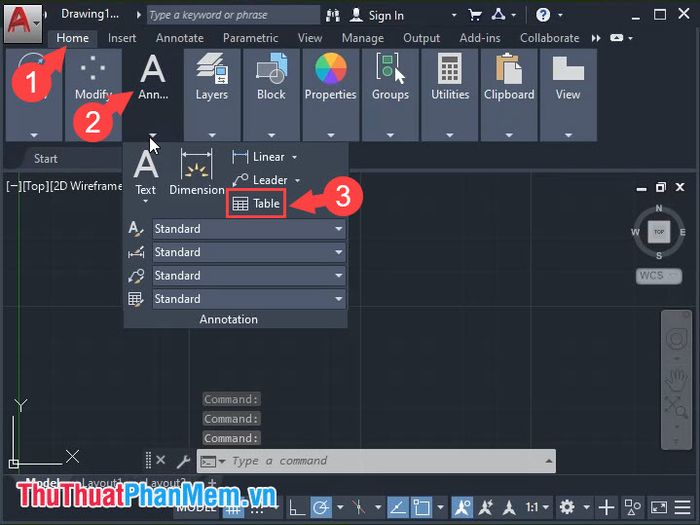

Step 1: Click on the Home (1) tab => select the letter A icon (2) => Table (3).

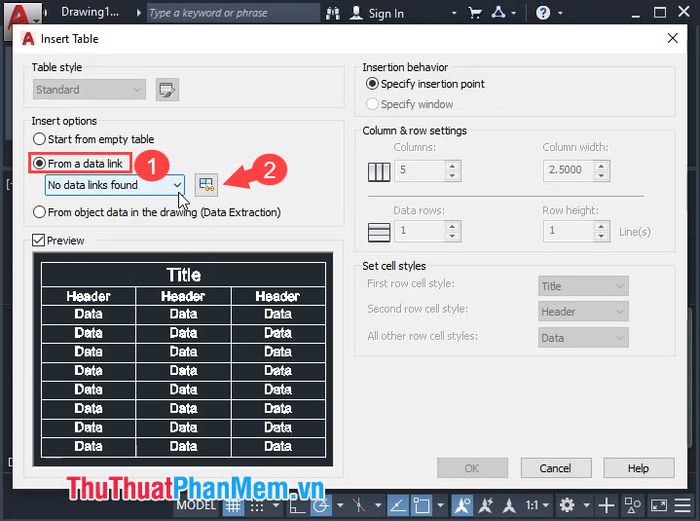

Step 2: Choose From a data link (1) => Click on the Browser icon (2).

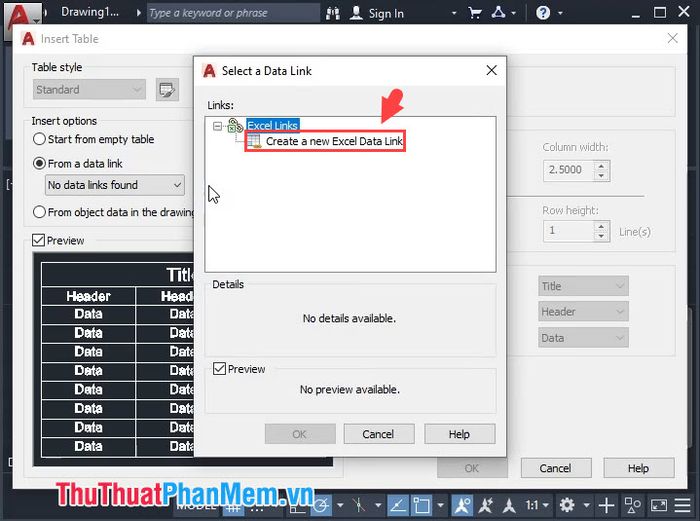

Step 3: Next, click on the Create a new Excel Data Link section.

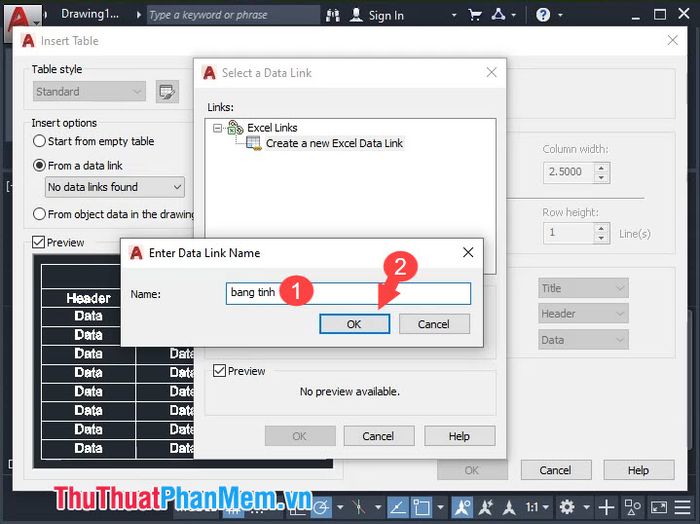

Step 4: Name your Data link (1) and press OK (2).

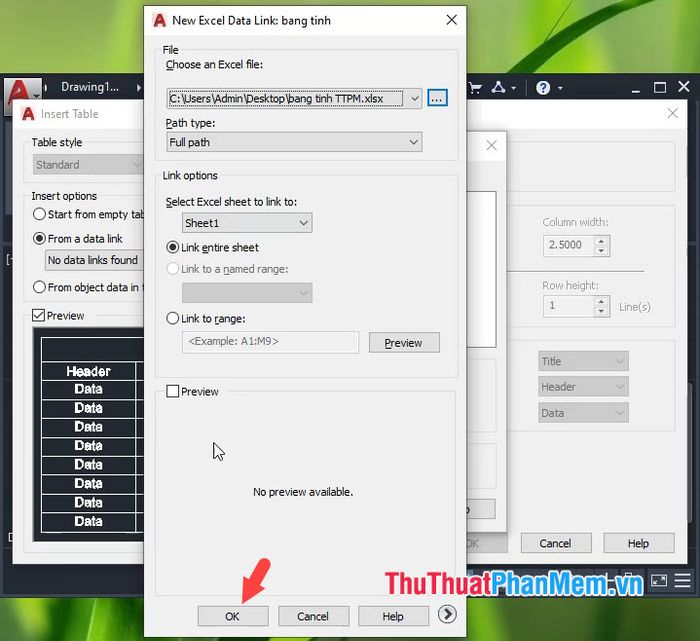

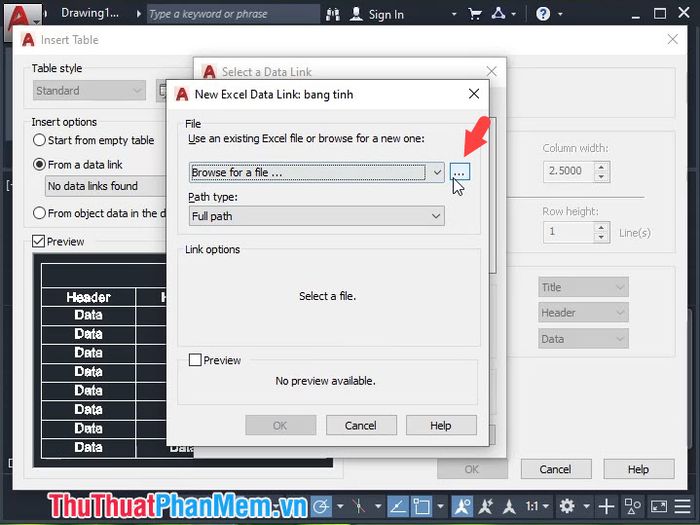

Step 5: A new dialog box will appear, click on the Browse button to open the Excel file from your computer.

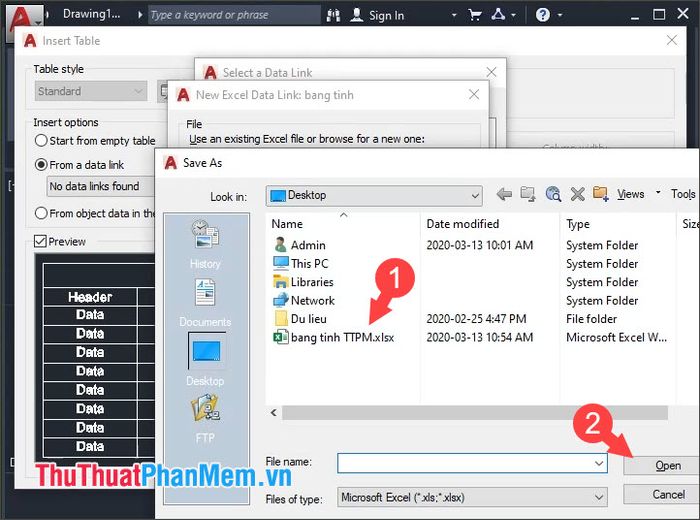

Then, select the Excel file you want to insert (1) => Open (2).

With insights on swiftly and accurately embedding Excel into CAD, we can effortlessly calculate and bring data onto CAD in the most precise and aesthetically pleasing manner. Wishing you all success!
