Expert Guide: Properly Balancing Your Refrigerator's Cable

Balancing a refrigerator cable demands a high level of expertise and technical skills. Here, Mytour Supermarket presents you with the precise method of balancing refrigerator cables through the following article.

Expert Guide: Properly Balancing Your Refrigerator's Cable

Balancing refrigerator cables involves measuring the compression force of the compressor when installed in the piping system. This is a fairly complex technique, requiring high technical expertise to execute. Improper execution can lead to increased power consumption and decreased cooling efficiency of the refrigerator.

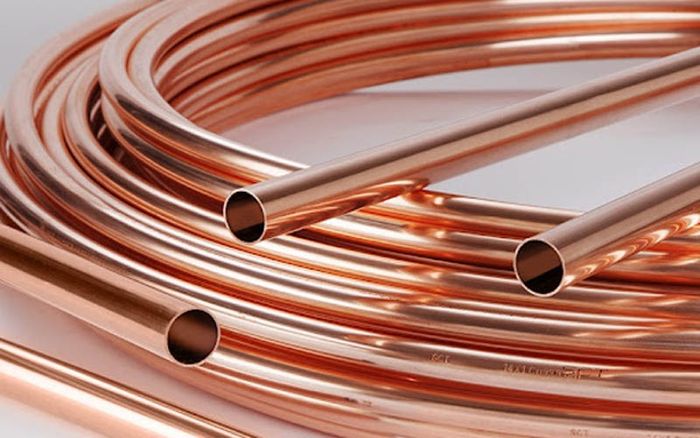

Refrigerator Cable

You should consider and apply cable balancing techniques when:

+ Replacing the refrigerator block for more efficient operation of the device.

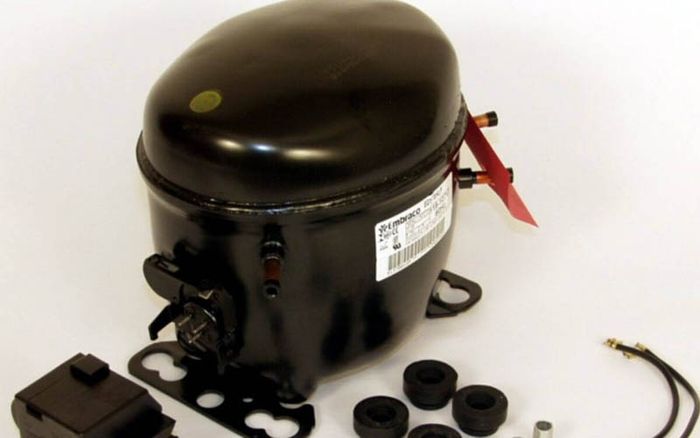

Rebalancing Refrigerator Cable when Replacing a New Block

+ Replacing the refrigerator cable due to blockage in the old one.

There are 2 methods to measure refrigerator cables, you can refer to them as follows:

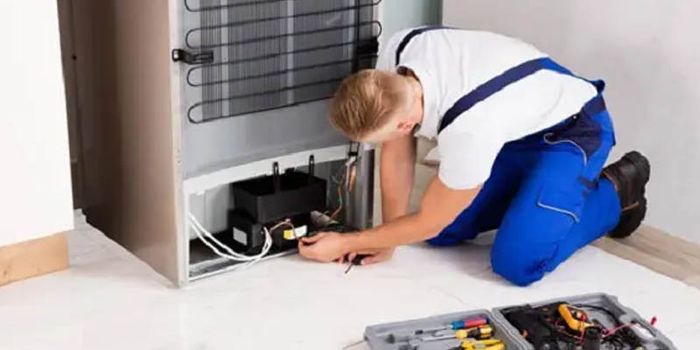

There are 2 methods to measure refrigerator cables

Step 1: Use a fin head with a dual design, one welded to the cable and the other welded to the refrigerant charging valve.

Step 2: Connect the piping system to the fin and the push head of the block. Then, proceed to install the pressure gauge before the fin.

Step 3: Let the suction head of the block suck air freely, and leave the other end of the piping system free.

Step 4: Allow the block to operate and the pressure gauge needle will increase to a certain value. At this point, the highest value is called P1, which is the resistance of the piping system.

+ If P1 is low, you need to connect additional piping to increase resistance.

+ On the contrary, you trim down the piping system.

Step 1: Install the piping system into the completed system, ensuring the length of the piping system follows the predetermined value and includes additional reserve length.

Step 2: Install the pressure gauge before the filter fin to measure the air resistance.

Step 3: Allow the charging tube to be freely in the air.

Note:

Balancing refrigerator cables is quite complex, requiring high technical expertise. Therefore, you should not attempt it at home for safety reasons.

The information in this article helps you understand more about the technique of properly and accurately installing cable balancing for refrigerators.
