Fine-Tuning Equalizer (EQ) for the Ultimate Audio Experience

EQ utilizes multiple electronic filters, sound-shaping frequencies by boosting or cutting signals across various ranges. You can control these filters through an array of buttons, knobs, and sliders. EQ filters out noise, frequency-balancing enhances sound perfection, offering you the best music experience possible.

EQ can be found in many music devices like mp3 players, smartphones, wireless speakers, and even online streaming services like Spotify. However, understanding how EQ works and using it effectively is not a simple task.

2. Why Adjust the Equalizer?

Electronic device manufacturers have their own ideas about how sound should be heard. However, you can entirely adjust the sound to your liking. Equalizer helps you hear music better in noisy environments or rooms with unwanted echoes. EQ also helps eliminate hum if your speaker is in such a condition.

With EQ, you can balance the sound frequency, cut unnecessary frequencies, or add missing ones. Adjust the sound to suit preferences like boosting or reducing bass or treble, making it warmer, brighter, suitable for various music genres such as Rock, Pop, EDM, and more.

3. A Brief Overview of How Equalizer Works

As mentioned earlier, EQ is a sound frequency balancing device. Initially used in recording studios, it later became widely adopted. Whether sliders or digital techniques, EQ is utilized to adjust various audio elements for the most captivating final outcome that appeals to the listener.

You can pair EQ with effects like reverb, echo, or popular preset EQ settings like Rock, Jazz, Pop, or concert hall music. Alternatively, manually fine-tune to achieve the best results. When used correctly, EQ can smooth out the sound by slightly adjusting parameters like bass, treble, and more.

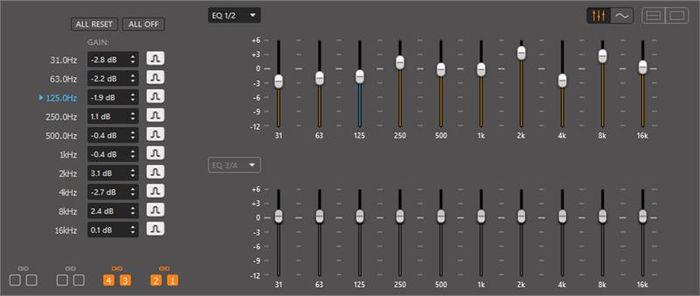

The frequencies on the EQ device resemble a chart, sliders arranged from left to right allow you to adjust specific frequency ranges up or down along the decibel scale (dB). Low-frequency starts on the left, with mid-frequency in the middle and high-frequency on the right (similar to a piano).

4. How to Adjust Equalizer

Fundamental Concepts

FREQUENCIES - Sound frequencies

All sound is essentially the movement of vibrations that we can imagine when waves travel up and down at different speeds or frequencies. The faster the wave oscillates, the higher the sound intensity. For instance, bass frequencies, like those heard in hip-hop music, oscillate very slowly. Higher frequencies, such as treble sounds like the tinkling of a triangle wave, vibrate rapidly.

The amplitude of sound is measured in hertz (Hz). Hertz represents the number of wave cycles oscillating in 1 second. If a wave moves up and down 50 times in a second, it is represented as 50Hz.

In theoretical limits, a human can hear from 20Hz to 20kHz (20,000 cycles). However, in reality, most people can hear in the range of 15kHz or 16kHz. The older you get, the less you hear high treble sounds.

DECIBELS (dB) - Loudness

Decibel (dB) is the unit used to express the loudness of sound. When you move a slider up or down on the EQ, you are increasing or decreasing the volume of that frequency. Even a slight volume adjustment can affect sound quality, so be cautious and slow when adjusting decibel levels. It's best to start adjusting from 1 dB to 2 dB, moving and perceiving sound changes to fine-tune accordingly.

Only a small volume adjustment can impact sound quality, so be cautious and slow when adjusting decibel levels. Start adjusting from 1 dB to 2 dB, moving and perceiving sound changes to fine-tune accordingly. Take care not to make abrupt changes to avoid compromising audio quality.

Decibels use a logarithmic scale, and a change of just 5 dB or 10 dB can significantly increase or decrease a specific frequency range.

Adjusting the Equalizer

EQ PRESETS

These are pre-set configurations that allow users to customize sound for different music genres like 'Rock' or 'Jazz' with just a button press, eliminating the need to alter frequencies manually.

While presets may not deliver the most precise sound results you desire, they are useful for beginners learning how to adjust EQ. You can start with these presets and then fine-tune as per your preference.

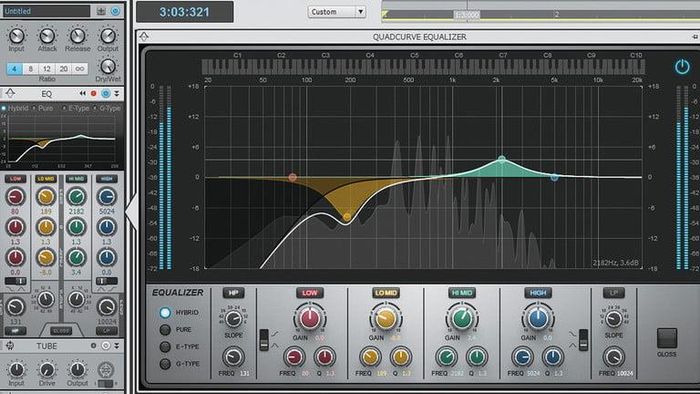

PARAMETRIC EQ

PARAMETRIC EQ is a rather intricate and complex function, often used for recording and mixing in professional audio setups. However, it occasionally appears in applications designed for speakers or headphones.

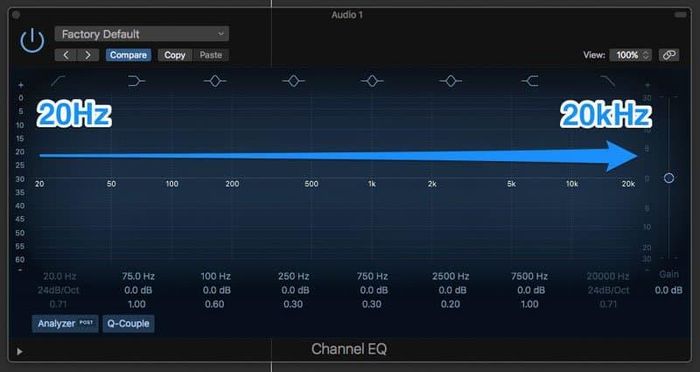

PARAMETRIC EQ includes frequency ranges from 20Hz to 20kHz with five to seven adjustable control points placed along the frequency spectrum. Each point is displayed along the X/Y axis, where the vertical axis represents sound intensity (in decibels), and the horizontal axis represents frequency.

Q Value

Each point on the EQ has three adjustable values: the main frequency, boost or cut of the frequency, and the bandwidth of the frequency. Collectively, these three values are referred to as Q.

- Main frequency: This is the frequency you want to adjust. Rotate the knob or slide the fader up and down to increase or decrease the frequency (in decibels) to the precise position you choose for the desired effect.

- Bandwidth or Q (Bandwidth) is the width of the frequency. As Q increases, the frequencies around it become stronger, and vice versa.

LowPass (hi-cut):

Used to filter out high-frequency sounds, allowing only low-frequency sounds to pass at the selected point.

High-Pass (low-cut)

Used to filter out low-frequency sounds, allowing only high-frequency sounds to pass at the selected point.

Shelving filter (multi-band filter)

Shelving filter has the capability to increase or decrease the signal intensity of a frequency over a wide range across multiple bands.

The operating mechanism of the Shelving Filter doesn't immediately increase or decrease the signal; instead, it gradually adjusts the level to the required amount and then transitions to a straight line.

Low shelf

All frequency ranges to the right of the selected point (low-frequency range) will increase/decrease in intensity.

Hi shelf

All frequency ranges to the left of the selected point (high-frequency range) will increase/decrease in intensity.

Peaking Filter

This adjustment allows detailed and precise cutting/boosting (in peak form) at the selected point, minimizing the impact on surrounding frequencies. Note that the Peaking Filter only intervenes at the selected point in peak form, so its range of influence is relatively narrow.

Band Pass Filter

This is a specialized form of the Peaking Filter designed to boost frequencies in a wide range.

Notch Filter

Similar to the Band Pass Filter but primarily used to filter out/reduce frequencies.

Common Frequency Ranges

Sub-bass: 20Hz - 50Hz

To initiate Equalizer adjustments, familiarize yourself by sliding the sliders up or down and listening to the emitted sound. You may notice that small adjustments can have a significant impact on the music you're playing.

- Increase to add richness to low-frequency instruments.

- Decrease to reduce the 'boomy' bass, enhance clarity, and make the bass stand out in the mix, often done with a prominent Bass in Rock music.

Following advice from professional sound engineers, it's recommended to decrease the frequency first. You may find that it takes a while after adjustments to perceive the results.

Bass: 50Hz - 200Hz

Sound types encompass drum beats, bass guitar, falling within this frequency range. When boosted above 200Hz, you'll perceive higher-pitched sounds like acoustic guitar, piano, and vocals.

Additionally, we have higher frequency ranges such as mid-bass (200Hz to 800Hz), midrange (500Hz to 6kHz), and high-frequency (6kHz to 20kHz).
