1. Preparation Steps and Installing Panasonic Ceiling Fan
Prepare all components of the fan:
- Fan blades
- Assemblable motor
- 2 protective cover pieces
- Rubber tube with bamboo stick
- A set of household tools including:
- Screwdriver
- Wire stripper
- Drill set
- Fan hanging frame (usually installed on the ceiling during house construction)
- Ladder and safety glasses to protect your eyes
Note:
- When assembling, pay attention to the surface and assemble the parts gently to avoid scratching the fan components.
- As ceiling fans need to be installed at a height, it is essential to prepare the steps beforehand to avoid complications during installation.
2. Steps to Install Ceiling Fan
Step 1: First, carefully read the Panasonic ceiling fan installation instructions.
Even if you have been guided on how to connect a Panasonic ceiling fan, we advise you to read the manufacturer's instructions again to understand the rules better.
Step 2: Attach the electrical box to the fan hanging bracket.
Secure the electrical box and fan bracket together using screws and cushions.
Step 3: Prepare the Power Source
This power source is usually installed during house construction for aesthetic purposes.
Step 4: Wiring the Panasonic Ceiling Fan
Thread the motor's electrical wire through the hanging rod and insert the rod into the fan motor box. Attach the rod with positioning screws and connecting rod, then tighten securely.
Step 5: Install the Fan Blades
Start by removing the screws from the fan motor box, then carefully attach the fan blades one by one to the spots where the screws were removed. Pay attention to the careful installation of the blades to avoid friction that may scratch them. Tighten the screws to prevent the blades from falling, then attach the fan tip.
3. Wiring the Panasonic Ceiling Fan

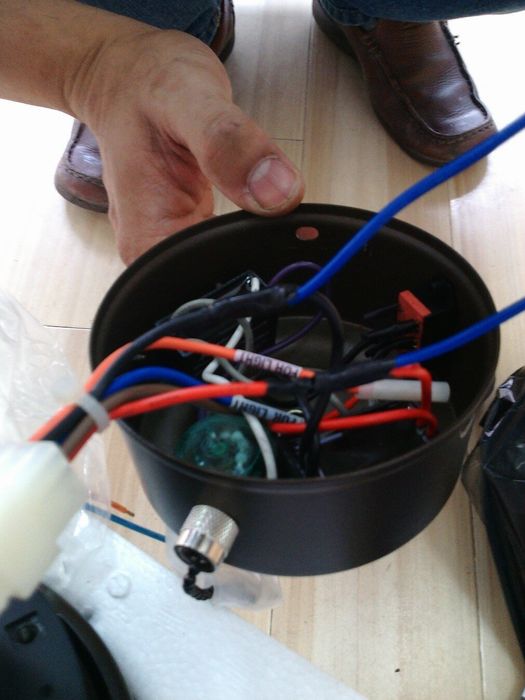

After preparing all the installation steps and equipment, proceed to wire the Panasonic ceiling fan. Thread the motor's electrical wires up the pre-prepared hanging rod on the ceiling. Note that all electrical wires must pass through the holes in the hanging rod.

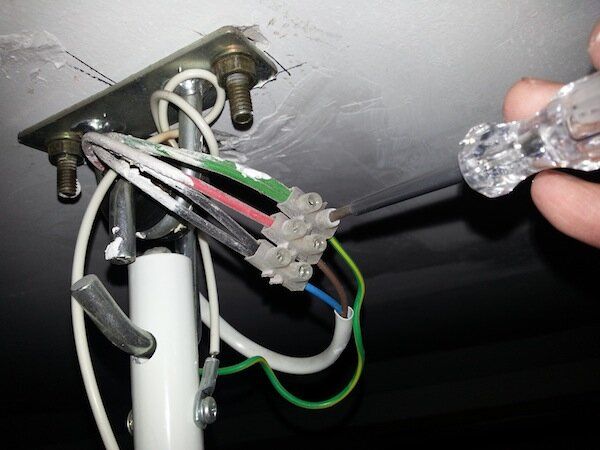

When wiring, note that the fan usually has 3 wires: cool wire (usually green or white). hot wire (usually red or pink), and neutral wire (usually light blue or sky blue). Connect the wires to the hot and neutral wires and leave the cool wire as is.
Carefully install and assemble the motor with bolts to avoid breaking screws or belts. Push the pin through the holes in the bolt, if the bolt is already on the hanging rod, remove it by placing 2 notches on the pin and pulling it out of the bolt, then remove it from the hanging rod.
Finally, hang the fan on the hanging rod on the ceiling and attach the bolt to ensure the ceiling fan is securely positioned on the ceiling to prevent it from falling during use.
4. Considerations when Wiring Panasonic Ceiling Fans

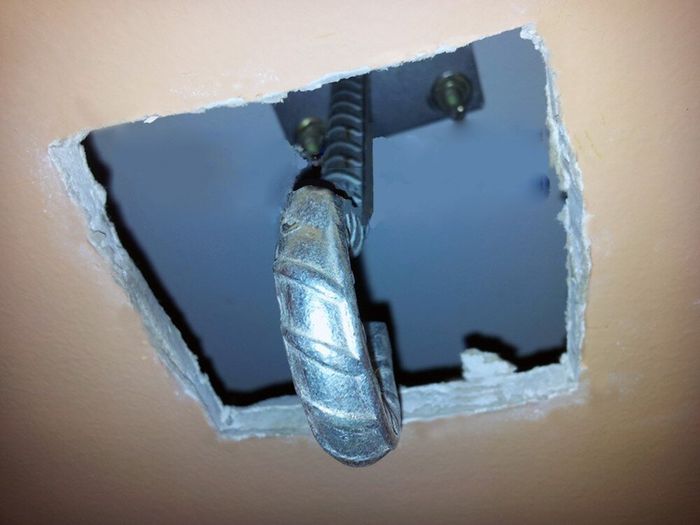

When there's no hanging bracket: The ceiling fan must be securely installed and anchored to the building structure or sturdy beams capable of bearing a minimum weight of 17kg. Refer to additional instructions on installing a ceiling fan without a hanging bracket to ensure accurate and safe installation.
Before wiring the ceiling fan, carefully check whether the power source has been turned off.
Hang the fan high enough to avoid danger to those around, with a minimum distance from the fan blades to the floor of 2.2m. For added safety, install the fan approximately 3 to 3.5m from the ceiling.
Read the Panasonic ceiling fan wiring instructions thoroughly to avoid incorrect installation, which could waste time or even damage the fan.
Avoid interfering with or modifying details on the fan, such as the manufacturer's hanging hooks, as it may cause damage and impact the quality, posing a danger to users.
Embarking on the journey of installing a ceiling fan at home can lead to substantial cost savings on technician services, especially after you've invested in a high-quality ceiling fan. In the hope that, following this tutorial on how to install a Panasonic ceiling fan from Mytour, readers will successfully undertake and personally assemble and install the ceiling fan for their beloved home.
