The Panasonic S-1821PT3H-8/U-21PR1H5 is a ceiling-mounted air conditioner with a capacity of 21000 BTU. With modern technology and a compact design ensuring aesthetic appeal, this model is widely used in rooms ranging from 30 – 35m2. After a period of use, it needs cleaning and maintenance to ensure stable and efficient operation. So how do you clean the Panasonic S-1821PT3H-8/U-21PR1H5 ceiling-mounted air conditioner at home? Let's find out with Mytour.vn!
1. Tools Needed for Cleaning Panasonic S-1821PT3H-8/U-21PR1H5 Air Conditioner

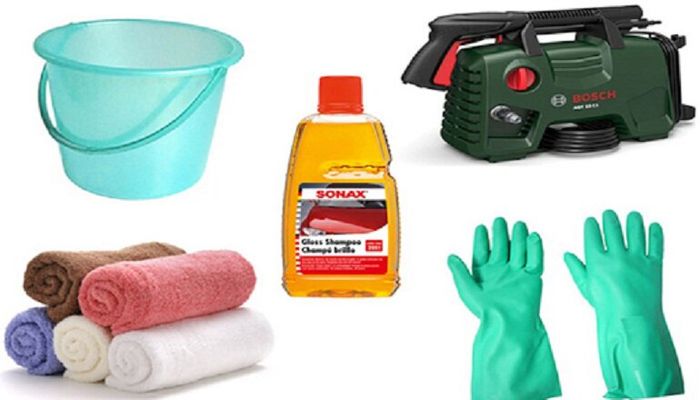

To perform cleaning and maintenance of the Panasonic 21000 BTU S-1821PT3H-8/U-21PR1H5 ceiling-mounted air conditioner, you need to prepare some tools and equipment:
1. High-pressure water pump with a nozzle for deep cleaning
2. Large-sized tarp or nylon bag to collect water during air conditioner cleaning
3. Air conditioner cleaning solution and water container
4. Ladder
5. Specialized tool bag: screwdriver, wrench, pressure gauge, etc.
6. Air blower
7. Clean cloth or wiping rag
2. Standard Procedure for Cleaning Panasonic S-1821PT3H-8/U-21PR1H5 Air Conditioner
For cleaning/maintaining the Panasonic 21000 BTU S-1821PT3H-8/U-21PR1H5 air conditioner, it is necessary to clean two main parts: the condenser and the evaporator.
2.1. Cleaning the Evaporator Coil S-1821PT3H-8
To clean the evaporator coil correctly and safely, follow these 8 steps:

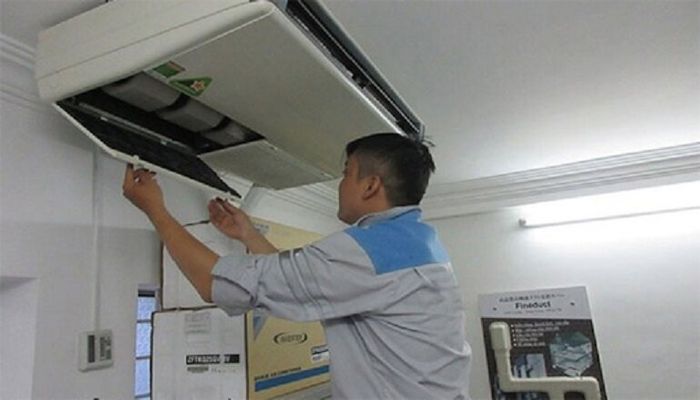

Step 1: Disconnect the power supply to the air conditioner to ensure safety. After turning off the unit, wait for more than 2 minutes before using a screwdriver to remove the machine cover. Note: Use a nylon bag to cover the signal receiver and control panel to prevent water from entering and damaging the circuit.
Step 2: Remove and clean the air conditioner's drain pipe. You can mix water with dish soap to clean the drain pipe. When cleaning, avoid using a sprayer as it may damage the insulation foam.
Step 3: Remove the fan blades of the air conditioner's evaporator to clean. Then, use oil to lubricate the motor.
Step 4: Use a blower to clean the machine's control panel.
Step 5: Use a large tarp or nylon bag to cover the cold surface of the air conditioner to minimize water splashing during cleaning. Next, adjust the pressure of the high-pressure water pump accordingly and proceed to clean the evaporator coil.
Step 6: During spraying, be sure to spray in a downward direction, absolutely not horizontally, as it may dent the cooling fins of the air conditioner. Also, rinse both inside and outside of the unit.
Step 7: Clean the water drain path of the machine. Thoroughly clean and be cautious as this part is prone to accumulation of dirt and debris.
Step 8: Use a dry cloth to wipe the disassembled parts and then reassemble them into the machine as they were originally.
2.2. Guide on cleaning the outdoor unit U-21PR1H5
When cleaning the outdoor unit, follow these 6 steps:
Step 1: Clean the area around the outdoor unit
Step 2: Remove the outer cover, then use a nylon bag to cover the control and start-up panel of the machine.
Step 3: Use a high-pressure water pump to spray-clean both the inside and outside of the outdoor unit. Note: Spray in a downward direction to minimize the risk of bending the cooling fins.
Step 4: Remove the fan for cleaning and lubricate the fan motor.
Step 5: Check the signal plugs and power cables of the air conditioner.
Step 6: Dry the components and reinstall them into their original positions.
3. Important Notes for Cleaning Panasonic 21000BTU S-1821PT3H-8/U-21PR1H5 Air Conditioner
To ensure the ceiling-mounted air conditioner operates smoothly, performs well, and has a long lifespan, consider the following:
- Cleaning Frequency: Perform regularly, every 3-6 months, based on usage needs.
- During cleaning, cover the control circuit boards to minimize water splashing and circuit damage.
- Before maintenance, turn off the air conditioner 30-60 minutes in advance to prevent components from overheating.
- Choose a suitable, odorless, and non-toxic air conditioner cleaning solution.
Here is a detailed guide on how to clean the Panasonic S-1821PT3H-8/U-21PR1H5 air conditioner. We hope this article from Mytour.vn helps you use the ceiling-mounted air conditioner efficiently and effectively.
