Guide on Wiring Ceiling Fan Gearbox Safely and Easily

Grasping the Overview of Ceiling Fan Gearbox Structure and Operation Principles Helps You Easily Perform Electrical Wiring Tasks:

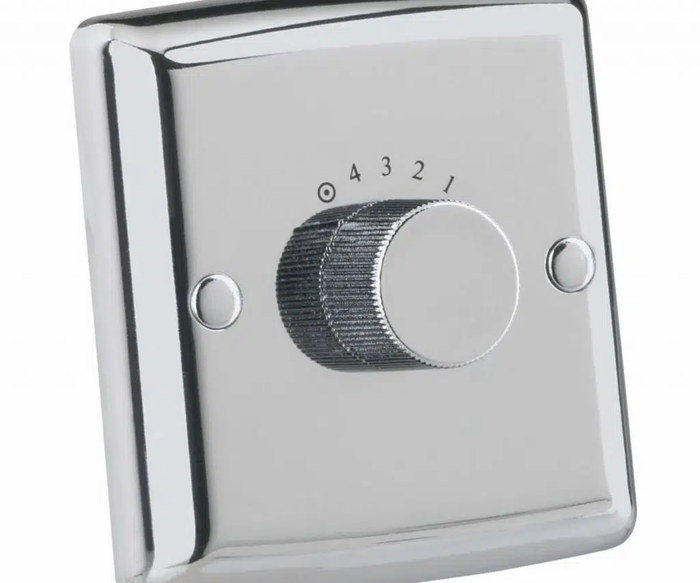

Ceiling fan gearboxes are commonly used to adjust the rotation speed of ceiling fans. They are designed as compact modular units that can be easily installed and removed, comprising:

       + The outer shell with a twist knob or lever attached to a sweep bar supporting two resistive elements to increase or decrease the fan rotation speed.

       + The inner part consists of a speed control mechanism, motor system, assembly unit, and cylindrical tubes.

The gearbox is designed as a compact modular unit with two main parts that can be easily installed and removed.

The gearbox operates based on the principle that the number of wire loops changes when resistance runs through, leading to varying current intensity passing through the fan rotor. Thus, the fan blades and rotation speed generate either strong or gentle airflow depending on the speed of the motor inside adjusted by the gearbox. According to this operating principle, you can adjust the ceiling fan speed to meet usage needs.

To wire a ceiling fan switch safely, you need to understand the basic electrical wiring diagram as follows:

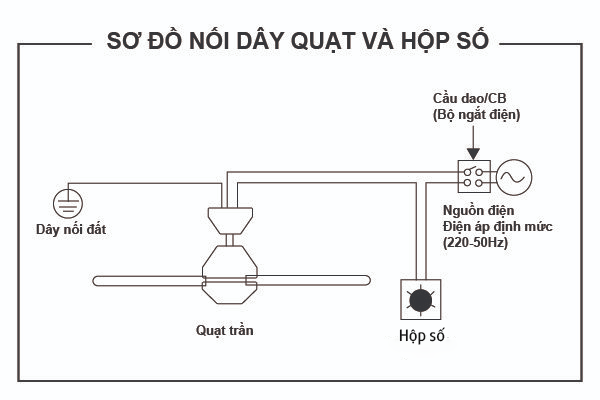

Refer to the wiring diagram of the fan and gearbox for proper and safe installation.

To ensure safety and avoid unexpected situations, make sure to completely shut off the power at the ceiling fan gearbox installation location. It's best to use a voltage tester to check beforehand. Here's the basic wiring guide for the ceiling fan, step by step:

Step 1: Determine the size of the ceiling fan gearbox and mark the desired installation position to ensure a snug fit and aesthetic appeal.

Place the gearbox against the wall to mark the suitable position before wiring.

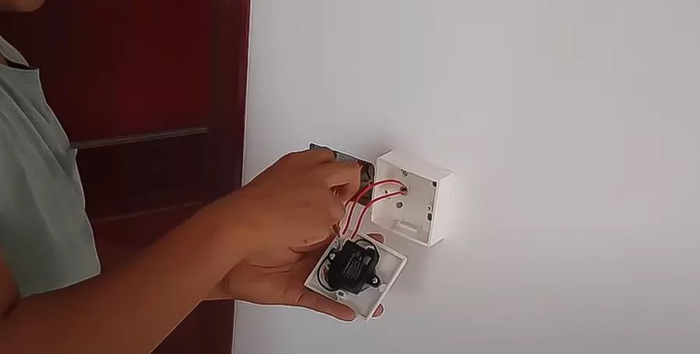

Step 2: Loosen the screws on the gearbox, then open the cover and remove the gearbox from the base. To prevent screws from getting lost, store these accessories in a small box.

Take the gearbox out of the base and keep the screws separately in place.

Step 3: Connect the wires from the house power and leads from the motor unit through the hole in the gearbox base.

Connect the wires from the house power and leads from the gearbox motor.

Step 4: Mount the ceiling fan gearbox on the wall at the marked position from step 1. Be cautious when tightening screws to avoid the gearbox loosening and falling off the wall.

Tighten the screws firmly to secure the position of the gearbox on the wall.

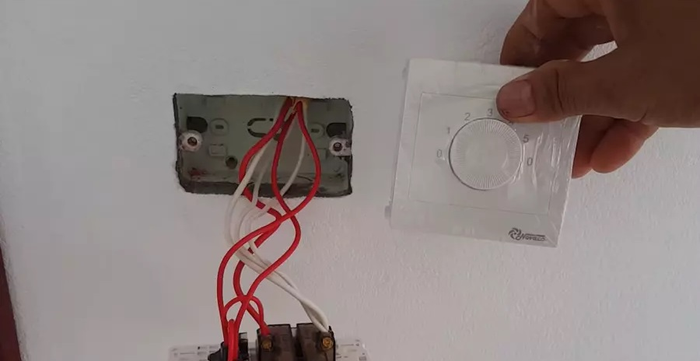

Step 5: After the ceiling fan gearbox is mounted on the wall, proceed to connect the power wires and leads to the connection ports of the gearbox.

Step 6: Once the gearbox installation is complete, test the fan speed adjustment on the gearbox.

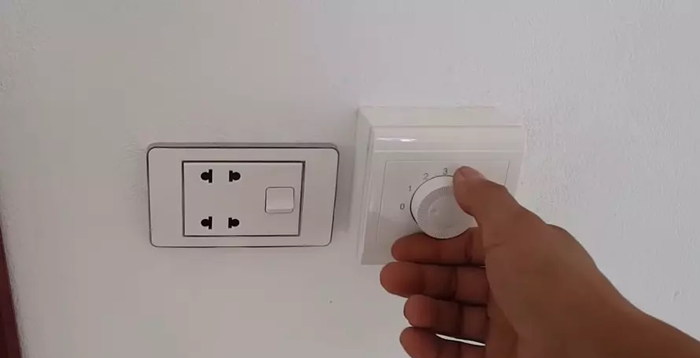

Check if you have wired the ceiling fan gearbox correctly by trying to turn the speed control knob to see if the fan starts correctly.

During the process of wiring the ceiling fan gearbox, pay attention to the following points:

       + Ensure to tighten the screws firmly to securely fix the gearbox on the wall.

       + Electrical connections should be made according to the operational principles and wiring diagram to avoid electrical short circuits.

Above is the guide on how to wire the ceiling fan gearbox. Hopefully, this can help you install the electric fan correctly, safely, and have the desired user experience!
