Guide to Operating the Sony MHC-M60D Audio System

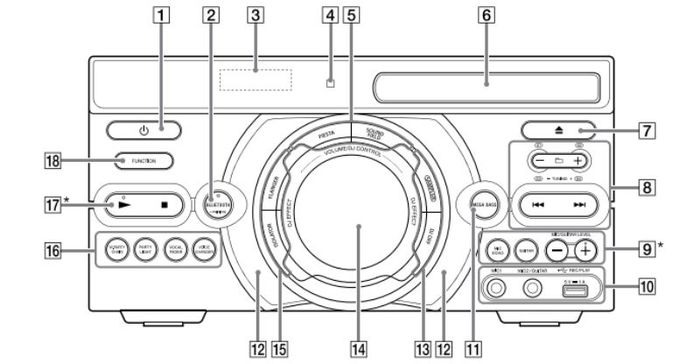

Front Panel Control System of Sony MHC-M60C Sound System

1: Power button

2: Bluetooth button / PAIRING button

3: LED screen

4: Remote sensor

5: FIESTA/SOUND FIELD

6: Disc tray

7: Open/close disc tray button

8: Folder selection button (+/-) and fast forward/rewind button (⏮/⏭)

9: Mic Echo/guitar/Mic guitar Level adjustment button

10: Microphone input and USB port

11: Mega Bass

12: Illuminator (note: avoid direct eye contact with the light)

13: Groove Engine OFF

14: Volume Adjuster Knob

15: Sonic Modulator/Equalizer

16: Party Chain Speaker System with Disco Lights and Football Mode

17: Pause and Play Feature

18: Multifunctional Capability

Apart from adjusting the Sony MHC-M60D sound system using the built-in function buttons on the main unit, you can also utilize the accompanying remote control. The remote control of the MHC-M60D features the following buttons:

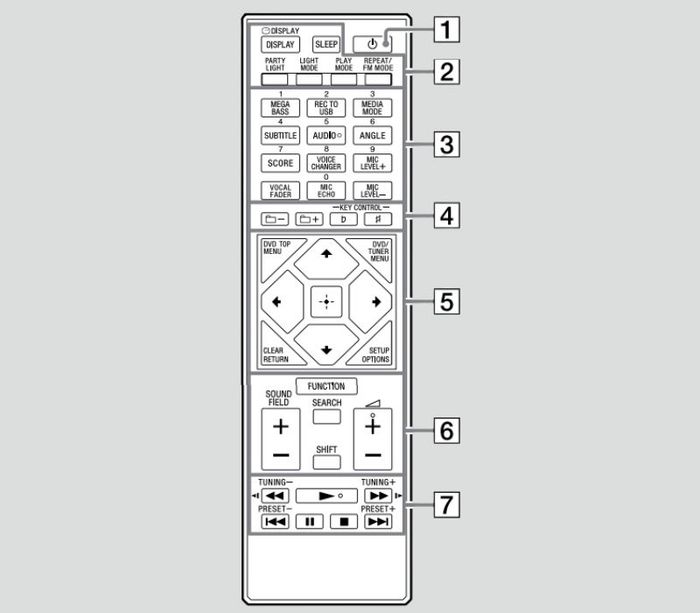

Functional buttons on the accompanying remote of MHC-M60C

1: Power Button

2: Set of buttons for DISPLAY/SLEEP/PARTY LIGHT/LIGHT MODE/PLAY MODE/REPEAT/FM MODE

3: Number buttons 0-9 used for selecting a track, chapter, or file with corresponding values; system of buttons including MEGA BASS/REC TO USB/MEDIA MODE/SUBTITLE/AUDIO/ANGLE/SCORE/VOICE CHANGER/MIC LEVEL +/–/VOCAL FADER/MIC ECHO

4: +/- used for selecting folders on the data disc or from USB; KEY CONTROL button

5: System of buttons: DVD TOP MENU/DVD/TUNER MENU/CLEAR RETURN/SETUP OPTIONS/Up/Down/Left/Right navigation

6: System of buttons: FUNCTION/SOUND FIELD +/– /SEARCH/SHIFT

7: Control button system: Fast rewind/Fast forward/Slow rewind/Slow forward/Pause/Stop/Play

Connect Sony MHC-M60C sound system with Sony smartphone

To establish a connection between the Sony MHC-M60D sound system and devices such as smartphones, tablets, etc. (hereinafter referred to as Bluetooth devices) via Bluetooth protocol, we perform the following steps:

Step 1: Place the Bluetooth device within 1 meter range of the audio system.

Step 2: Press the Function button on the audio system to select Bluetooth mode.

Step 3: Press and hold the PAIRING button until the PAIRING LED flashes.

Step 4: Enable Bluetooth on the Bluetooth device and select the speaker name for pairing.

*** Note: All actions in step 4 must be completed within 5 minutes; after 5 minutes, pairing cannot be performed. In this case, repeat from step 3.

To cancel pairing, press and hold the PAIRING button until the LED screen displays 'BT AUDIO'.

Adjusting Sound on Sony MHC-M60C

Here are some simple functions you can perform with the function buttons on the control panel of the MHC-M60C audio system:

- MEGA BASS (boosting bass for stronger sound): Press the MEGA BASS button repeatedly to select 'BASS ON' mode. To deactivate this sound mode, press the MEGA BASS button to select 'BASS OFF'.

- Fiesta (dimming party hall sound effects): Press the FIESTA button on the control panel. To cancel this mode, press the FIESTA button again.

- To select sound field: Press the SOUND FIELD +/– button (or SOUND FIELD) repeatedly to choose the sound effect you desire. To cancel the mode, press the SOUND FIELD +/– button (or SOUND FIELD) repeatedly to select 'FLAT'.

Using Sony MHC-M60C for Karaoke

Here are the steps for connection and adjustment before singing karaoke:

- Step 1: Press MIC LEVEL - to decrease the volume of the microphone before playing music.

- Step 2: Press the GUITAR button repeatedly to select OF.

- Step 3: Insert the microphone plug (6.3mm plug) into the MIC1 or MIC2/GUITAR input on the device.

- Step 4: Start playing music and adjust the microphone volume as needed. To adjust the echo effect, press the MIC ECHO button repeatedly.

- Step 5: Begin singing karaoke.

*** Note: If there's feedback while singing, move the microphone away from the device, change its direction, press MIC LEVEL - repeatedly, and adjust the echo for the microphone.

Electronics Supermarket - Furniture Market Cho Lon has provided you with some instructions on using the Sony MHC-M60D audio system to connect via Bluetooth, adjust sound modes, and set up for karaoke. Hopefully, this information will be helpful to you while using the Sony MHC-M60D audio system at home.
