ZenWiFi AX mini is ASUS's Wi-Fi 6 Mesh device targeting users who want to experience the strengths of the latest commercial Wi-Fi generation in their homes. In addition to its user-friendly setup, the ASUS AiMesh platform provides a myriad of features and convenient setup procedures, suitable for easy expansion or upgrading of the system with ASUS's diverse range of devices.
Wi-Fi 6 Mesh has gained popularity in recent years, providing a diverse choice for users. Many manufacturers offer various Wi-Fi Mesh solutions with simple and speedy setup. However, for those with a need to expand or customize with advanced features, choosing a Wi-Fi Mesh ecosystem becomes a crucial consideration.
Compact design, suitable for placement anywhere for versatile use
ZenWiFi AX mini and contemporary Wi-Fi Mesh Systems share a common trait of possessing a modern design. Observing closely, expanding Wi-Fi Mesh is as simple as placing the branch devices strategically, leading to increased emphasis on their aesthetics.

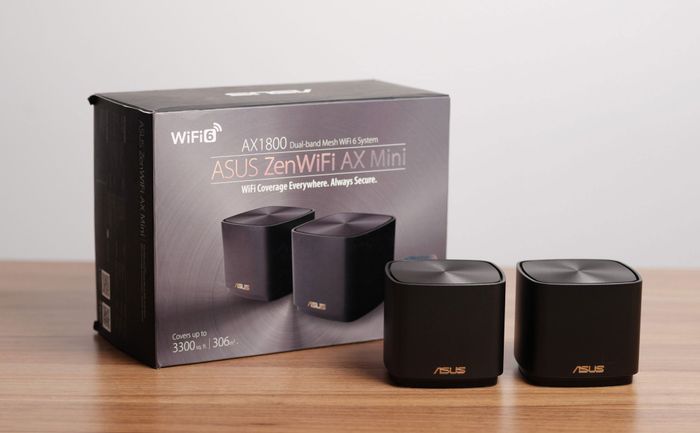

The sleek and lightweight design of ZenWiFi AX mini XD4 leaves an impression compared to its predecessor, AC CD6. The device features a compact, boxy design that fits right in the palm of your hand. In a suitable setup, concealing the network modem and using this ZenWiFi AX mini as the sole wireless system indoors creates an impressive networking solution.ZenWiFi AX mini XD4 offers a selection of 3 product bundles. In addition to the single-device option, more suitable choices for Mesh systems include the 2-device and 3-device bundles that come pre-connected. This setup caters to areas ranging from 200m² to 450m², accommodating 2 to 5 rooms, depending on the spatial configuration.

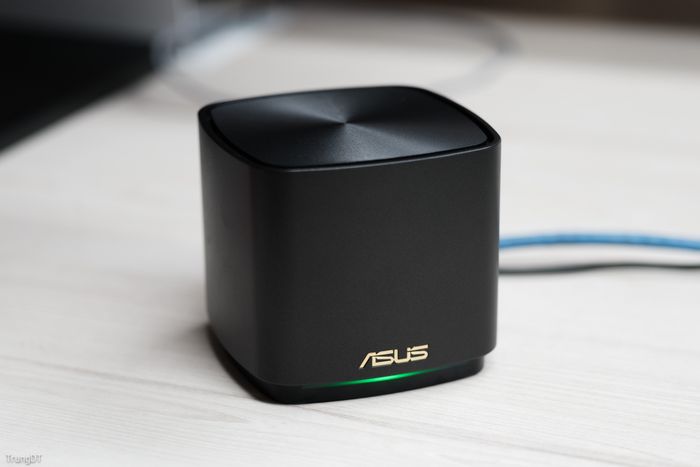

ASUS equips status indicator lights just below the logo placed at the bottom. Depending on the displayed colors, users can easily discern the status of the internet connection or how each branch device is functioning.
In terms of connectivity, ASUS ZenWiFi AX mini also features 2 Ethernet LAN ports at 1 GbE, similar to other products in the same segment. The WAN port on the branch device can play a role in connecting wired devices. The division of two WAN/LAN & LAN ports enhances convenience in various scenarios. For instance, if you want to set up a Mesh system using both Wireless LAN and LAN, this option is highly suitable.Optimal configuration for building a straightforward Wi-Fi 6 Mesh system from the outset
Wi-Fi 6 offers various bandwidth and frequency options to meet diverse usage needs. The ZenWiFi AX mini version from ASUS is configured with 802.11ax 5 GHz at 1,201 Mbps, along with 802.11ax at 574 Mbps, backward compatible with Wi-Fi 5 & 4. Wi-Fi 5 achieves a bandwidth of 867 Mbps, a common figure for most mid-range and high-end smartphones. Choosing AX1800 is fitting as it suits scenarios where users have a limited number of devices, averaging around 15 devices on a single router node.
Therefore, this system is ideal for stable deployment with network plans offering bandwidth under 300 Mbps. In such cases, we can fully leverage the Wi-Fi AC 867 Mbps or AX 1200 bandwidth.AiMesh Platform: Versatile, Easy Setup & Security Features

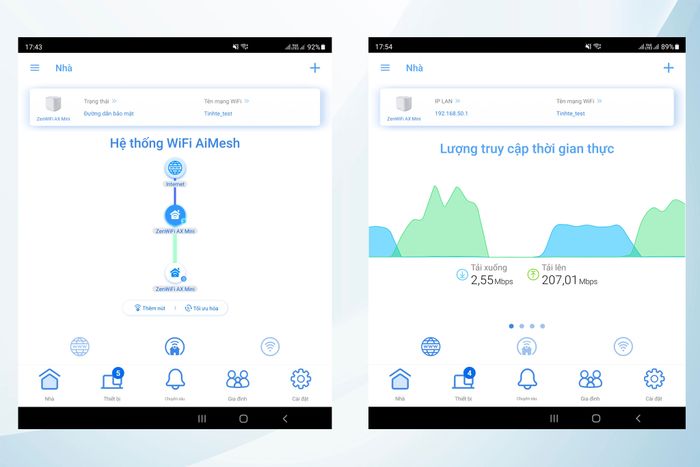

Each brand excels through competitive strengths thanks to independently developed software platforms. With internal hardware like Broadcom in ZenWiFi AX mini, ASUS enables upgrades and extensions not only within the ZenWiFi product line but also across their AiMesh-supported routers. For those moments when you need a more powerful central router, consider investing in a robust AiMesh router with detachable antennas and more LAN ports. In this scenario, ZenWiFi AX mini takes on the role of a satellite device. Setting up with the ASUS Router app is swiftly accomplished through user-friendly steps in Vietnamese. Accessing the original Wi-Fi name is done by scanning the QR code at the back. AiMesh also provides a tool to check if the signal node placements to the main router adequately meet usage needs.

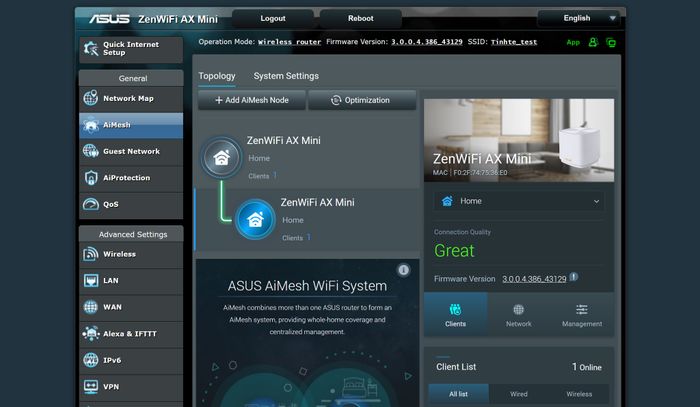

ZenWiFi's webUI interface mirrors ASUS's AiMesh router series, allowing seamless internet connectivity through various protocols, VPN support, and remote access via DDNS.

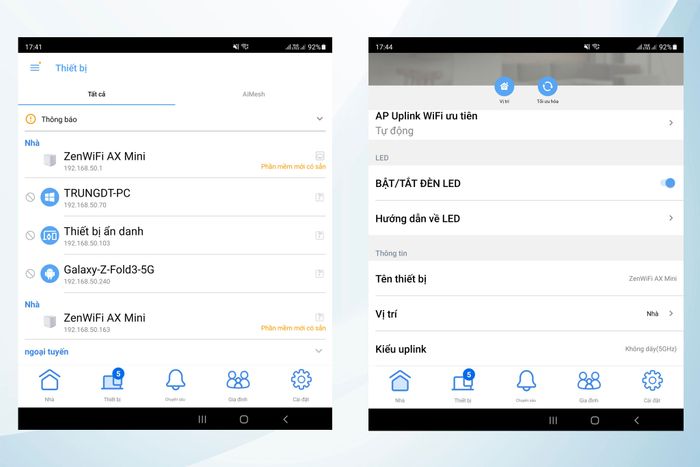

With the ASUS Router app, standout features include creating a guest network for secure internet access by strangers while safeguarding internal network information. Guest devices accessing Wi-Fi won't be able to see other devices in your main network.

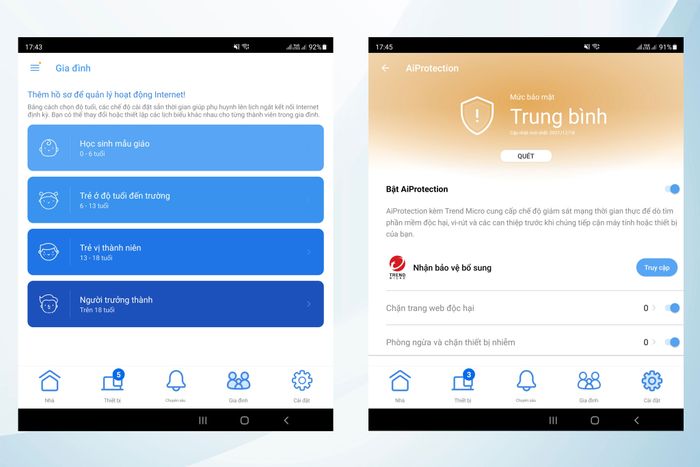

ASUS enhances security with AiProtection, integrating cloud data to safeguard the Wi-Fi network, preventing access to harmful websites or unauthorized file downloads. AiProtection uses Trend Micro's cloud database to identify and block known malicious websites, thwarting infections even before you click.
Furthermore, protective features for individual users are available, allowing users to shield children when accessing the internet. Depending on age, appropriate content will be allowed, along with the ability to limit time and device access for each user profile.
