S Video cables, also known as Super Video or Separate Video cables, transmit video color and luminance (brightness) information separately, reducing interference. You can utilize S Video cables to connect nearly any two S Video-capable devices, such as camcorders, televisions, computers, and DVD recorders. If you possess the appropriate cable, you can also link S Video-capable devices to non-S-video devices; one end of the cable will have the suitable connector for protocols like RCA (separate yellow, white, and red connectors, which were once the standard protocol for connecting audio and visual devices).
Steps

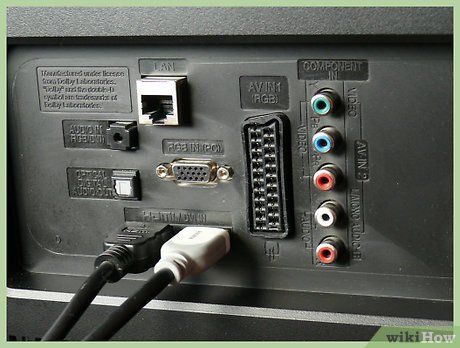

Inspect the S Video cable and the device you're going to connect it to. Count the number of holes on your computer or handheld device's S Video input and the number of pins in the connector at the end of the cable. If the number of holes matches the number of pins, you can connect the cables.

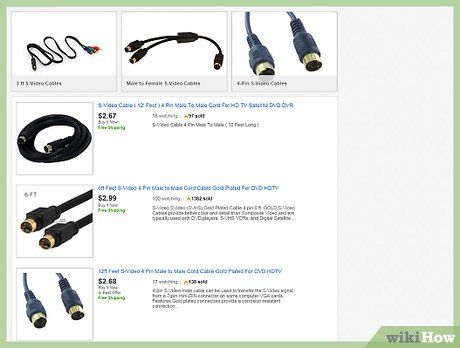

- S Video cables are available in 4-pin, 7-pin, and 9-pin varieties. Examine each end of any S Video cable when you purchase it; you can buy cables to connect two different types of S Video connectors. For instance, one end of the cable might have a 4-pin connector while the other end has a 7-pin connector.
Insert the male S Video connector into the female connector until they are securely seated together, aligning the tabs on the cable and the connector.

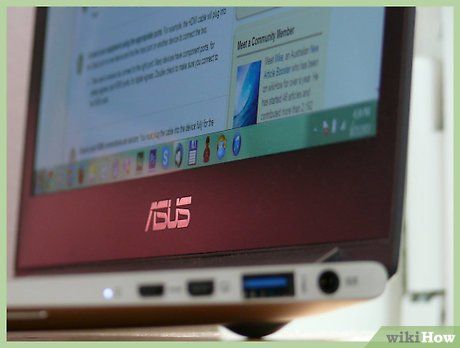

Attach the opposite end of the cable to the S Video port (or multimedia port) on the other device.

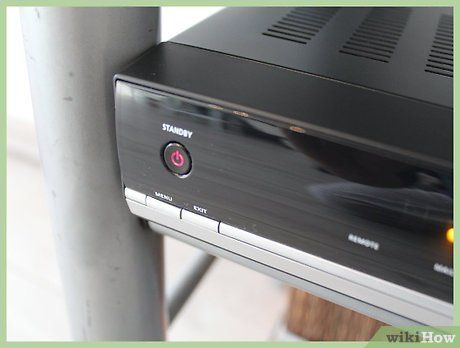

Power on your computer or other device. Sometimes, you need to connect the two devices before powering them on, or the new device won't be properly detected.
Pointers
-
The S Video standard is compatible with both PC and Macintosh/Apple computers. While there is no single standard for S Video connectors, both 4-pin and 7-pin configurations are common.
-
Remember that S Video cables transmit video only; a separate connection is necessary for transmitting the audio component.
-
Some gaming and computer equipment supports S Video but uses a proprietary, multi-protocol-capable connector. Consequently, you may need to purchase a proprietary cable to connect the unit to another S Video-capable device.
