Marking special points in an image is crucial for effective communication with viewers. Drawing an arrow towards a detail is the simplest option. In this article, Mytour will guide you on creating arrows in Photoshop.
How to Craft Arrows in Photoshop

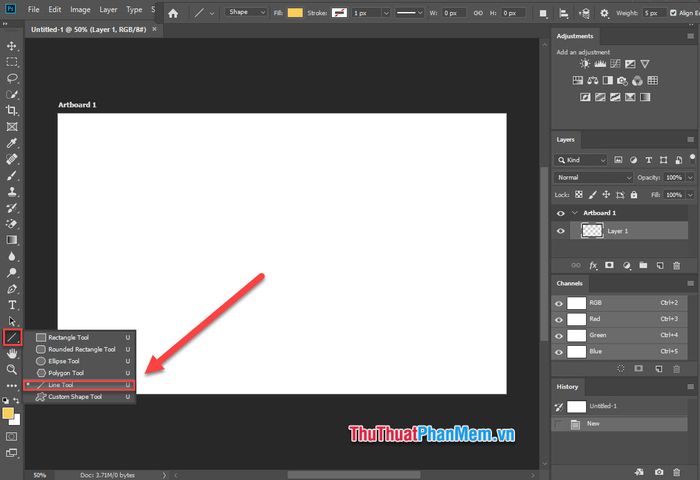

Step 1: In the main interface of Photoshop, select the Line Tool.
Step 2: Select the gear icon on the toolbar, and it will reveal the control panel.
(1) Choose Start or End in the Arrowheads section to determine the position of the arrowhead at the beginning or end of the line.
- Width: Width of the arrowhead
- Length: Length of the arrowhead
- Concavity: Curvature of the arrowhead
(2) Weight: Overall width of the arrow
(3)
- Fill: Arrow Color
- Stroke: Arrow Outline Color
- The adjacent box represents the thickness of the arrow outline (currently set to 1 px)
Step 3: Execute arrow drawing.

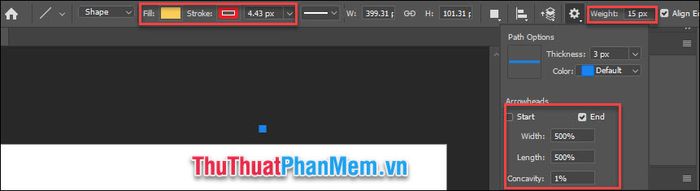

I will configure as follows:

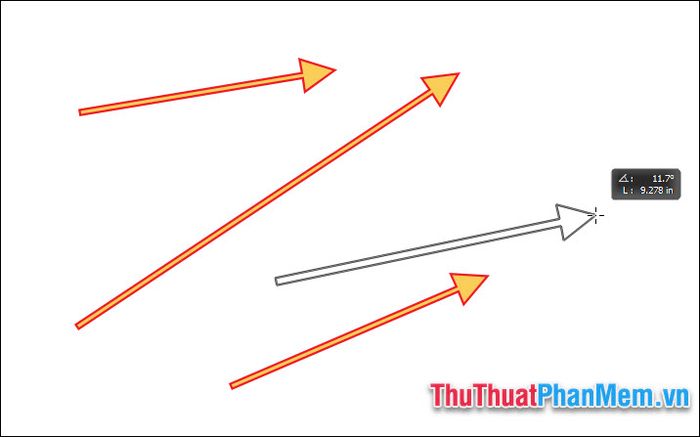

Hold the mouse at the starting point, then drag to the endpoint and release.

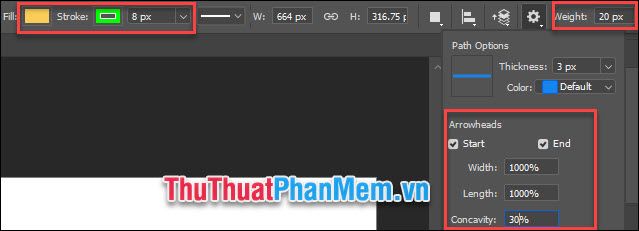

Try a different setup:

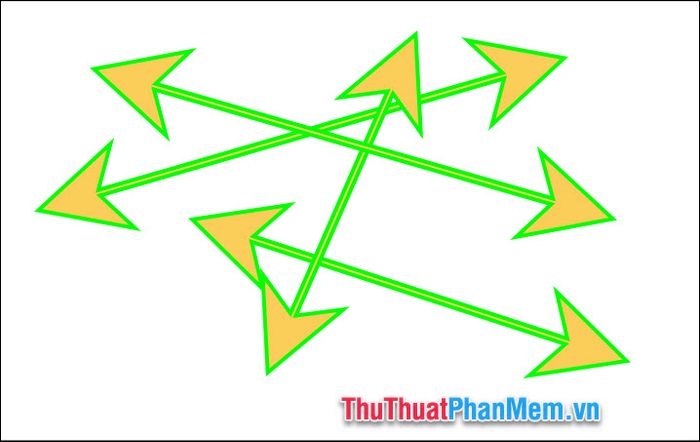

Here's the resulting outcome:
Here, Mytour has guided you on how to draw arrows in Photoshop.
Wishing you successful practice!
