Every Shimano cyclist understands the frustration of experiencing difficulty shifting gears, especially during critical moments of a ride. More often than not, the culprit is a front derailleur that needs adjustment. When the front derailleur becomes misaligned, it hinders the movement of the bicycle chain between different gears. However, there's no need to panic when this occurs as it's something you can easily rectify on your own! All you need is a Phillips screwdriver and approximately 20 minutes.
Key Points to Consider
- Ensure that your front derailleur sits approximately 1-3 mm (0.039 to 0.118 inches) above the large chainring to prevent rubbing and ensure smooth shifting.
- Adjust the inner and outer limit screws to prevent the derailleur cage from extending beyond the inner or outer chainring.
- Test various gear shifts on your bike to confirm that the derailleur operates smoothly without any chain rubbing.
- Make slight counterclockwise adjustments with your barrel adjuster to finely tune the position of the derailleur.
Step-by-Step Guide
Adjusting Height and Angle of the Front Derailleur

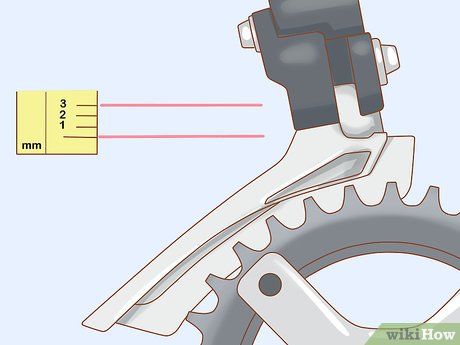

Ensure correct positioning of the derailleur. The derailleur should be positioned approximately 1 to 3 millimeters (0.039 to 0.118 inches) above the large chainring. Incorrect positioning can lead to poor shifting or chain rub.
- Adjusting the height requires precise changes, often just a matter of millimeters. Having your bike on a repair stand can simplify this task.
- You can use a penny to help gauge the height, as it measures 1.5 millimeters (0.059 inches) thick.

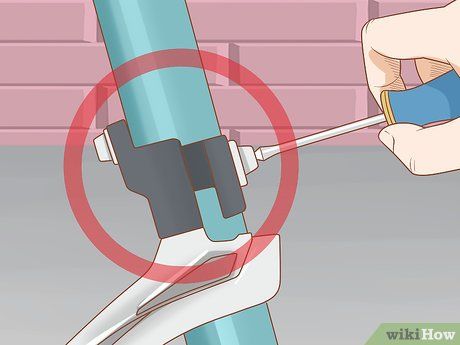

Use the positioning clamp to adjust height. Loosen the clamp bolt connecting the derailleur to the bike frame, adjust the height as needed, then tighten the bolt.
- Perform this adjustment while your bike is in its lowest gear to minimize tension on the inner wire.
Verify correct cage height. Shift to the middle front chainring to check cage positioning. If necessary, return to low gear and readjust using the positioning clamp.

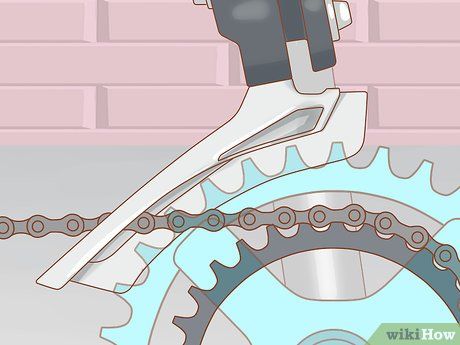

Ensure the derailleur angle aligns with the chainrings.
The cage and chainrings should be parallel. If not, make necessary adjustments.
- It's easier to assess the needed adjustments from an overhead view of the derailleur. Imagine alignment between the cage center and the bike frame's centerline.
Realign the bolt for proper positioning. Loosen the bolt securing the bike frame to the derailleur. Shift the bike to its lowest gear and adjust the derailleur to the correct angle.
- Once the angle is set correctly, tighten the positioning clamp.

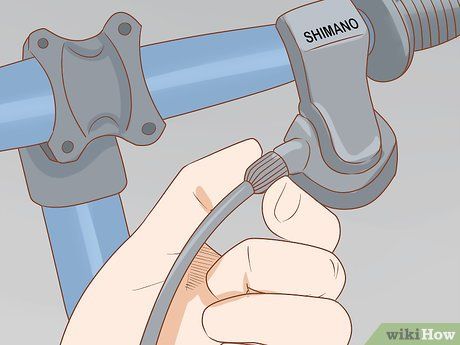

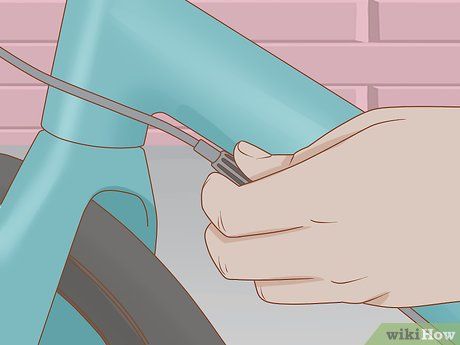

Adjust the front derailleur barrel adjuster. Turn the barrel adjuster fully clockwise to release cable tension, which can be fine-tuned later.
Adjusting Limit Screws

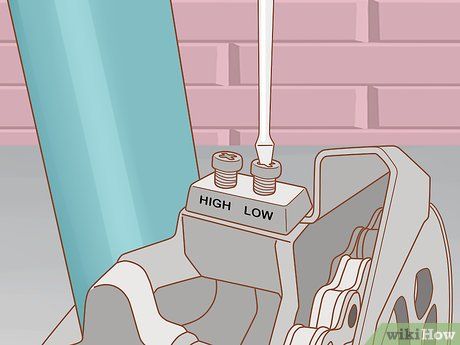

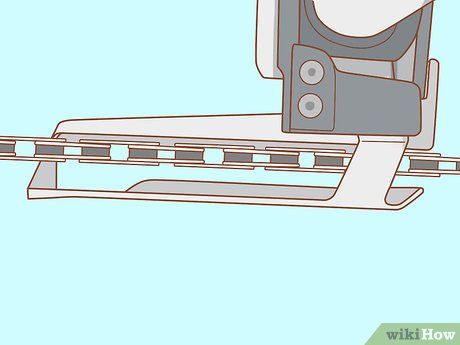

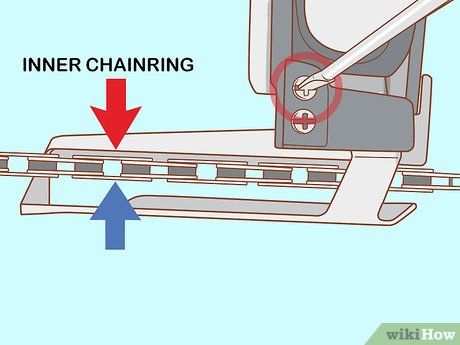

Configure the inner limit screw to prevent the derailleur cage from overshooting the inner chainring. Shift the rear derailleur to the largest cog and the front derailleur to the smallest cog. Use a screwdriver to adjust the inner limit screw until the cage is as close to the chain as possible without touching it.
- Test by spinning the crank to ensure the chain doesn't catch.
- The inner screw, often labeled as 'L,' controls the lower limit and is typically closer to the frame.
EXPERT TIP
Jonas Jackel
Owner, Huckleberry Bicycles
Owner, Huckleberry Bicycles
Expert Tip: Use the high and low limit screws to adjust derailleur tension. Ensure the derailleur doesn't overshoot when on the smallest cog, avoiding chain drops. Set the other limit to prevent shifting into the spokes. Once set, adjust cable tension for smooth shifting.

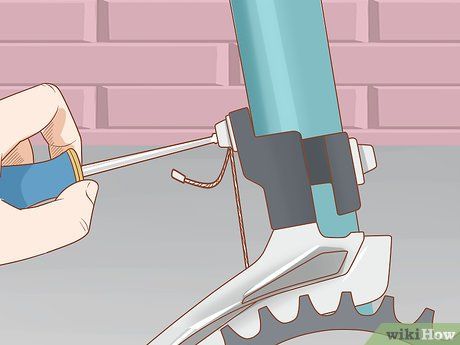

Fine-tune cable tension. Loosen the cable anchored to the derailleur, tighten it, then secure the anchor bolt. Needle-nose pliers can aid but are optional.

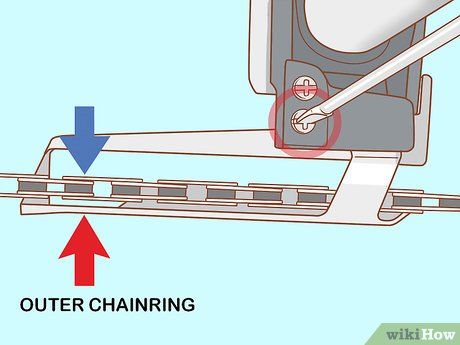

Adjust the outer limit screw to prevent overshifting of the derailleur cage beyond the outer chainring. Shift the front derailleur to the largest chainring and the rear derailleur to the smallest cog. Turn the outer limit screw until the cage is near the chain without touching it.
- This prevents chain over-shifting and dropping.
- The outer screw, often labeled as 'H,' controls outward derailleur shifting.
Verifying Proper Derailleur Functionality

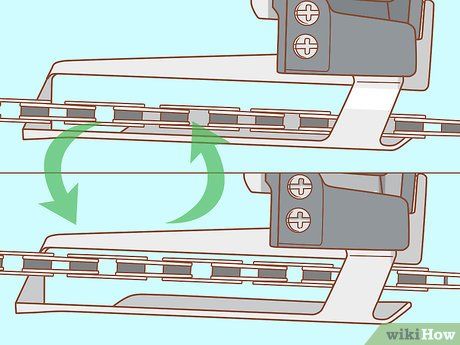

Check derailleur shifting accuracy. Cycle through all gears to ensure smooth shifting without chain rubbing.
Utilize the barrel adjuster to fine-tune derailleur position. Adjust the barrel adjuster counterclockwise to increase tension for smoother shifts into larger chainrings.
- If you can manually push the derailleur, it indicates incorrect cable tension. Adjust the barrel accordingly.

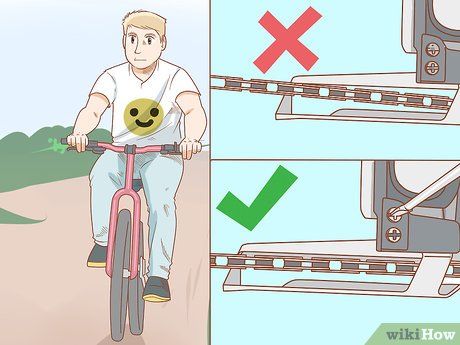

Perform on-the-go adjustments, known as trimming. Make minor adjustments while riding to prevent chain rub and maintain derailleur alignment. Shimano bikes feature a half-click lever for easy trimming.
Ride your bike normally. Everything should be operating smoothly now. If the derailleur misaligns again, consider a more thorough repair next time.
- If you're unable to fix it yourself, seek assistance from a bike mechanic.
Useful Tips
-
Applying lubrication to the front derailleur pivot point and inner wires can enhance performance.
-
Even with proper adjustment, some friction between the front derailleur and chain may occur, particularly when riding in the highest gear.
Essential Tools
- Phillips screwdriver
- Needle-nose pliers
- A penny
