To keep your recreational vehicle's battery in top condition, an annual inspection is crucial. Additionally, prior to embarking on your next journey, it's wise to ensure your battery is in optimal shape. Discover the steps for inspecting your RV battery in this comprehensive guide.
Procedures
Utilizing Your Monitoring Panel

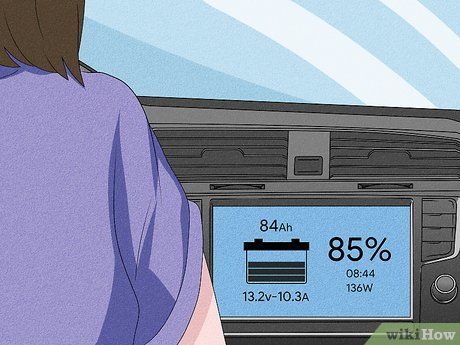

Observe your dashboard monitor when your RV is disconnected from an electrical source.
- Attempting to assess your battery's status while connected to power may yield inaccurate readings.

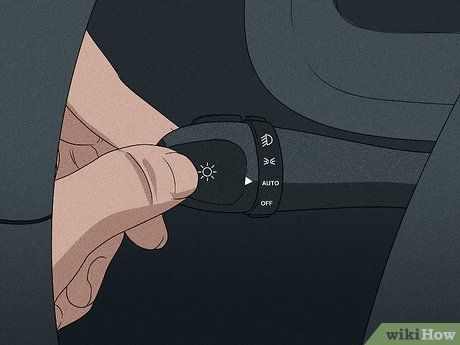

Illuminate a few lights and recheck your monitor to ensure an accurate reading under a light load.
Testing Voltage

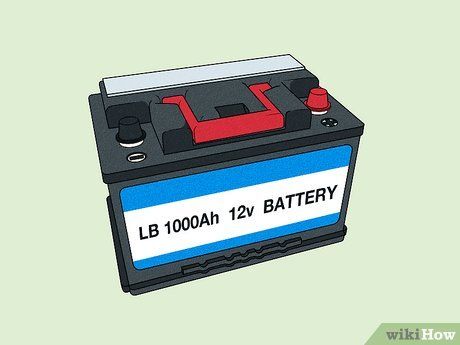

Determine the voltage rating of your battery. Typically, RV batteries are 12 volts, but occasionally, they may be 6 volts.

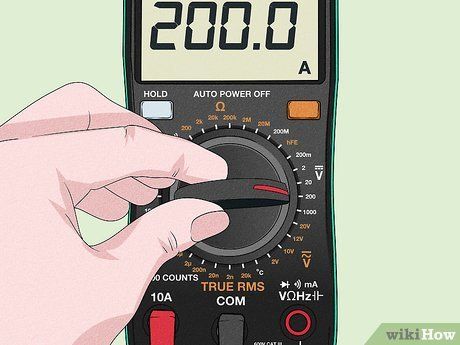

Activate your voltmeter and set it to DC voltage. Then, pop open the RV's hood.

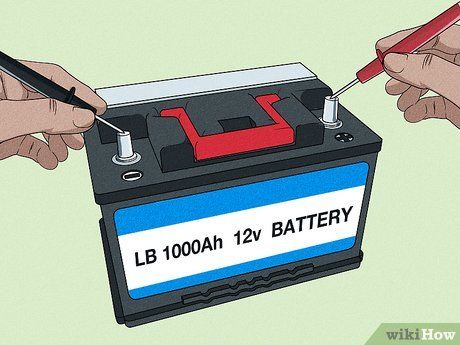

Connect the red lead of your voltmeter to the positive terminal of the battery. Position the black lead on the negative terminal.

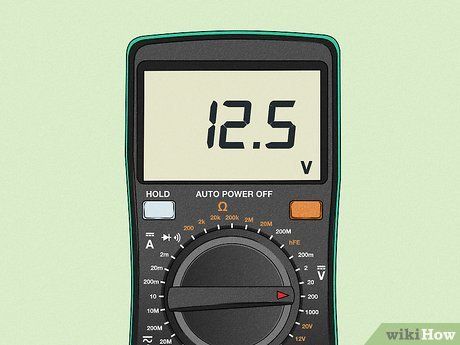

Check your display or indicator (if your meter isn't digital). For a 12-volt battery, the voltage should fall within the range of 12.5 to 12.7 volts when idle. Similarly, a 6-volt battery should register between 6.25 and 6.35 volts.

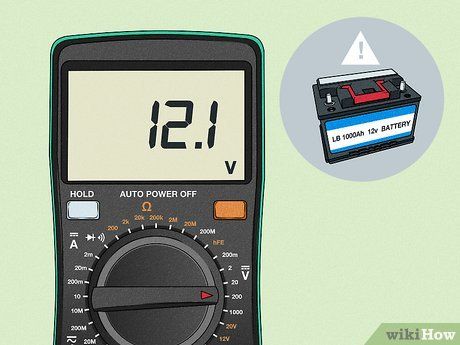

If the voltage falls below 12.5 or 6.35 volts, it indicates the need for recharging or replacement (especially if it discharges rapidly).
Measuring Specific Gravity
Equip yourself with protective attire and open the hood.

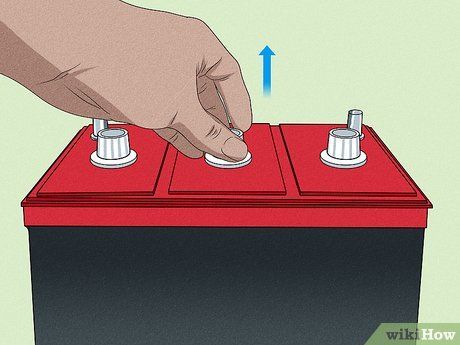

If your battery isn't sealed, take off the vent caps.
Inspect the electrolyte levels in every cell. Consult your battery's manual if uncertain about the levels in your battery cells.

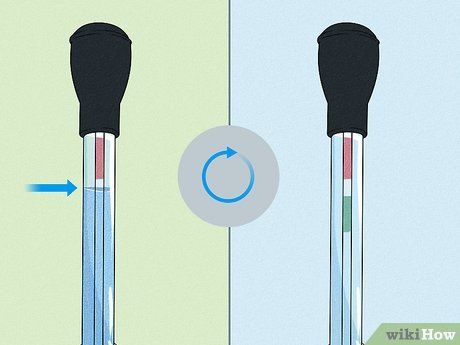

Fill a hydrometer and empty it twice for each cell before taking a reading.

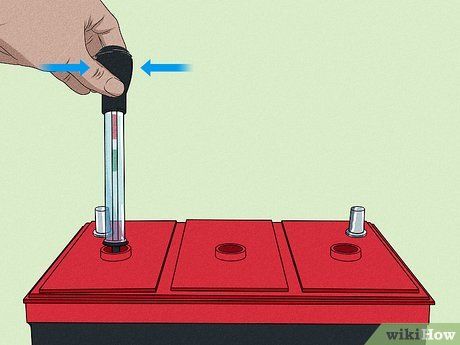

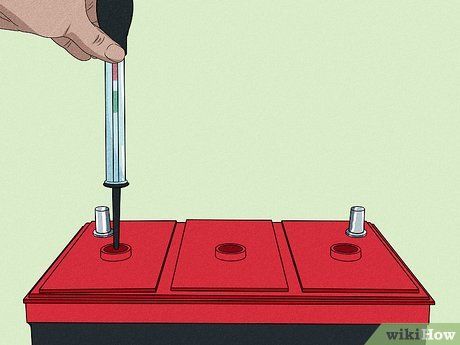

Measure the electrolyte level of a cell using the hydrometer and then return the water to its respective cell. Document the reading for each cell.

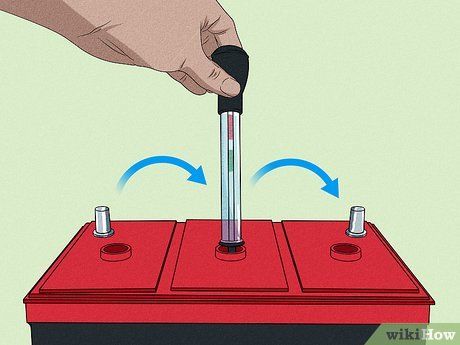

Assess all cells and then reinstall your vent covers. Each cell's specific gravity reading should fall between 1.235 and 1.277.
- If the average reading of all cells is below 1.277, your battery requires charging.
- If there's a difference of 0.050 or more between the highest and lowest cell readings, your weakest or dead cell might necessitate battery replacement.
Helpful Hints
-
If your battery has recently been charged or discharged, allow at least 6 hours before testing it with a voltmeter.
-
Some larger RVs are equipped with separate engine and coach batteries. Coach batteries can be single or multiple arrangements and are responsible for powering lights and other equipment in non-engine and non-cockpit areas. Each battery requires individual maintenance. Many RVs feature an emergency engine start switch in the cockpit, enabling a temporary connection of all vehicle batteries if the engine battery fails to start. Typically, connecting the RV to 110v (shore) power charges the coach batteries, while the engine alternator charges the engine battery. Keep in mind that prolonged vehicle inactivity can lead to battery discharge, and extended 110v connection for coach batteries (over several months) could cause overcharging or electrolyte loss.
-
If you need to replenish the electrolyte levels with water, charge the battery and wait 6 hours before using a hydrometer.
Cautions
- Never attempt to open a sealed battery. These batteries cannot have water added, and trying to do so may result in severe injury and battery damage.
- Always wear protective clothing and eyewear when handling a hydrometer. The water contains battery acid, which can cause skin and eye irritation.
Essentials
- Voltmeter
- Hydrometer (for specific gravity testing)
- Protective gloves (for specific gravity testing)
- Eyewear (for specific gravity testing)
- Water (if necessary)
