For those with expansive networks, the desire to divide them into smaller, more manageable units is natural. This not only simplifies administration but also enhances security while minimizing collisions. Subnetting a Class C network can be a daunting task, yet it's an indispensable skill. Here's how to segment a Class C network effectively.
Procedures
Verify the IP address and the host’s subnet mask. This step yields crucial information such as:
- The location of the host’s subnet.
- The subnet’s broadcast address.
- The valid host range within the subnet for configuring hosts.
Determine the broadcast address. Once you've identified the subnet, understand that the broadcast address isn't a usable host address. Therefore, it cannot be allocated to a host configuration. Knowing the subnet and broadcast addresses facilitates finding the host address. The actual host range comprises numbers between the broadcast and subnet addresses.

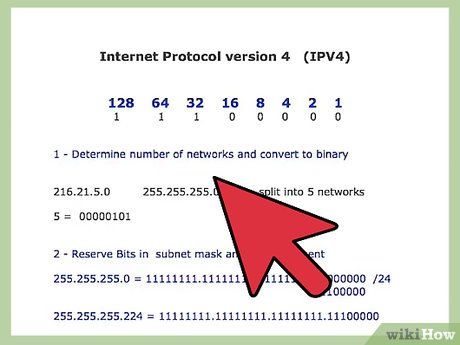

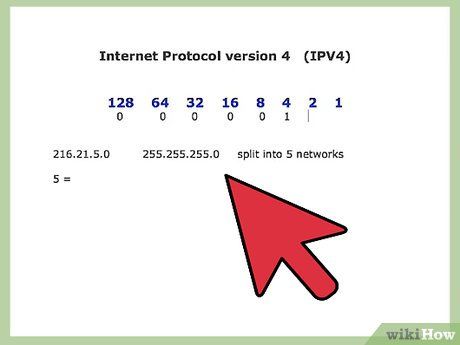

Determine the number of subnets required. Calculate the quantity of subnets using the formula: 2ⁿ. Here, 'n' represents the number of subnet bits in the mask. In computer terms, a bit is the smallest unit of data, with binary values of 0 or 1. For subnets, a bit is set to 1, indicating its activation.
Calculate the number of hosts needed. Utilize the formula: 2ⁿ - 2 to ascertain the number of hosts. In this formula, 'n' denotes the number of host bits in the mask. For hosts, a bit is set to 0, indicating its deactivation.
Determine the appropriate mask for the network. Identify the required number of sub-networks and hosts for each network. Then, employ the formula 2ⁿ - 2 to determine the suitable mask.

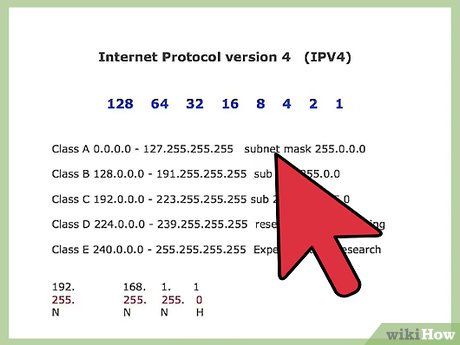

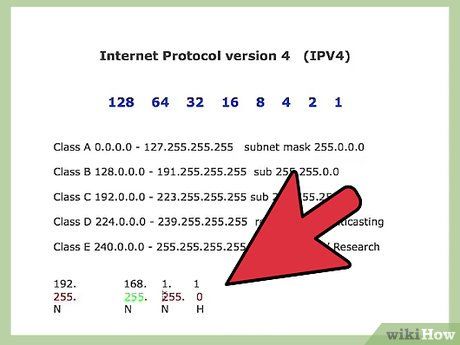

Consult the Class C mask for subnet creation. Memorize Class C masks for efficient subnet creation. The default mask is 255.255.255.0, with variations available. These masks are widely available online and in networking literature.
Select the appropriate Class C mask for your sub-networks. Once you've determined the networks and hosts required, select the mask accordingly. For instance, if you aim to create eight sub-networks with ten hosts each, opt for the mask 255.255.255.240. In this mask, there are four subnet bits and four host bits, resulting in 14 subnets and 14 hosts, respectively.
