If you're considering a refresh for your RV's interior, swapping out the ceiling fabric is a necessary step for achieving a polished look. To ensure a professional finish, it's crucial to remove the foam backing that the fabric adheres to. Fortunately, the process for removing foam headliners is relatively straightforward compared to installing solid ceiling panels. With the right tools and materials, such as a small knife and heat-resistant glue, you'll be on your way to a revamped RV ceiling in no time.
Key Points to Remember
- Before starting the removal process, make sure to clear the ceiling of any attached items, such as trim moldings, light fixtures, and the TV antenna crank.
- Utilize a putty knife to gently detach the fabric and foam from the ceiling along the seam, then proceed to remove it by hand.
- Customize a new foam-backed headliner to fit your RV ceiling, ensuring to cut out holes for fixtures like lights and the air-conditioner box.
- Prior to installation, thoroughly clean both the ceiling and the new headliner, then apply generous amounts of trim adhesive.
- Begin installing the headliner in one corner of the RV, gradually working your way down to the opposite vertical corner and then smoothing it horizontally across the RV.
Installation Steps
Measuring for the Perfect Fit
Determine the Correct Size for Your RV Ceiling Headliner. Always opt for a headliner that's slightly larger, around 2 to 3 inches (5.1 to 7.6 cm), than your actual ceiling size. If it's too large, you can always trim it down to fit.
- If you're replacing an existing headliner, measure its dimensions intact and use them as a reference when shopping for a replacement.

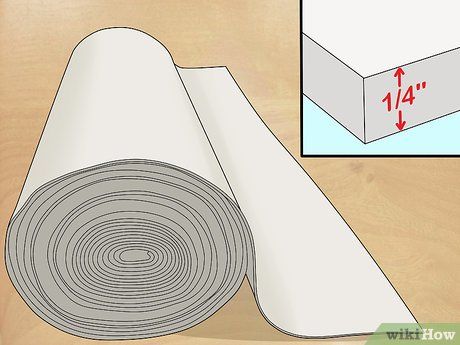

Choose 1⁄4 inch (0.64 cm) Headliner Foam if Possible. This thicker foam is the most durable option, offering longevity. Alternatively, 1⁄8 inch (0.32 cm) foam works too, though it's thinner and may wear out faster.
- Opt for natural or lighter shades like beige, as they resist fading better than brighter colors.
Clear the Area for Easy Fabric Removal. Remove any obstructions such as 12-volt DC ceiling lights, headliner trim moldings, and the TV antenna crank. These are typically detachable with a screwdriver.
- You can also take out larger items like the roof air-conditioner box and mounting plate. Alternatively, if you prefer, you can cut holes in the new fabric to accommodate them before installation.
Identify Appliance Locations and Measure Their Distances from the Walls. For appliances and accessories that remain in place, mark where holes need to be cut in the fabric to accommodate them. Measure from the sides of the appliances to the opposing walls to determine hole placement and size.
- You can either cut these holes during the installation process or beforehand based on your preference. If you prefer precision, take measurements. If you prefer flexibility, cut the holes as you install the fabric.
Removing the Ceiling Fabric
Insert a Putty Knife about 1⁄2 inch (1.3 cm) into the Seam. Locate a seam along the edge or horizontally across the RV ceiling. Glide the putty knife along the seam to gently detach the fabric. If no seam is visible, use a hobby knife to create a horizontal cut across the ceiling.
- Most fabrics are backed with foam, so ensure you cut deep enough to remove both the fabric and foam from the ceiling.
- Reusing old foam is not recommended as it tends to yellow over time and loses durability.

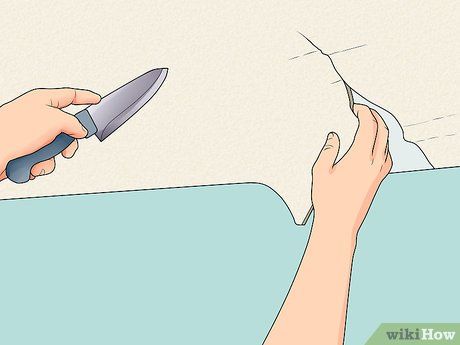

Remove the Fabric and Foam by Hand or with a Knife. Use your hands to pull away the fabric and foam from the ceiling. For stubborn areas, use a putty or hobby knife to separate the backing from the roof.
- As you progress, remove any trim securing the headliner.
Eliminate any Residual Foam from the Ceiling with a Bristle Brush. Gently scrub the ceiling to avoid damage. Dents in the ceiling can hinder adhesion to the new headliner and diminish visual appeal.
- Alternatively, coarse sandpaper (40- to 60-grit) can be used instead of a bristle brush to remove foam and dried glue.
Applying the Adhesive
Prioritize Cleaning your RV's Ceiling before Applying the New Headliner. Utilize a general-purpose adhesive cleaner on a dry cloth to wipe down the RV ceiling surface. Allow 5 minutes for the cleaner to dry before proceeding with adhesive application.
- Afterward, use a clean, dry cloth to give the ceiling a final wipe before continuing.
- General-purpose adhesive cleaners are available at major retailers, hardware stores, and online platforms.

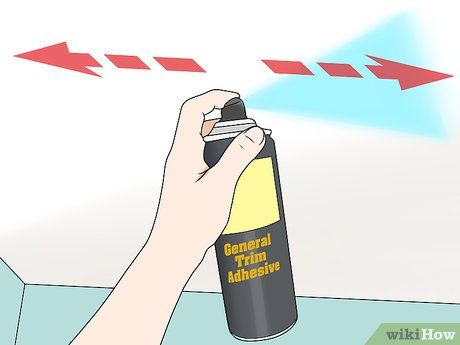

Apply General Trim Adhesive to the Ceiling in a Horizontal 'Heavy' Spray. Adjust the can's nozzle to 'Heavy' setting. Start spraying horizontally across the ceiling surface, beginning from the southern end and alternating between left and right horizontal sprays of 2 to 3 feet (0.61 to 0.91 m) in length.
- Adhesive spray cans feature 'L,' 'M,' and 'H' markings on the nozzle, indicating 'Light,' 'Medium,' and 'Heavy,' respectively. If the spray seems too thick, switch to 'M.'
- Opt for heat-resistant adhesives, especially if your travels frequently expose the RV to hot weather.

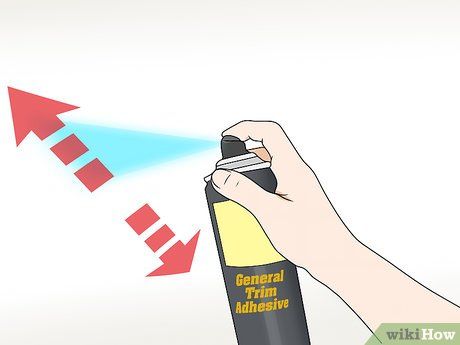

Apply General Trim Adhesive Vertically onto the Ceiling. Return to the starting point at the southern end of the ceiling where you began the application. Continue spraying vertically in a 'Heavy' setting, with sprays spanning 2 to 3 feet (0.61 to 0.91 m) in length.
- Fill any missed spots with quick spurts of spray as you progress.
Spray Adhesive onto the Foam-Backed Headliner. Lay the headliner face down and apply adhesive in horizontal lines followed by vertical lines, mirroring the process used for the ceiling. Avoid spraying areas that will be removed during or after application.
- If the adhesive applies too thickly, switch the spray can to 'M.' Even 'L' setting might suffice, especially for 1⁄8 inch (0.32 cm) headliners.
Installing the New Ceiling Fabric

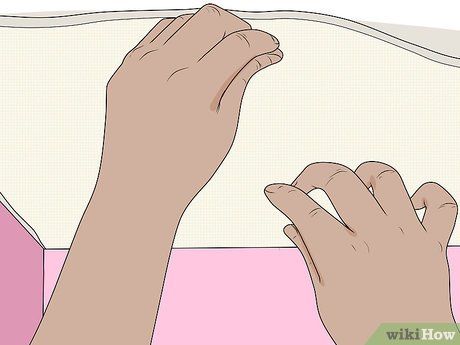

Start by Applying the Headliner to one corner of your RV. Utilize your palms or fists to exert pressure along the edge closest to the corner and move vertically down the RV until you reach the opposing corner. Smooth out wrinkles and folds while pressing it in place.
- If available, enlist the help of a friend to hold the loose fabric while you install the first corner. This significantly simplifies the process.
- If you encounter any issues during application or notice bubbling, promptly peel back the fabric and reapply. Doing so within 1 to 3 minutes of adhesive application won't affect the foam or glue.

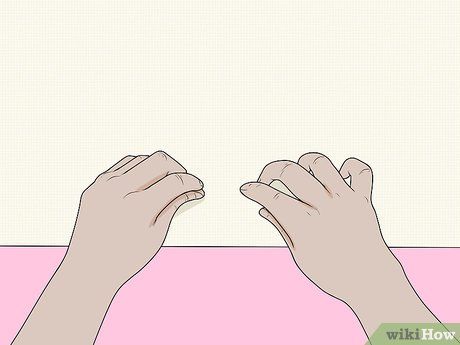

Proceed to Apply the Headliner Horizontally across the ceiling. Maintain pressure while applying the headliner to the opposite side of the RV's ceiling. Having assistance can aid in holding up the unapplied headliner, minimizing air bubbles and creases.
- If an error occurs, immediately tear back the headliner and reapply. Working swiftly prevents immediate adhesion to the ceiling.

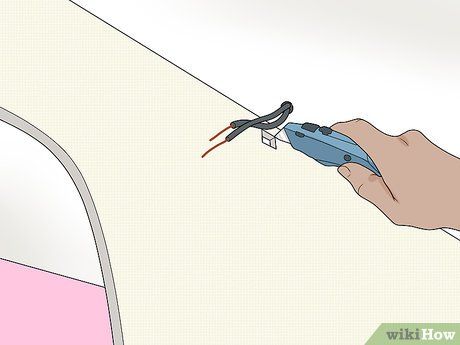

Make Openings for Lighting Wiring if not Already Done. The adhesive doesn't dry instantly, allowing time to cut openings for wiring as needed. If concerned about the adhesive drying, wait until the entire headliner is applied—though it may require additional effort.
Trim the Fabric to Size by Removing Excess Parts. Utilize a hobby knife to eliminate excess headliner pieces hanging from the walls. Quick-change knives are recommended for easy blade replacements, as continuous cutting can dull the blade quickly.
- If using scissors, ensure the outer edge is flush against the wall surface.
Reinstall any Removed Accessories and Appliances. Replace any items removed prior to headliner removal. Most appliances can be reinstalled using a screwdriver.
- If holes were overlooked, utilize a hobby knife and putty knife to cut openings in the new headliner and create space for the accessory, respectively.
Useful Pointers
Essential Supplies
- Screwdriver
- Measuring tape
- Foam headliner
- Hobby knife
- Quick-change knife
- Putty knife
- Bristle cleaning brush
- Heat-resistant general trim adhesive
- Scissors
