Implement an Effortless Method to Adjust an Inverted Projector

Do you own a projector for work, study, or entertainment? Has your projector ever displayed images upside-down? Explore the causes and learn how to fix this issue with Electronics - Furniture Market Cho Lon!

Adjusting an Inverted Projector

One common reason for a projector displaying inverted images is the incorrect installation. During setup, you might have accidentally positioned the projector upside down instead of the correct orientation. Projectors are designed to be placed on flat surfaces, but for space-saving reasons, many units are often mounted on elevated surfaces. This arrangement can lead to image inversion during operation.

The second reason for this device experiencing inverted projection is due to errors in the system settings. If you've confirmed that the projector is correctly positioned, but the image is still inverted, you should check the settings to troubleshoot this issue.

Projector Displaying Inverted Images

In reality, this issue rarely occurs if you follow the proper installation and system configuration procedures for the projector. However, if you happen to encounter this problem, don't worry too much. Keep reading the article to find helpful solutions.

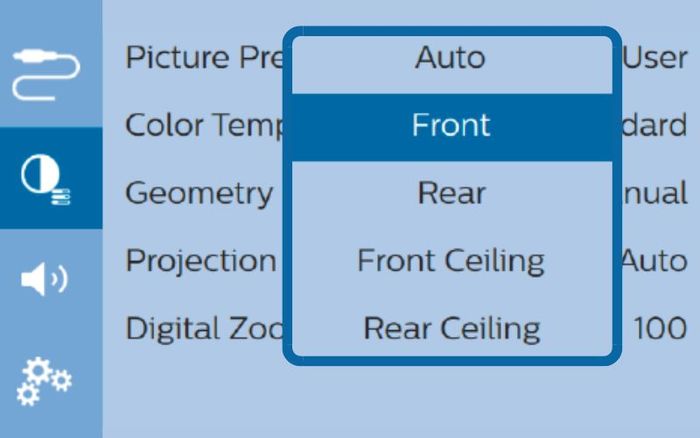

To make the process of adjusting a projector with inverted projection easier, keep in mind the meaning of the following terms:

- Front: Adjusts the image in the usual way.

- Rear: Adjusts the image when it is inverted.

- Front Ceiling: Adjusts the inverted image.

- Rear Ceiling: Inverts the image and adjusts inversion.

Options for Adjusting Projection on the Projector

Access the device settings menu > Select Projector Setup > Choose Installation > Select Front or Ceiling to adjust the image orientation.

Choose Menu > Select Installation > Choose Image Flip > Choose HV mode.

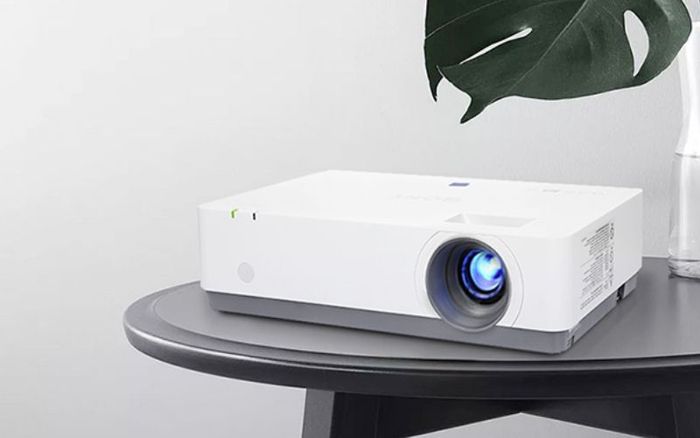

Sony LCD VPL-EX453 Projector

Choose Menu > Select Setup (basic) > Choose Projector Position > Choose Front or Ceiling to adjust the image orientation.

Choose Menu > Select Setup > Choose Installation > Choose Orientation > Choose Front or Ceiling to adjust the image orientation.

Choose Menu > Select the gear symbol or Setup 1 > Choose Projector Position > Choose Front Ceiling.

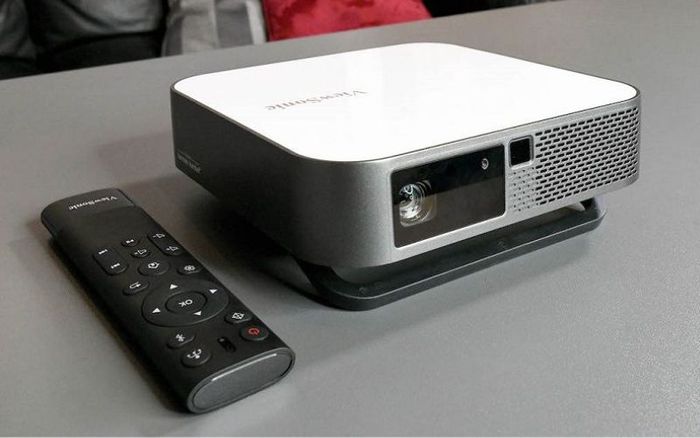

Viewsonic M2E Projector

Choose Menu > Select Image Setup > Choose Ceiling Mount > Select the appropriate image projection mode.

Optoma Projector

Choose Menu > Select Setting > Choose Projection > Choose Ceiling Mount.

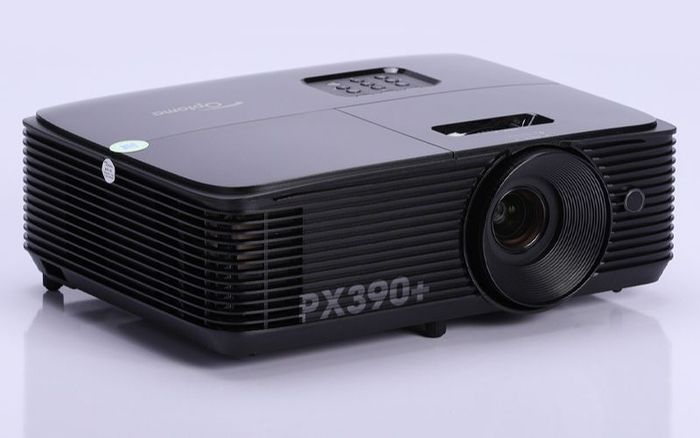

Optoma PX390+ Projector

Choose Menu > Select Setup or Main > Choose Mirror > Choose V-Invert.

- Method 1: Choose Menu > Select Extended > Choose Projection > Choose Front or Ceiling to adjust the image as needed.

- Method 2: Choose Menu > Press the arrow button to scroll down and select Menu again > Press Enter > Choose Options > Press the arrow button to scroll down and choose the appropriate image mode > Press Enter > Press Esc or Menu to exit.

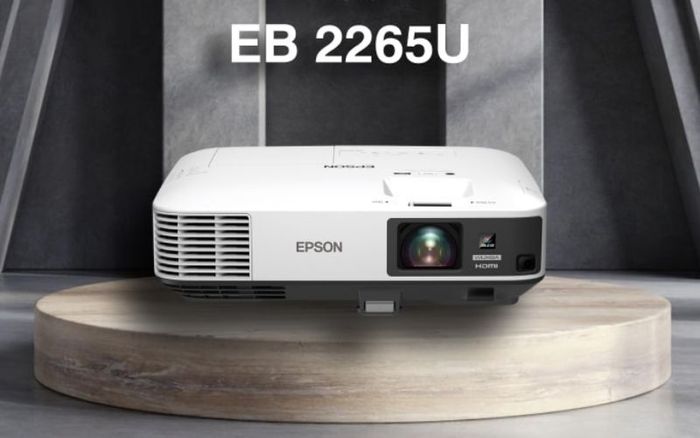

EPSON EB-2265U Projector

Note: If you have applied the above solutions but the inverted image issue persists, please take the device to the nearest service center for a more thorough examination by experts.
