To ensure effective cooling performance when using a single-unit window air conditioner, proper installation is crucial. Today, we'll guide you through the easy installation process for your usage needs.
A single-unit air conditioner consists of both the outdoor unit and the indoor unit being integrated.1. Structure of a Single Window Air Conditioner
Unlike wall-mounted or split air conditioners, the outdoor and indoor units of a single window air conditioner are integrated. Therefore, during installation, users will utilize the window sill both as a place to position the air conditioner and as a barrier between indoor and outdoor air environments.
Single-window air conditioners typically come with side wind deflectors on both sides, making installation convenient.A single-unit air conditioner also comes equipped with side wind deflectors for the convenience of users during installation. Additionally, there are no additional accessories required, and users do not need to prepare many tools or accessories for installation like wall-mounted air conditioners.
2. Guidelines for Installing a Single-Unit Window Air Conditioner
2.1 Preparation
Before installing a single-unit window air conditioner, users need to address the following issues:
- Due to the typical window design in Vietnamese households, which often includes wooden or iron window frames, it's not suitable for installing a single-unit window air conditioner. Therefore, users may need to redesign the window by removing the frames and creating a special structure for it.
- If installing a single-unit air conditioner on the second floor or higher, it's advisable to also install a mounting bracket for the outdoor unit to ensure stability and reduce the risk of it falling during use.
Proceeding with Installing a Single-Unit Window Air Conditioner
Due to its relatively simple structure, installing a single-unit window air conditioner is also straightforward. You just need to follow these steps:

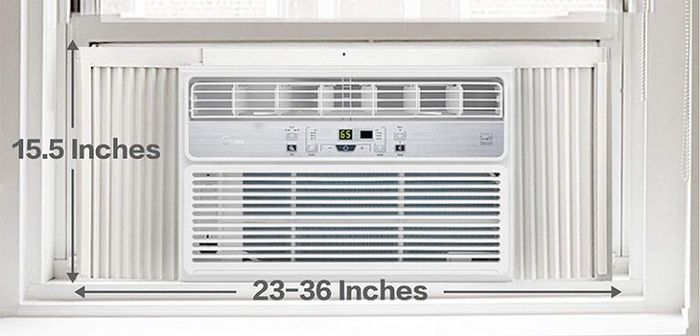

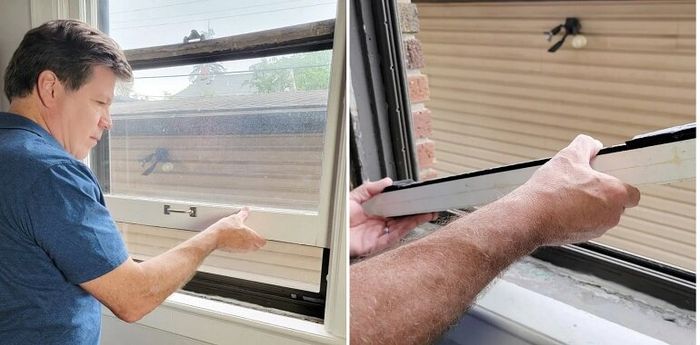

Designating the air conditioner placement area, as windows typically have a recessed portion. Therefore, when installing, you need to add a piece of wood or hard plastic underneath to create a flat surface for the air conditioner.

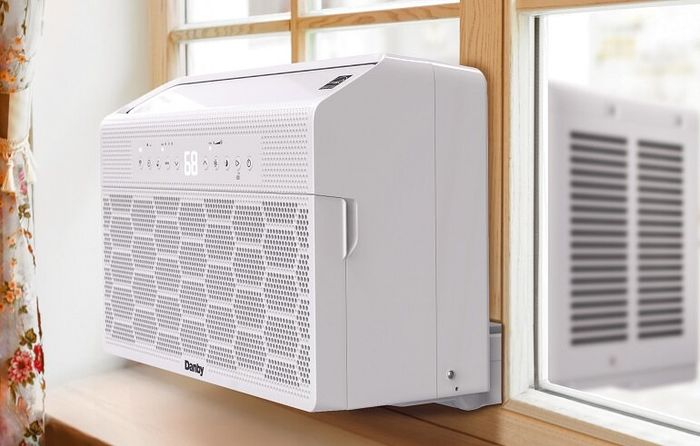

Placing the single-unit air conditioner in position and extending the wind deflectors from both sides of the unit.

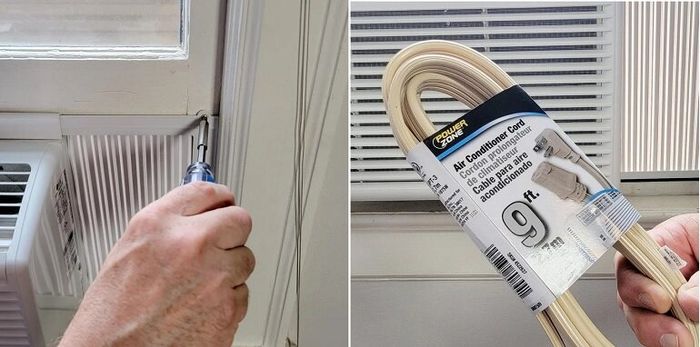

Lowering the window to the air conditioner position, securing the screws of the air conditioner's wind deflectors to the window to ensure no heat loss during use. Then, provide power to the unit to make it operational.With these simple installation steps, users can start and use the single-unit window air conditioner.
However, it's important to note that since most single-window air conditioners are predominantly fully imported, the voltage may differ from the common voltage in Vietnam. Therefore, users need to use a transformer to ensure proper operation.
3. Considerations for Installation and Use of Single-Unit Window Air Conditioners
In addition to the above considerations, users should note the following issues after using a single-unit air conditioner:
- A single-unit air conditioner does not have a drainage pipe from the indoor unit but discharges water outside through the outdoor unit. Therefore, you need to ensure an empty space outside during installation to avoid affecting neighbors.
- A single-unit air conditioner also requires ample space for easier heat exchange, so it's not suitable for use in cramped spaces.
- The noise level of the outdoor unit of a single-unit air conditioner averages 55dB, which is similar to a high-speed standing fan. Therefore, it may be slightly noisy for those sensitive to noise.
- Single-unit air conditioners come in both one-way and two-way types, so before purchasing and installing, you should choose the type that suits your living space.
Therefore, single-unit air conditioners are only suitable for small rooms and users living on the ground floor. Those living in apartments should prioritize wall-mounted air conditioners for better optimization.
