LG Washing Machine Error Code Chart and Troubleshooting Guide 2024

LG washing machines are renowned for their reliability and consistent quality. However, if you're unfamiliar with using them or have been using your LG washer for an extended period, you may encounter errors that leave you puzzled. If you're looking to understand LG washing machine errors and how to resolve them, we invite you to refer to the LG washing machine error code chart and troubleshooting guide for 2024 shared by TechTipsSoftware.com.

I. Common LG Washing Machine Error Codes

Below is a list of the most common LG washing machine error codes:

II. Common LG Washing Machine Error Codes and Solutions

1. LG Washing Machine Error Code - Error DL

Error DL: The washing machine door cannot be opened.

Error DL Causes: Error DL commonly occurs when the washing machine door cannot be opened due to a flipped lid, safety latch, safety lock engaged, or door lock malfunction. It could also be due to a faulty circuit board or hinge.

How to Resolve LG Washing Machine Error Code DL:

• Check the washing machine door for any obstructions causing difficulty in opening and remove them
• Turn off the machine or pause the wash cycle to disable the safety lock or door lock activation
• If unsuccessful, it indicates a problem with the circuit board or door hinge. Contact a washing machine technician for inspection and resolution

2. LG Washing Machine Error Code - Error DE, DE1, DE2

Error DE, DE1, DE2: Faulty washing machine door switch.

Causes of LG Washing Machine Error DE, DE1, DE2: Error DE in LG washing machines indicates a faulty door switch, usually caused by issues with the LG washing machine lid, compromising safety during the washing process. LG washing machine error codes DE1 and DE2 also relate to improperly closed washer lids. While these error codes may vary across machine generations, they all stem from lid-related issues.

How to Fix LG Washing Machine Error DE, DE1, DE2:

• Check if anything is obstructing the washer lid from closing properly or if the lid has been left open accidentally, then securely close the lid
• If the issue persists, inspect the washing machine door switch. For top-load washers: Simply disconnect the two contact points of the anti-vibration switch located behind and the contact point of the switch from the inside circuit, and the DE error will be resolved. For front-load washers: You need to remove the washer switch located at the front and replace it with a new one
• If you've performed the above steps and still encounter the DE error, it's likely that the signal path from the door switch to the circuit board or electronic control board is compromised. Contact a technician for further assistance

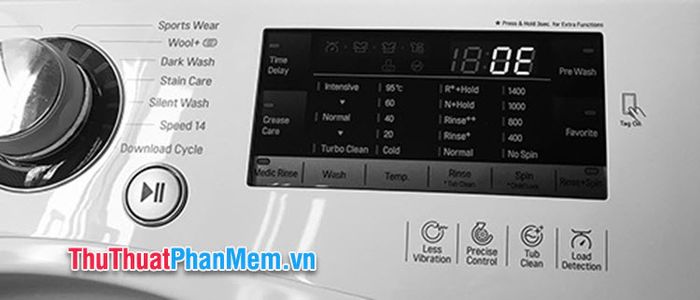

3. LG Washing Machine Error Code - Error 0E

Error Code 0E: Water inside the drum cannot drain out.

Causes of Error 0E: This could be due to the LG washing machine's drainage pipe being placed higher than recommended, or the drainage pipe being clogged, twisted, or the drainage pump being stuck.

How to Fix LG Washing Machine Error 0E:

• First, check the drain valve and drainage pipe for twists or blockages, and straighten and clean the drainage pipe. Ensure the washing machine's drainage pipe is positioned lower to the ground
• Inspect and clean the debris filter inside the machine
• After checking and addressing the above issues, if water still doesn't drain out or you don't hear the water pump operating, it may be a faulty drainage pump. You'll need to replace the drainage pump with a new one

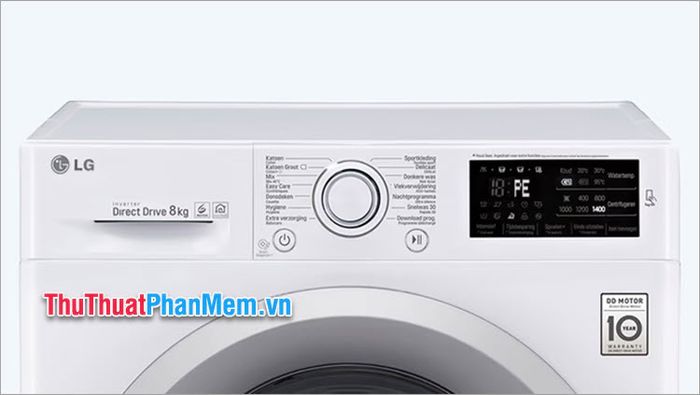

4. LG Washing Machine Error Code - Error PE

Error PE: The LG washing machine encounters a water level sensor or float switch malfunction.

Causes of Error PE: This could be due to rodent damage to electrical wires, a faulty pressure switch, or sensor or electronic control board malfunction.

How to Fix LG Washing Machine Error PE:

• Remove the top cover of the LG washing machine and inspect the electrical wires for damage, check the connection between the circuit and the connection at the pressure switch for looseness, ensure clean and secure connections, and inspect the water inlet hose for any damage
• If the machine still shows the PE error, it may be due to a faulty pressure switch. You can purchase a replacement pressure switch, or it's advisable to contact a washing machine technician for further assistance

5. LG Washing Machine Error Code - Error IE

Error IE: Error related to the water supply line of the machine.

Causes of Error IE: This could be due to issues with your home's water source, a blocked or faulty water supply valve, or an electronic control board failure to supply power to the water supply valve.

How to Handle LG Washing Machine Error IE:

• Check if the water supply to the washing machine is strong enough. Ensure a sufficient water supply to the machine
• Inspect the water supply valve for any vibrations. If it vibrates but doesn't supply water, it may be due to a dirty water supply valve. Clean the mesh filter located at the water inlet
• If the water supply valve doesn't vibrate, it may be due to a broken coil or lack of power supply. Measure the resistance of the coil. If there's no resistance, it indicates a faulty coil and the valve needs replacement. If there's resistance, it may be a circuit board issue, requiring professional expertise and tools to address

6. LG Washing Machine Error Code - Error CL

Error CL: CL stands for Child Lock, activating this function to prevent children from tampering with the washing machine program.

Causes of Error CL: The Child Lock feature activation prevents all button operations.

How to Fix LG Washing Machine Error CL:

• Turn on the power of the machine, then press and hold the Child Lock button on the control panel for about 3 -> 5 seconds. The CL message will disappear from the display, and the machine will operate normally

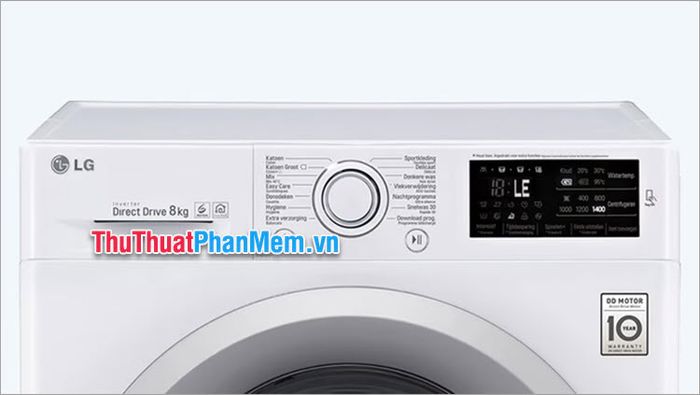

7. LG Washing Machine Error Code - Error LE

Error Code LE: The washing machine is overloaded.

Causes of Error LE: The washing machine is overloaded with laundry, exceeding the machine's weight limit, or it could be due to a motor sensor malfunction or electronic control board failure.

How to Fix LG Washing Machine Error LE:

• Turn off the machine and remove some laundry items, then restart the washing cycle
• If the issue persists, check the wiring connecting from the circuit board to the Hall sensor for any damage or breakage. Replace with new wiring, ensure clean and secure connections to the circuit board and the Hall sensor
• If the LG washing machine still shows the LE error, it may be due to a complex circuit board failure. Contact a technician for repair

8. LG Washing Machine Error Code - Error AE

Error AE: Power supply issue on LG washing machine.

Causes of Error AE: It could be due to some of the following reasons:

• Water leaking onto the bottom panel of the washing machine, accumulating water underneath and triggering the machine's safety switch
• Unstable power supply to the LG washing machine
• Loose or dislodged power plug
• Broken or faulty power cord
• Faulty control board of the LG washing machine

How to Handle LG Washing Machine Error AE:

• First, investigate the cause of the water leakage underneath your washing machine and address the leak. Tilt the washing machine to let the water drain out from the bottom, then run another cycle
• Check the power cord for any issues and replace it if necessary
• Ensure a stable power supply to the washing machine, avoiding peak hours and excessive use of shared electrical devices with the washing machine
• If none of the above works, it may be a circuit board failure. Contact a technician for repair

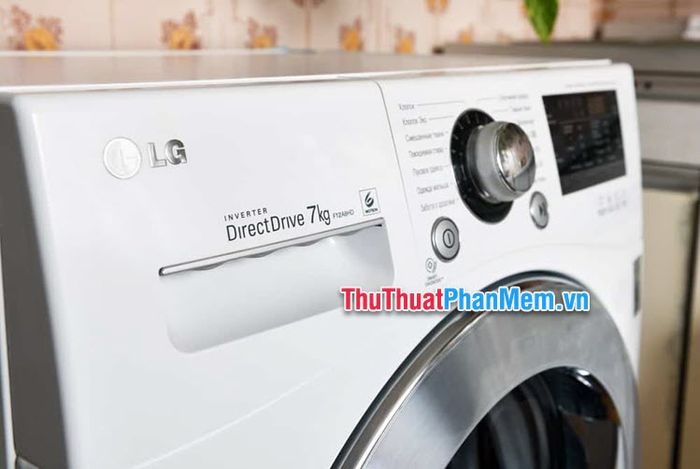

9. LG Washing Machine Error Code - Error FE

Error FE: Water overflow or leakage.

Possible Causes of Error FE: It could be due to the water inlet hose being loose and in contact with the washing machine or due to a malfunctioning sensor inside the washing machine.

How to Fix LG Washing Machine Error FE:

• Inspect the water inlet hose connection to the washing machine for any looseness and address it
• Check for faults in the washing machine's water level sensor and resolve them
• If you still can't resolve the FE error, it's advisable to contact a repair technician

10. LG Washing Machine Error Code - Error UE

Error UE: Clothes distribution uneven, washing machine is unbalanced.

Causes of Error UE:

• It could be due to an overload of laundry
• Uneven distribution of clothes in the washing drum
• The washing machine is placed unevenly, not level with the floor, or the floor beneath the machine is unevenly supporting it

How to Fix LG Washing Machine Error UE:

• Check if the washing machine is level on the floor, it needs to be properly leveled
• Check the load of laundry in the washing machine, divide the laundry appropriately according to the machine's washing capacity, if there is too much laundry, divide it into 2 loads
• It could also be due to uneven distribution of clothes in the washing drum, you need to temporarily stop the washing machine and arrange the clothes evenly around the drum before resuming washing

III. LG Washing Machine Error Code Table – Hardware Errors

Common LG washing machine hardware error codes:

How to Handle Hardware Errors: Specifically for malfunctions, hardware error codes of LG washing machines, addressing daily errors requires the assistance of washing machine repair tools and specialized knowledge, therefore, when encountering hardware errors, you should contact the customer care department where you purchased the washing machine or contact washing machine repair technicians for timely resolution.

Here at TechTipsSoftware.com, we've provided you with a guide on LG washing machine error codes and how to troubleshoot them, along with some common LG washing machine hardware issues. While you can handle simple errors on your own, complex issues or those related to hardware replacements should be addressed by a professional washing machine repair technician for optimal resolution and to ensure the longevity of your appliance. Thank you for your interest and for reading through this article.
