Coloring in Cad is an essential skill to grasp, and it's not overly complex to practice. In the following article, let's delve into simple and efficient techniques for coloring in Cad.
1. Monochrome Coloring in Cad
Step 1: Enter the command H => press Enter.
Step 2: Click on the icon ... in the Pattern section.
Next, select Other Predefined (1) => Solid (2) => OK (3).
Step 3: Click on Add: Pick point in the Boundaries section.

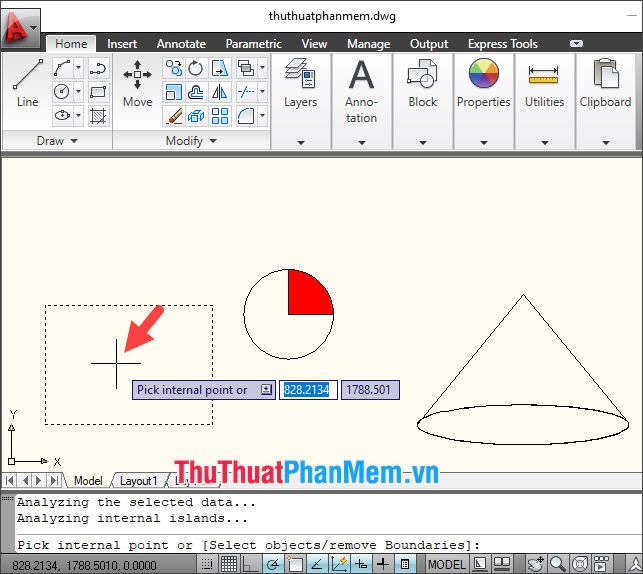

Next, click to select the area to be colored and press Enter. The selected area for coloring will have a dashed outline as shown in the image below.
Step 4: Click on Swatch (1) and choose the color you want to change. If the color you choose is not in the list, then select Select Color… (2).

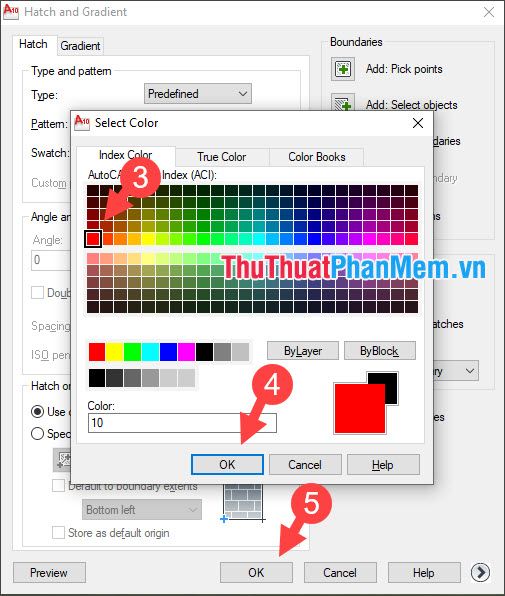

Next, select the new color (3) => OK (4) => OK (5).

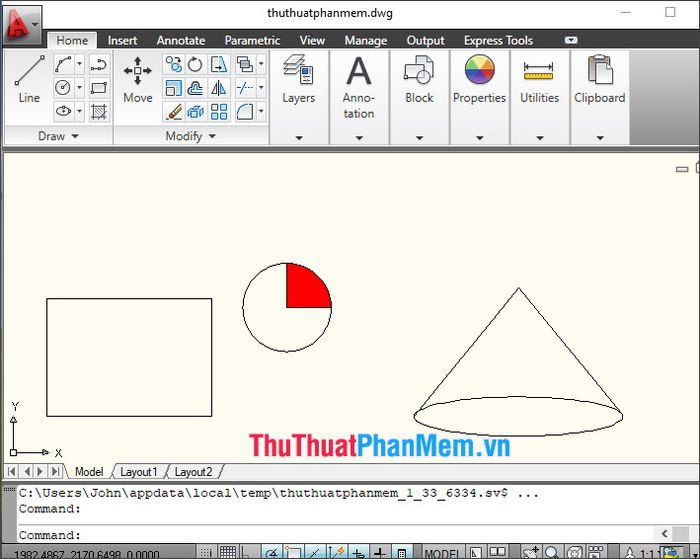

After completing the above steps, you have successfully colored.
2. Gradient Coloring in Cad
Step 1: Enter the command H => press Enter.
Step 2: Choose the Gradient (1) section => Add: Pick points (2).
Step 3: Click to select the object to be colored => press Enter.

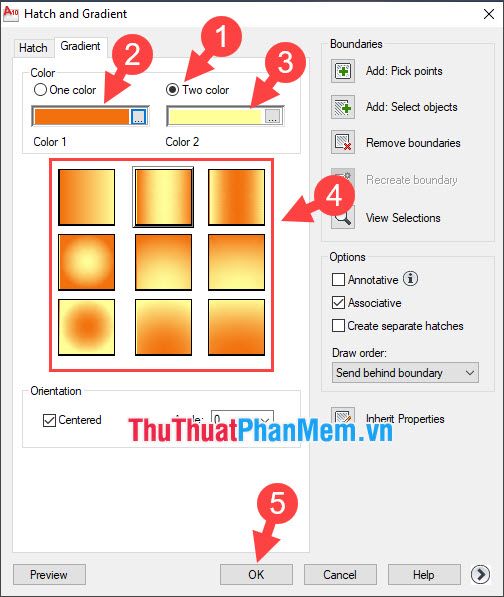

Step 4: Click on Two color (1) and set the first color (2) and the second color (3) => choose the gradient coloring type (4) => OK (5).

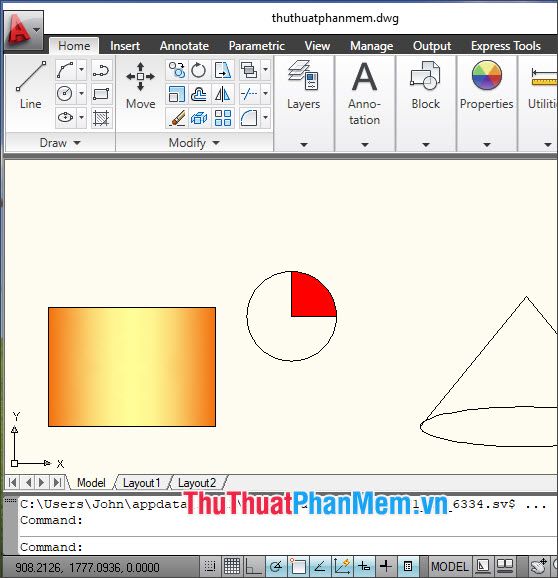

After following the above steps, your object will be beautifully colored with gradient as shown in the image below.
With the instructions provided in the article, you will find that coloring in Cad is not difficult at all but rather extremely easy. Wishing you all success!
