Ever fantasized about commanding a helicopter? Piloting a helicopter, or rotorcraft, demands a unique skill set compared to flying an airplane, albeit with some similarities. While an airplane relies on forward motion to generate lift by passing air over the wings, a helicopter achieves lift through rotating blades. Maneuvering a helicopter requires coordination of both hands and both feet. This guide aims to assist you on your journey to becoming a proficient helicopter pilot.
Guidelines
Mastering Fundamental Actions

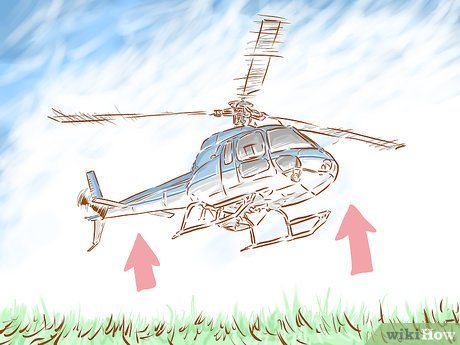

Commence Takeoff. Follow these steps for a standard takeoff:
- Gradually increase throttle to reach optimal RPM.
- Raise the collective slowly. As collective pitch elevates, apply left pedal (or right pedal for clockwise rotating main rotors). Maintain upward collective and left pedal application. Adjust pedal input to counteract any left or right drift.
- The helicopter will ascend, allowing access to cyclic controls. While continuing to raise collective and apply pedal input, adjust cyclic to maintain level flight during ascent. Apply forward pressure on cyclic to initiate forward motion.
- During the transition from vertical to forward flight, expect a shudder and nose-up tendency known as effective translational lift (ETL).
- As airspeed increases, rotor blade lift becomes more effective. Anticipate and adjust for this effect.
- As ETL is established, reduce collective input and ease pedal pressure. Apply forward cyclic to prevent abrupt nose-up attitude and loss of forward speed.
- Upon achieving liftoff, release forward cyclic pressure slightly. The helicopter will begin to climb and gain airspeed. Pedals are primarily used for trim adjustments at this stage. Most maneuvers require coordination of cyclic and collective controls.
Maintain hover by adjusting collective, cyclic, and tail rotor controls for equilibrium.
- Master this skill under the guidance of an instructor who can handle other controls while you focus on practicing each one individually and then in combination. Anticipate the delay between control adjustments and the helicopter's response.

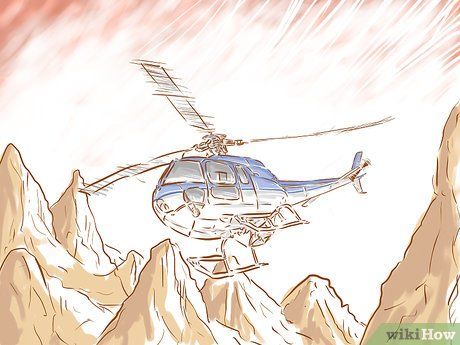

Ascend and descend following speed guidelines outlined in your pilot operating handbook. Adjust speeds based on terrain. Maintain 15-20 knots during steep climbs. Gradually increase collective, ensuring torque gauge stays within the yellow limit.

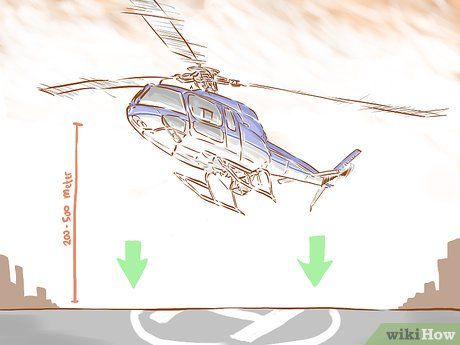

Execute landings, ensuring constant visibility of your landing spot, typically to your right (pilot's side). Trim adjustments may be necessary to approach at a slight angle.
- Aim to be 200–500 feet (61.0–152.4 m) above ground or obstacles when 0.5 kilometers from your landing area.
- Monitor airspeed. Slow down to 40 knots around 0.2km from the landing area and commence descent. Control descent rate to avoid exceeding 300 feet (91.4 m) per minute. Adjust collective to regulate vertical speed.
- Gradually decrease speed to 30, then 20 knots as you approach the landing area. Adjust nose up to reduce speed, temporarily obstructing sight of the landing area.
- Continue forward motion upon reaching the landing area to minimize drift. Reduce collective once desired landing spot aligns with the nose of the aircraft.
- Engage parking brake. Adjust cyclic backward to reduce momentum, then forward to maintain altitude. Keep descent rate minimal — adjust collective accordingly.
- Upon touchdown, confirm parking brake engagement, then reduce power completely.
Understanding Helicopter Controls

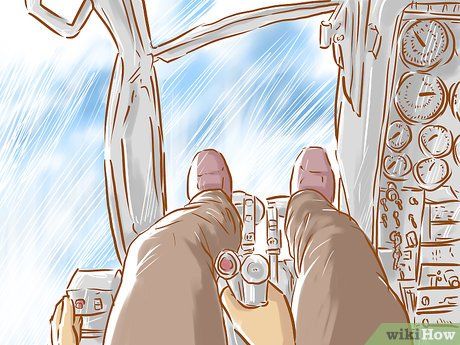

Get acquainted with helicopter components and controls. Refer to your aircraft's operating handbook for specifics. Here's an overview of essential controls:
- The collective: a lever positioned on the cabin floor to the left of the pilot's seat.
- The throttle: a twistable grip at the end of the collective.
- The cyclic: a stick located directly in front of the pilot's seat.
- The tail rotor: controlled by pedals on the floor, also known as anti-torque pedals.
Comprehend the capabilities and limitations of the helicopter. The majority of accidents occur due to rotor system overload, typically when pilots attempt maneuvers requiring excessive lift beyond the rotor system's capacity or the powerplant's capabilities.
Operate the collective control with your left hand.
- Elevate the collective to ascend the helicopter and lower it to descend. The collective collectively adjusts the main rotor's blade angle. The main rotor is positioned atop the helicopter.
- Manage throttle settings concurrently. Increase engine speed as you raise the collective and decrease it as you lower the collective. Throttle position aligns directly with the collective lever, ensuring RPM consistency. Adjustments are only necessary as required.

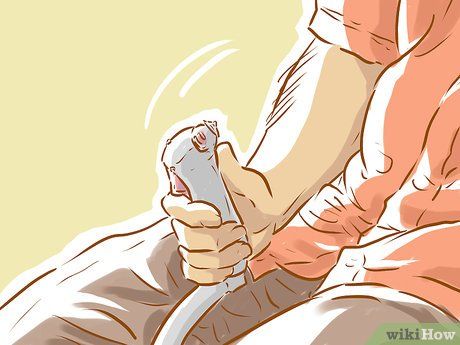

Manipulate the cyclic control with your right hand. The cyclic resembles a joystick but requires subtle inputs.
- Push forward to move forward, pull back to move backward, and tilt sideways for lateral movement. While the cyclic doesn't alter the helicopter's frontal direction, it induces forward/backward tilt (pitch) and side tilt (roll).

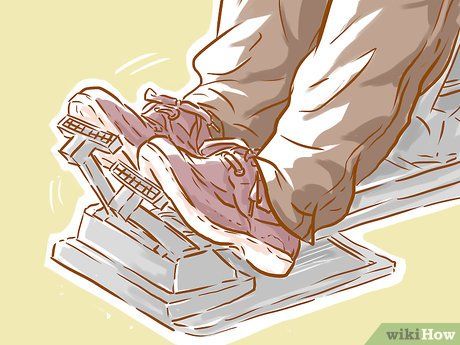

Operate the tail rotor pedals with your feet. These pedals, also known as anti-torque pedals, dictate the helicopter's orientation, akin to yaw pedals in airplanes.
- Apply gentle pressure on the left pedal to yaw left or on the right pedal to yaw right.
- Yaw pedals adjust tail rotor force, controlling yaw. Without a counteracting tail rotor, the helicopter naturally spins opposite to the main rotor's direction due to main rotor torque.
Insights
- Operate the controls with gentle pressure, following the principle: 'control with pressure, not movements.'
- Helicopter pilots maintain a different pattern altitude compared to fixed-wing aircraft to avoid traffic conflicts.
- Focus your vision at least half a mile ahead if conditions permit in your practice area.
Cautions
- Exercise caution against 'over-controlling' when beginning instruction. Novices often make this error by adjusting controls prematurely, resulting in loss of helicopter control.
- NEVER attempt to pilot a helicopter or any aircraft without proper training. While this guide may aid in simulation, it is not suitable for real-life flight.
