Acquiring the skills to operate a semi truck proficiently demands significant training and hands-on experience. However, if you're interested in grasping the fundamentals of shifting gears in a semi truck, you can obtain a basic understanding of the steps necessary for maneuvering these large vehicles. Discover how the gear shifter functions, how to transition between gears, and gain insights into determining the optimal moments for shifting.
Essential Steps

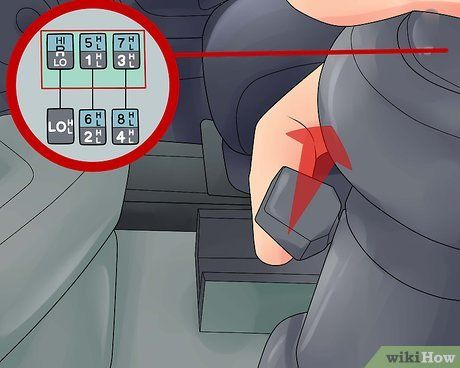

Deciphering the Gear Shifter
Comprehend the unique attributes of the gear shift mechanism compared to that of a standard vehicle. If you're accustomed to operating a manual transmission, understanding the basics of the Eaton-Fuller Transmission shifter, commonly utilized in numerous commercial trucks today, is crucial albeit more intricate. Essentially, it functions akin to a five-speed shifter, albeit featuring four distinct ratios per position, toggled through a combination of switches and positions. This results in a total of 18 different speed configurations.
- The shift knob incorporates two switches governing air-actuated gears. The first is the range switch, designated for selecting the 'Low' setting for gears Lo-4, while the other switch is the high/low splitter, facilitating the transition between the low and high settings at each gear. The range switch is operated using your index finger, allowing you to alternate between high and low settings at each gear position using your thumb.

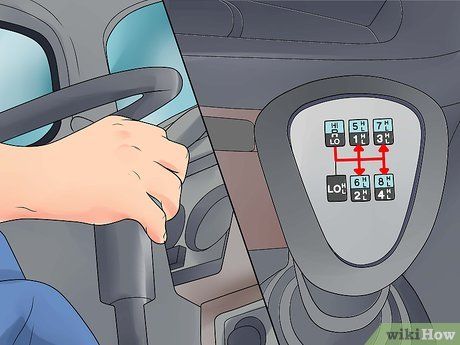

Master the Gear Shift Pattern. Familiarize yourself with the shifting pattern displayed on most gear shifts, aiding in understanding the gear organization. Low gears are typically distinguished from high gears by color, with reverse indicated by an 'R.' Remember, the shifting sequence involves shifting back to the first position to access fifth gear, with subsequent gears following a similar pattern.
Acquaint Yourself with the Semi's Gear Pattern While Stationary. Practice shifting the gear pattern of the semi truck while stationary to develop familiarity, enabling you to shift without needing to look. This enhances safety by allowing you to keep your focus on the road while driving.
Initiating Gear Movement
Commence Truck Operation. Begin by depressing the clutch pedal fully, akin to starting a manual transmission vehicle, halting transmission gear rotation to facilitate gear engagement. Select 'LoL' by moving the shifter into the Lo-gear position, typically located to the left and back.
Master the Technique of Double-Clutching for First Gear, Low Setting. Apply slight pressure on the clutch (not fully to the floor) when the RPMs correspond to the range for first gear. Shift the splitter back to 'L,' move the gear shift to neutral, and release the clutch. Depress the clutch fully, then shift into first gear while releasing the clutch. This method, known as double-clutching, is essential due to the inability to split between low and high on the splitter while in neutral.
Continue Executing this Sequence for the Initial Gears. After shifting into 1-L, transition the high/low switch into the high position, maintaining acceleration and following this sequence through the upper gears. Repeat the process for 1-H, 2-L, 2-H, 3-L, 3-H, 4-L, and 4-H. To engage the half steps, repeatedly operate the splitter button, release the accelerator, depress, and release the clutch.
Transition to Fifth Gear When Prepared. While the splitter switch is set to “L,' elevate the range selector to 5-H to prevent gear grinding upon reverting to the first position. This adjustment is crucial. Switch the range, then double-clutch-shift back to the initial position, transitioning to fifth gear.
Continue Shifting Through the Upper Gears. Repeat the fundamental principles, shifting and alternating between 'L' and 'H,' progressing through 5-H, 6-L, 6-H, 7-L, 7-H, 8-L, and ultimately, 8-H.
Recognizing the Optimal Shifting Points
Refer to the Color Indicators on the Tachometer. RPM gauges are typically color-coded, with around 1500 rpms marked at the top (12 o'clock) of the gauge, often in green. This zone is optimal for shifting between gears.
- Between 1700-2100 rpms, you're usually beyond the ideal shifting point, except when going downhill. This range is typically indicated in yellow, with anything above in red.
- If your rpm is below 1200 and you attempt to shift, the engine may splutter and potentially stall.
Familiarize Yourself with General Shifting Conditions. With experience, you'll recognize the common positions for shifting. During instruction, you'll learn some basic guidelines.
- For speeds of 50 mph (80.5 km/h) or higher, aim to be in top gear. Generally, at highway speeds or faster, top gear is appropriate.
- When navigating sharp turns in city conditions, aim for fifth or sixth gear. Transitioning to higher gears helps prevent stalling.
- Specific speed recommendations vary depending on the transmission and truck type. Seek advice from instructors or experienced drivers for insights.
Build Confidence for the CDL Exam.'As I work towards obtaining my CDL, I stumbled upon this site explaining semi-truck shifting. It proved incredibly helpful, offering clear guidance on upshifting and downshifting. The Q&A section was also beneficial. It's boosted my confidence for the shifting section of the CDL exam.' - Bert J.
Brush Up on a Retired Driver's Knowledge.'As a retired trucker, I shared this article with my son, who's keen on the profession. It served as a great refresher for both of us on various transmissions and the art of smooth shifting. The explanations were crystal clear, benefitting us both.' - Bobby R.
Succeed Behind the Wheel as a Novice.'As a complete newbie, I was anxious about handling a semi-truck. However, following the step-by-step shifting guide here, I managed to drive the truck with ease! This article equipped me with the essential knowledge I needed as a beginner.' - Eddie M.
Reclaim Your Skills After a Break.'Being a Class A driver, this article was a great refresher on shifting. After driving automatic trucks for two years, my manual shifting skills became rusty. The instructions helped me brush up on proper shifting techniques. Now, I've regained my proficiency after taking time away from it.' - Robert H.
Do you have a story our readers should know about? Share it with over 1 billion annual Mytour users. Share your story here.
Downshift as You Decelerate. When slowing down, engage the brake to reduce speed gradually, then select the appropriate gear for the deceleration range. Aim to reach 1400-1600rpm before shifting into the corresponding gear.
Pointers
Cautions
- Avoid using the splitter button while in neutral.
Experienced semi-truck drivers minimize clutch usage after selecting the first gear. Use engine sound cues to determine shift points and gently engage the gear without causing transmission grinding. Additionally, depending on the load weight, splitting gears may not be necessary for every shift.
