The symbol Ø, commonly used in CAD, signifies the diameter of a circular shape. Explore the techniques of incorporating Ø and other common symbols in CAD through the following guide.
1. Incorporating the Ø Symbol in CAD
1.1. Inserting the Ø Symbol through the Symbol Menu
Step 1: Input the command MT => Enter to write text in Cad.
Step 2: Click to select the starting point (1) and encircle to define point 2 (2) to create an area for inserting text, characters.
Step 3: Navigate to the menu Insert (1) => Symbol (2) => Diameter (3) to insert the Ø character.

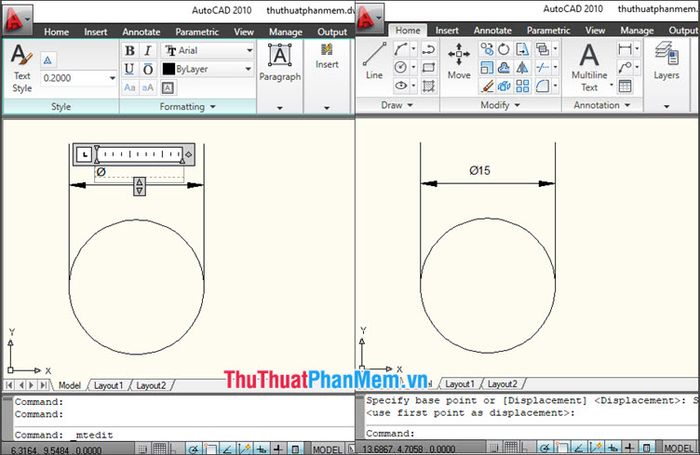

Step 4: Fill in the additional data and click outside to complete.
1.2. Inserting Special Characters Using Shortcut Keys
For greater convenience and speed, you can utilize shortcut keys to generate special characters. Follow these steps:

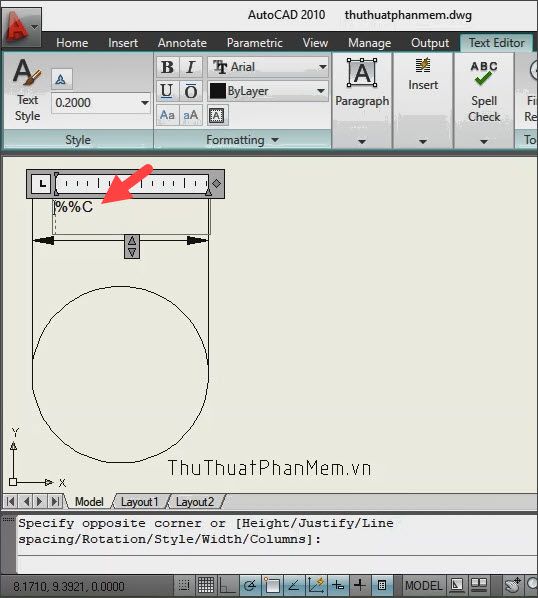

- Create an MText field as instructed above and input the character sequence %%C (write continuously, C is not capitalized).

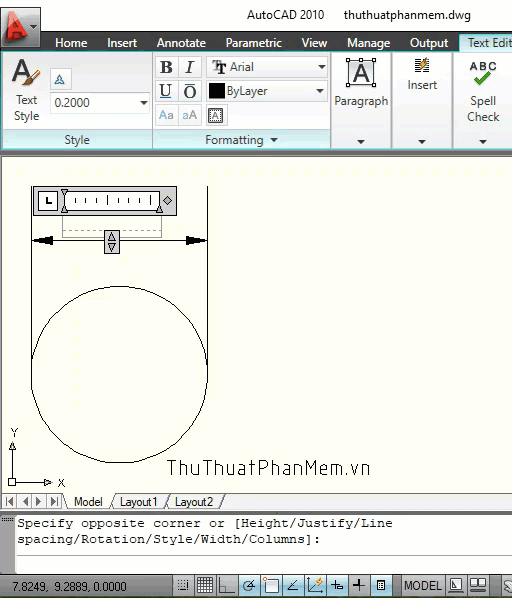

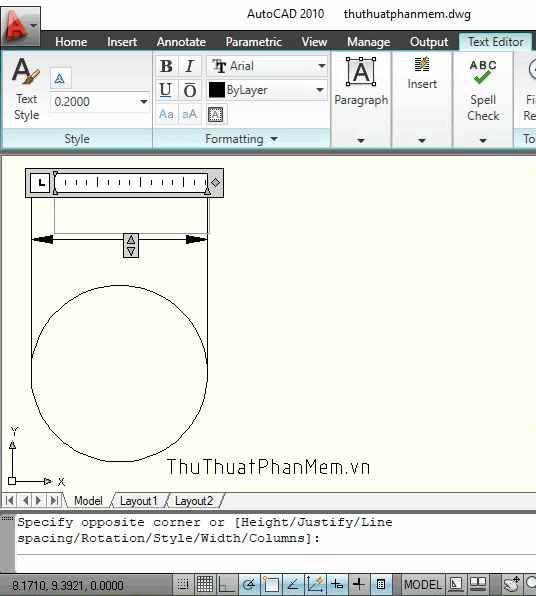

Once you've entered the character sequence, the special character will appear. You can refer to the descriptive image below.

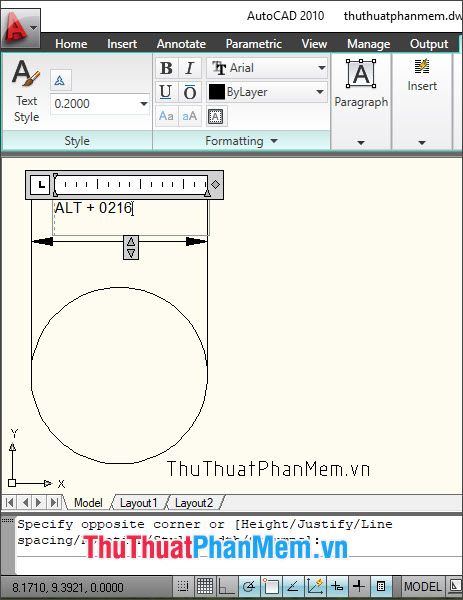

- Additionally, you can use the shortcut Alt + 0216 to type the phi character. To do this, hold down the Alt key on your keyboard and enter the number sequence 0216.
After performing this action, the phi character will appear.
1.3. Inserting the Phi Character via the Character Map

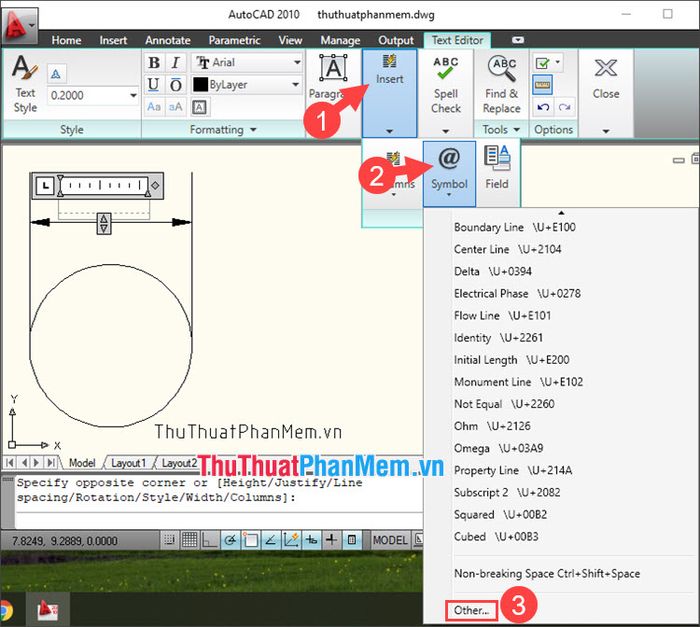

Step 1: Create an MText box and click on the Insert (1) menu => Symbol (2) => Other… (3).

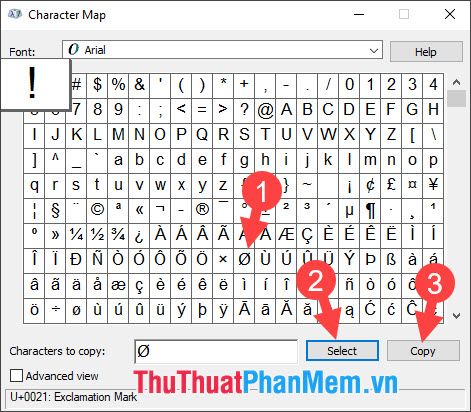

Step 2: Click to select the phi symbol (1) => Select (2) => Copy (3).
Next, close the Character Map window.

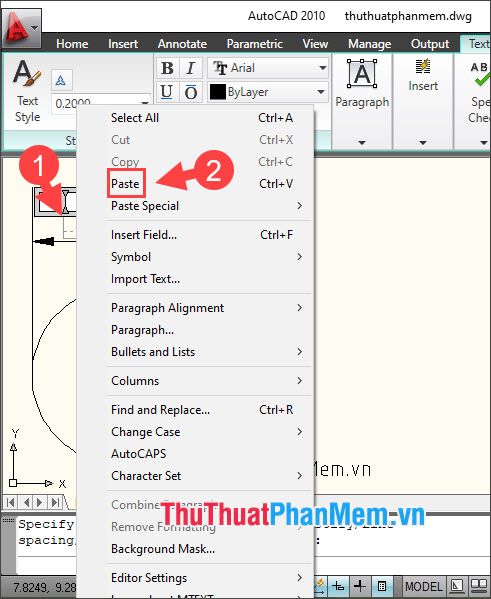

Step 3: Right-click at the insertion point for the phi character (1) => Paste (2) or press the Ctrl + V key combination to insert the phi character.

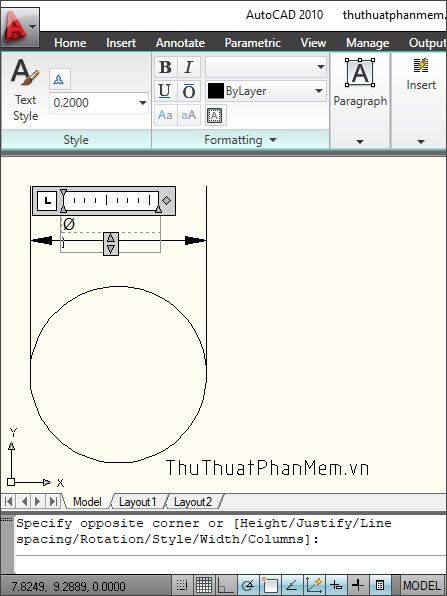

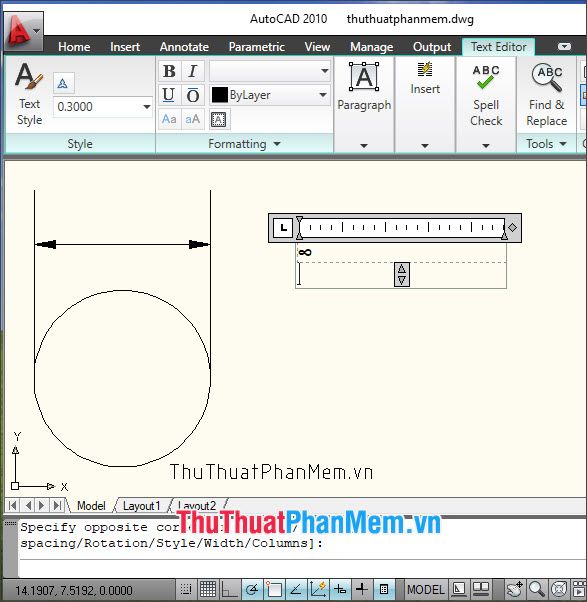

After completing the action, the phi character will be inserted as shown below.
2. Inserting Special Characters in Cad
2.1. Inserting Special Characters Using Shortcuts and Commands

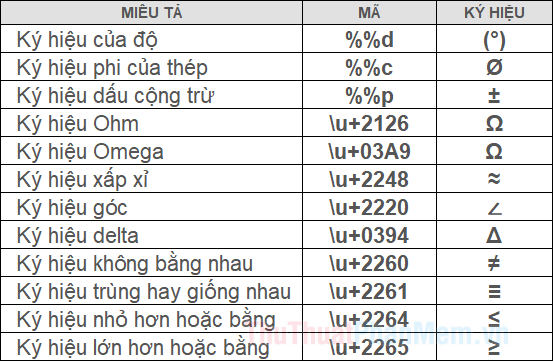

To insert special characters quickly, the fastest way is to use commands and shortcuts. You can refer to the command codes for some commonly used characters in Cad below. After entering the command, the character will be displayed on the screen.
To look up shortcuts for other special characters, you can access the Character Map as instructed in section 1.3. Then, click on the character you want to insert (1) and you will see the shortcut for that character under the Keystroke (2) section, while the number (3) indicates the command for the shortcut.
Example: The character 1/2 with Keystroke Alt + 0189 can be entered by holding the Alt key and pressing the key sequence 0189. Additionally, you can input the character \ then enter the command u+00bd to create the 1/2 character without needing to hold the Alt key anymore.
2.2. Inserting Special Characters in Cad using Character Map
The process is similar to inserting the phi symbol in section 1.3. You can follow the instructions below.

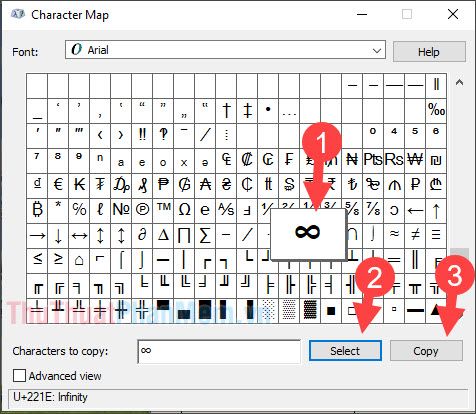

Step 1: Open the Character Map (as instructed in section 1.3). Then, select the character you want to insert (1) => Select (2) => Copy (3).
Step 2: Press Ctrl + V to paste the special character you just copied from the Character Map.
With the instructions in this article, you can easily and quickly write the phi symbol and other special characters into Cad. Wishing you all success!
