Explore the Symbols and Functions on the Remote Control
The control panel of Daikin 1-way and 2-way air conditioners manufactured before 2017 features a sliding cover beneath the keypad, with a non-backlit display. Even when you power off, the control panel continues displaying parameters.

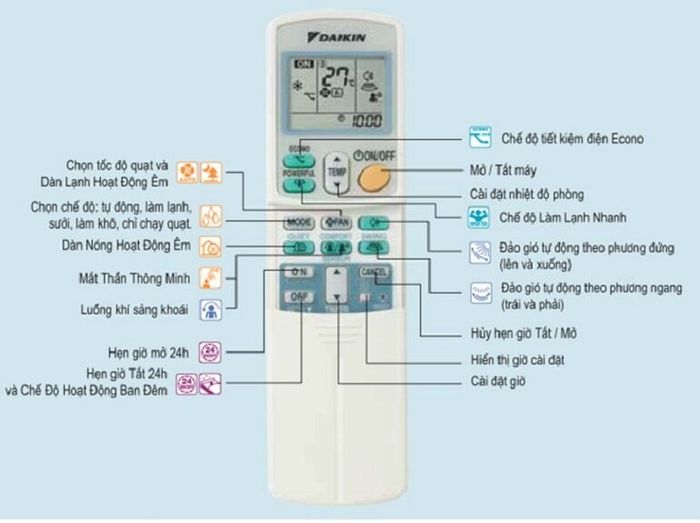

The remote control for Daikin air conditioners typically includes function buttons like:
+ ECONO Button: Energy-saving mode.
+ POWERFUL Button: Rapid cooling feature. If you choose the quick cooling mode, you cannot enable the ECONO mode.
+ TEMP Button with 2 upward/downward arrows: Increase/decrease temperature.
+ ON/OFF Button: Turn on/off the air conditioner.
+ MODE Button: Select from the fundamental modes of Daikin air conditioning.
+ FAN Button: Adjust the fan speed.
+ SWING Button: Adjust the direction of the airflow.
+ COMFORT Button: Adjusts the airflow direction upwards, avoiding direct airflow towards users.
+ ON Button (on TIMER frame): Sets the air conditioner to turn on at a scheduled time.
+ OFF Button (on TIMER frame): Sets the air conditioner to turn off at a scheduled time.
+ Up/Down Arrows (on TIMER frame): Increases/decreases the timer duration.
+ CANCEL Button (on TIMER frame): Cancels the preset timer settings.
+ Clock Symbol (on TIMER frame): Selects clock settings.
Detailed Guide on Operating the Control Panel of Older Daikin Models
Here, we provide a detailed guide on how to operate the control panel for older Daikin air conditioner models.

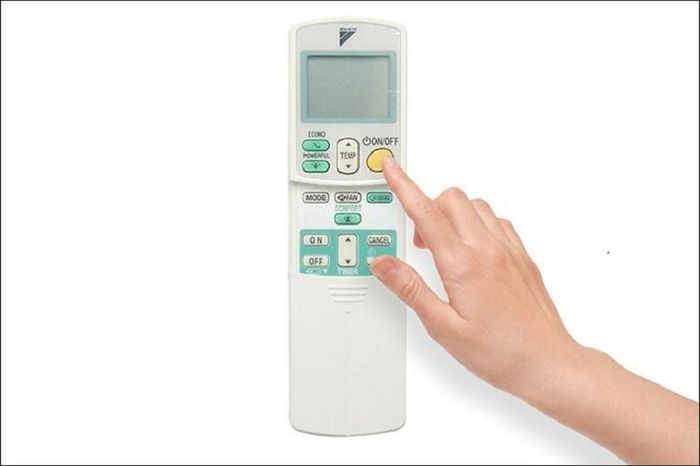

1. Power On/Off
+ Step 1: Press the ON/OFF button once, and the control panel will display the word ON.
+ Step 2: To turn off the Daikin air conditioner, simply press the ON/OFF button again.

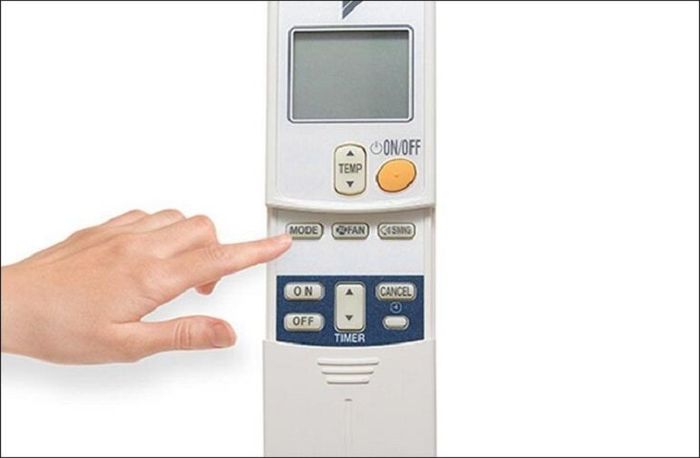

2. Selecting Operating Modes
Older models of Daikin air conditioners come equipped with 5 modes:
+ Snowflake Icon: Cooling mode.
+ Sun Icon: Heating mode, exclusive to Daikin 2-way air conditioners.
+ Fan Blade Icon: Fan mode.
+ Letter A Icon: Auto mode.
+ Water Drop Icon: Dehumidification mode.
To choose the operating mode that suits your needs on the Daikin air conditioner, simply press the MODE function button until the control panel displays the desired mode.
Note: In dehumidification or fan mode, the temperature of the air conditioner cannot be adjusted.

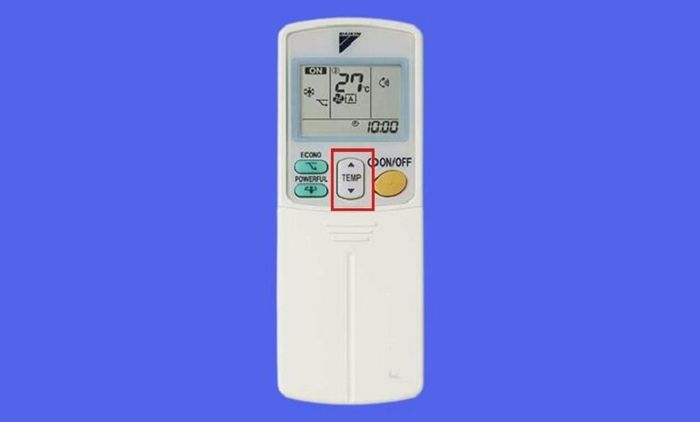

3. Temperature Settings
+ When the air conditioner operates in COOL or HEAT mode, users can adjust the temperature by pressing the TEMP button.
+ Press the upward arrow symbol to increase the temperature; press the downward arrow symbol to decrease the temperature.

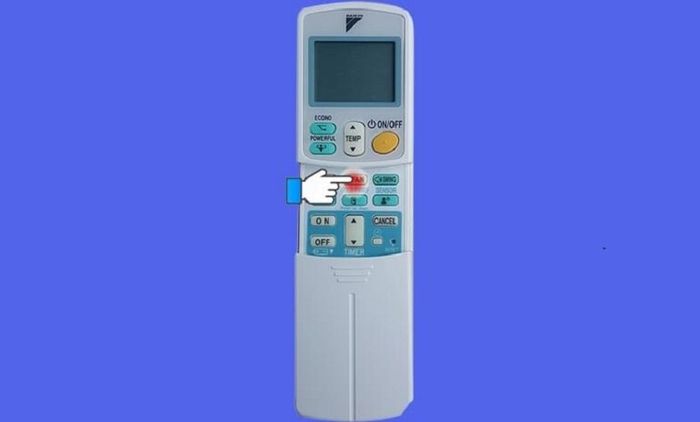

4. Adjusting Fan Speed
To adjust the fan speed, press the FAN button on the remote control until the control panel displays the desired fan speed. The Daikin air conditioner has 5 fan speeds from low to high, with each press changing the fan speed.
The fan speed of older models of Daikin air conditioners is equipped with 2 modes, including:
+ Pine Tree Icon: Natural breeze fan mode.
+ Letter A Icon: Automatic fan mode.

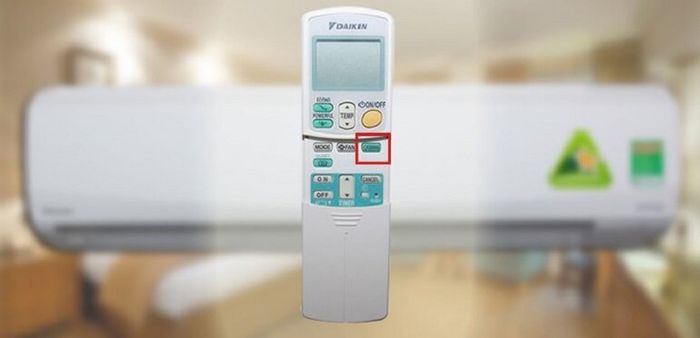

5. Adjusting Fan Blade Direction
When you want to adjust the fan blade direction of the Daikin air conditioner, press the SWING button. Pressing it the first time will make the fan blades move continuously, and pressing it again will fix the fan blades at a specific position.

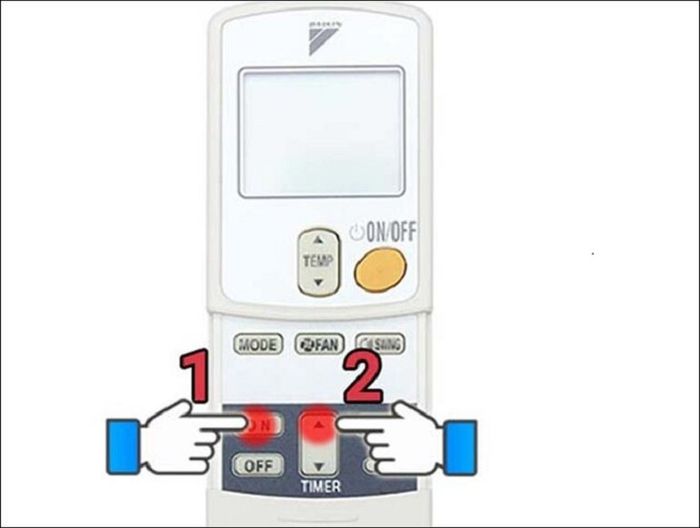

6. Setting the Air Conditioner Timer On
+ Step 1: Press the clock button on the TIMER frame and then select the ON button.
+ Step 2: Press the upward or downward arrow button on the TIMER frame to choose the timer duration for turning on the air conditioner.
+ Step 3: Press the ON button once more to confirm the settings.
If you want to deactivate the timer mode, press the ON button and then press the CANCEL button on the TIMER frame.
7. Setting the Air Conditioner Off Timer
+ Step 1: Press the OFF button on the TIMER frame.
+ Step 2: Press the upward or downward arrow button on the TIMER frame to choose the timer duration for turning off the unit.
+ Step 3: Press the OFF button once more to confirm.
If you want to cancel the off timer, press the OFF button and then press the CANCEL button on the TIMER frame.
5 Tips for Using Daikin Air Conditioners
The Daikin air conditioner brand is consistently praised for its quality, energy efficiency, and durability. When using a Daikin air conditioner, consider the following tips to ensure effectiveness and safety:
+ Avoid lowering the room temperature too much; the recommended range is from 23 to 28 degrees Celsius.
+ Prevent direct sunlight and allow fresh air into the room to enhance cooling efficiency.
+ Regularly clean the air filter, approximately every 2 weeks, to improve air circulation.
+ Turn off the power to the Daikin air conditioner when not in use for an extended period, as it consumes energy ranging from 15W to 35W even when inactive.
+ Use additional fans to quickly and evenly distribute cool air in the room.
Above are details on how to operate the control panel of older models of Daikin 1-way and 2-way air conditioners. We hope this information is helpful for you. Some popular Daikin air conditioner models in Vietnam that you may consider purchasing include: Daikin Inverter 9,200 BTU ATKF25XVMV; Daikin Inverter 12,300 BTU ATKF35XVMV; Daikin Inverter 18,100 BTU FTKF50XVMV; Daikin Inverter 8,500 BTU FTHF25VAVMV; Daikin Inverter 11,900 BTU FTKB35WMVMV...
