Typically, Panasonic refrigerators with upper freezer compartments have two types of control panels: a mechanical dial control panel and a mechanical button panel with an LED display. In this post, Superstore Mytour will instruct you on how to use the control panel for the freezer compartment on Panasonic refrigerators. Please feel free to refer to it!

How to Identify the Product Name on Panasonic Refrigerators

Various models of Panasonic refrigerators with upper freezers belong to typical series such as BL, BA. You can check the product series on the blue energy label attached to the front door of the refrigerator.

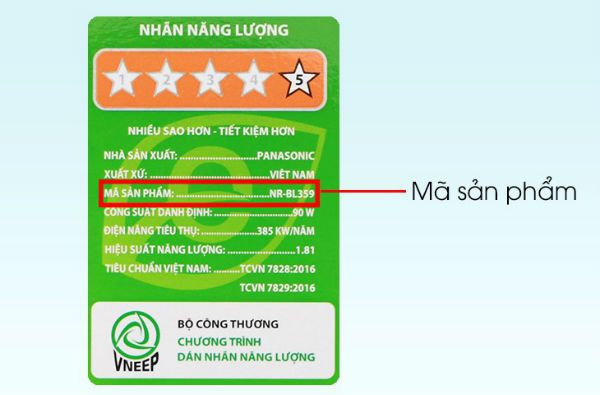

Explore the product line of Panasonic refrigerators on the label

Introduction to the rotary knob control panel

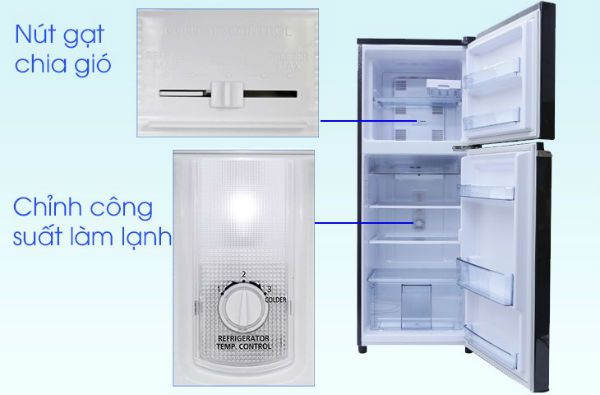

Functions of the rotary knob control panel

- Air division switch: regulates the airflow for the cool and freeze compartments. This switch, located in the freezer compartment, has three modes. Sliding it to the left, labeled 'REFRIGE.MAX,' prioritizes airflow to the cool compartment. Sliding it to the right, labeled 'FREEZER MAX,' prioritizes airflow to the freeze compartment. The 'NORMAL' mode evenly distributes airflow to both compartments.

- Cooling power adjustment button: controls the cooling power for the entire refrigerator. This knob, located in the cool compartment, is divided into 3 levels from 1 - 2 - 3, with level 1 being the lowest cooling power and level 3 being the highest. Typically, we recommend storing a moderate amount of food and selecting level 2. Unless you need rapid cooling or are storing an excessive or insufficient amount of food, you can choose the corresponding power level.

Introduction to the LED display button control panel

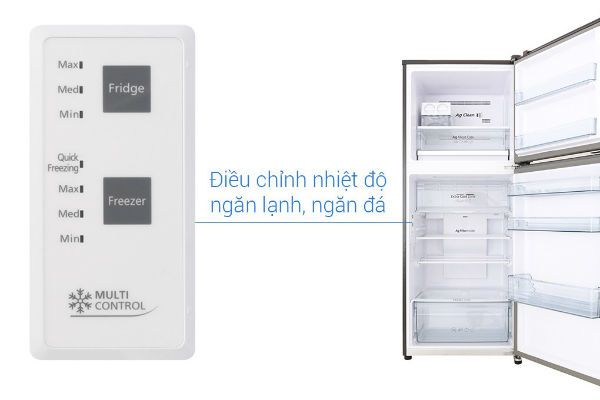

Functions of the LED display button control panel

- Adjusting the cool compartment temperature: To adjust the cool compartment temperature, press the 'Fridge' button and choose the 'Min - Med - Max' levels for the desired temperature, where Min is the least cold, and Max is the coldest.

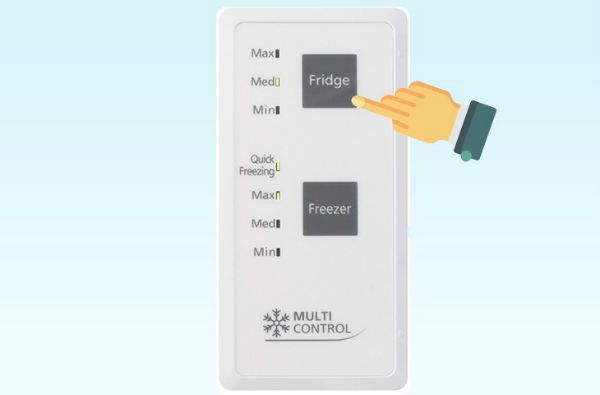

Adjusting the cool compartment mode

- Adjusting the freeze compartment temperature: To adjust the temperature of the ice compartment, press the 'Freezer' button and select the 'Min - Med - Max' levels for the desired temperature, where Min is the least cold, and Max is the coldest.

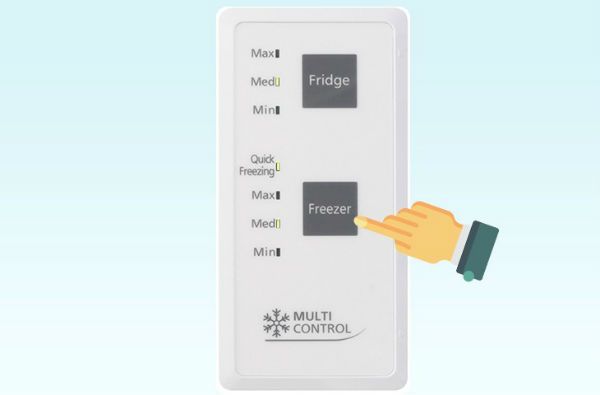

Adjusting the ice compartment mode

- Activating rapid freezing feature: In addition, to activate the rapid freezing feature, simply press the 'Freezer' button multiple times until the 'Quick Freezing' light is on, indicating that the rapid freezing mode is enabled. The rapid freezing mode will operate for 60 minutes - 150 minutes and return to normal mode, depending on the outside environmental temperature, the amount of food you are storing, the number of times the refrigerator door is opened, etc.

Adjusting the quick freezing mode

Above is the instructional article on how to use the Panasonic ice compartment control panel that Mytour just shared with you. We hope to provide you with useful information for using the refrigerator, helping you maximize the efficiency of its features and optimize food storage.

Phuong Anh

Frequently Asked Questions

What are the different control panels available for Panasonic refrigerators?

Panasonic refrigerators with upper freezers typically feature two types of control panels: a mechanical dial control panel and a mechanical button panel equipped with an LED display. Each panel offers distinct functionalities to manage the refrigerator's cooling features effectively.

How can I identify the product name and series on my Panasonic refrigerator?

To identify the product name and series of your Panasonic refrigerator, check the blue energy label located on the front door. This label displays the specific series, such as BL or BA, associated with your refrigerator model.

How do I adjust the cooling power on my Panasonic refrigerator's rotary knob?

To adjust the cooling power on the rotary knob control panel, locate the knob in the cool compartment. It has three settings: level 1 for lowest cooling power, level 2 for moderate cooling, and level 3 for maximum cooling, allowing you to customize cooling based on food storage needs.

What steps should I follow to activate the rapid freezing feature on my Panasonic refrigerator?

To activate the rapid freezing feature, press the 'Freezer' button multiple times until the 'Quick Freezing' light illuminates. This mode will function for a duration of 60 to 150 minutes, depending on factors such as outside temperature and the volume of food stored.
