Monitor your cherished car 24/7 with Vietmap OB01, a car accessory designed for continuous vehicle surveillance. It acts as a dedicated car black box, compact in size, and easily installable within 5 seconds.
I. Product Information
Highlighted features of the Vietmap OB01 car locator device:
- Sleek design, easy installation through the built-in OBDII port in the car.
- Utilizes GPS + LBS for precise location tracking and travel route monitoring.
- Continuous 24/7 vehicle monitoring, effective theft prevention, and recovery, with storage of travel route data.
- Track, control, and view reports through the VietMap Motrak app.
- Remote intelligent alert system for your car.
II. Structure of Vietmap Car Tracking Device

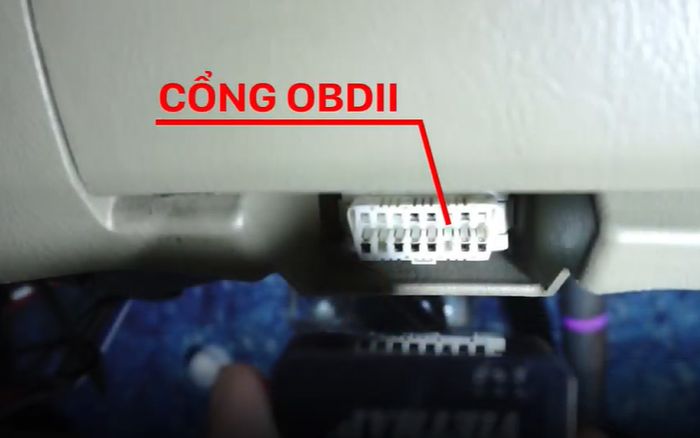

1. Location of the OBDII port on the vehicle
Most modern cars have the OBDII port typically located above the brake pedal, easily distinguishable by its 16-pin configuration.
2. Removing and Installing the SIM Card
- Use the SIM card removal tool and insert it into the slot.
- Then push the SIM removal tool up while holding the outer casing of the OB01 to release it.
- Repeat the same process with the second slot and remove the outer casing of the OB01.
- Open the SIM card slot and insert the SIM card correctly.
- Press the SIM slot cover into the LOCK position and lock it.
3. Operation Method
3.1 Startup
After inserting the SIM card, the device will power on using the backup battery.
When the device is plugged into the OBD port in the car, the internal battery will be charged.
3.2 Power Off
After removing the device from the OBD port in the car, the SIM card must be removed to completely turn off the device.
If the SIM card is not removed, the device will operate on the backup battery until it runs out of power.
III. User Guide for Vietmap Car Tracker

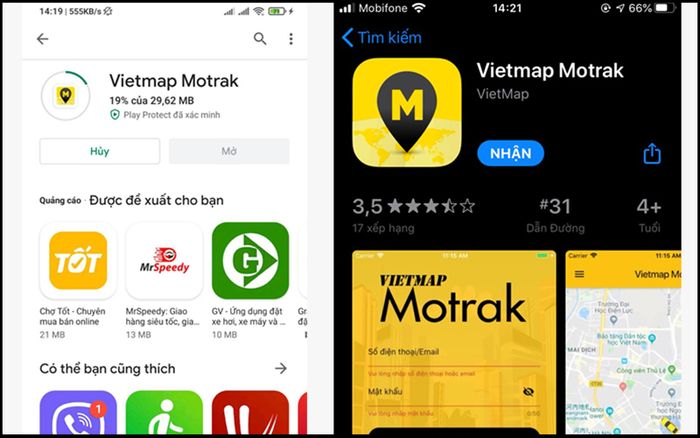

1. How to download the app
- Open the CH Play or App Store app
- Navigate to the search section and enter the software name 'Vietmap Motrak'
- Proceed with the download and installation process
2. Account Registration and Activation
Step 1: Choose 'Register' for an account

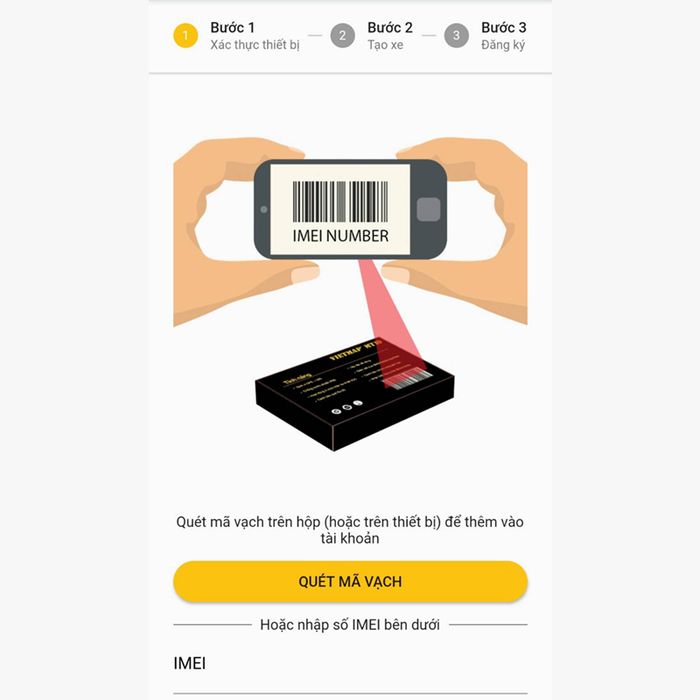

Step 2: Scan the barcode from your device or manually input the IMEI
Step 3: Enter the vehicle license plate, SIM phone number, and car manufacturer
Step 4: Provide user's phone number, password, full name, email, and address

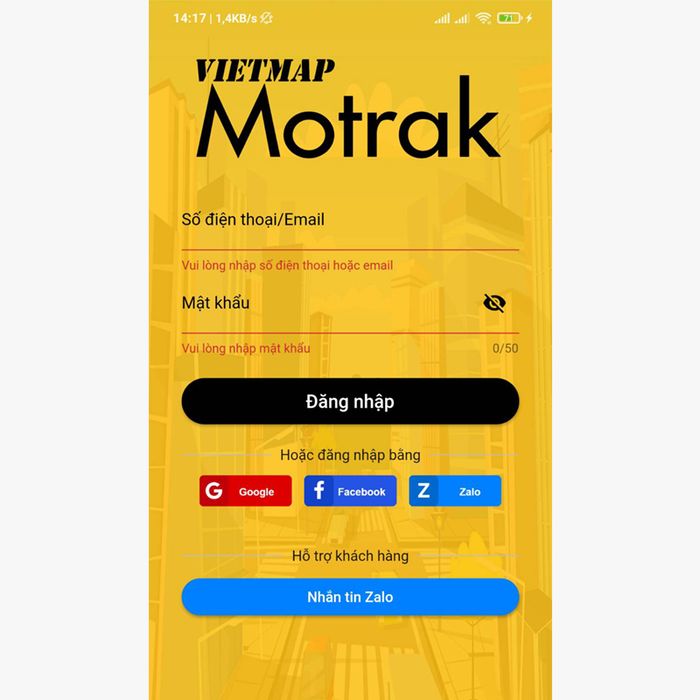

3. Software Interface
IV. 3 Key Features of Vietmap Car Tracking
1. Real-time Vehicle Tracking
VietMap OB01 combines GPS and LBS platforms to accurately determine the vehicle's real-time location. It supports detailed mapping of the vehicle's position.
2. Data Storage - Travel History
Motrak application integrates with VietMap server system for intelligent monitoring and support in storing vehicle movement data.
3. Intelligent Alert System
+ Identify lock/unlock status.
+ Vibration alert when the vehicle is impacted.
+ Alert for vehicle position change.
+ Power-off alert.
+ Speeding alert.
+ Alert for entering/exiting restricted areas.
+ Remote monitoring via the internet.
Car Tracking Devices available at Mytour:
Above is the installation of Vietmap car tracking and how to set up the Motrak app for management. If you have any questions, feel free to leave a comment for Mytour assistance.
