The Toshiba 9000 BTU 1-way Inverter RAS-H10H4KCVG-V air conditioner features advanced cooling technology and an inverter for energy efficiency. However, improper installation can lead to undesirable issues or even failure to cool. To assist with proper installation, Mytour provides the following detailed instructions:
Choosing the Installation Location for Toshiba RAS-H10H4KCVG-V Inverter Air Conditioner
This is a crucial first step before proceeding with the air conditioner installation. The 1hp Toshiba RAS-H10H4KCVG-V air conditioner is suitable for spaces ranging from 10 to 15m2. The indoor and outdoor units operate on different principles, and installing them in an unsuitable location can affect their performance.
- Install the indoor unit inside the house to evenly distribute cold air and avoid temperature differences between indoors and outdoors or air leakage.
- Install the outdoor unit outside, ensuring it is positioned to avoid direct sunlight exposure.
After finding the installation location, proceed to select the necessary materials such as copper pipes, insulated pipes, electrical wires, insulation tape, etc., for installation.
Installing the Indoor Unit of Toshiba Inverter Air Conditioner RAS-H10H4KCVG-V
Step 1: Mount the indoor unit bracket at a balanced position. Use a level to ensure balance. Secure the bracket with screws and drill a hole to route the copper pipe outside.
Step 2: Connect the electrical wires inside the indoor unit.
Step 3: Install the copper pipes and apply insulation to minimize refrigerant leakage.
Step 4: Mount the indoor unit on the bracket and readjust the balance if necessary.

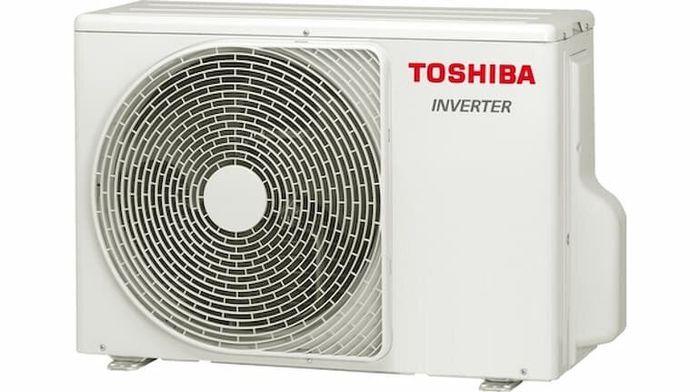

Installing the Outdoor Unit of Toshiba RAS-H10H4KCVG-V Air Conditioner
The outdoor unit of the Toshiba RAS-H10H4KCVG-V air conditioner is typically placed in a high, airy outdoor location. Follow these steps to install the outdoor unit:
- Step 1: Adjust the installation position of the outdoor unit to ensure balance.
- Step 2: Secure the L-shaped bracket to the wall using screws.
- Step 3: Mount the outdoor unit onto the L-shaped bracket.
- Step 4: Connect the copper pipes, electrical wires, and wrap thermal and gas valves.
Routing Copper Pipes from Indoor to Outdoor Unit
When installing copper pipes for the RAS-H10H4KCVG-V 1-way air conditioner, it is essential to comply with the manufacturer's installation requirements. Choosing pipes that are too short can lead to gas leaks, pipe cracks, blockages, and ultimately serious damage. Choosing pipes that are too long can affect the air conditioner's operational efficiency.
The copper pipes for the Toshiba RAS-H10H4KCVG-V 1hp inverter air conditioner come in two types: one for connecting the outdoor unit to the indoor unit and the other for connecting the indoor unit to the outdoor unit. For the Toshiba RAS-H10H4KCVG-V 1hp model, a reasonable outer diameter for the pipes is 6mm for incoming pipes and 10mm for outgoing pipes.
Once you've identified the copper pipes needed for installation, simply follow these steps:
- Step 1: Bend the copper pipes to the position for installing the outdoor unit.
- Step 2: Flare the end of the pipes using specialized tools and connect them to the outdoor unit's copper wires. This is a crucial step that requires precise technique to minimize refrigerant leakage into the environment.
- Step 3: Continue connecting the wires from the indoor unit to the copper pipes.
Conclusion
With the detailed instructions provided above, we hope you now know how to install the Toshiba RAS-H10H4KCVG-V air conditioner correctly. However, purchasing from large retailers often comes with installation promotion programs. Therefore, it's advisable to explore these policies to enjoy the most beneficial offers.
