Steps to Create Graphs (Charts) in Excel

This article below provides a detailed guide to the steps of creating graphs (charts) in Excel 2013.

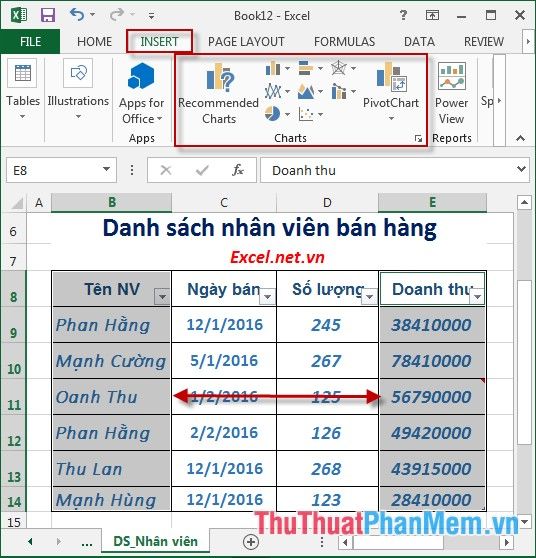

Step 1: Choose the data for the chart (for example, creating a revenue chart for employees) -> Insert -> choose the chart type under Charts:

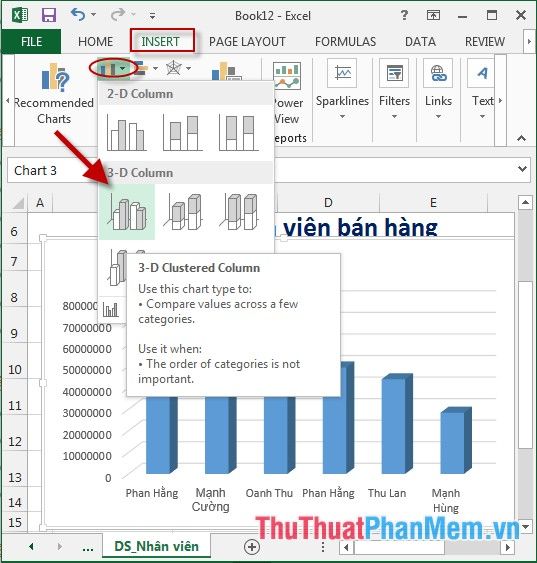

Step 2: For instance, select the 3D chart type: Move to 3D -> click on the desired chart type:

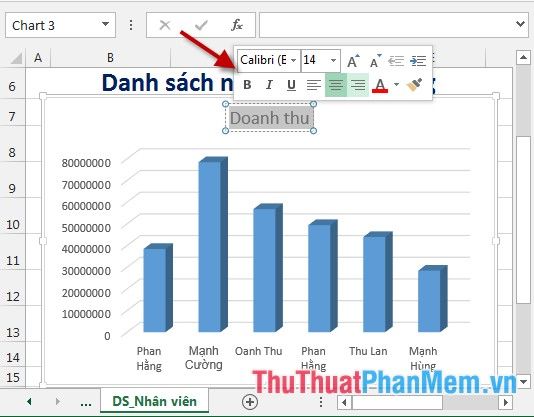

Step 3: After selecting the chart type -> the chart is created -> click on the chart title -> a quick Font display dialog will appear, customize as desired:

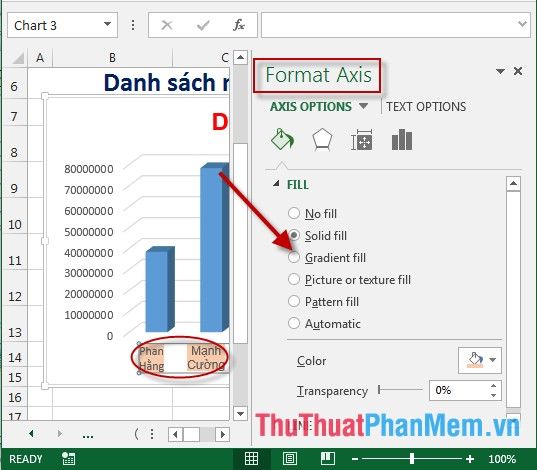

Step 4: Click on the employee names on the chart to open the Format Axis dialog -> modify options in the dialog for the chart:

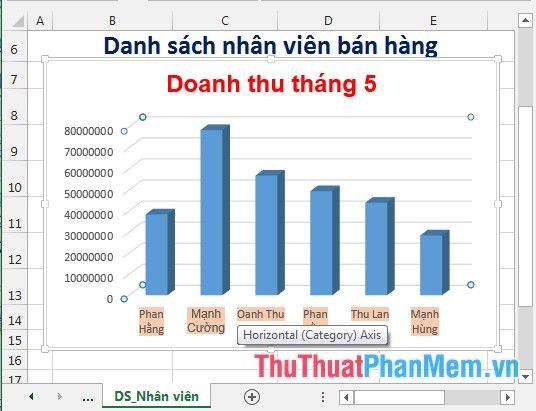

- The result after editing the chart:

Here is a detailed guide on the steps to create a chart in Excel 2013.

Wishing you all success!
