A straightforward tutorial on hanging your TV mount like a professional
Mounting a TV on the wall can enhance any room or living area. However, before you can hang the TV, you must correctly install the wall mount. Begin by identifying the optimal location for the TV. Then, acquire a mounting kit that matches your TV model. Locate the wall studs and drill pilot holes once the mount is level. Finally, secure the mount to the wall and proceed with hanging the TV.
Essential Tips
- Select a visible spot for your TV mount, near a power outlet, and away from heat sources like a fireplace.
- Purchase a mounting kit compatible with your TV model or one specifically designed for it.
- Ensure that your TV mount is anchored to wall studs to prevent it from falling.
Step-by-Step Instructions
Finding the Perfect Spot

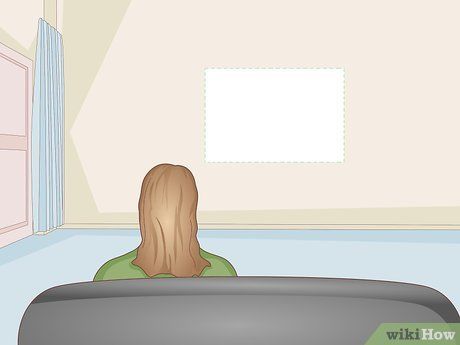

Select a location where TV viewing is comfortable while seated. TV placement varies depending on room layout. Ideally, choose a position that allows for direct viewing without straining. Mounting the TV at eye level enhances picture quality.
- If mounting higher than eye level, consider a tilting mount to minimize glare and enhance viewing experience.
Place the TV near a power outlet to prevent cable clutter. Mount it above or close to an outlet to avoid lengthy cable runs. For cable concealment, install a cable concealer. Cut it to size, tuck cables inside, and stick it to the wall. Paint to match the wall color for a seamless blend.
- If hiding cables, consider using a cable concealer. Cut to fit between the TV and outlet, tuck cables inside, and adhere to the wall. Paint to match the wall color for a seamless look.

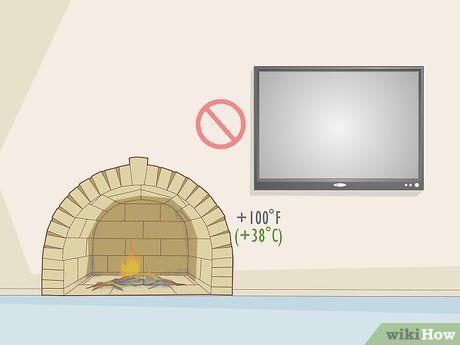

Avoid locations where temperatures exceed 100 °F (38 °C). This is crucial, especially when positioning the TV above a fireplace. Heat can damage TV electronics. Opt for an off-center location to prevent direct exposure to heat.
- If the fireplace is decorative and unused, placing the TV above is acceptable.
- Gas or electric fireplaces produce less heat than wood-burning ones. Consult the manufacturer before mounting the TV above them.
Determining the Right Size for the Mount

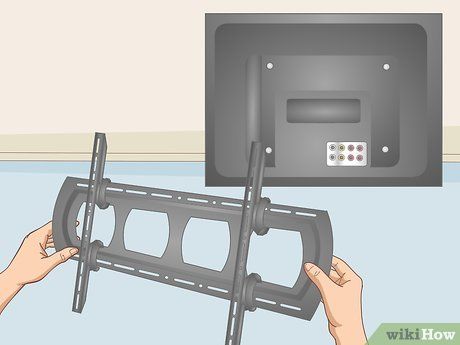

Ensure you have a mounting kit suitable for your TV. If your TV didn't come with one, find a compatible kit. Consider ordering from your TV manufacturer or search for one that fits your model. Verify the size and weight capacity of the mount before purchasing to prevent accidents. Choose a mount type that suits your needs, whether flat, tilted, or swivel.

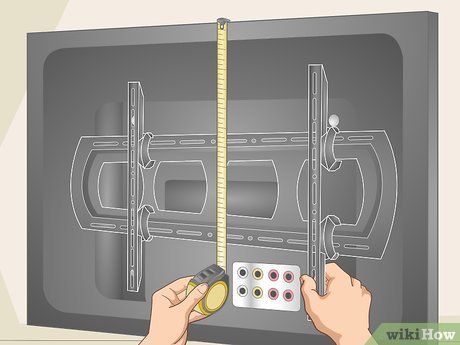

Position the mount on the TV and measure from the top. Place the mount where it attaches to the TV, usually near the center. Measure the distance from the top of the mount to the TV's top using a tape measure. This measurement determines the mount's installation height for correct alignment.
Mark the desired TV position and mount height. Select the TV placement and mark a line on the wall accordingly. Measure the distance between the mount and the TV's top, marking this point on the wall. Align the mount's top edge with this mark during installation.
Locate and mark the studs for TV installation. Identify and mark the center of two studs where you'll attach the mount. Use a stud finder or tap the wall to find solid areas, indicating studs. Remember, standard studs are typically 16 inches apart.
Mark the studs for TV mounting. Ensure you have two studs to support the mount. Use a stud finder or tap the wall to locate and mark the center of each stud. Standard studs are spaced 16 inches apart.

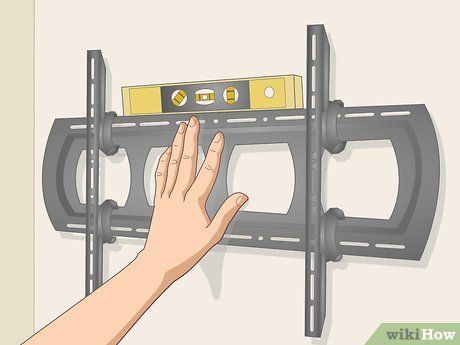

Position the mount against the wall and ensure it's level. Align the screw holes with the studs' centers and press the mount onto the wall. Use a level to adjust it until it's perfectly horizontal.

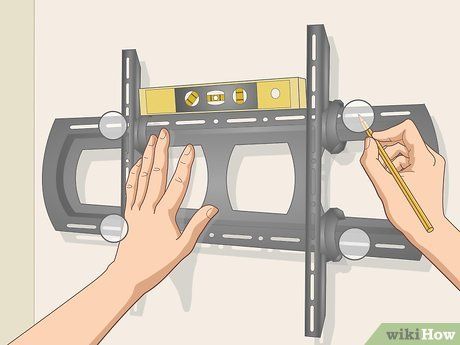

Mark the positions for the 4 screws on the wall. While holding the mount against the wall, mark 4 hole positions, ensuring they align with the mount's corners. Adjust the mount if needed to align the screw holes with the studs.
Drill pilot holes at each marked position. Attach an appropriate drill bit to a power drill and drill holes at each marked position for the bolts. Ensure the drill goes into the stud behind the drywall.

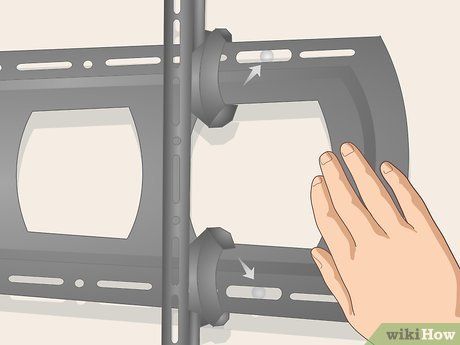

Align the mount's holes with the pilot holes. Hold the mount against the wall and align the screw holes with the pilot holes. Double-check the level before proceeding.
Align the mount holes with the pilot holes. Press the mount against the wall and ensure the screw holes align with the pilot holes. Verify the level before continuing.
Secure the mount by drilling a lag bolt into each pilot hole. Press the mount against the wall and insert a lag bolt into each hole. Begin drilling with a power drill to secure the bolts into the wall.

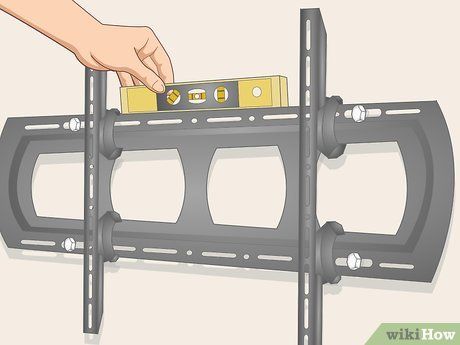

Verify the mount's level before proceeding. Use a level to ensure the mount is perfectly horizontal. If adjustments are needed, remove the bolts, readjust, and reattach the mount.
Tips
If you're hanging a TV on a plaster wall, ensure it's anchored to the wood support beam inside the wall.
Things You'll Need
- TV mounting kit
- Power drill
- Level
- Screwdriver
- Pencil
- Tape measure
- Screws
- Lag bolts
