Tips for Utilizing Ferrite Beads

1. Choose a ferrite bead that matches the size of your wire.
2. Position the ferrite bead near the device on the wire.
3. Securely close the ferrite bead by pressing it together.
4. If the bead is loose, insert a toothpick or plastic paperclip between the bead and the wire.

Reducing Radio Frequency Interference (RFI) with Ferrite Beads If you detect a high-pitched noise when using your laptop, headphones, or stereo, you're experiencing RFI. Ferrite beads offer a solution by minimizing this interference, ensuring you receive low-frequency signals as intended.

• Ferrite beads are versatile and can be applied to various electronics such as laptops, headphones, stereos, gaming systems, and televisions, which are prone to RFI.
• You may have encountered ferrite beads in your home without realizing it. Look for small boxes attached to wires near the plug; these are ferrite beads.

Choosing the Right Size Ferrite Bead for Your Wire Select a ferrite bead size based on the thickness of the wire. Thin cords like headphone cables require a 3 mm (0.30 cm) bead, while USB and network cables need a 5 mm (0.50 cm) bead. Thicker computer or electronic cables should use a 7 mm (0.70 cm) bead. Power cords typically utilize a 9 mm (0.90 cm) bead, and larger cords like 120-volt power cords or 12-gauge cords require a 13 mm (1.3 cm) bead.

• If the ferrite bead is too large, you can loop the cord around it to ensure a snug fit.

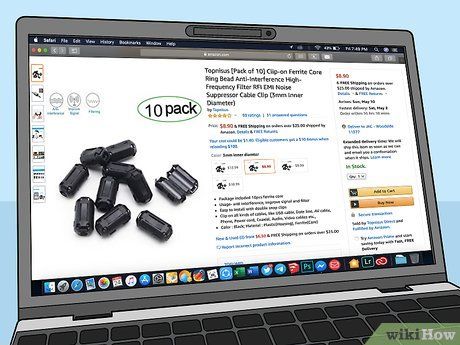

Obtaining Ferrite Beads from Online Retailers or Electronics Stores Ferrite beads are readily available online or at electronics stores. Consider purchasing a variety pack containing multiple sizes. Ensure the beads you buy have a clip closure rather than ferrite cores, which lack a hinge.

• Ferrite cores are primarily used in internal hardware design and are typically unseen by consumers as they are installed during the manufacturing process.

Internally Installing Ferrite Beads or Cores for Custom Hardware If you're constructing your own electronics and wish to mitigate RFI, you can internally install ferrite beads or cores within the wires. This process is more complex and requires knowledge of the hardware's voltage output and heat dissipation.

• Consult the ferrite bead manufacturer for information on impedance versus load current curves, aiding in selecting the appropriate ferrite bead type for your project.

Position the Bead on the Wire Approximately 2 Inches (5.1 cm) from the Device. While the bead can function regardless of its placement on the wire, it may be more effective at reducing RFI when situated closer to the source. It can even be placed directly against the device without causing any harm.

• Experiment with different locations along the wire to test the effectiveness of the ferrite bead. Opt for the position where the high-pitched frequency is minimized.

Preform the Wire into a Loop if it's Initially Loose. Fold the wire over itself to create a section that is 2 to 3 inches (5.1 to 7.6 cm) thick. Optionally, fold the wire back upon itself to triple its thickness while maintaining its original direction.

• This technique aids in securing the ferrite bead firmly in place, enhancing its ability to reduce RFI.

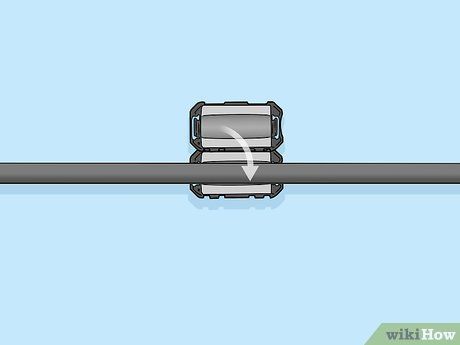

Securely Seal the Ferrite Bead. Once positioned, firmly press the bead together until it audibly clicks into place. Gently tug on both sides to ensure it is securely attached to the wire.

• Prevent the bead from dislodging and falling off, particularly if it is located in a hard-to-reach area.

Apply a Filler if the Ferrite Bead Remains Loose on the Wire. Assess whether the bead maintains its position on the wire when held up. If it slides down and cannot be tightened further, use a toothpick, plastic paperclip, or bobby pin to occupy the excess space.

• Although the ferrite bead will still function when loose, its effectiveness may be compromised. Ensuring it remains securely in place against the wire is essential for consistent RFI reduction.
• Avoid using a metal paperclip as it could interfere with the bead's performance.

Done and Dusted.

• Ferrite beads are also commonly known as ferrite chokes, ferrite clamps, or ferrite collars.
