Discover methods to monitor your network's activity
Ensuring your network's smooth operation is essential, regardless of its size. Monitoring network traffic allows you to identify and resolve issues promptly and stay protected against cyber threats. This article by Mytour provides insights into effectively tracking network traffic.
Key Points to Remember
- Access your router's monitoring tools to view connected devices.
- Utilize Wireshark for local network analysis.
- For large network monitoring, consider solutions like SolarWinds or cloud-based services.
Steps to Follow
Exploring Router Settings

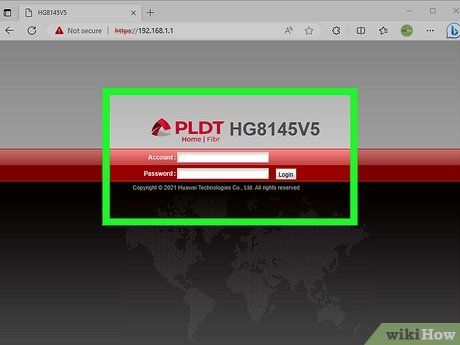

Access your router's administration page through a web browser. You can reach it by entering your router's default IP address, usually '192.168.1.1.'
- If unsure about the IP address, find it using various methods.
- For Windows, open Command Prompt and type ipconfig, then locate your IP next to 'Gateway.'
- For Mac or Linux, open Terminal and enter ip r.
- Sign in if prompted, using the default username and password.

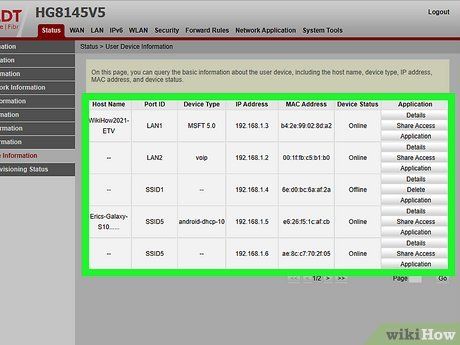

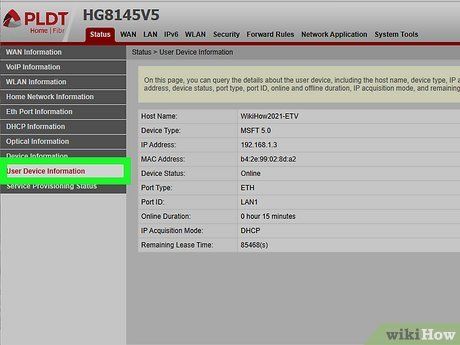

Navigate to the device list. Look for a section that lists all connected devices, usually under an Overview header.
- You'll see a comprehensive list of connected devices, along with their names, IP addresses, connection types, and duration of connectivity. Wi-Fi details such as signal strength and available bandwidth are also provided.
Find a status, bandwidth, or network monitoring segment. If available, you can view bandwidth usage, transmission rates, and other relevant statistics.
- If this feature is not available, consider using third-party tools for network monitoring.
- In addition to monitoring, you can also view connected devices and disconnect them if necessary.
Utilizing Wireshark for Analysis
Launch Wireshark. If you haven't installed the free program for Windows, Mac, or Linux yet, you can download it from their website.
- Wireshark serves as a packet-sniffing tool, providing insights into your network traffic. Ensure Wireshark captures packets in promiscuous mode to effectively monitor network activity.

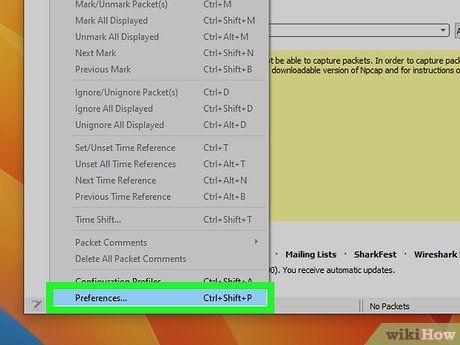

Access the 'Edit' menu and select Preferences. Navigate to 'Edit' on the menu bar at the top of the Wireshark window.
- Selecting Preferences will open a new window.

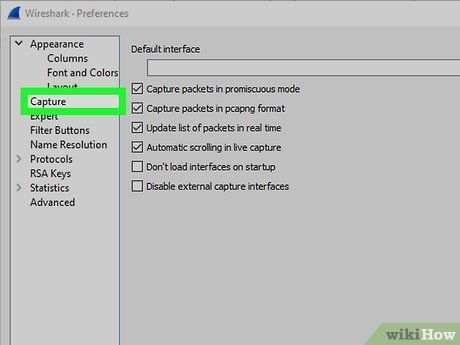

Click on the Capture tab. Located in the left panel of the Wireshark window.

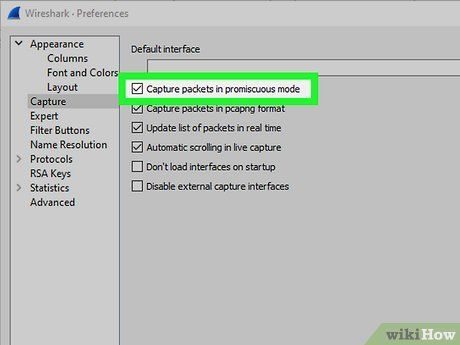

Ensure 'Capture packets in promiscuous mode' is checked and click OK. Verify the correct mode is selected before monitoring network traffic, as different modes yield distinct results.
- If the Wireshark Preferences window does not close automatically, close it manually.
- Using Wireshark in promiscuous mode on a network without permission is illegal.

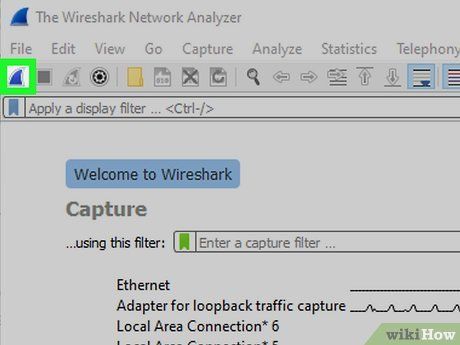

Click the blue fin icon to initiate recording. Alternatively, press Ctrl + E.
- A graphical representation of network activity will appear. Retest any actions that previously indicated network issues to see if Wireshark detects them.

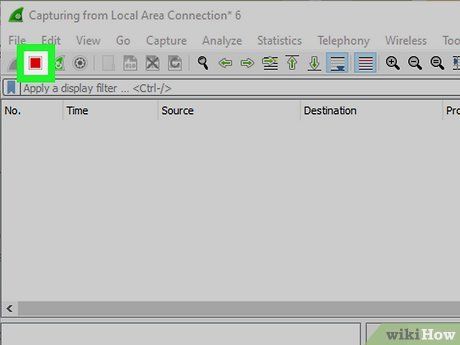

Click on the red fin icon to halt recording. The top window of your screen will display past history. Click on any instance to view the corresponding IP addresses and additional data.
Other Options
Consider NetFlow or sFlow. Ensure compatibility with your router, as it may only support one of these protocols.
- For instance, Cisco routers typically support NetFlow.
Explore built-in utilities. Many operating systems include native tools that can be useful, albeit less comprehensive than third-party software.

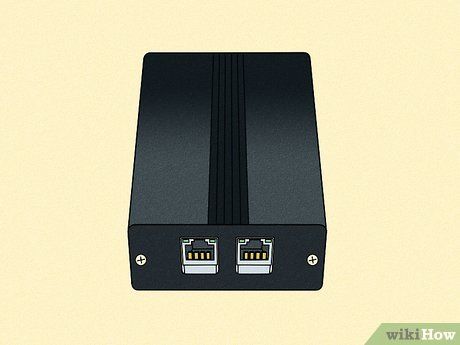

Invest in hardware solutions like network TAPs or packet brokers. This is particularly advantageous for managing medium-sized networks not reliant on Wi-Fi, such as small office environments.

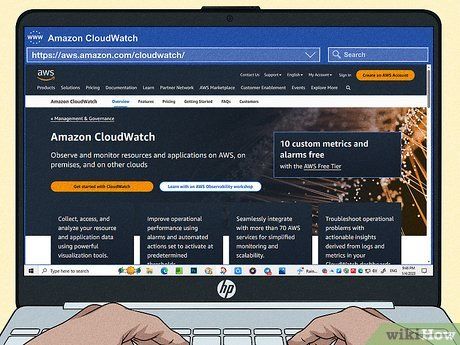

Opt for a cloud-based solution. Cloud services like CloudWatch provide network monitoring capabilities, allowing remote monitoring of your network, even when you're not in the office.
- While many of these services are not free, they often offer free trials. They are particularly suitable for monitoring larger networks, such as those spanning multiple office locations.

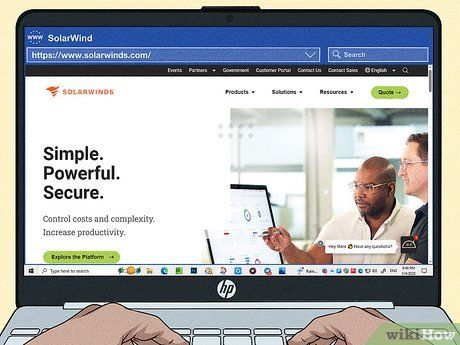

Utilize applications like SolarWinds for wireless networks. If you lack an Ethernet connection, SolarWinds can still monitor your Wi-Fi network activity.
