Microsoft Word offers a variety of features such as lines, arrows, shapes, and more in the Shapes section. However, dashed lines are noticeably absent. If you're in need of drawing dashed lines in Word and don't know how, explore the solution below.
Below, Mytour shares with you the technique for drawing dashed lines in Word. Join us as we guide you through the process.

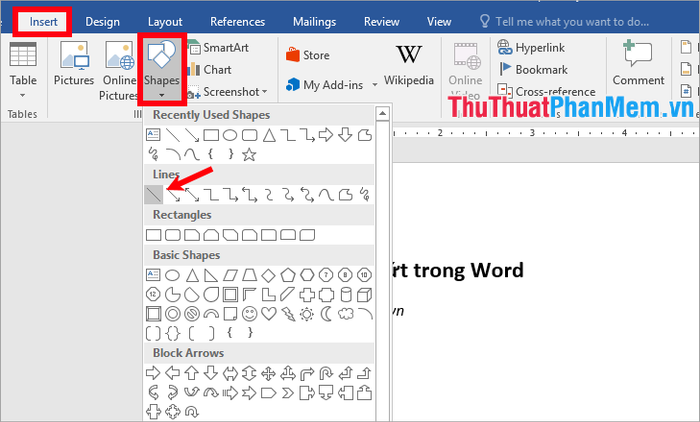

Step 1: On the Word interface, select the Insert -> Shapes tab and choose straight line under Lines.
Note: You can choose either one-way or two-way arrows as desired when adding dashed lines to arrows.

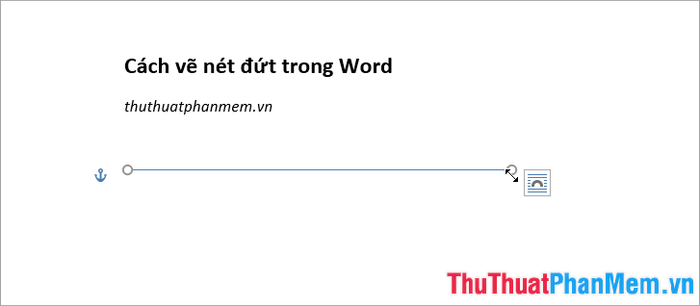

Step 2: Click and hold the mouse cursor at a point, then drag to draw a line of your choice.
Note: You can hold down the Shift key to draw a straight line.

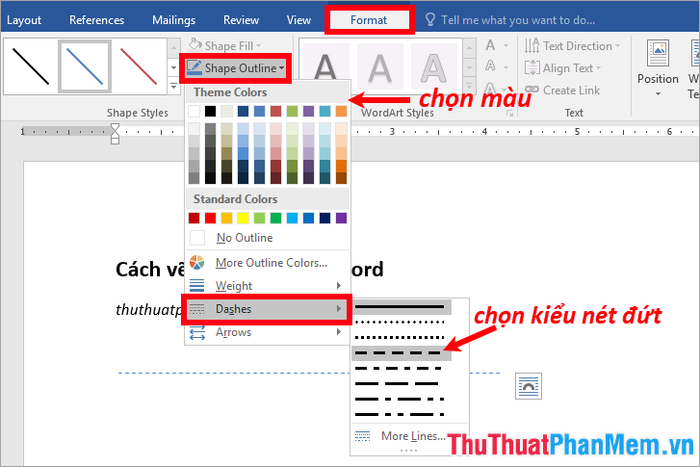

Step 3: Select the line you just drew. The Format tab will appear on the menu bar. Choose Format -> Shape Outline. Here, select the color for the line in the Theme Colors section, then choose Dashes -> select the desired dash style you want to use.

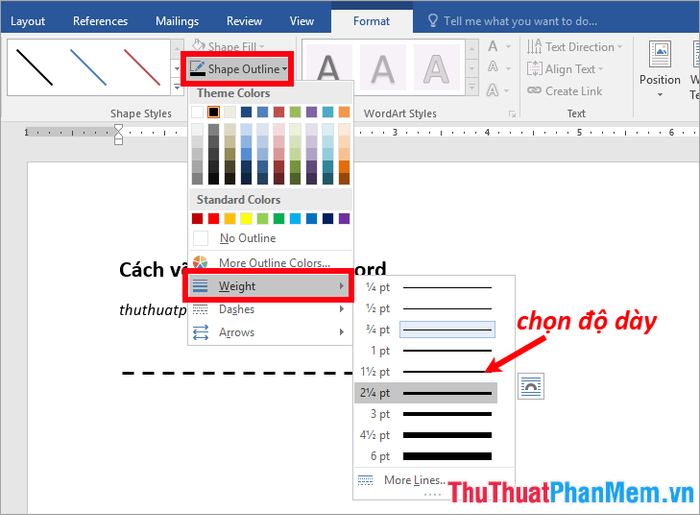

Select Shape Outline -> Weight -> choose the thickness for the dashed line.

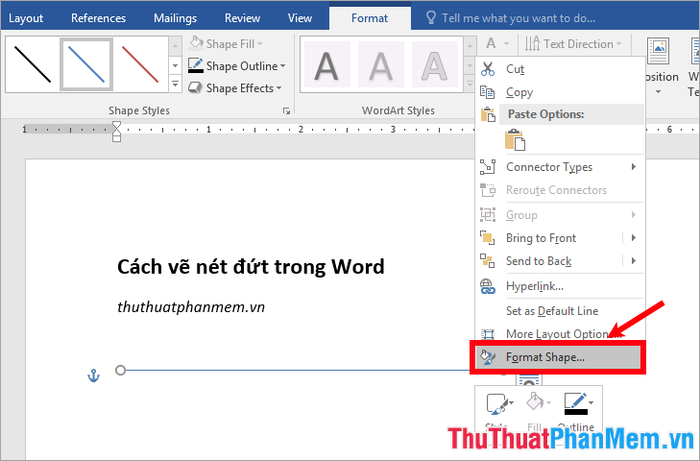

Alternatively, right-click on the line segment and choose Format Shape.

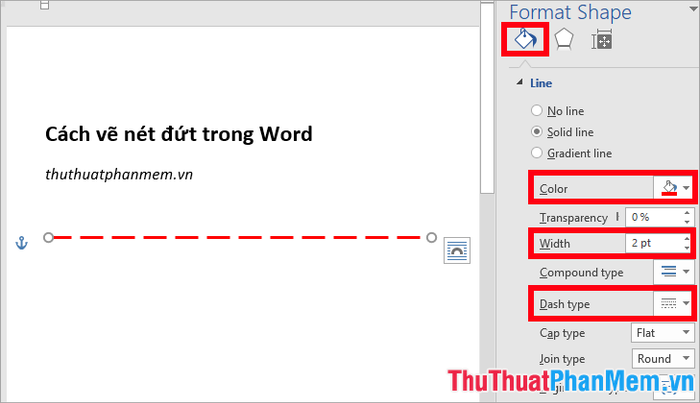

The Format Shape appears on the right-hand side, where you can set the dash type under Dash type, color under Color, and thickness under Width, along with many other options.

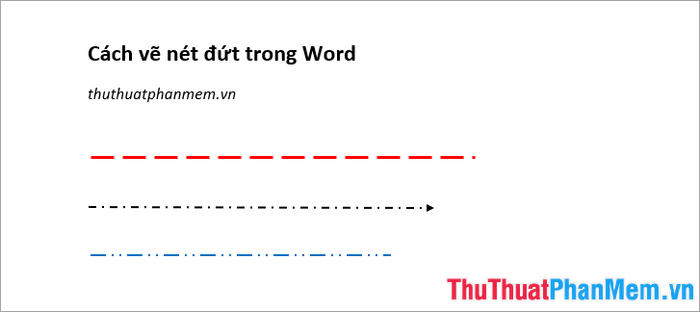

That's how you draw dashed lines in Word.
Here, Mytour shares with you the method for drawing dashed lines in Word. You can apply the same technique if you want to draw dashed arrows in Word. It is hoped that through this article, you will quickly master drawing dashed lines in Word. Best of luck!
