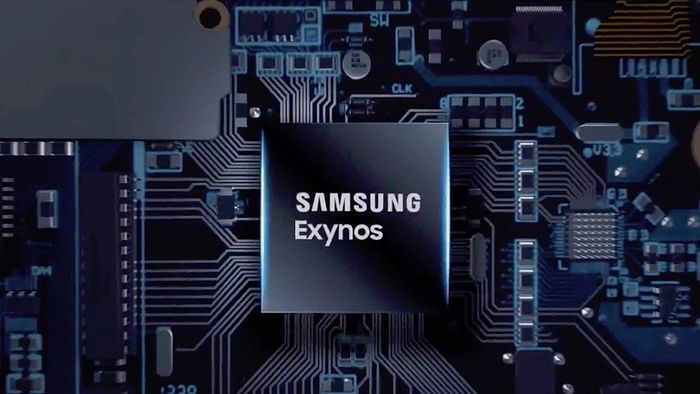

Currently, Exynos offers a wide range of processors catering to every user's needs, from budget-friendly to mid-range and even top-tier segments, boasting performance on par with the renowned American Snapdragon chips. Exynos is poised to be South Korea's darling chip brand, capable of competing with many others from the US or China.The Evolution of Exynos
The journey began in 2009 with the licensed ARM Cortex-A8 CPU. Samsung introduced the Exynos 3 Single series, marking the debut of the industry's first 1.0GHz mobile processor. This chip found its way into the Samsung Galaxy S, the inaugural smartphone of the Galaxy S series released in early 2010. By 2011, Samsung transitioned to multi-core processors with the Exynos 4 Dual featuring a 45nm process. The Exynos 4 Dual was unveiled with a dual-core Cortex-A9 processor clocked at 1.0GHz and Mali-400 MP4 GPU.

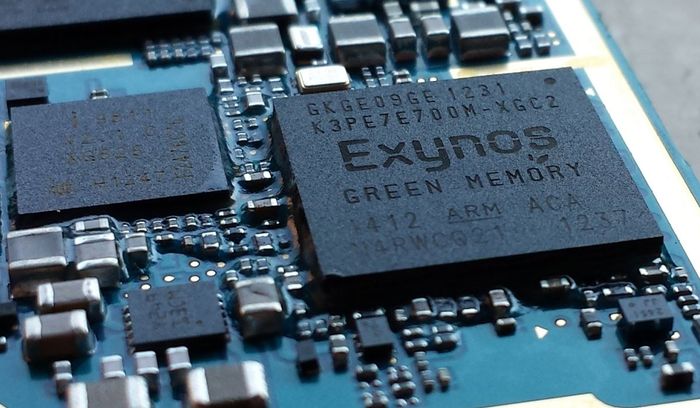

Shortly after, Samsung announced the SoC chip model with dual-core ARM Cortex-A15 CPUs bearing the name of Exynos 5 Dual. This marks a significant advancement as it offers enhanced benefits for users such as 12.8 gigabits per second of memory, USB 3.0 and SATA 3 connectivity,well well… In 2012, Samsung unveiled its first quad-core processor, the Exynos 4, also marking the industry's debut of a quad-core mobile processor named Exynos 4 Quad 4412. It was integrated into the Samsung Galaxy S III and Samsung Galaxy Note II. This is the successor to the previous 4210 chip, boasting improved graphics performance and operating more energy efficiently than its predecessor generation.

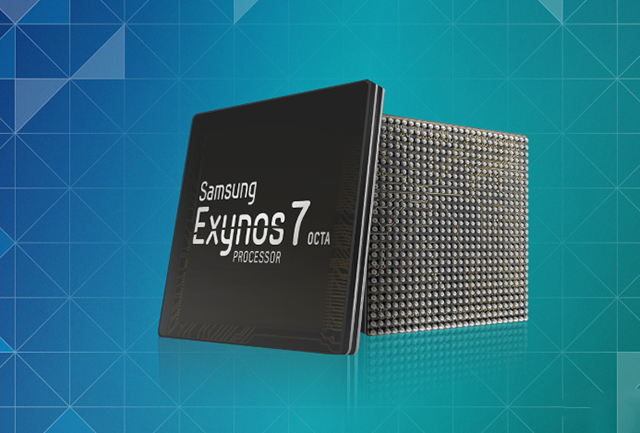

Following that, in 2013, Samsung introduced its first 8-core big.LITTLE processor named Exynos 5 Octa 5410, delivering superior performance. By March 2015, Samsung unveiled the Exynos 7 Octa chip simultaneously integrated into the Galaxy S6 and S6 Edge marking the world's first chip manufactured on a 14nm FinFet process.
And since then, new iterations of Exynos chips have been consistently released annually across various segments. The latest model worth mentioning is the Exynos 2200 chip featured in the Samsung Galaxy S22 Series or chips in the mid-range segment like the Exynos 1280, 850.What are the Advantages of Exynos Chip?
Powerful and Power-efficient
The Exynos processor enables users to seamlessly experience multitasking, multimedia, and 3D gaming. Additionally, the AI-engine provides various AI-integrated utility experiences on the device. Moreover, advanced processing technology allows for lower power consumption, extending the mobile device's usage time, leading to less frequent charging.Integrated with a Neural Processing Unit (NPU) combined with LPDDR5 and 5G modem, it accelerates AI-supported applications, enabling users to smoothly connect with cloud-based AI services. Furthermore, these applications enable device object recognition, analyze daily habits, and provide smart camera features.
Blazing Connectivity Speed
Equipped with lightning-fast 5G modem supporting up to 8 Carrier Aggregation with various features like 4×4 MIMO and 256 QAM, allowing mobile users to download and upload video content at the fastest speed. Moreover, it has the capability to process large amounts of data necessary to support advanced AI features.
Professional Camera Capabilities
With advanced image signal processor using AI-engine, Exynos enables multiple cameras with faster and better autofocus capabilities. Additionally, it enhances multimedia options, such as recording and playback of 8K videos, to create a truly entertaining space.Additionally, Samsung's ISOCELL image sensor delivers optimal image quality in resolution and color from within a device thinner than expected. Furthermore, advanced DRAM and high-density memory allow users to create and store Ultra HD videos at high speeds effortlessly.
Unparalleled Privacy Assurance
Equipped with a purpose-built security processor enhancing hardware encryption acceleration internally and protecting flash memory as well as external recognition features for fingerprint identification.
The Current Exynos Generations
From 2020 onwards, Samsung seems to be focusing on producing fewer but higher-quality Exynos chips with advanced technology and features. Hence, these new processors are highly praised by customers for delivering satisfaction due to convenience.Exynos 800 Series
For the Exynos 800 series chipset, there are only 2 models available: Exynos 850 and 880.– Chip Exynos 850 comprising: 8-core CPU Cortex-A55, clock speed 2.0 GHz for optimal energy efficiency, extending usage time, additionally integrating GPU Featuring the robust Mali-G52 MP1 and the cutting-edge LPDDR4X memory technology effectively caters to users' gaming and entertainment needs. Moreover, it incorporates advanced IPS technology and supports color filter conversion, noise reduction, and image sharpening for crystal-clear visuals.Powered by the innovative Exynos 880 chip.Comprising an octa-core CPU, including 2 Cortex-A77 cores clocked at 2.0 GHz, 6 Cortex-A55 cores at 1.8 GHz, Mali-G76 MP5 GPU, and an FHD+ display. Alongside, it features LPDDR4x RAM, UFS 2.1/ eMMC 5.1 storage, Bluetooth 5.0 connectivity, integrated WiFi 5 (802.11ac), FM radio, and GNSS global positioning system (GPS, GLONASS, BeiDou, Galileo).Exynos 900 Series
Exynos 900 SeriesEncompassing the potent Exynos 980 chip and 990, in comparison to the Exynos 800 Series, these chips boast more powerful and stable performance.– Exynos 980 is fabricated on the 8nm process, integrated with cutting-edge technology.Octa-core CPU, GPU Mali-G76 MP5, memory technology LPDDR4X, and AI acceleration Single-core NPU. and DSP satisfies the gaming, movie-watching, and entertainment needs of users smoothly.– Exynos 990 is manufactured on the 7nm, also featuring an octa-core CPU but integrated with GPU Mali-G77 MP11, memory technology LPDDR5,
Exynos 1000 Series
These are quite modern chips, equipped with new technologies and upgraded with many features. – Exynos 1080manufactured on the 5 nm EUV FinFET process and Mali-A78 MP10 GPU. Integrated with an octa-core CPU, supports DSP, ISP, memory technology LPDDR4X, LPDDR5, and AI acceleration NPU and DSP (5.7 TOPs)– Exynos 1280 is fabricated on the 5nm process, equipped with 5nm, trang bị 8-core CPU (2 cores of Cortex-A78 at a speed of 2.4 GHz, 6 cores of Cortex-A55 running at a speed of 2.0 GHz) and GPU Mali-G68 MP4, memory technology LPDDR4X and AI acceleration NPU (4.3 TOPs). Additionally, there is supports UFS 3.1.Exynos 2000 Series
The chip generation Exynos 2000 Seriescomprises the most premium chips and is often found in flagship smartphones from the Samsung brand.Similar to the Exynos 1280, the Exynos 2100 is also fabricated on the 5nm process node, however, it boasts a CPU with 8 cores (Exynos 2100 as well as (1)core architectureCortex-X1operating at a speed of2.91 GHz,3core configurationCortex-A78 featuresoperating at a speed of2.81 GHz,4core componentCortex-A55running at a speed of2.2 GHz), GPUMali-G78 MP14,using ARMv8.2-A architecture andmemory technologyLPDDR5. Additionally, it featuresAI processingspeedTriple NPUandDSP (26 TOPs) along withintegrated5G modem, supporting sub-6GHz and mmWave networks for seamless connectivity experience.–Exynos 2200manufactured on the 4nm process node with8-core CPU (1 corearchitectureCortex-X2operating at a speed of2.8 GHz,3 coresCortex-A710running at a speed of2.52 GHz,4 coresCortex-A510operating at a speed of1.82 GHz), GPUSamsung Xclipse 920 with 3 cores, featuringarchitectureARMv9-A. Additionally, it integratesmemory technologyLPDDR5 andAI processingdual NPUsandDelving into Digital Signal ProcessingThe Ultimate Compilation of Popular Exynos Chips
Amidst a myriad of chip models, which Exynos chip suits you best? Explore the comprehensive table below for insights on the most common Exynos chips:| Chip | Tiến trình | CPU | GPU | Công nghệ bộ nhớ | Năm sản xuất | Thiết bị tích hợp |
| 7870 | 14nm | 8 nhân Cortex-A53 tốc độ 1.6 GHz | Mali-T830 | LPDDR3 | 2016 | Galaxy A3 Galaxy A6 |
| 7884 | 14nm | 2 nhân Cortex-A73 tốc độ 1.6 GHz 6 nhân Cortex-A53 tốc độ 1.35 GHz | Mali-G71 MP2 | LPDDR3 | 2018 | Galaxy J3 |
| 7885 | 14nm | 2 nhân Cortex-A73 tốc độ 2.2 GHz 6 nhân Cortex-A53 tốc độ 1.6 GHz | Mali-G71 MP2 | LPDDR4 | 2018 | Samsung A8 Samsung A8+ |
| 7904 | 14nm | 2 nhân Cortex-A73 tốc độ 1.8 GHz 6 nhân Cortex-A53 tốc độ 1.6 GHz | Mali-G71 MP2 | LPDDR4 | 2019 | Galaxy M20 |
| 9610 | 10nm | 4 nhân Cortex-A73 tốc độ 2.3 GHz 4 nhân Cortex-A53 tốc độ 1.7 GHz | Mali-G72 MP3 | LPDDR4X | 2018 | Galaxy A50 |
| 8895 | 10nm | 4 nhân Exynos M2 có tốc độ 2.3 GHz 4 nhân Cortex-A53 tốc độ 1.7 GHz | Mali-G71 MP2 | LPDDR4X | 2017 | S8 Series |
| 9810 | 10nm | 4 nhân Exynos M3 có tốc độ 2.9 GHz 4 nhân Cortex-A55 tốc độ 1.9 GHz | Mali-G72 MP18 | LPDDR4X | 2018 | S9 Series Note 9 Note 10 Lite |
| 9820 | 8nm | 2 nhân Exynos M4 có tốc độ 2.73 GHz 2 nhân Cortex-A75 tốc độ 2.31 GHz 4 nhân Cortex-A55 tốc độ 1.95 GHz | Mali-G76 MP12 | LPDDR4X | 2019 | Galaxy S10 Series |
Final Thoughts
So, Mytour has just helped you delve into the details of Exynos. Hopefully, this information proves beneficial in your quest for the perfect chip.- Explore more: Android Tricks, iOS Hacks
