As a commonly found input port on electronic devices, do you know the features of the HDMI eARC port? In the following sections, Mega Electronics - Interior Supermarket will provide an overview of eARC, so keep reading!
Understanding HDMI eARC Port
1. What is HDMI?
HDMI (High-Definition Multimedia Interface) is a digital connection used for electronic devices such as TVs, projectors, and more. It debuted in 2002, providing a sharp transmission of video and audio formats between devices with high resolution.

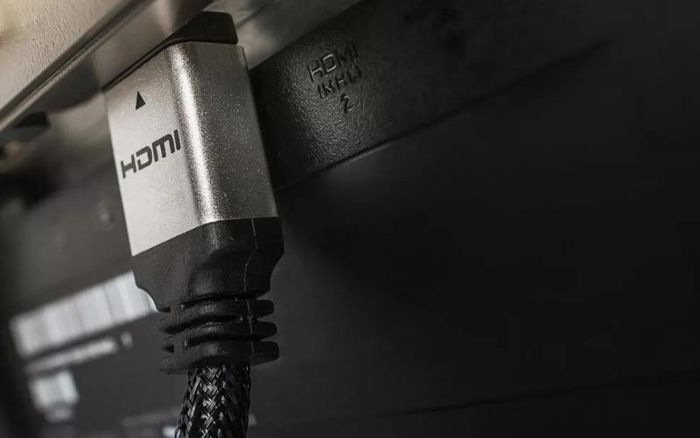

Electronic devices commonly feature HDMI ports
2. What is HDMI ARC?
ARC (Audio Return Channel) is a new feature in the HDMI 1.4 standard introduced in May 2009. This protocol enables two-way communication between devices using a single connection port. In simple terms, the HDMI ARC port can perform both input and output functions in an audio system.
In 2017, the electronic market witnessed the introduction of HDMI 2.1 standards. HDMI 2.1 brought forth various enhancements, such as increased bandwidth, leading to superior resolution and frame rates. HDMI eARC (Enhanced Audio Return Channel), a port within HDMI 2.1, has evolved and improved from its predecessor, the ARC port.
The primary benefit of eARC is streamlining connections and providing improved transmission capabilities. It simplifies the audio signal, allowing users to explore all components with faster transmission speeds compared to previous versions.
The HDMI eARC port supports up to 32 audio channels, including uncompressed 8-channel streams, 24bit/192kHz at speeds of up to 38Mb/s. Additionally, the protocol facilitates the transmission and reception of audio formats from advanced technologies such as DTS-HD Master Audio, DTS:X, Dolby TrueHD, and Dolby Atmos for your electronic devices at home. This enables users to experience superior images and sound quality that other cables cannot deliver.
The HDMI Ports System on Your TV
However, despite being a newer version, not all current TV products use HDMI 2.1 for all input ports. Therefore, users need to refer to the technical specifications before choosing a TV if they intend to use the HDMI eARC port for future transmission processes.
Choosing the Right Cable for HDMI eARC
Due to the additional bandwidth required for certain audio formats through eARC, users need to utilize cables with high bandwidth, such as HDMI High Speed or HDMI Ultra High Speed, when connecting devices through this port.

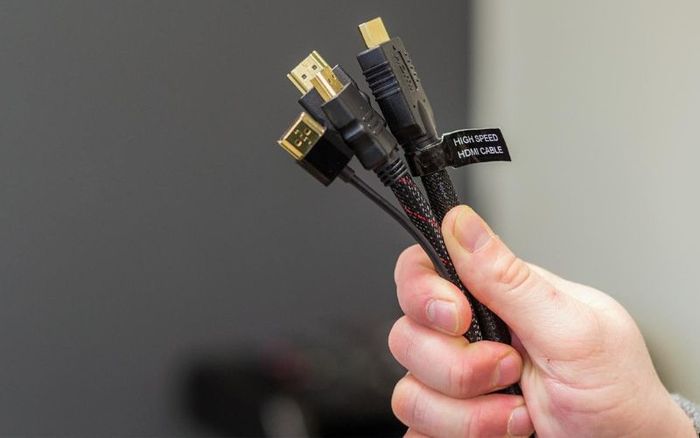

HDMI High Speed Cable for HDMI eARC
3. Conclusion
In summary, HDMI eARC is an integrated input port within the HDMI 2.1 standard introduced in 2017. This connectivity protocol can efficiently transmit complex signals from source devices to playback devices with upgraded bandwidth and speed. However, not all electronic devices are equipped with the HDMI eARC port, and not all cable types can be used for this input. Therefore, users should research before connecting to achieve the best transmission efficiency.
Electronics Superstore - Mega Furniture Market has just delivered informative content on the HDMI eARC concept. We hope these details will prove beneficial to you in the process of using and connecting electronic devices within your home.
