RAW SD Card Recovery: How to Recover Data from a RAW SD Card

Part 1. Introduction

One of the most aggravating challenges for consumers is when their SD card becomes RAW, making the data inside unreadable. The good news is that RAW SD card data can be recovered. A RAW SD card indicates your device cannot recognize the file system, but your data may be intact. Recover your crucial files using the appropriate tools and approaches without formatting the card.

RAW SD cards may happen to anybody due to incorrect ejection, viruses, or power outages. This article shows how to recover data from a RAW SD card with EaseUS Data Recovery Wizard Pro and restore the card step-by-step. Restore photographs, movies, and documents safely, even if the card is unreadable.

Part 2. Recovering Data from a RAW SD Card Using Data Recovery Software

If your SD card suddenly went RAW and your files are gone, don't worry. This does not erase your info. Professional recovery software, such as EaseUS Data Recovery Wizard Pro, is one of the best and easiest alternatives.

This utility is for file system corruption, RAW partitions, unintentional deletion, formatting issues, malware attacks, and other serious data loss circumstances. EaseUS can recover images, movies, documents, and over 1,000 file formats from SD cards from cameras, phones, drones, and dashcams with a 99.7% success rate.

Key Features:

• Retrieves data from RAW, damaged, or unavailable SD cards
• Works with memory cards, USBs, hard disks, cameras, etc.
• Recoverable circumstances include deletion, formatting, OS crash, and partition loss.
• Preview files before recovery.
• Supports 1,000+ file formats
• Manual recovery for difficult instances

Step-by-Step RAW SD Card Data Recovery

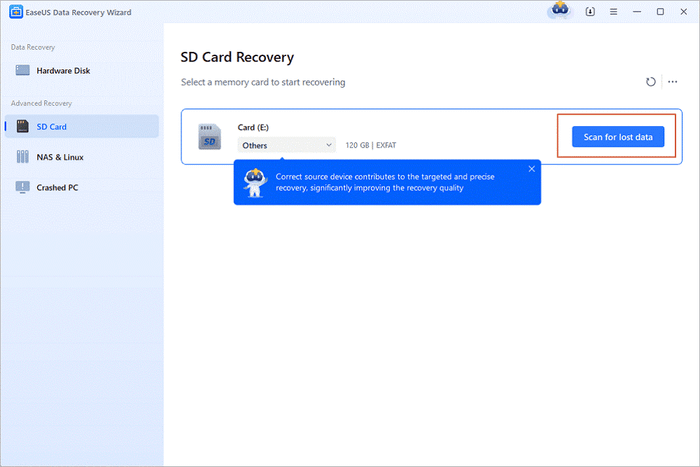

Step 1. Connect the RAW SD card to the PC. Start EaseUS Data Recovery Wizard. In the main interface, pick your SD card under "Devices." Start recovery by clicking "Scan for lost data."

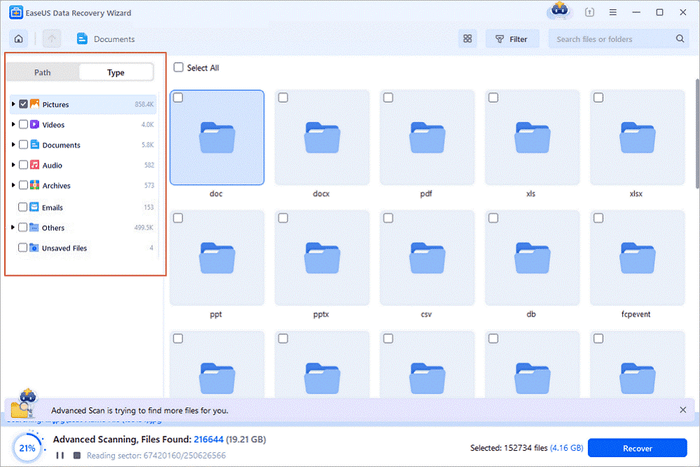

Step 2. EaseUS will thoroughly and quickly scan for recoverable data. Use the tree-view panel to find deleted or RAW files. Select Filter to search by file type (pictures, movies, documents).

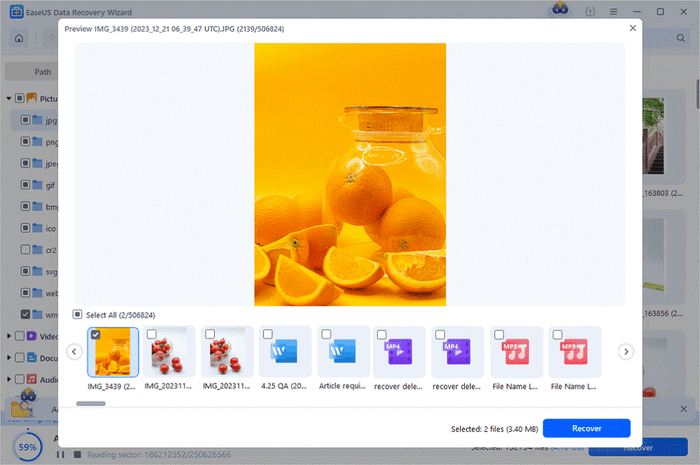

Step 3. Double-click any file to preview. Choose the files to recover. Save the files to a secure location (not the same SD card) after clicking "Recover."

Part 3. Repairing the RAW SD Card to Access Data

After recovering your files with EaseUS Data Recovery Wizard, repair your RAW SD card to restore its functioning. Most operating systems cannot read RAW SD cards because they are not formatted with the FAT32 or NTFS file system. Fortunately, several viable ways exist to restore and reuse your RAW SD card. Below are three step-by-step guides for correcting a RAW SD card using graphical and command-line tools.

Fix 1. Use TestDisk to Repair RAW SD Cards

The free and open-source command-line program TestDisk recovers missing partitions and fixes file system faults. By reconstructing the partition table, it recovers data and repairs RAW disks well without a current GUI. The steps are below:

Step 1. Download the newest TestDisk from the official website. Extract the package to a PC folder.

Step 2. Use an SD card reader or the computer's card port to insert the RAW SD card.

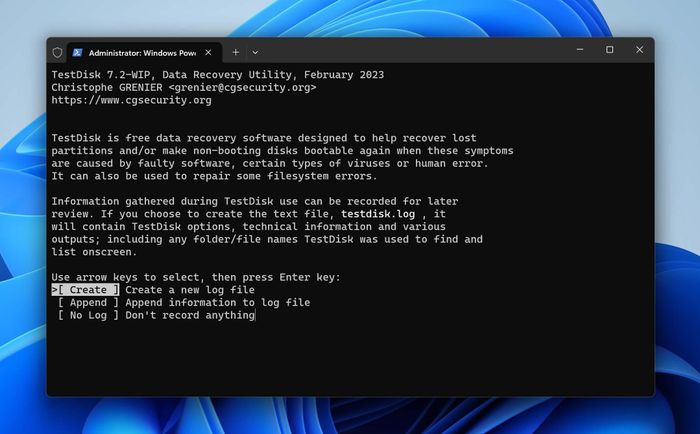

Step 3. Run "testdisk_win.exe" in the extracted TestDisk folder. The terminal window opens. Select "Create" and enter when requested to log in.

Step 4. A list of PC storage devices appears. Highlight your RAW SD card and hit "Enter" using the arrow keys.

Step 5. TestDisk will recommend the right partition table type (SD cards use Intel). Confirm and enter.

Step 6. Analyze the drive's structure. It searches for lost partitions. Press "Enter" to continue.

Step 7. The following screen may not reveal RAW card partitions. Press Enter for "Quick Search." Display lost partitions if TestDisk discovers them. Select the partition and hit Enter.

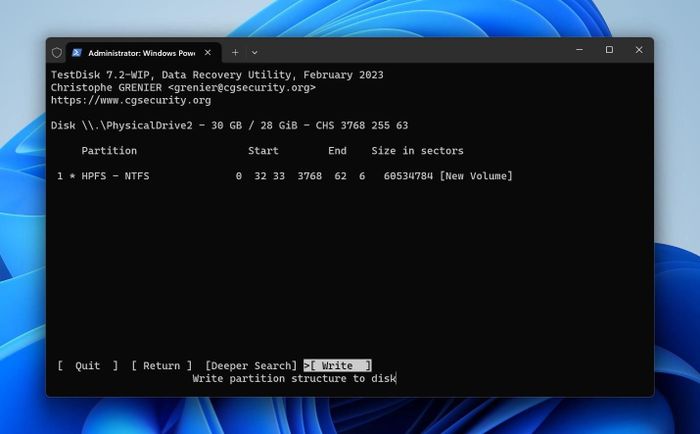

Step 8. If the partition looks OK, choose Write with the arrow keys and press Enter to save the partition table.

Step 9. Type "Y" to confirm changes. Restart the computer. Your SD card is now accessible, but you may need to format it for frequent usage.

Fix 2. Format SD Card Using DiskPart Command

If you've recovered your data or want to start again, formatting your RAW SD card is the easiest option. Windows includes DiskPart, a command-line tool for disk and partition management. The steps are below:

Step 1. Insert the SD card into the PC. Press "Windows + R," type "cmd," right-click, and choose "Run as administrator."

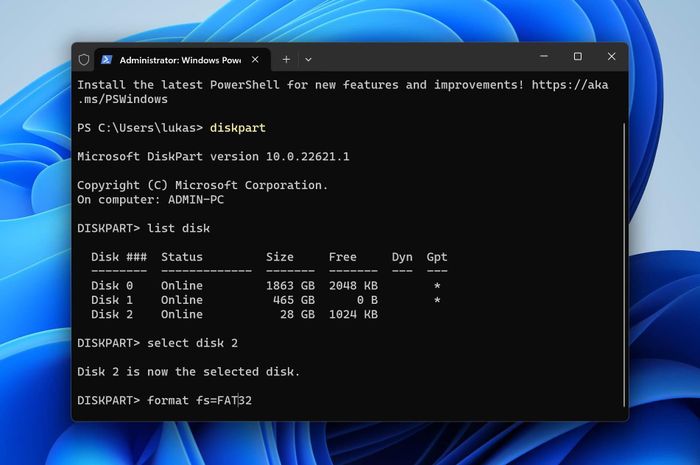

Step 2. Type "diskpart" and enter. View all drives and identify your SD card by size using the list disk.

Step 3. Choose "disk X" (your SD card number) and type clean to erase its partition table.

Step 4. To format the card, create a partition main and format fs=fat32 quick (or ntfs quick).

Step 5. Enter assign to enable the card, then quit DiskPart. Your SD card is ready.

Fix 3. Repair File System with CHKDSK Command

The Windows program CHKDSK scans storage devices for file system problems and fixes them. However, CHKDSK only works if the drive's Master File Table (MFT) is intact. If entirely corrupted, CHKDSK fails and displays an error. The steps are below:

Step 1. Recover files using EaseUS Data Recovery Wizard before CHKDSK. CHKDSK may remove data permanently.

Step 2. Press Windows + S, input cmd, right-click Command Prompt, and select "Run as Administrator."

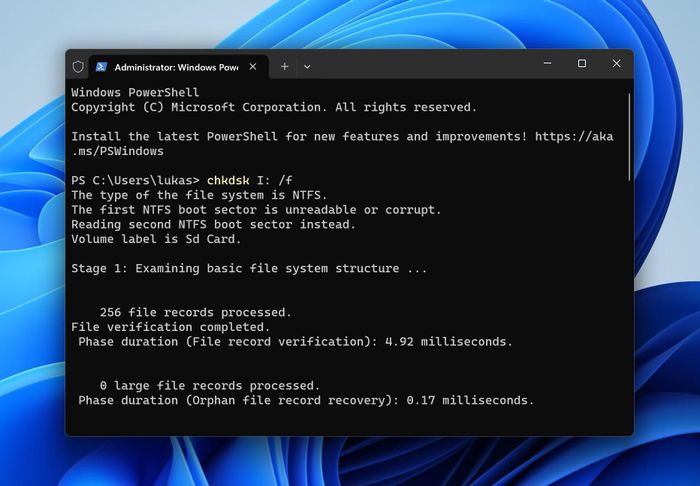

Step 3. Replace H: with your SD card's drive letter: "chkdsk H: /f /r."

Step 4. If successful, Windows will report repaired faults. SD card access is now possible.

System.

Part 4. Preventing Future RAW SD Card Errors

You must prevent future difficulties after recovering and repairing your RAW SD card. SD card corruption can be irritating and unavoidable, but basic practices can help mitigate the risk.

1. Safely remove SD cards

Always use "Safely Remove Hardware" on Windows or "Eject" on macOS to eject your SD card. Removing the card while in use might harm the file system and cause RAW format errors.

1. 2. Avoid Sudden Power Loss

It may shut down if a camera, phone, or PC loses power while writing data to an SD card. Many RAW errors result from abrupt power-offs during read/write operations.

1. Regular Format and Scanning

Format your SD card using your camera or phone and run disk error-checking programs periodically. Formatting on mismatched devices or systems might cause file system issues.

• High-Quality SD Cards

Buy SD cards from SanDisk, Samsung, or Lexar. Poorly made, counterfeit cards are more likely to be corrupted and fail.

• Back up regularly

Use more than your SD card to store data. Transfer files to a PC or cloud service regularly. This protects your data if your card fails.

Part 5. Conclusion

RAW SD card data recovery can be challenging; however, tools such as TestDisk, DiskPart, and CHKDSK can restore access and reconstruct the file system. Professional recovery software is recommended to avoid data loss. Before fixing your RAW SD card, use EaseUS Data Recovery Wizard to recover photographs, movies, and information safely. It's quick, trustworthy, and easy to use, perfect for protecting your data.

Part 6. RAW SD Card Recovery FAQs

Let's discover the answers to the most asked queries regarding RAW SD Card Recovery:

• Can I recover data from a RAW SD card without formatting?

Yes, the EaseUS Data Recovery Wizard can recover data without formatting. These apps scan RAW SD cards, retrieve accessible files, and let you save them before formatting.

• How can I prevent my SD card from becoming RAW?

Eject SD cards safely, avoid power-offs, use quality cards, and format them periodically. To prevent data loss, scan regularly for corruption and back up periodically.

• Can I recover deleted photos from a RAW SD card?

Data recovery software can restore RAW SD card photographs. Even if the card is RAW, EaseUS can scan deep into its structure to recover erased photographs.
