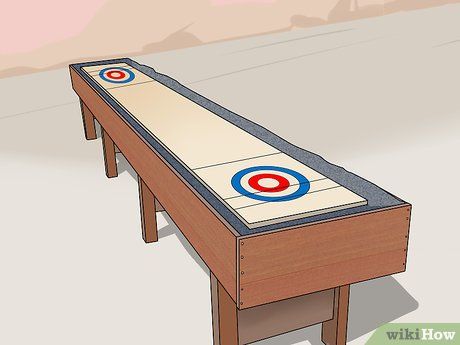

A shuffleboard table makes an excellent addition to your home, but with their substantial length and the cost of high-quality maple wood, buying one may be out of reach. Constructing it yourself can be a budget-friendly and gratifying endeavor that you’ll appreciate for years to come. Sharpen those woodworking skills, apply some wax—and elbow grease—and enjoy shuffleboard from the comfort of home.
Instructions
Preparing for Construction

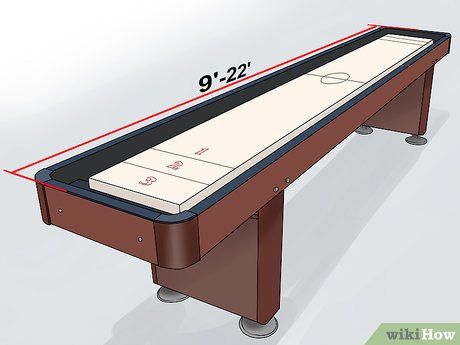

Decide on the table length that suits your space. Shuffleboard tables typically range from nine to twenty-two feet long. Consider how much room you have for both building and setting it up. Don’t build a fourteen-foot table for a twelve-foot room! You'll also need at least two feet of clearance at each end to play comfortably.
- Your chosen length will influence the dimensions and design of the playing surface, table bed, and support legs.

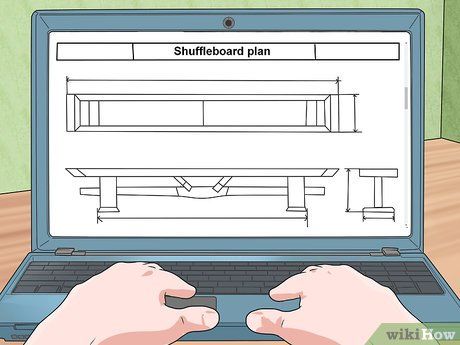

Create or locate precise measurements for every table component. Online resources offer ready-made shuffleboard table dimensions that can streamline your build and minimize errors. Choose detailed plans that clearly specify the table length, box width, and leg height. If designing your own, carefully sketch out the dimensions for each board you’ll need.

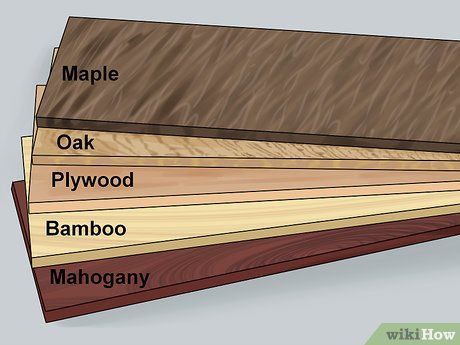

Select your wood for the playing surface. Maple or oak provides exceptional durability but can be costly. For a more economical route, plywood combined with bamboo flooring offers a solid alternative—especially when properly sealed and polished. If you're aiming for a traditional look, finish it off with mahogany trim.
Constructing the Frame and Legs

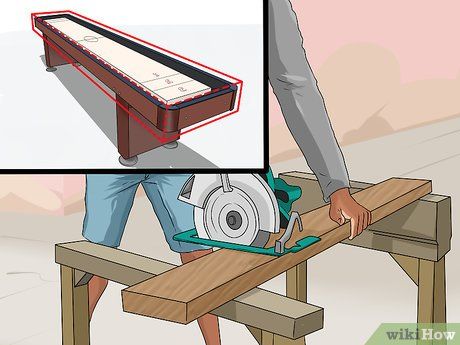

Cut the boards for the side panels. Sturdy sides are crucial—opt for solid wood if your budget allows, though other wood types are workable. Place the board on a saw horse with your cut perpendicular to your stance. Secure a metal straightedge or guide board as a reference line. Then, guide your circular saw slowly and steadily across the marked cut.
- Include space for gutters—extend the box six inches beyond each end and make it a few inches wider than the playing surface.
- Precision matters: uneven cuts will distort the surface, so be meticulous.
- Always wear safety goggles when using power tools to protect your eyes.

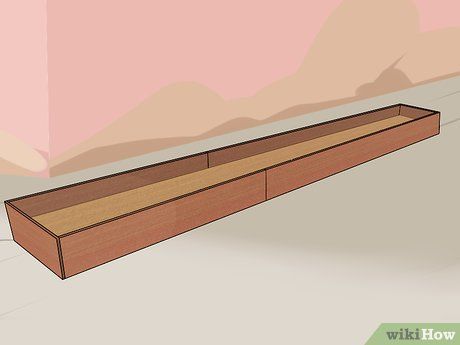

Assemble the frame. Align the boards at their edges to create a box shape. When working with softer woods like pine, pre-drill the holes to avoid splitting. Use wood screws along the edges to securely fasten the pieces together.

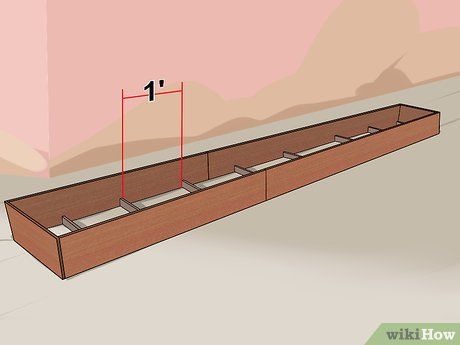

Install side supports. Given the length of the table, reinforcing the structure is key to preventing sagging. Add horizontal boards perpendicular to the table's length to strengthen the box. Space the support boards roughly a foot apart underneath, and secure them using wood screws along the interior sides.
Attach plywood panels to the base. Cut plywood sheets to fit the box and lay them over the support beams. Join the sheets using mending plates, and fasten them with wood screws, securing them into some—though not necessarily all—of the supports. Use enough screws to ensure the plywood is firmly attached.

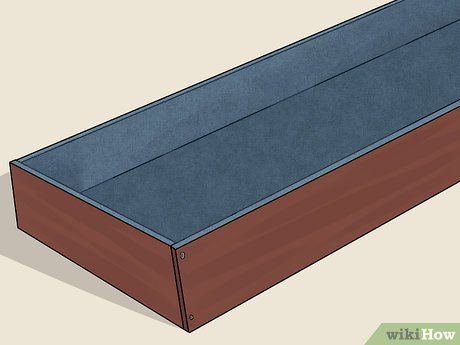

Line the interior with carpet. Adding carpet not only enhances the table's appearance but also cushions the impact of flying pucks. Cut carpet pieces to fit the base and inner sides of the box. Use a staple gun to fix them securely in place.
- A powerful staple gun will yield better results.
- Consider a battery-powered model for extra stapling strength.

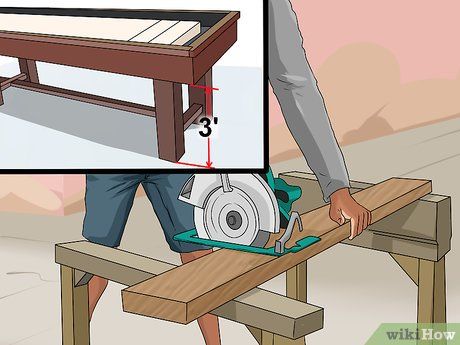

Measure and cut legs to proper length. The playing surface should stand about three feet off the floor. Keep in mind the overall table height includes the frame resting on the legs. Adjust leg length accordingly before cutting.
- For tables around sixteen feet or longer, add extra legs to handle the additional weight.

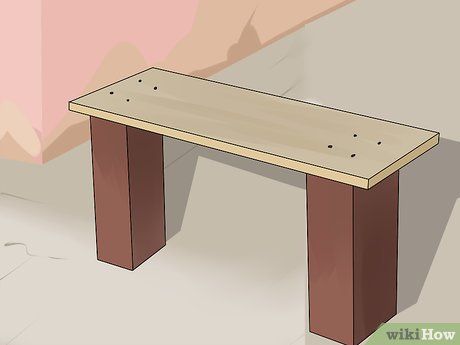

Secure legs using support boards. Rather than attaching legs directly to the table base, mount them onto separate boards first for added stability. Use pine boards cut to match the box width, fastening the legs to these boards with wood screws before connecting the entire assembly to the underside of the table.

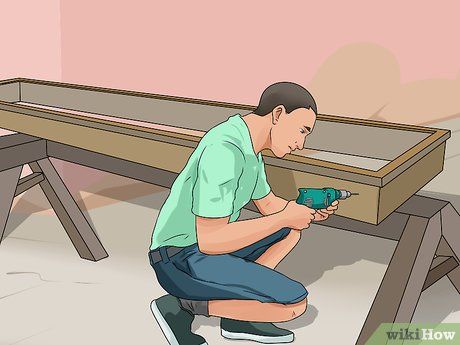

Attach the leg boards to the table base. Once the legs are secured to their support boards, simply position them under the box where you'd like the legs to sit. Drill through the boards and into the base to fasten them securely in place.
Constructing the Playing Surface

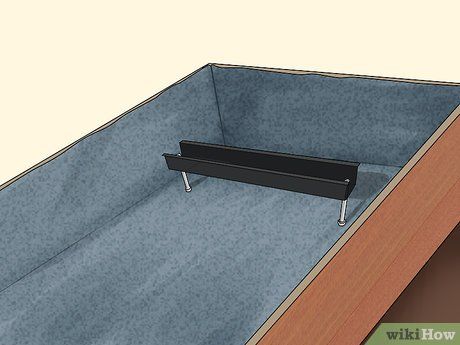

Build a support system for the surface. Your playing board will need a stable platform. Use rails, nuts, and bolts to create a floating support. Drill holes from the bottom of each end of the box—cut through the carpet first with a razor blade. Insert a bolt upward through the base, rest a rail or tie bar on top, then fasten it with nuts to hold it in place.

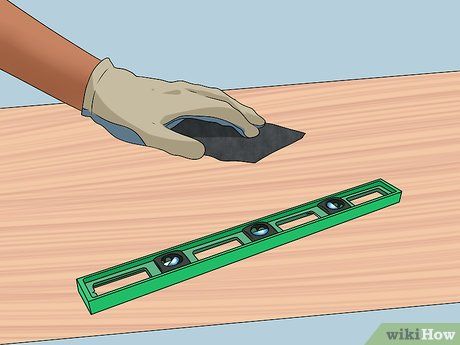

Ensure the surface is flat and smooth. Check your chosen surface wood for dents, warps, or flaws. Use a level to verify evenness. Sand down any problem spots until the surface is uniformly smooth and ready for play.

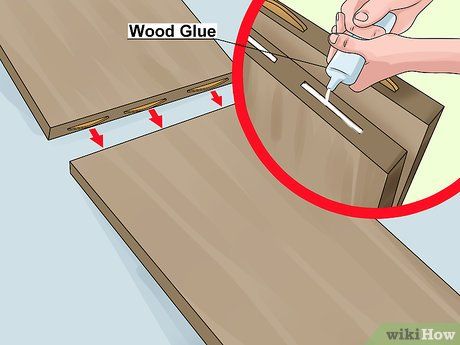

Connect multiple boards to form the surface. Since it's rare to find one board long enough, you’ll need to join sheets together. Use a biscuit joiner to trim the joining edges. Insert a glue-covered biscuit between them, then press the pieces together. As the glue expands, it forms a strong, seamless bond.

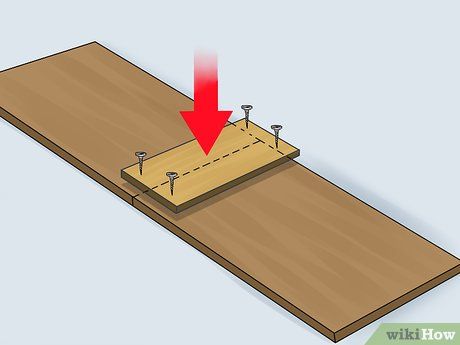

Strengthen the joint. To keep the joined area from separating, add reinforcement underneath the surface with an additional board. You can use whatever wood you have available, like inexpensive pine. Flip the surface over, cut a strip of wood that matches the width, and drill it along the seam to secure the joint.

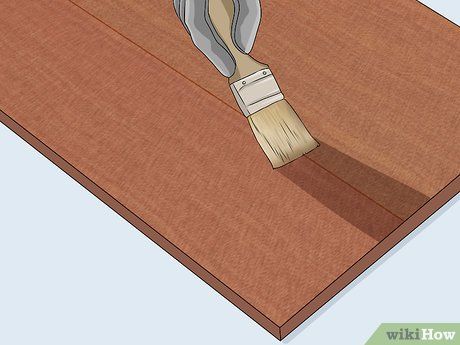

Stain or paint the playing surface. The choice between stain or paint largely depends on the type of wood you've chosen. For a traditional maple surface, stain is the best option. If you've worked with MDF, opt for opaque, oil-based paint to enhance its durability. For plywood, either oil-based or water-based paint will work well.

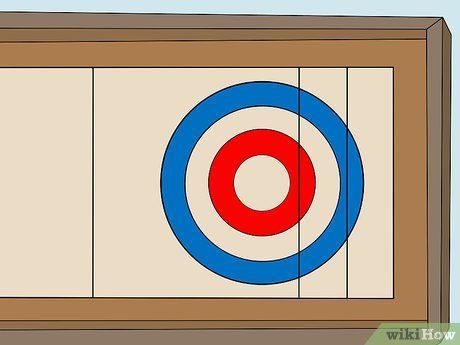

Design your game board. Use a fine-tip pen or another precision tool to mark your game board layout. Shuffleboard tables often feature different scoring zones: lines for the standard game and circles for curling. Decide if you want to incorporate both scoring systems. Ensure the paint has fully dried before drawing or marking on it.

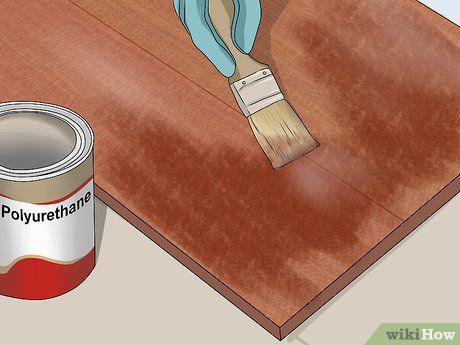

Apply a polyurethane sealant. Sealing the surface is necessary for protection and smooth gameplay. There are several types of polyurethane finishes to consider, depending on your paint choice and time constraints.
- Oil-based poly is slower to dry but offers better durability.
- Avoid using oil-based over white surfaces, as it may yellow over time.
- Water-based poly dries fast but can't be used over oil-based paints.

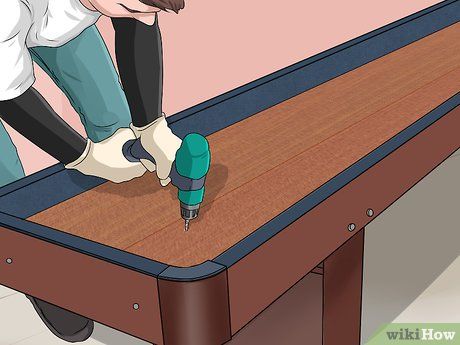

Position and secure your surface in the box. Carefully place your playing surface onto the rail structure within the box. For added stability, secure the surface with extra screws, bolts, and nuts in key areas to prevent shifting during gameplay.

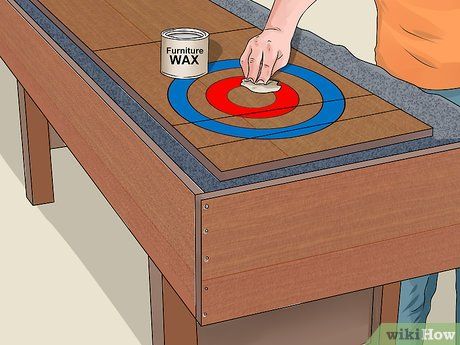

Polish and treat the surface with silicone spray. To ensure your shuffleboard pucks glide effortlessly, apply furniture wax to the surface and buff it using a soft cloth. Follow up with a silicone spray to protect the wax layer and add extra smoothness for longer-lasting play.
Supplies You'll Need
- Circular Saw
- Plywood or MDF
- Washers, Bolts, and Nuts
- Paint
- Pens
- Polyurethane
- Level
- Staple Gun
- Power Drill
- Hammer
- Straight Edge
- Tape Measure
- Saw Horse
- Random Orbital Sander
- Biscuit Joiner
- Biscuits
- Razor Blade
- Mending Plates
