Máy tính bảng Samsung Galaxy Tab sử dụng pin li-on vốn sẽ hao mòn theo thời gian và cần được thay thế. Những dấu hiệu cho thấy Galaxy Tab cần được thay pin bao gồm hiện tượng nhanh hết pin và tắt nguồn đột ngột. Pin Samsung Galaxy Tab có thể được lấy ra dễ dàng chỉ với vài dụng cụ đặc biệt. Bạn có thể mua trên mạng bộ kit thay pin dành cho model máy tính bảng Samsung Galaxy cụ thể. Mytour hôm nay sẽ hướng dẫn bạn cách lấy pin Samsung Galaxy Tab ra.
Các bước
Tháo pin Samsung Galaxy Tab

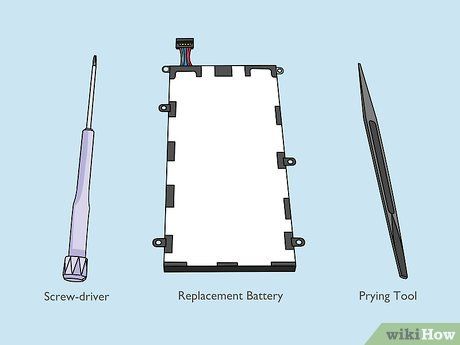

Chuẩn bị dụng cụ cần thiết. Để tháo pin khỏi Samsung Galaxy Tab, bạn cần công cụ nạy bằng nhựa và tuốc nơ vít nhỏ. Một số model cần sử dụng tuốc nơ vít đầu ba cạnh. Bạn có thể mua tất cả dụng cụ cần thiết cùng với pin thay thế, hoặc chỉ cần mua bộ kit thay pin dành cho model máy tính bảng Samsung Galaxy cụ thể.
- Bạn phải mua đúng bộ kit dành riêng cho model máy tính bảng Samsung Galaxy Tab. Nếu mua sai bộ kit thì dụng cụ và pin có thể không phù hợp.
- Nếu không có công cụ nạy bằng nhựa, bạn có thể sử dụng bất cứ mảnh nhựa nào (ví dụ: phím gảy đàn guitar hoặc miếng nhựa mỏng được cắt từ chai soda).

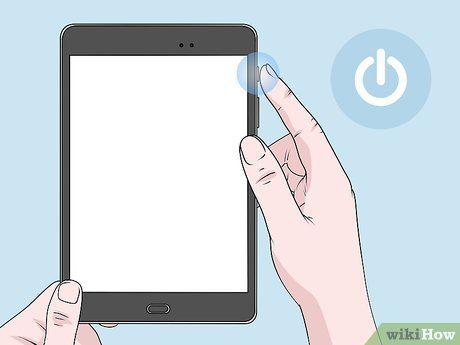

Power off the Galaxy Tab. Press and hold the power button located on the side (top edge) to turn off the device.

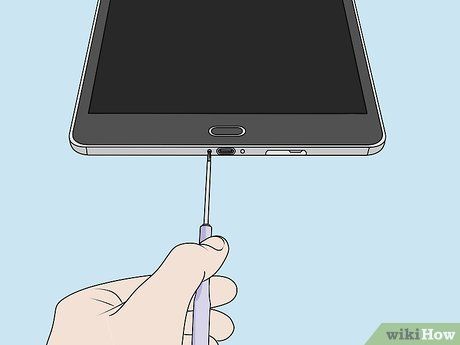

Remove the two screw covers near the charging port (if present). Some Galaxy Tab 10 models have screws on both sides of the charging port. If your Galaxy Tab model has screws on either side of the charging port, use a pin or a sharp object to pry off the screw covers first, then use a tri-wing screwdriver to remove the screws.

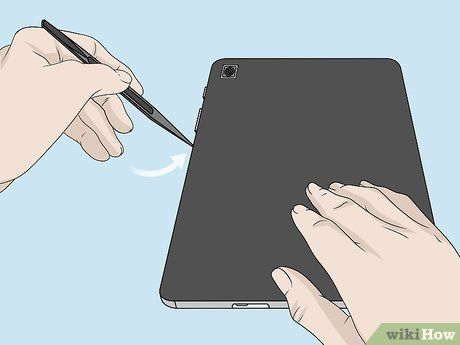

Use a plastic prying tool to open the back cover. Insert the plastic prying tool into the gap between the back cover and the front panel (usually located on the side of the device). On some models, this gap might be found around the front screen. Gently move the tool around the device while applying light pressure to separate the front panel from the back cover.
- Note: The clips securing the back cover are fragile, so proceed slowly and carefully. Be cautious not to damage the microphone cable when separating the front panel at the top-left corner of the Galaxy Tab.

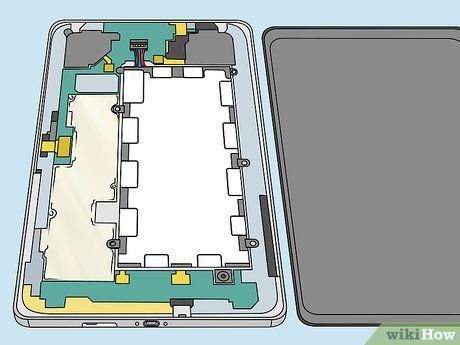

Detach the back cover from the rest of the device. Once all the clips are released, you can remove the back cover and set it aside.

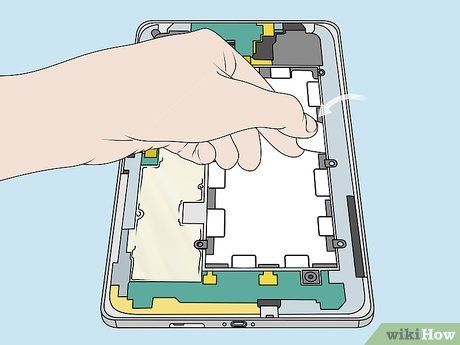

Remove the tape from the ribbon cable (flat cable) and the battery. Depending on the model, there may be tape covering the ends of the ribbon cable and the battery. Use a plastic prying tool to carefully remove the tape and set it aside.

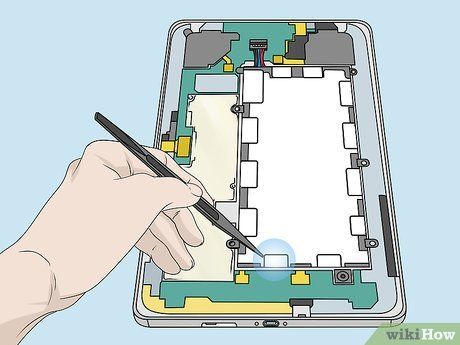

Disconnect the ribbon cable from the battery (if applicable). Larger Samsung Galaxy Tab 10 models often include two or three ribbon cables positioned atop the battery. Use a tool to carefully pry off the protective cover above the connector where the ribbon cable is inserted. Proceed to detach the ribbon cable from the connector. If no cover is present, simply pull the ribbon cable out.

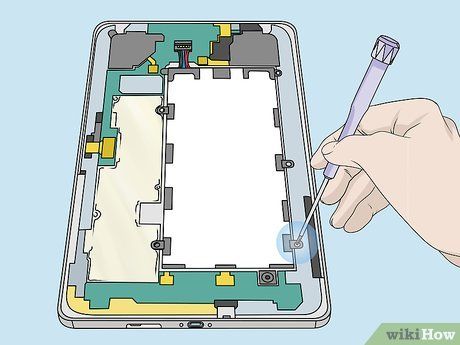

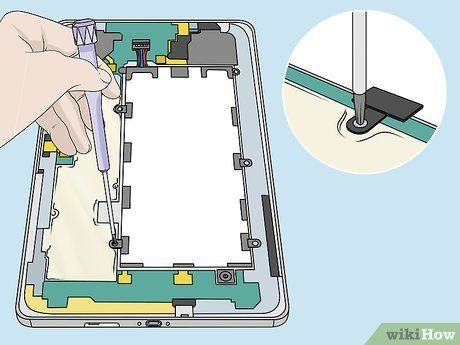

Remove the screws (if present). Some Galaxy Tab models secure the battery with screws. Use a Phillips screwdriver to unscrew the bolts located along the battery's edges.

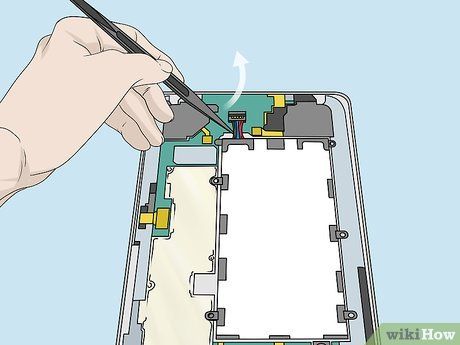

Disconnect the battery from the motherboard. Four wires link the battery to a black clip and the motherboard. Insert a plastic tool beneath the wires and gently lift to detach the black clip from the motherboard.

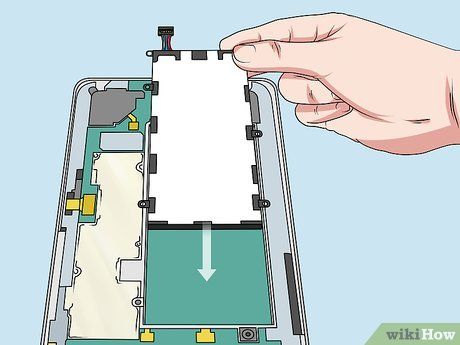

Take out the battery. Once the battery is disconnected, simply remove it from the device.
Reassemble the Samsung Galaxy Tab

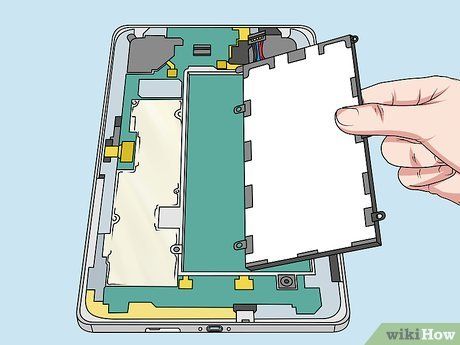

Install the new battery. After removing the old battery, you can insert the new one.
- If this Samsung Galaxy Tab model has a ribbon connector, ensure the battery is not placed over the connector.

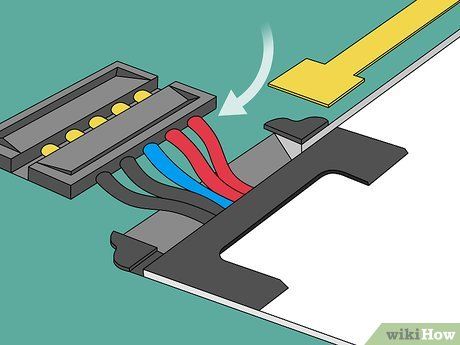

Reconnect the battery wires to the motherboard. Locate the four wires connected to the black clip and gently press the black end down to attach the battery to the motherboard.
Reinstall the battery screws. If the old battery was secured with screws, use a Phillips screwdriver to tighten the screws back into place.

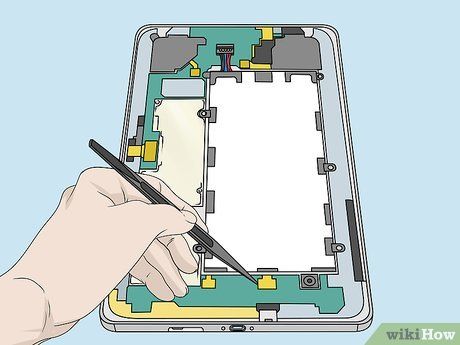

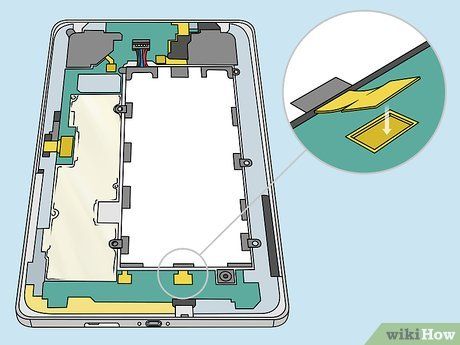

Reattach the ribbon cable. If the Samsung Galaxy Tab has a ribbon connector, reconnect it to the top of the battery. Position the connector strip facing upward and slide it into place until secure. Then, press the connector strip down to lock it in position.
- Warning: A loosely attached ribbon cable can affect the device's performance.
Replace the protective cover over the ribbon connector and battery. If there is a cover for the ribbon connector and battery, reposition it to its original location.

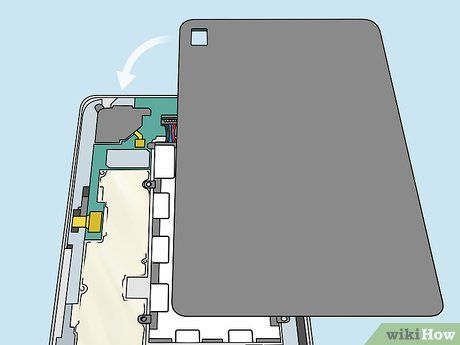

Reattach the back cover. Once the battery and all cables are securely in place, reattach the back cover to the device. Gently press around the edges with your fingers to snap the back cover into position.

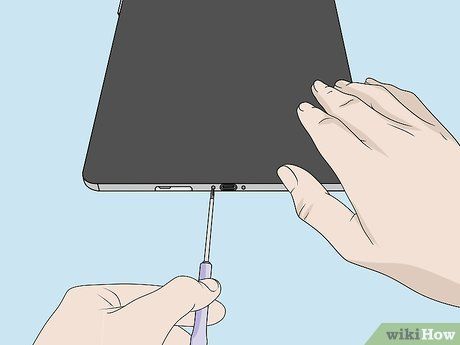

Tighten the screws. If your Samsung Galaxy Tab model has screws near the charging port, use a tri-wing screwdriver to tighten them. Finally, reattach the screw covers. Your Samsung Galaxy Tab is now fully reassembled and ready to power on.
And you're done!
