How to Build a Simple Chicken Egg Incubator at Home

Raising chickens at home has become quite common recently, as more people are becoming aware of the conditions that hens face in industrial poultry farms. Incubating chicken eggs can also be an exciting project for your family. While purchasing an incubator can be expensive, you can easily build one at home with a fairly simple process. You might even have most of the materials needed right at home.

Cut a small hole in the top of the styrofoam box. This hole will be used for fitting a light socket and bulb. Insert any light socket into the hole and add a 25W light bulb. Secure the socket with tape around both the inside and outside of the box. This step is crucial to prevent any electrical hazards.

• You could also use a small box, but the styrofoam box is better due to its insulating properties.

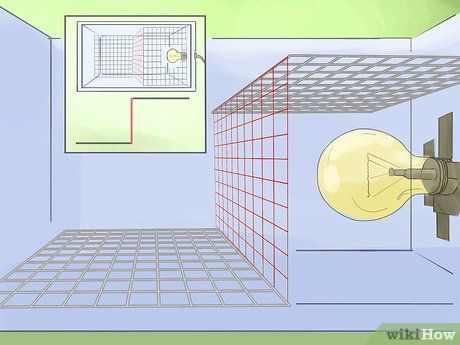

Divide the styrofoam box into two sections. Use chicken wire or other strong mesh materials to separate the area with the bulb that you just installed. This will help protect the chicks from being burned by the light.

• Optional: You can use chicken wire to create a slightly raised floor in the box. This makes it easier to clean out chicken droppings once the chicks hatch.

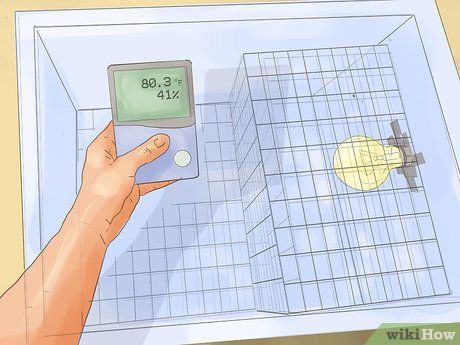

Install a temperature and humidity sensor. Place the sensor in the section of the box where you will store the eggs. The primary function of an incubator is to maintain the ideal temperature and humidity inside, so make sure your sensor is highly accurate for this purpose.

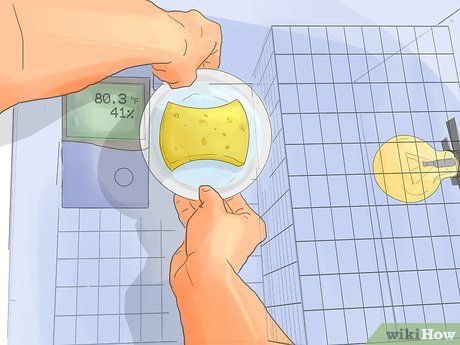

Place a bowl of water inside the box. This will serve as the humidity source for the incubator. Add a sponge to the bowl to make it easier for you to adjust the water level.

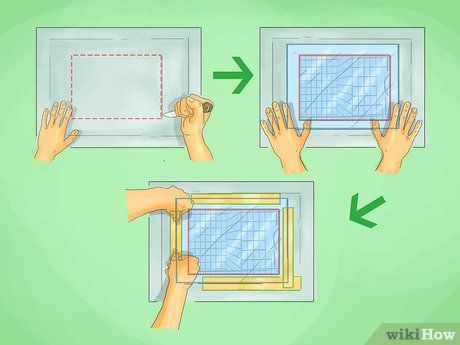

Cut a viewing window on the top of the styrofoam box. Use a glass panel from a picture frame to determine the size of the window. The window should be slightly smaller than the glass panel. Then, use tape to securely attach the glass panel over the window.

• Optional: You can add hinges by taping them to one side of the box and the lid to create a door-like effect for easier access.

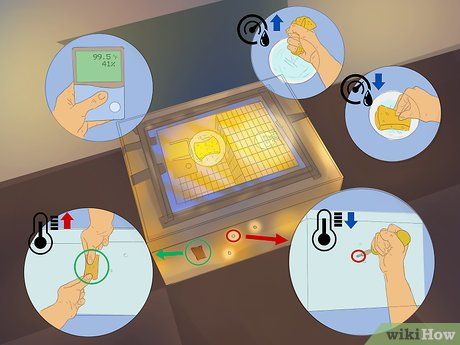

Test the incubator. Before placing eggs inside, turn on the light and monitor the temperature and humidity for a few days. Adjust the temperature and humidity until they reach optimal levels. The temperature should remain at 37.5°C throughout the incubation process. The ideal humidity ranges from 40-50% for the first 18 days and 65-75% for the last four days.

• To reduce the temperature, poke several holes in the side of the styrofoam box. If the temperature drops too low, you can cover some of the holes with tape.
• To adjust humidity, use a sponge to absorb water to decrease humidity, or squeeze water from the sponge to increase it.

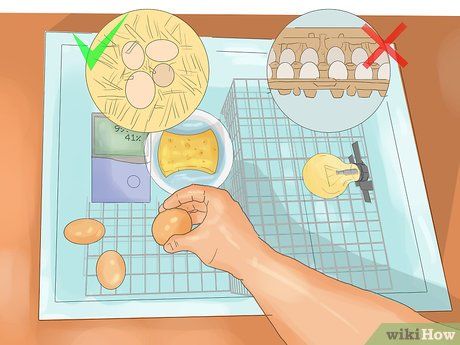

Place the eggs into the incubator. It's crucial to use fertilized chicken eggs, as store-bought eggs will not hatch. If you don't have hens or roosters, it's best to contact a local poultry farm to buy fertilized eggs. Once you have the eggs, arrange them close together to maintain a stable temperature.

• The quality of the eggs depends on the health of the mother hen. Therefore, before purchasing eggs from a farm, ask the owner if you can tour their facilities. Free-range hens are usually healthier than those confined in cages.
• The optimal hatch rate is between 50 to 85%.

Monitor the time and key parameters. Chicken eggs will hatch after 21 days of incubation, so it's important to keep track of the exact day you placed the eggs in the incubator. Additionally, don't forget to monitor the temperature and humidity levels.

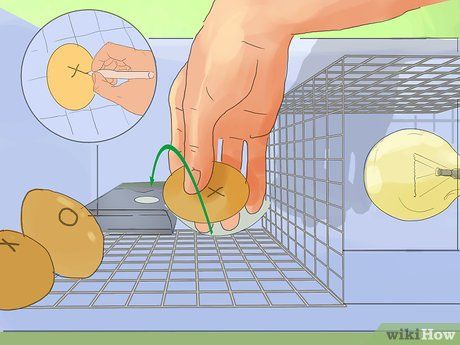

Turn the eggs. Turn the eggs a quarter to a half turn three times a day for the first 18 days. You should rotate them so that one end of the egg alternately faces down and the other faces up. Mark one end with an 'X' and the other with an 'O' to easily track which end is facing up.

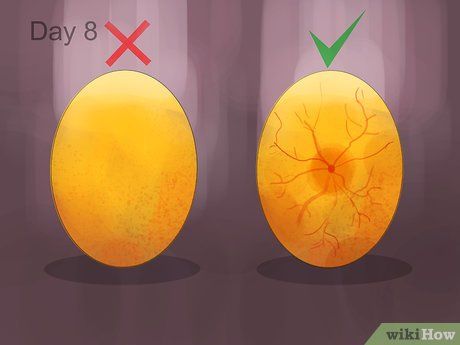

Check the eggs after the first week of incubation. Candling the eggs helps you detect those without embryos or poor quality eggs. To candle, hold the egg up to a light source in a dark room to observe the contents. You can purchase an egg candling device, but typically a small, bright flashlight will suffice. If you find any damaged or unfertilized eggs, remove them from the incubator.

• If using a flashlight, choose one with a small lens to focus the light on the egg.
• Another way to create a homemade egg candling device is by placing a desk lamp inside a cardboard box with a small hole cut in the lid. Simply insert the egg into the hole to candle it.

Listen for the sound of chicks starting to hatch. On day 21, the chicks will begin to “pip” the shell to breathe after breaking through the air cell. From this point on, you need to monitor the eggs carefully. The time from when the chick starts pipping to when it fully emerges can take up to 12 hours.

• If, after 12 hours, some chicks have not fully hatched, gently assist by peeling away the shell to help them out.
