How to Build Your Own Laptop

Buying a pre-built laptop from stores might not fully fulfill your specific needs. The features you desire are often not all present in one device that fits within your budget. Additionally, the software installed on these machines may not be to your liking. You can avoid all these issues by building your own laptop. While assembling a laptop is a challenging task, the end result is well worth the effort. Today, Mytour will guide you on how to go about it.

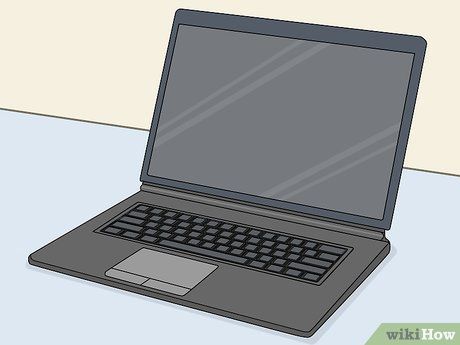

Determine the main purpose of the laptop. A laptop intended for word processing and email checking will have very different specifications compared to one built for playing the latest games. Battery life is another critical factor to consider; if you're frequently on the go and without access to a charger, a power-efficient laptop would be more suitable.

Choose a processor that meets your needs. The case you purchase will depend on the processor, so start by selecting the processor. Compare different models to see which processor has the fastest speed, along with good cooling and power consumption. Most online retailers allow you to compare processors for a better evaluation.

• Be sure to choose the right processor for a laptop, not one meant for a desktop computer.

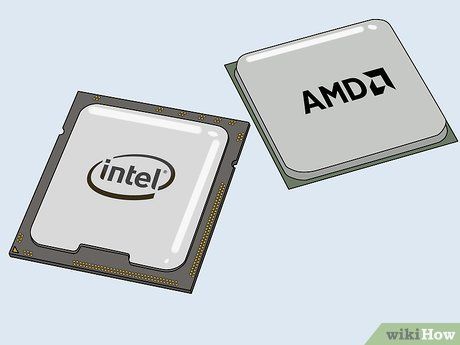

• There are two major processor manufacturers: Intel and AMD. While there are mixed opinions, AMD is generally more affordable. Make sure to research the processor model you're interested in to ensure it aligns with the price you're paying.

Choose the laptop case. The laptop case will determine which other components you can use. The motherboard is typically pre-installed in the case, and this will influence the type of memory you can use.

• Consider the screen size and keyboard. You can't freely customize these; they need to be selected based on the case. A larger laptop will be significantly heavier and harder to carry.
• Finding a laptop case can be tricky. Try searching for “barebones notebook,” “whitebook shell,” or “laptop case” on popular search engines to find reputable retailers. Some manufacturers/suppliers offer customizable cases. MSI and Eluktronics are among the few companies that still provide barebone laptops (a frame to house server components, allowing users to customize according to needs at an affordable cost).

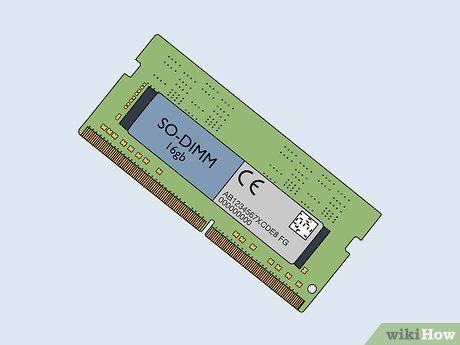

Purchase memory. Every computer needs memory to operate, but laptop memory is different from desktop memory. Look for SO-DIMM memory that works with the motherboard in the case. Faster memory results in better performance, but also reduces battery life.

• Try to equip your laptop with 8GB or 16GB of memory for optimal performance.

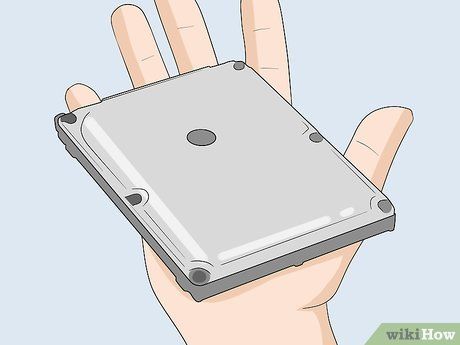

Choose a hard drive. Laptops typically use 2.5-inch drives, while desktops use -inch hard drives. You can choose between the standard 5400 RPM and 7200 RPM, or go for a solid-state drive (SSD) with no moving parts. SSDs perform faster, but they tend to wear out quicker. SSDs also come in NVMe versions, which can operate up to seven times faster than SATA and are in a compact M.2 format. If you travel frequently with your laptop, an SSD is a better choice since it’s less likely to be damaged by physical impact compared to a traditional hard drive.

• Choose a hard drive with enough space to meet your laptop usage needs. Most laptop cases don’t have room for a second drive, making future upgrades difficult. Make sure there’s enough space after installing the operating system (typically around 15-20 GB). Most users today opt for drives between 500GB and 1.5TB for laptops.

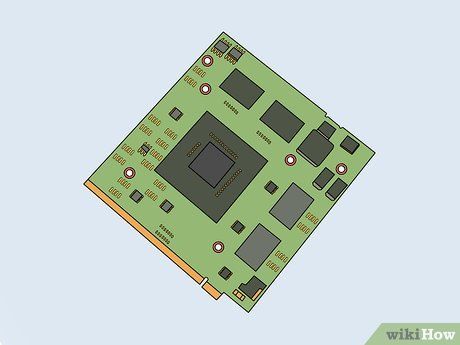

Decide if you need a dedicated graphics card. Not all laptop cases can accommodate a separate graphics card. Instead, the graphics card will work with the integrated GPU in the CPU. If the case allows for a separate graphics card, consider whether you really need one. This is an essential factor for gamers and graphic designers.

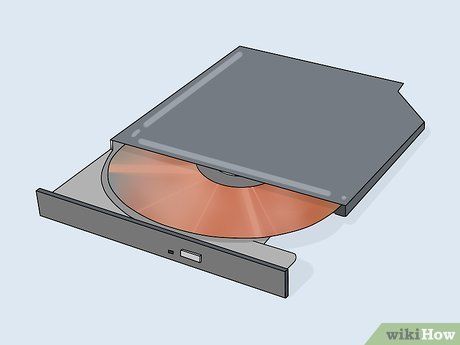

Consider an optical drive (optional). This step is not essential, as with the advancement of technology, you can install an operating system from a USB drive and download most software online. Nowadays, most new laptops do not come with an optical drive, as disk storage has been replaced by memory cards and external hard drives.

• Some laptop enclosures include an optical drive. Since enclosures are quite particular about the drive type, ensure that the selected drive fits the enclosure properly.

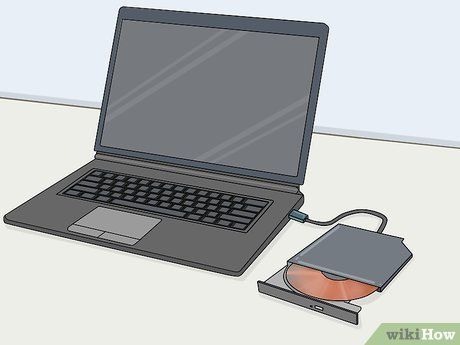

• Deciding whether or not to buy an optical drive is simple. Do you often use disk storage? Keep in mind: you can also use an external optical drive via USB instead of an integrated one.

Select the battery. Choose a battery with the appropriate shape and compatible connector. Understanding a bit about battery construction is important. Laptop batteries have multiple pins, and they contain ICs that report information about temperature, operational status, charging needs, and current battery percentage. If you frequently travel, opt for a battery with a longer lifespan. Compare different battery options before making a purchase.

• Choose a battery with positive reviews. Be sure to read customer feedback regarding their experiences with the product.

Prepare your tools. You will need a jeweler's screwdriver set, ideally a magnetic type. Laptop screws are much smaller and trickier to handle than desktop screws. It’s also wise to have needle-nose pliers on hand to retrieve any screws that may fall into tight spaces.

• Keep screws in a plastic bag to avoid confusion and misplacement.

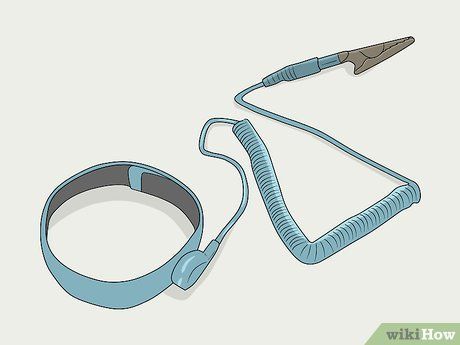

Ground yourself. Static electricity can quickly damage computer components, so you must ground yourself before starting the laptop assembly. An anti-static wrist strap is an inexpensive and convenient tool for grounding yourself.

Flip the laptop over so the bottom is facing up. You will gain access to the motherboard once you remove a few protective panels located beneath the bottom cover.

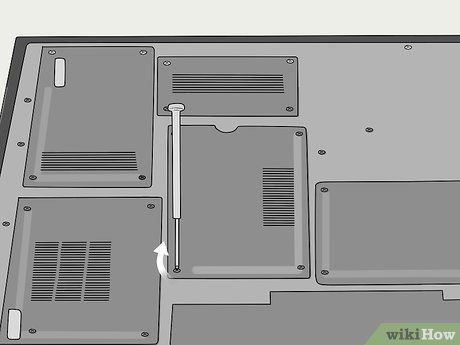

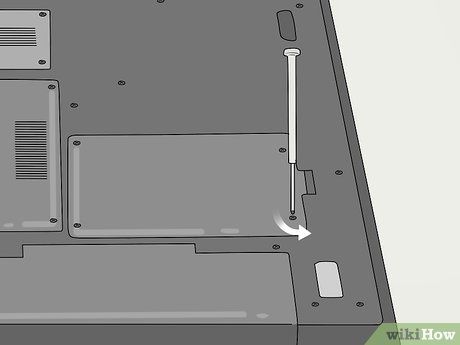

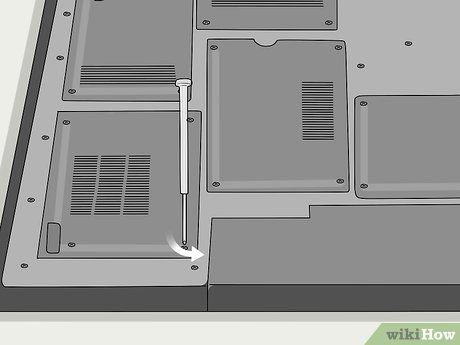

Remove the disk tray cover. The 6.35 cm cover secures a 2.5-inch hard drive. The location of this tray varies depending on the chassis, but it is typically positioned towards the front of the laptop.

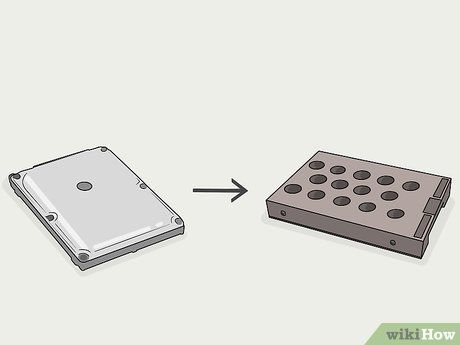

Insert the hard drive into the frame. Most laptop hard drives need to fit snugly into the frame before being installed into the laptop. Use a screwdriver to tighten four screws to securely fasten the hard drive into place. The screw holes will help ensure the drive is correctly oriented.

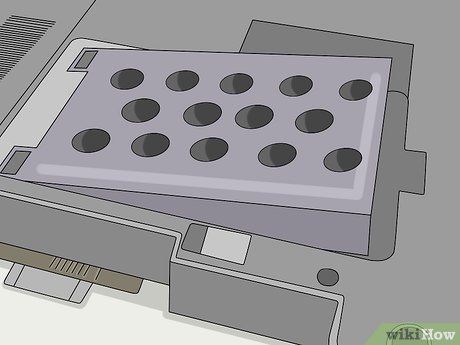

Install the hard drive frame into the tray. Apply grip-enhancing tape to prevent the frame from shifting. Most frames align with two screw holes once the hard drive is properly positioned. Tighten the screws to secure the hard drive frame.

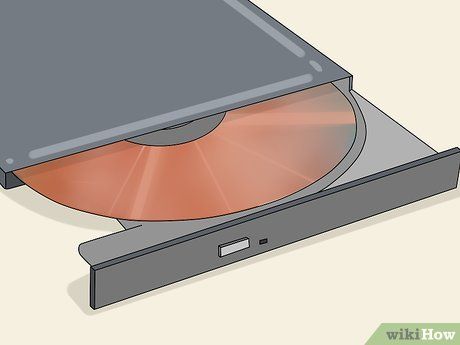

Install the optical drive. This process may vary depending on the chassis, but generally, the optical drive is inserted from the front of the tray (after removing the cover) and slid into the SATA connectors.

Remove the motherboard cover. This cover is typically harder to remove compared to the hard drive cover. You may need to pry it up after removing all the screws.

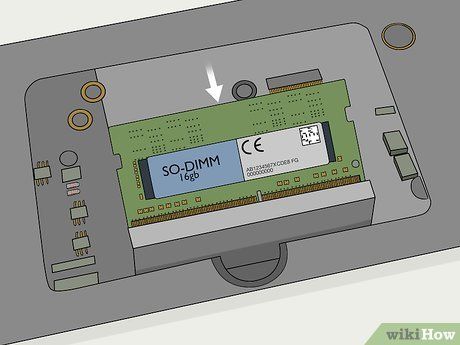

Install the memory. After opening the protective cover, you'll have access to the motherboard and memory slots. Insert the SO-DIMM memory chip into the slot at the correct angle and press it down. You'll hear a "click" indicating that the memory is securely in place. The memory sticks can only be installed in one orientation, so avoid using excessive force.

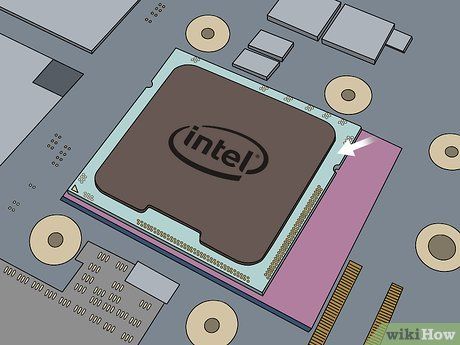

Install the CPU. You may find a CPU lock somewhere on the socket. Use a flathead screwdriver to turn the lock to the "open" position.

• Flip the CPU to check the pins. You'll notice a missing pin at one corner. This gap should align with the slot on the socket.
• The CPU will only fit the socket in one direction. If the CPU doesn't fit properly, avoid forcing it, as you could bend the pins and damage the processor.
• Once the CPU is properly seated, turn the lock to the "locked" position to secure the CPU.

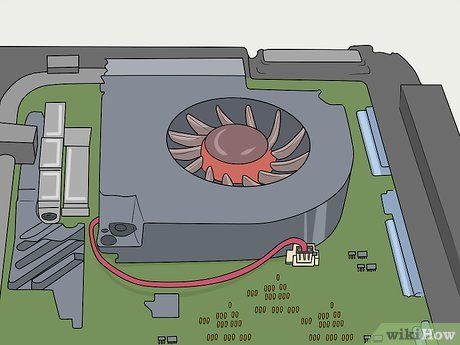

Install the cooling fan (most laptops use centrifugal fans). This component is responsible for cooling the CPU and other components. Typically, the CPU comes with a cooling fan. Most fans already have thermal paste applied beneath them at the point of connection to the CPU. If the fan doesn't come with thermal paste, you'll need to apply it yourself before installation.

• After applying the thermal paste, install the fan. The exhaust side should align with the laptop's vent holes. This alignment can be tricky. Instead of forcing it, gently wiggle the fan into position. Some fans come with screws to secure them. If the laptop has a dust filter tray for the fan, install it to prevent clogging the heatsink.
• Position the heatsink at an angle until you find the correct installation spot. This prevents the thermal paste from getting on other components.
• Connect the fan's power cable to the motherboard. Once the fan is installed, make sure to plug the fan's power cable into the motherboard to prevent overheating and automatic shutdown after a few minutes of use.

Reinstall the covers. Once you've installed all the components, you can reattach the protective covers to the trays and secure them with screws. Your assembly is now complete.

Check to ensure the battery is installed. The battery is often overlooked during the assembly process, so make sure to verify that the battery is properly installed and charged before powering on the computer.

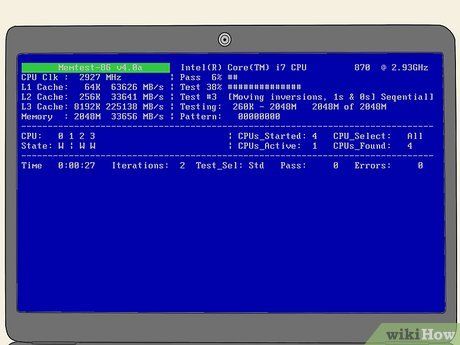

Check the memory. Before installing the operating system, run Memtest86+ to test whether the memory and the system are functioning properly. You can download Memtest86+ for free online or boot from a CD/USB drive.

• You can also verify if the system recognizes the installed memory by accessing the BIOS. Look for the Hardware or Monitor section, and if the memory is listed, it means the system has recognized it.

Install the operating system. With a custom-built laptop, you can choose between Microsoft Windows or a Linux distribution. Linux is free, secure, and supported by a community of volunteer developers. Windows, though paid, offers a wider range of programs and greater compatibility.

• Linux offers many distributions to choose from, with popular options including Ubuntu, Mint, and Debian.
• It is advisable to install the latest version of Windows, as older versions will no longer be supported after their end of life.
• If you haven't installed an optical drive, you'll need to create a bootable USB containing the operating system files.

Install the drivers. After installing the operating system, you will need to install drivers for the hardware. Most operating systems will automatically handle this process, but you may need to manually install drivers for certain components.

• Most components come with a driver disk. Use this disk if the operating system cannot locate the correct driver.
