Calculating the diameter of a circle is quite simple if you know its various measurements, including the radius, circumference, or area. If none of these values are available, you can still determine the diameter by drawing the circle. To learn how to calculate the diameter of a circle, follow these steps.
Steps
Calculate the diameter based on the radius, circumference, or area

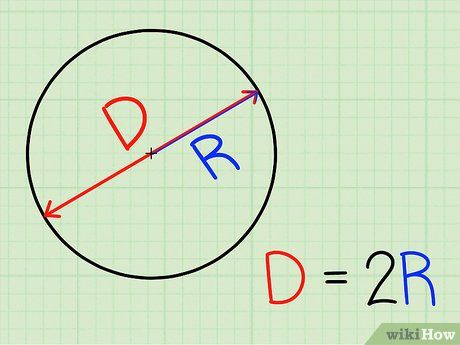

If the radius of the circle is known, simply double it to find the diameter. The radius is the distance from the center of the circle to a point on its edge. For example, if the radius of the circle is 4 cm, then the diameter is 4 cm x 2, or 8 cm.

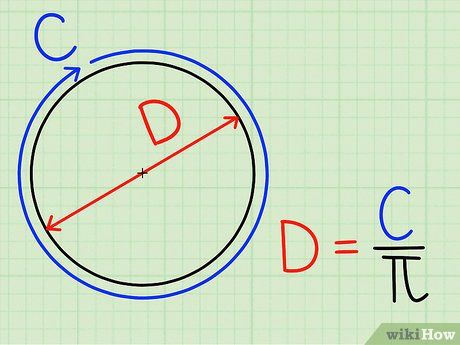

If the circumference of the circle is known, divide it by π to get the diameter. The value of π is approximately 3.14, but it's best to use a calculator for the most accurate result. For example, if the circumference of the circle is 10 cm, the diameter is 10 cm/π, or 3.18 cm.

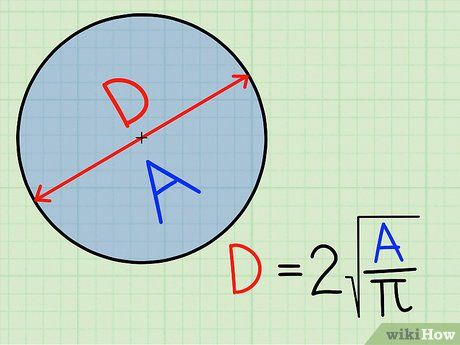

If the area of the circle is known, divide the value by π, then take the square root of the result to find the radius, and finally multiply the radius by 2 to obtain the diameter. This method is the reverse of the formula for the area of a circle, A = πr2. For example, if the area of the circle is 25 cm2, divide 25 cm by π, then take the square root of the result, which gives a radius of 2.82 cm. The diameter is then calculated by doubling the radius, which results in 5.64 cm.
Calculate the diameter based on the drawing

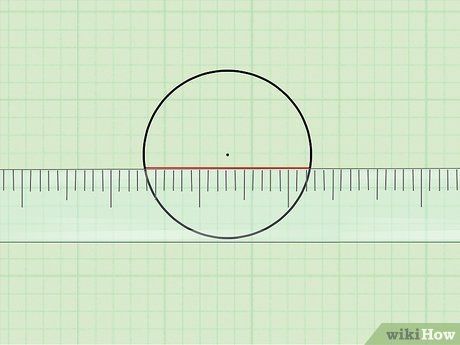

Draw a horizontal line inside the circle that intersects two points on the circumference. Use a ruler to ensure the line is straight. This line can be placed either in the upper half, lower half, or anywhere inside the circle.
Name the two points where the line intersects the circle as "A" and "B."

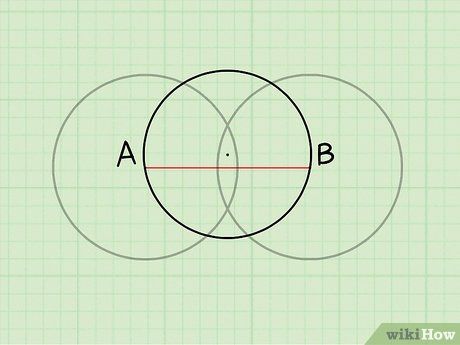

Draw two additional circles that intersect the original circle, one with center A and the other with center B. Make sure these two circles intersect in a Venn diagram style.

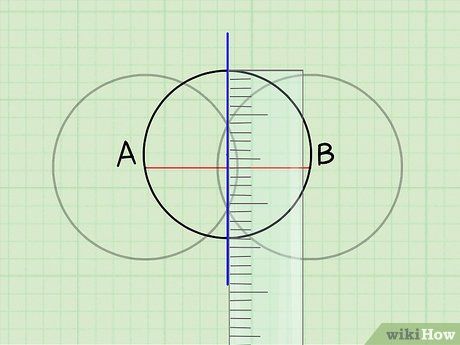

Draw a straight line passing through the two intersection points of the newly drawn circles. This line will serve as the diameter of the circle we are trying to find.
Measure the length of the diameter. Use a ruler for the most accurate result, or for even greater precision, use a digital compass. And that’s it, you're done!
Tips
- Practice using a compass to become familiar with it. This tool is incredibly useful for various tasks, including drawing the diameter of a circle as described above. A divider tool (similar to a compass) is occasionally used for such tasks as well.
- Applying geometric formulas or calculations will make the process easier. You can also seek help from experts in circles or other shapes. You’ll find that geometry questions will be much less challenging than before.
Items You Will Need
- Calculator
- Pencil, eraser
- Compass
- Ruler
- Digital caliper (optional)
