How to Check the Water Level in Your Car's Battery

It is vital to regularly monitor the electrolyte water level in your car's battery. This solution is not just regular water; it is a mixture of water and sulfuric acid. There are two main reasons for this check: first, this liquid naturally evaporates over time, and second, every time the battery is charged, a small portion of the liquid is broken down into hydrogen and oxygen. Knowing how to safely check and replace the water in your battery is an essential part of vehicle maintenance. Let's start with Step 1 for detailed guidance on checking the water level in your car's battery while ensuring safety for both you and your car.

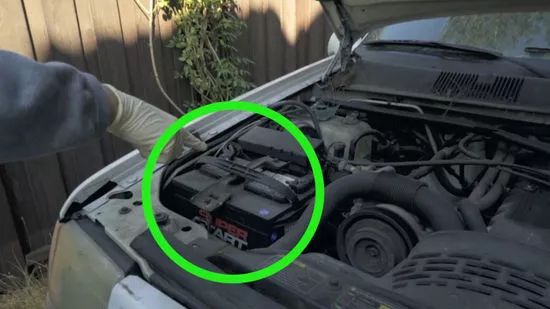

Identify the battery's location. In most cases, simply open the hood to access the battery.

• Some batteries are located low in the engine bay, behind a protective barrier, and in front of the car's front wheel. Occasionally, you may need to access the battery from underneath and remove it to check or maintain it.
• Most BMW, Mercedes Benz, and a few other brands' batteries are located in the trunk, in a separate compartment.
• In some cases, such as certain Cadillac models, the battery may be located beneath the rear seat.

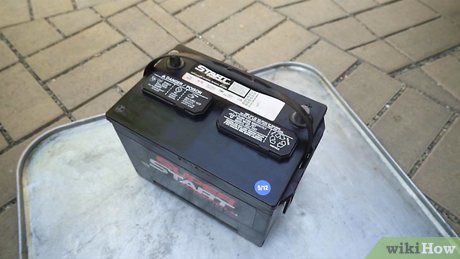

Clean the surface. Before checking the water level in your car's battery, thoroughly clean the top of the battery and around the terminals. This is crucial to avoid any foreign objects falling into the compartments when the cap is opened. Additionally, a clean surface helps reduce or prevent corrosion of nearby metal components.

• For general dirt and minor rust spots, use a bit of ammonia-based window cleaner. Spray the cleaner onto a cloth – do not spray directly onto the battery – and wipe away any dirt. Paper towels can also be used, but replace them immediately when they begin to tear apart.
• For heavy rust, use a mixture of water and baking soda. Similarly, dampen a cloth with the solution and wipe, but avoid pouring it directly on the battery. You may need to repeat this process. Finally, use the window cleaner to wipe away any remaining baking soda residue. Leaving baking soda on the battery could accelerate corrosion on the terminals and nearby metal components.
• Don’t neglect this step: always make sure the battery cap is properly secured while cleaning. Do not let any cleaning solution drip into the battery.
• Note: If desired, you can remove the battery from the vehicle before cleaning and maintenance, then reinstall it afterward. This may make the process safer, especially if the battery is not easily accessible. However, this may require you to reset some or all of the vehicle’s electronic devices (clock, radio presets, etc.). Usually, leaving the battery in place saves a significant amount of time.
• You can also remove the terminals from the battery and dip them in a cup of hot water. The hot water will dissolve the rust and clean the surface of the terminals. Make sure they are completely dry before reattaching them.

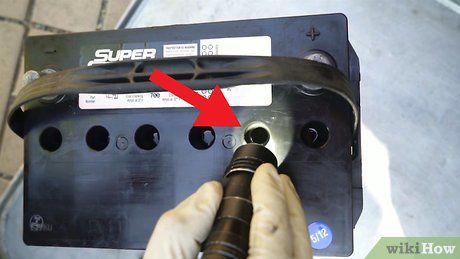

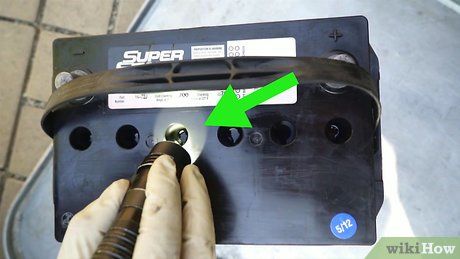

Open the battery cap. The top of the battery usually has two rectangular caps to seal the compartments, which can be removed using a small plastic knife or a flathead screwdriver. If the caps don’t loosen easily, gently pry around the edges.

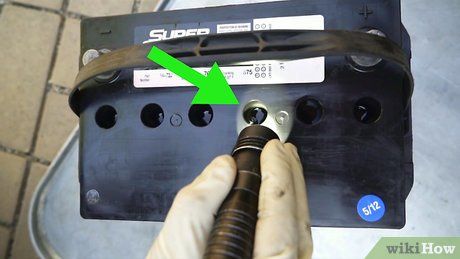

• Some batteries have six separate round caps instead, which can be unscrewed counterclockwise and pulled off.

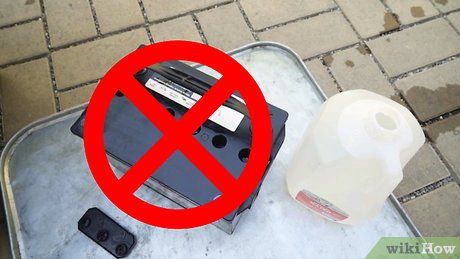

• If the cap says 'maintenance-free', this battery is not designed to be opened. Manufacturers advise that you cannot add water to this type of battery; simply replace it when it no longer functions properly.

Continue cleaning if necessary. Opening the cap may reveal additional dirt on the top of the battery. Continue wiping with a cloth dampened in window cleaner.

• At this point, do not use baking soda. Use a small amount of window cleaner and be cautious not to let anything (cleaning solution, dirt, pieces of paper towel, etc.) fall into the battery compartments.
• Do not rush to skip this step – keeping the top of the battery clean will prevent rust buildup later. This step is vital in battery maintenance, ensuring proper connections between the parts.

Compare the fluid levels between the compartments. When you look down into each compartment through the openings, you can see the level of the electrolyte solution inside. Normally, the fluid levels are uniform across all compartments.

• If the levels differ, it could be because one compartment was overfilled previously. This can be easily adjusted by adding water once the fluid level in that compartment has naturally dropped to a more standard level.
• If there is a large discrepancy between the compartments, it may indicate a leak or a crack in the battery case. In this case, you need to replace the battery. If no leak is found, add water to the highest safe level, ensuring you only use distilled water, and check again in a few weeks to see if the fluid levels remain uniform.

Identify if the electrolyte solution is at a low level. The water level is considered too low if it does not fully cover the metal plates. When the plates are not completely submerged in the electrolyte solution, the battery will not operate at full capacity.

• When exposed to air, the destruction of the plates becomes inevitable over time.
• If the electrolyte level is only about 1 cm lower than the top of the plates, adding just enough water to cover the plates may restore the battery’s function, although the performance will be slightly reduced (instructions on adding water are detailed in Part 3 of this article). If this does not work, you may need to consider replacing the battery.
• Low electrolyte levels may be caused by an overcharging source. In this case, you should consider checking the vehicle’s alternator.

Recognize normal electrolyte levels. Typically, the electrolyte level is about 3mm below the bottom of the filler tube (extending from the top of the battery) or about 1 cm higher than the top of the plates.

• In this case, you may not need to add water immediately. Just close the battery cap and check again in three months.

Identify when the electrolyte level is at its maximum. The highest safe level is when it reaches the bottom of the filler tube.

• Most filler tubes have two small grooves near the bottom. These grooves create a slight curve in the water’s surface, making it easier to visually identify when the water level reaches the lower edge of the tube. If the water is below this level, this curve won’t appear.
• This liquid surface curvature is designed to signal that no more water should be added. You may need a flashlight to observe the water level and clearly spot the curvature.

Note that these levels apply only to lead-acid car batteries. Always follow the instructions from the battery manufacturer if they contradict the information in this article.

• It is also important to know that batteries used in golf carts, floor scrubbers, and especially nickel-cadmium batteries may require different electrolyte levels.

Only use distilled water to top up the battery compartments. Distilled water can be purchased from grocery stores. If the electrolyte level is low (exposing the plates), top up each compartment with just enough water to cover the plates. Then, use a charger to fully charge the battery or simply drive the car for a few days to allow the battery to charge automatically from the vehicle’s current. Only fill the water to the maximum safe level, which is just touching the bottom of the filler tube, once the battery is fully charged.

• To ensure accurate water addition, use a clean funnel, sports bottle, or pump. Be very careful to avoid any dirt or cleaning solution from entering the compartment.
• Using tap water, filtered water, or any other type of water instead of distilled water will introduce minerals, chemicals (like chlorine in tap water), and other impurities, which can reduce the lifespan of the battery.

If the battery is nearly dead or completely dead, avoid filling it to the maximum level. If you must add water, it's best to only add enough to cover the plates (or leave it at the normal level if it already is).

• When recharging a nearly dead or completely dead battery, the electrolyte level will rise, so leave sufficient space at the top (no need if the battery is already fully charged before topping up).
• The electrolyte level can also rise as the battery heats up.

Wipe off any spilt or overflowed water and secure the battery cap. Make sure everything is thoroughly cleaned, and the cap is properly sealed back onto the battery.

• If you accidentally added too much water but it hasn't overflowed, simply stop adding more and close the battery. If water spills onto the battery surface, remember that it's acid: avoid contact with skin or clothing.
• Clean up using a cloth or paper towel to wipe off the excess water. Be careful not to let the cloth or paper get too wet and transfer the liquid onto other car parts or objects. Rinse the cloth and paper in a bucket of water. Wear gloves and avoid letting the water touch your hands.
• Once finished, dispose of the rinsed cloth or paper towel in the trash. Dispose of water down the drain, making sure it doesn't spread across the floor. This prevents acid from clinging to other surfaces. Finally, wipe down all areas that came into contact with electrolyte solution with a cloth dampened with glass cleaner.
• If you accidentally overfilled, check visually every week for a month to see if water has overflowed and clean it up as instructed above.
• Any sulfuric acid loss due to spillage is likely to be minimal and won't significantly affect the battery’s operation. It's best not to attempt to add acid to compensate (too much acid can shorten the battery’s lifespan faster than too little).

Protect your eyes with safety glasses. The electrolyte solution in the battery is sulfuric acid, and you must avoid letting acid splash into your eyes as it can cause severe damage, even blindness.

• Contact lenses do not protect your eyes and can cause discomfort in the event of an accident. Regular glasses also don't provide enough protection as they lack side shielding.
• Therefore, wearing safety goggles is essential. You can purchase them from auto parts stores.

Protect your hands with disposable gloves. Choose gloves that can withstand sulfuric acid for at least a few minutes. These gloves are available at auto parts stores.

• Natural rubber (latex) or vinyl gloves cannot resist acid for long. If using them, replace immediately if any electrolyte contacts the gloves. Prolonged exposure may cause acid to seep through the gloves and burn your skin.
• Neoprene gloves provide protection for up to an hour or more, but they are not commonly available in standard auto parts stores. Nitrile gloves, unlike synthetic rubber, offer poor sulfuric acid resistance and should not be used.

Protect your skin. Wear old clothing with long sleeves, long pants, and closed shoes to shield as much skin as possible. If electrolyte splashes onto your clothes, the fabric will degrade in one to two weeks, leaving holes. Therefore, it's advisable to wear old clothes that you won't mind discarding after use.

Know what to do if electrolyte falls on your skin. If electrolyte comes into contact with your skin, wash it off immediately with water and soap.

• If you feel a burning or itching sensation, it may be from electrolyte exposure. Even a drop can cause burns.
• You might not notice any red marks or injuries right away, and by the time you do, it could be too late. If you suspect electrolyte contact, stop working and wash off immediately.
• Dispose of used gloves and cleaning cloths properly once you're finished. Allowing them to touch other materials could lead to damage or contamination.
