How to Check Your Car's Alternator

Are you able to assess the condition of your car's alternator? It can be challenging to determine if the alternator is functioning properly unless you know exactly what to look for. The simplest method to check is by using a voltmeter. If you're familiar with your vehicle, you may also try other techniques. This process will evaluate the overall condition of both the alternator and the battery. Some newer vehicles may have a computer-controlled charging system that requires additional checks.

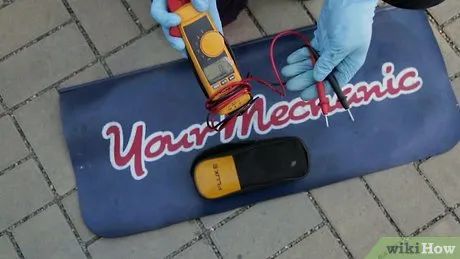

Purchase a Voltmeter. You can find a voltmeter at most auto parts stores for under 500,000 VND. You don't necessarily need to buy an expensive one; even a budget-friendly option will suffice for this purpose.

• If you have a multimeter, you can also use it. A multimeter can measure voltage and other electrical parameters like current and resistance. You'll need to measure voltage to check the alternator.

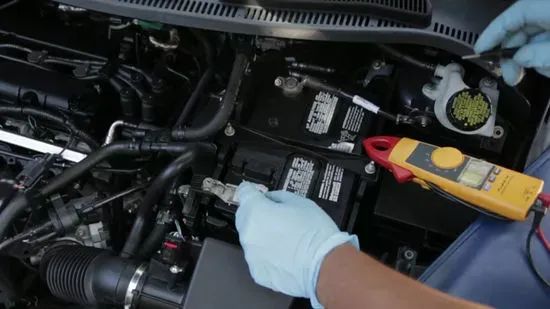

Check the Battery First. The battery's role is to start the engine, which in turn powers the alternator at a speed sufficient to charge the battery. This means that if the battery is too weak, you won't be able to start the car, and therefore, you won't be able to check the alternator. This makes any voltmeter tests ineffective. If it's cold outside and the battery is old, the battery could be the problem, not the alternator. That's why it's important to check the battery before testing the alternator. Here's how to do it:

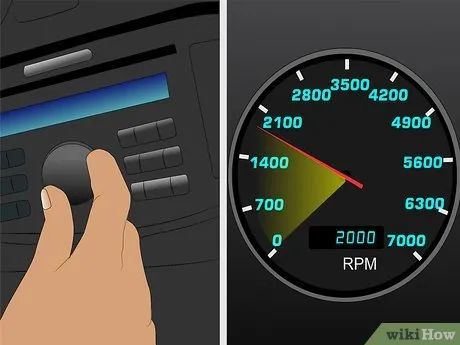

Start the Car and Rev the Engine to 2,000 RPM. This step will draw power from the battery, causing the voltage regulator to activate the alternator and run at a higher speed.

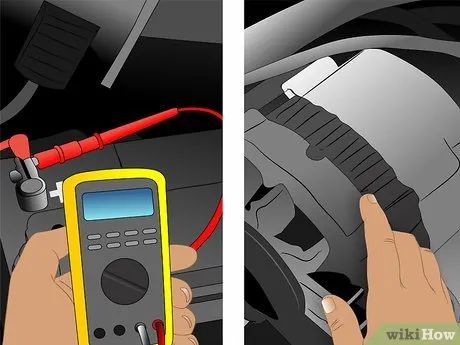

Keep the Engine Running and Recheck the Battery with the Voltmeter. At this point, the voltmeter should show a voltage increase of at least 13V. If the voltage fluctuates between 13V and 14.5V when you adjust the engine speed, the alternator is working well. If there is no change or the voltage drops, the alternator may have an issue.

• Repeat this process while turning on the headlights, radio, and other car accessories. The alternator is charging the battery if the voltage stays above 13V at 2,000 RPM with all accessories running.

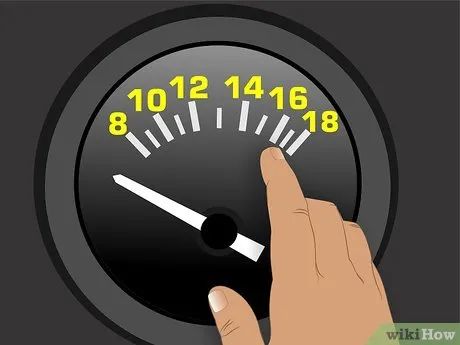

Check with a Voltage/Current Meter. If you have a voltage/current meter, it will help you measure the alternator's output voltage. Run the engine at 2,000 RPM to check, and turn on the air conditioner's blower, heater, and all accessories in the car. Then, monitor the meter to see if the voltage or current decreases. As a rule, if the voltage is higher when the engine is running than when it's off, you can confidently say the alternator is charging the battery.

Listen to the Alternator While the Engine is Running. If there is an issue with the bearings, you will hear a whining sound coming from the front of the car, and it will get louder as more electrical devices in the car are running simultaneously.

Turn on the Radio and Press the Accelerator Hard. Set the radio to a low AM frequency while there's no music playing. If the radio produces a whining or buzzing sound whenever you press the gas pedal, it's likely the alternator that's causing the issue.

Find an Auto Parts Store That Offers Free Alternator Testing. Since every store wants to sell you a new alternator, they often compete by offering free testing services. You can remove your alternator and bring it to them for a check-up.
