How to Clean Thermal Paste

Anyone who works on a computer knows that it heats up during use. Thermal paste is applied to transfer heat from the processor to a component called the 'heat sink.' The heat sink then pushes the excess heat out to maintain the processor's ideal temperature. Over time, the thermal paste dries out and needs to be replaced regularly. During computer maintenance and repair, replacing the thermal paste is relatively simple. First, ensure safety to avoid injury or damage to the computer. Then, clean off the old paste and apply a new layer of thermal paste.

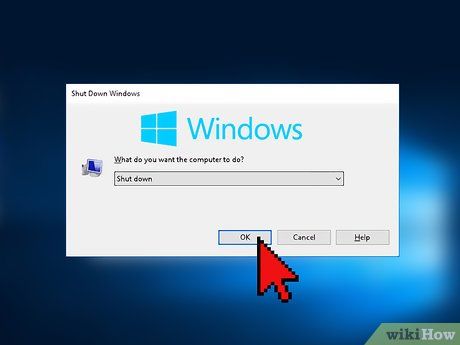

Turn off the computer. If the computer is on, open the main menu on the screen and select 'Shut down' (or similar) to turn off the computer. Avoid simply turning off the computer by pressing the power button, as this usually only puts the computer into sleep mode.

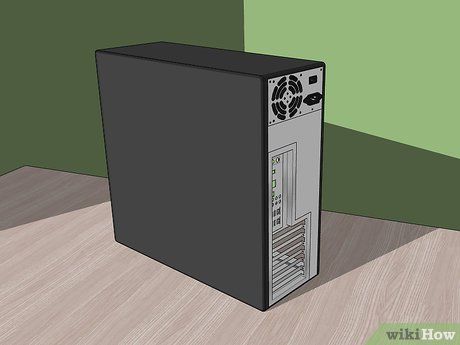

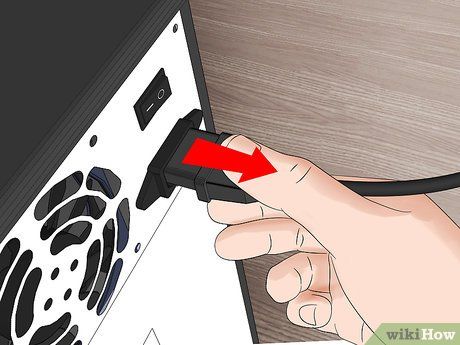

Disconnect all cables and devices. If the computer is connected to a power source, unplug it. For laptops, be sure to remove the charging cable. Disconnect all cables of any devices plugged into the computer.

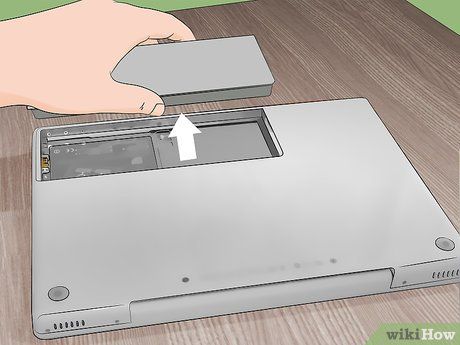

Remove the battery. For laptops, locate the battery compartment underneath the machine, then open the latch to remove the battery cover. Take the battery out and set it aside.

Hold the power button. Discharge any remaining power from the computer by pressing and holding the power button after shutting it down and removing the battery. Hold the power button for at least 10 seconds to ensure any residual power is depleted.

Wear rubber gloves. Before opening the computer and starting your work, put on rubber gloves to prevent sweat from contacting the electronic components, which could affect their functionality. Additionally, wear an anti-static wristband to prevent static electricity from damaging the internal components of the computer.

• Anti-static wristbands are available at computer stores or online.

Work in a dust-free environment. Dust can interfere with the proper functioning of the internal components of your computer. Choose a clean space for your work. If you’ve just cleaned the workspace, wait for a while to allow any fine particles in the air to settle before opening the computer.

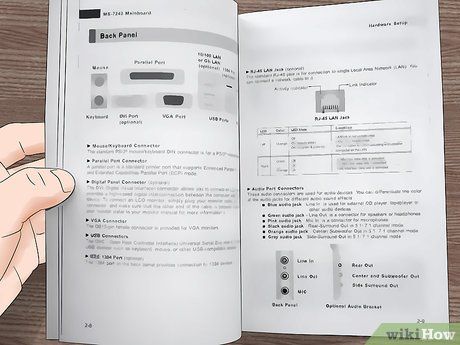

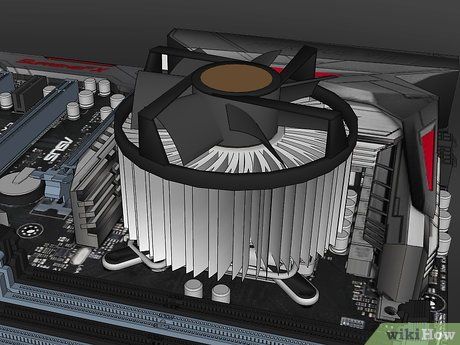

Consult the instruction manual. The method for accessing the radiator and CPU will vary depending on the computer model. It's recommended to refer to the device's manual to understand how to identify, access, and disassemble the necessary components. If the original documentation is no longer available, you can visit the manufacturer's website to view it online.

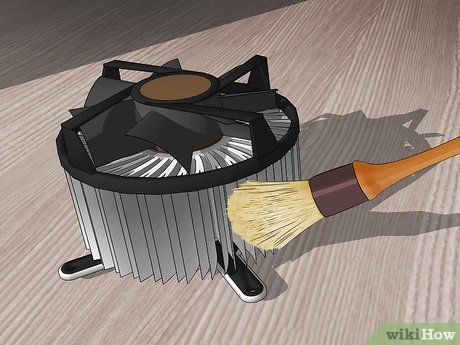

Clean the dust from the radiator vents. After removing the radiator, use a small brush or compressed air canister to clean the dust from the vents. Make sure to take the radiator to another location for cleaning, as dust may fall into other parts of the computer.

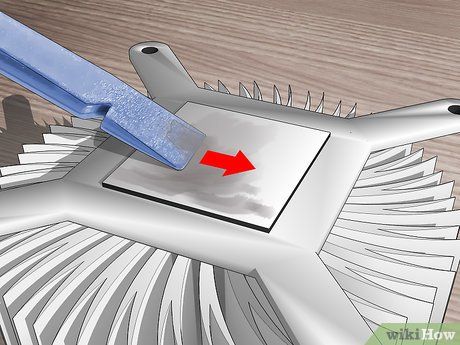

Scrape off the old thermal paste. Locate the copper core of the radiator and carefully scrape off the old thermal paste with the flat end of a spudger tool. However, if you prefer to be cautious and avoid damaging any parts, you can skip this step and proceed to the next one.

• You can also use a tissue or dry cloth to wipe off the old paste if you're concerned about accidentally scratching components when scraping.

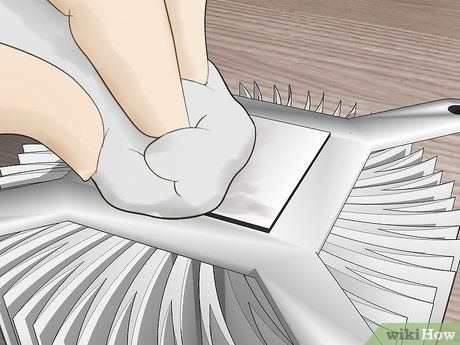

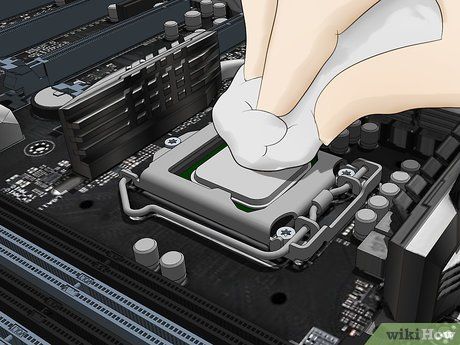

Wipe off any remaining thermal paste. Even if you use a spudger tool, you may only be able to clean part of the old thermal paste. Whether you skip the scraping step or not, at this stage, use a coffee filter, lint-free cloth, or cotton swab. Dampen it with rubbing alcohol or a specialized cleaning solution designed for thermal materials and wipe the surface of the copper core. This will help soften and remove the remaining thermal paste. Repeat this step with clean paper, cloth, or swabs.

• After all the old paste is removed, repeat this process to prepare for applying new paste.
• Special cleaning agents for this surface typically carry the label TIM (short for "thermal interface material").

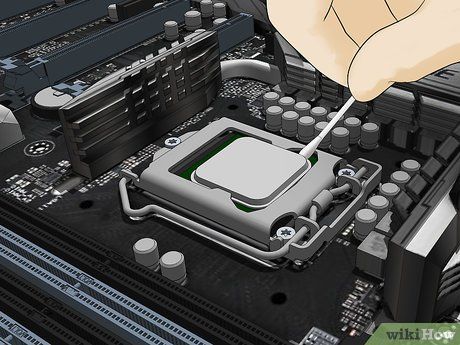

Repeat the steps for the processor. Check if there is any thermal paste residue from the processor to the radiator. If so, follow the same cleaning procedure as before. However, when using a spudger tool to scrape off the old thermal paste, opt for a plastic spudger to avoid scratching or damaging parts. If you don't have a plastic spudger, skip this step.

• Be especially careful as the paste begins to lift. You wouldn’t want to accidentally lose or leave old paste stuck on the processor.

Follow the same process for any surface with thermal paste. If there is old thermal paste on other components, apply the same cleaning method. Use cotton swabs, tissues, or soft materials instead of a spudger, as other parts may be more fragile. Compressed air cans with CFC (chlorofluorocarbon) are also a good option for cleaning hard-to-reach crevices.

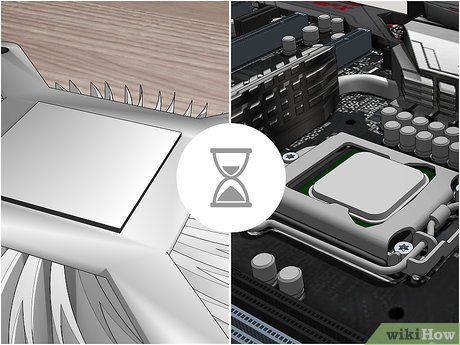

Let the radiator and processor dry naturally. Note: After removing all the old paste, dab a little rubbing alcohol or specialized cleaning solution to wipe these parts. Do not apply new thermal paste immediately after cleaning. Allow the components to dry completely before proceeding.

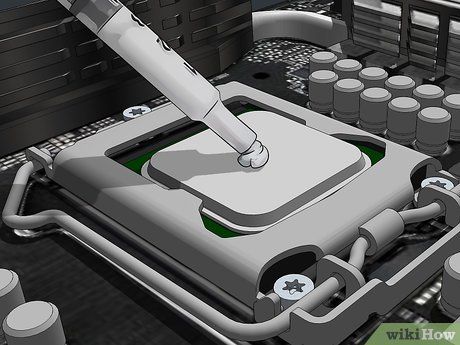

Apply thermal paste to the processor core. Place a small amount of thermal paste, about the size of a grain of rice, directly onto the copper core surface. Before doing the same for the radiator, consult the manual. If no specific instructions are provided, you can confidently apply the paste to the radiator as well.

• Thermal paste is available online and at computer and electronics stores.

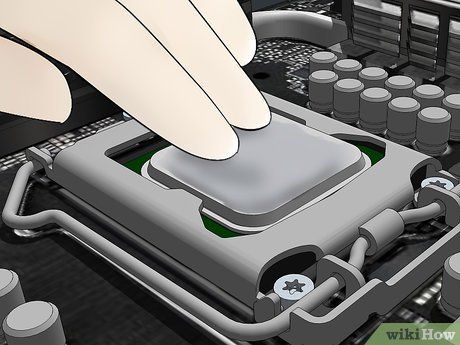

Spread thermal paste on the copper core surface. If you're wearing rubber gloves, it’s best to switch to a cleaner pair. Alternatively, wrap a few layers of plastic wrap around your finger. Then, use your fingertip to evenly spread the paste across the copper core surface.

• Avoid getting paste on the printed circuit board. If a small amount accidentally touches the surface, it won't be a problem. The computer will still function normally, though you'll need to clean it more thoroughly when you replace the paste next time.

Reassemble the computer. Once the thermal paste has been applied to the processor core, you can begin reassembling the components. Refer to the user manual for your specific computer model for detailed instructions on how to proceed.

• Computer user manual
• Clean workspace
• Rubber gloves (optional)
• Anti-static wristband (optional)
• Small brush or compressed air canister for dust cleaning
• Spudger tool (preferably plastic)
• Coffee filter, lint-free cloth, or cotton swabs
• Rubbing alcohol or thermal material cleaning solution
• Thermal paste
• Plastic wrap
