Using an external monitor with your laptop can significantly improve your workflow by offering a larger screen and expanding your digital workspace. Depending on your laptop and monitor hardware, there are several methods to connect these devices. This article provides a step-by-step guide on connecting two external monitors to your laptop.
Steps
Connect the Monitor Using a DisplayPort Cable

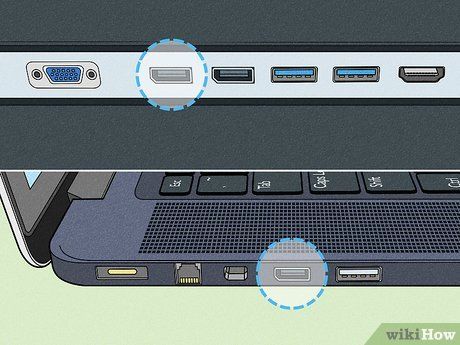

Check the hardware on both your monitor and laptop. To use this method, your monitor must have a DisplayPort In and Out v1.2 or higher. Additionally, your laptop should have a DisplayPort Out or a USB-C port that supports DisplayPort.
- If your monitor was purchased after 2010 and has both DisplayPort In and Out ports, you can use a wired connection method.
- If your laptop has a USB-C port, confirm that it supports DisplayPort, and ensure you have a USB-C to DisplayPort cable.

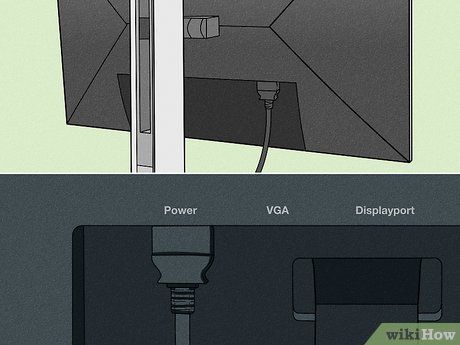

Connect the monitor to a power source. Simply plug the power cable of each monitor into an electrical outlet.

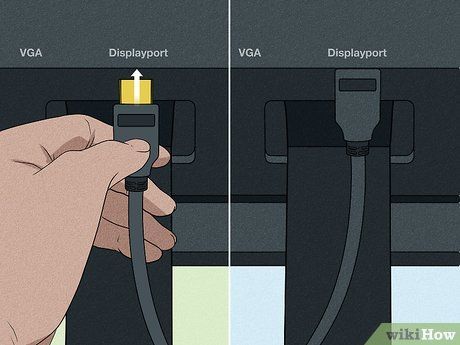

Link the two monitors using a DisplayPort cable. When connecting the monitors, insert the DisplayPort cable into the DisplayPort Out port of one monitor and the DisplayPort In port of the other.
Connect your laptop to the appropriate monitor. Depending on the ports available on your laptop, you can use either a DisplayPort cable or a USB-C to DisplayPort cable. Ensure the laptop is connected to the DisplayPort In port of the monitor that has its DisplayPort Out port already in use.

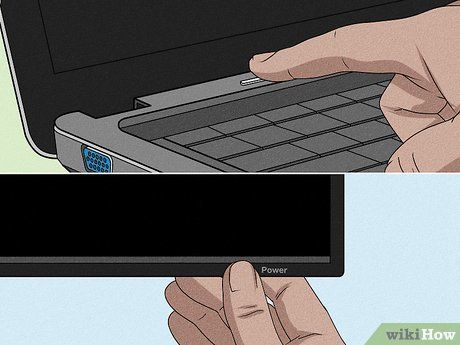

Power on your laptop and monitors. Even if the monitors do not immediately display your laptop's screen, make sure both are powered on and their indicator lights are active.

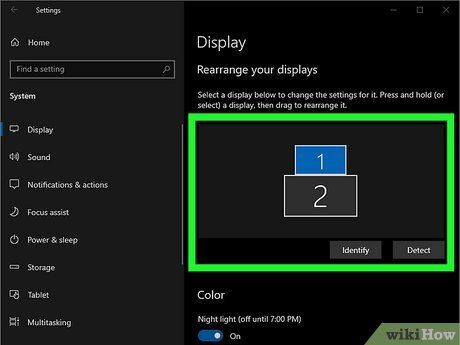

Configure the external display. To optimize your workspace for maximum efficiency, adjust the display settings. Congratulations, you have successfully connected your laptop to an external monitor!
Connect Two Monitors Using Thunderbolt or USB-C Cables

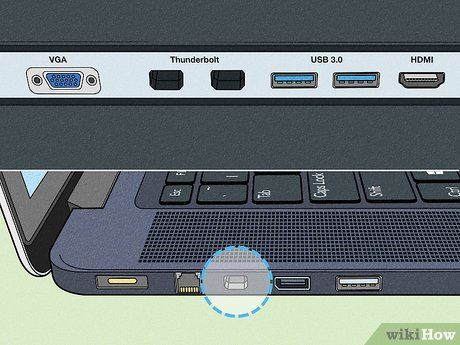

Check if the monitors and laptop are compatible. To connect using Thunderbolt or USB-C cables, one of the monitors must have two Thunderbolt ports, while the laptop and the other monitor only need one port.
- Thunderbolt and USB-C ports share the same connector; therefore, if your laptop has a USB-C port with video output, it will work just as effectively!

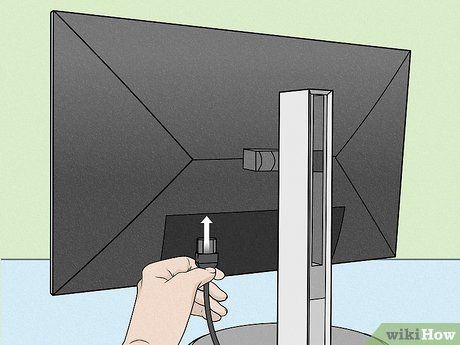

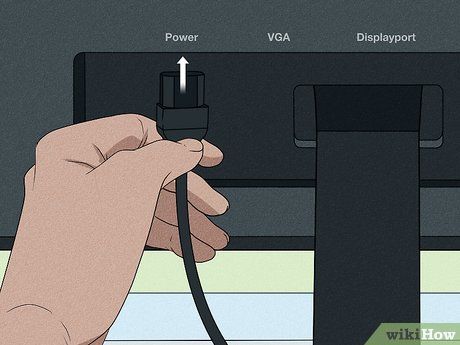

Connect the monitor to a power source. Before using the monitor, you must plug in the included power cable to connect it to an electrical outlet.

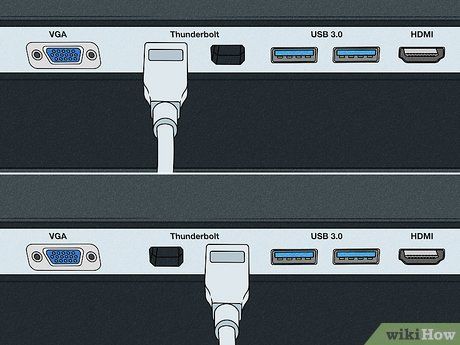

Link the two monitors using Thunderbolt or USB-C cables. All Thunderbolt ports can function as both input and output for video; if the monitor has multiple ports, you can use any of them.
- If the monitor has a USB-C port, ensure it supports video input and output. You can verify this by checking the monitor's specifications to see if the ports support “Alt Mode.”

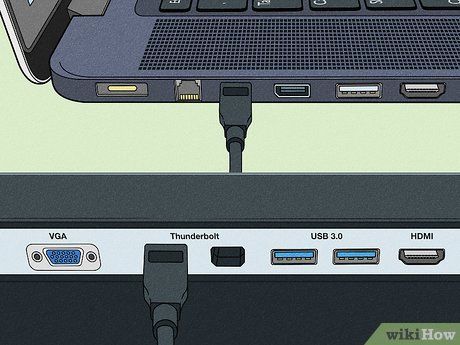

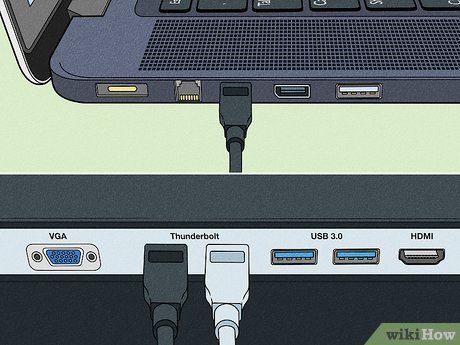

Connect the laptop to one monitor using another Thunderbolt or USB-C cable. If one of the monitors has only one port, connect the laptop to the other monitor.
Power on your laptop and monitors. Even if the monitors do not immediately display your laptop's screen, ensure both monitors are powered on and their indicator lights are active.
Customize the display settings. To arrange your workspace to suit your preferences, adjust the monitor settings. You have now successfully connected your laptop to two monitors using Thunderbolt cables!
Using a Docking Station

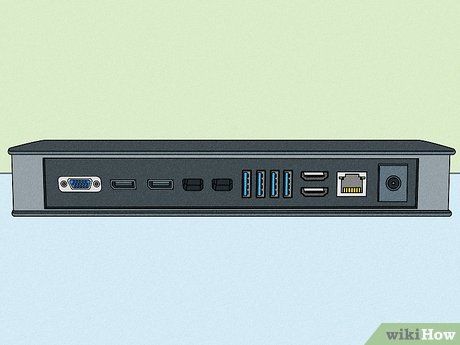

Find a docking station compatible with your laptop and two monitors. Depending on your laptop, the docking station may require different connectors. For example, if your laptop has a USB-C port, the docking station should connect via USB-C. Additionally, ensure the video output ports are compatible with both monitors, or that you have the appropriate adapters.
- Some laptops connect to the docking station by placing the laptop on the docking surface and locking it in place, eliminating the need for additional cables.

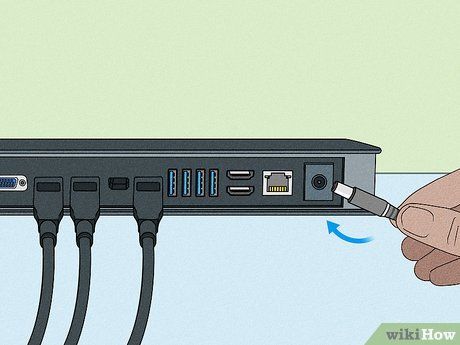

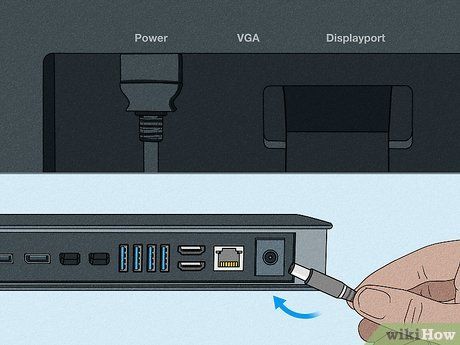

Connect the docking station and monitors to a power source. Make sure the monitor power cables are securely plugged in and the docking station is powered; otherwise, the connection will not work.

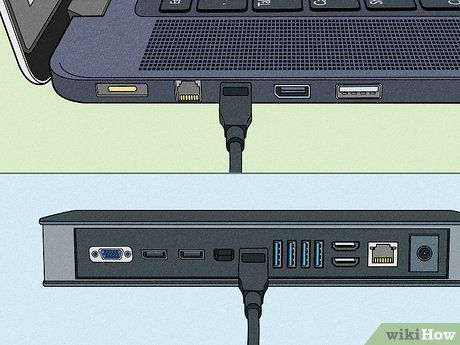

Connect the docking station to your laptop. Since the connection method varies depending on your laptop and docking station, follow the instructions provided with the docking station if you're unsure how to proceed.
- The two most common methods are placing the laptop onto the docking station or connecting it using an integrated cable.

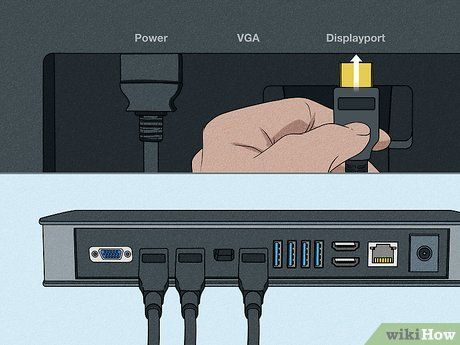

Connect each monitor to the docking station. Use the appropriate cables to connect one end to the “In” port on each monitor and the other end to the “Out” port on the docking station.
Plug your laptop charger into the docking station (optional). Some docking stations also feature laptop charging capabilities, so connect your charger directly to the docking station to streamline cable usage.
Power on your laptop, monitors, and docking station. If the docking station isn’t powered, the connection won’t work, so ensure the docking station is turned on!
Configure the display settings. To arrange your workspace for optimal efficiency, adjust the monitor settings. You’re now ready to use your new setup!
Connect to the Laptop Using Multiple Ports

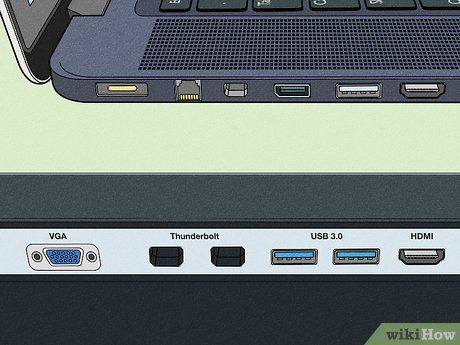

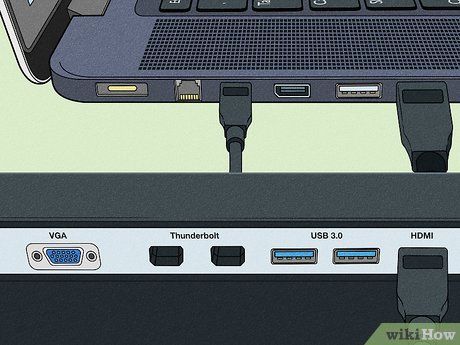

Check the ports on your laptop and monitors. If your laptop has multiple ports and you prefer not to or cannot use a wired connection, you can connect one port to each monitor.
- Ensure the ports are compatible with those on the monitors. If they aren’t, you’ll need to purchase adapters, such as USB-C to HDMI, or cables with multiple connectors, like HDMI to DisplayPort cables.

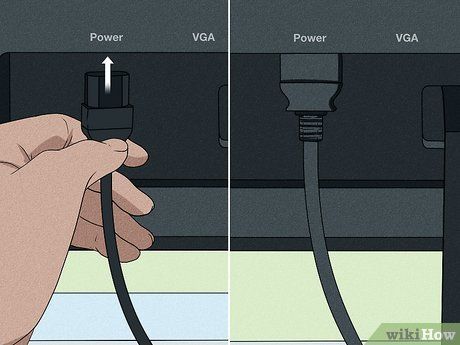

Connect the monitors to a power source. The monitors must be plugged into a power outlet before use.

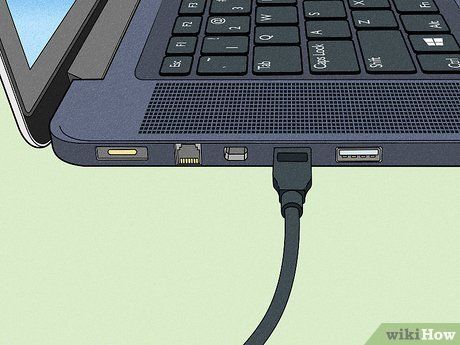

Connect the laptop to one of the monitors. In most cases, you’ll need an HDMI or DisplayPort cable to link your computer to the external monitor.
- Depending on the manufacturing year of your computer or monitor, you might require a VGA cable.

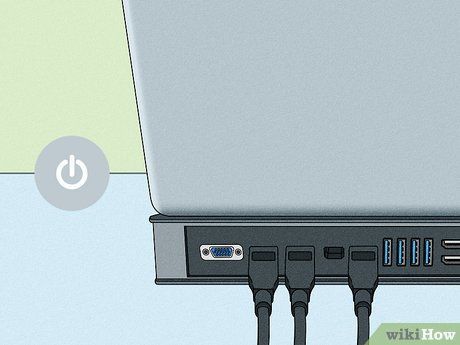

Connect the laptop to the second monitor. Ensure the cables are securely plugged into the ports!
Power on your laptop and monitors. Turn on both your laptop and monitors. Even if the monitors do not immediately display your laptop's screen, ensure both are powered on and their indicator lights are active.
Customize the display settings. Adjusting the monitor settings allows you to change how the displays are used, whether for mirroring your laptop screen or extending your workspace, etc. Once the settings are configured, you can start using the multi-monitor setup!
Using an HDMI or DisplayPort Splitter

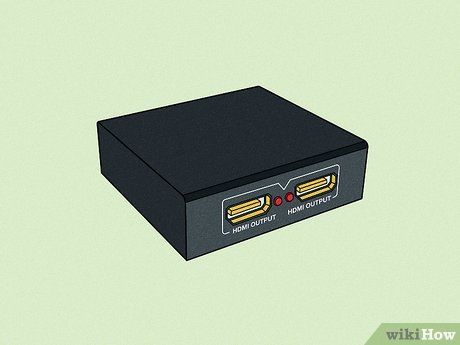

Identify the splitter you need. If your laptop has an HDMI output, you’ll need an HDMI splitter. If it has a DisplayPort output, opt for a DisplayPort splitter.
- Ensure you have enough cables to connect the devices! You’ll need two HDMI or DisplayPort cables.
Connect the power cables to both monitors. Make sure the power cables are securely connected before proceeding.

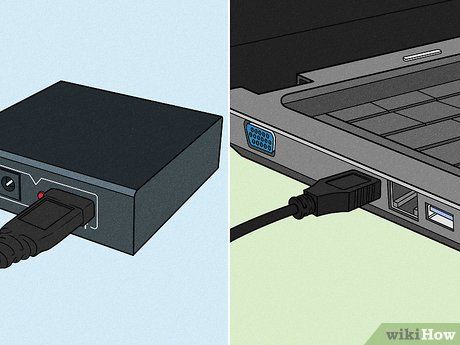

Connect the splitter to your laptop. The input connector of the splitter should now be plugged into the HDMI or DisplayPort output of your laptop, while the HDMI or DisplayPort outputs of the splitter remain unused.

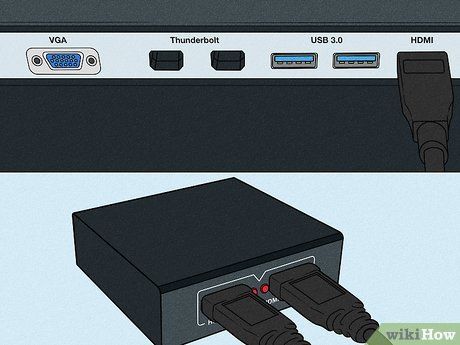

Link each monitor to the splitter. Insert the HDMI or DisplayPort cable into the “Out” port of the splitter, then connect the compatible end to the “In” port on the monitor.

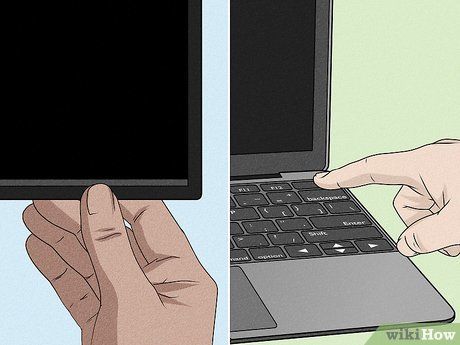

Power on your laptop and monitors. Even if the monitors do not immediately display your laptop's screen, ensure both are powered on and their indicator lights are active.
Adjust the display settings. Configure the monitors to suit your preferences. Your digital workspace is now ready for use!
