A circuit is a closed loop through which electrons flow. A simple circuit consists of a power source (battery), wires, and a resistor (like a light bulb). In the circuit, electrons travel from the battery, through the wires, to the light bulb. When the light bulb receives enough electrons, it lights up. With the correct setup, you can illuminate the light bulb with just a few simple steps.
Steps
Build a Simple Circuit with a Battery

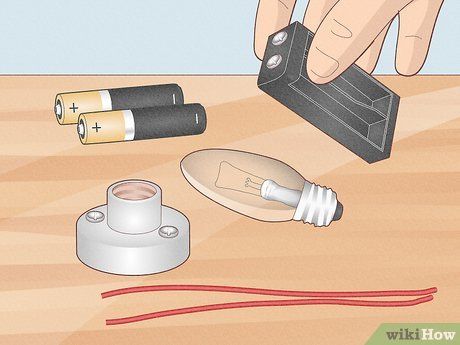

Gather all necessary materials. To create a circuit, you need a power source, two insulated wires, a light bulb, and a light bulb holder. The power source can be any type of removable or block battery. The other materials can be found at an electronics store.
- When choosing a light bulb, consider the battery's power rating.
- For easier wire connections, use a battery connector with pre-wired leads, a 9V battery, or a block battery.

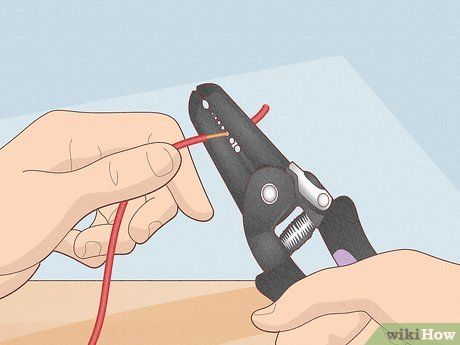

Strip the insulation off the wire ends. In order for the circuit to work, the wire needs to be fully exposed. Therefore, you must remove the insulation from both ends of the wire. Use wire strippers to carefully peel off about 2.5 cm of insulation from each end.
- If you don't have wire strippers, you can carefully use scissors to cut away the insulation from the wire.
- Be careful not to cut into the inner wire.
Install the battery into the base. Depending on the type of battery you're using, you may not need this step. If you're using multiple loose batteries, you'll need a battery holder. Install the batteries next to each other, ensuring you place them with the correct polarity — positive and negative.
Connect the wires to the power source. The wires will carry electricity from the battery to the light bulb. The easiest way to connect the wires is by using electrical tape. Attach one end of each wire to the battery terminals, ensuring the wire makes contact with the metal parts of the battery. Repeat with the other wire and the other terminal of the battery.
- Alternatively, if you're using battery clips, attach the wire to a 9V battery or a similar battery pack.
- Be cautious when creating the circuit. Though rare, there is a slight chance of getting a mild shock when touching the wire directly while it's connected to the battery. To avoid this, only touch the insulated part of the wire or disconnect the battery until the light bulb is ready to be attached.

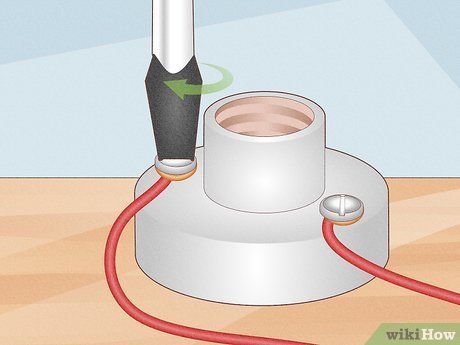

Tighten the other end of the wire into the metal screw at the light bulb base. Take the stripped section of the wire and bend it into a U shape. Loosen the screw at the base of the light bulb just enough to loop the U-shaped end around the screw. Each wire is connected to a separate screw. Tighten the screw and ensure that the metal of the wire is in full contact with the screw.

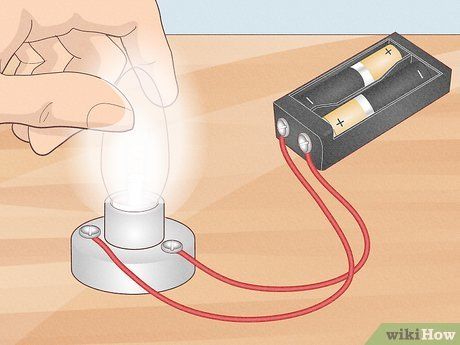

Check the circuit. Tighten the light bulb into its base. If the circuit is correctly wired, the light will turn on when fully installed.
- The bulb can heat up very quickly, so be cautious when handling it.
- If the bulb doesn't light up, check to ensure the wires are properly connected to the battery and the metal parts of the screws.
Install the switch
Gather the materials. To install the switch, instead of two, you'll need three pieces of wire. Once you have stripped the insulation and connected the wires to the battery holder, you can proceed with installing the switch.
Install the switch. Take the stripped end of a wire that is already connected to the battery and bend it into a U shape. Loosen the screw on the switch and thread the U-shaped end of the wire underneath. Tighten the screw to ensure a secure connection with the wire's metal core.
Connect the third wire to the switch. Bend the stripped end of the third wire into a U shape. Slide it under the remaining screw to attach it to the switch. Tighten the screw to ensure the metal of the screw makes contact with the metal of the wire.

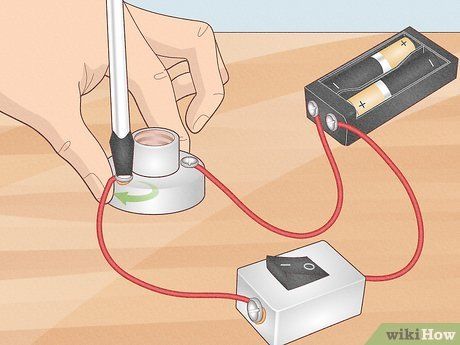

Connect the light bulb. Take the stripped ends of each wire (one from the power source and one from the switch) and bend them into U shapes. Loosen the screw on the light fixture base just enough to insert the U-shaped ends of the wires around the screws. Each wire will be connected to a separate screw. Tighten the screws to ensure the wires remain in contact with the metal parts of the screws.
Test the circuit. Tighten the light bulb into the base. Turn on the switch! If the circuit is connected correctly, the light will illuminate once it's securely screwed into the base.
- The light bulb may heat up quickly, so be cautious when handling it.
- If the light doesn't turn on, check to ensure the wires are properly connected to both ends of the battery and that the metal parts of the screws are in contact with the wire.
Locate and fix circuit issues
Ensure all wires are properly connected. For the circuit to work, each wire must be in contact with the metal part of each component. If the light doesn't turn on, inspect each battery terminal and the screws at the light bulb base to ensure the wires are properly connected.
- Make sure the screws are tightened to maintain the connection.
- In some cases, you may need to strip additional insulation from the wire.

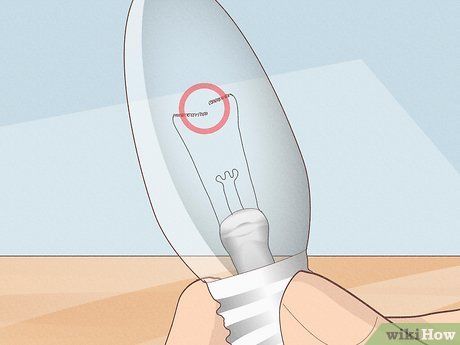

Inspect the filament of the light bulb. The light won't illuminate if the filament is broken. Shine a light through the bulb and ensure the filament is intact. Try replacing the bulb. If the bulb isn't the issue, proceed with the next troubleshooting step.
Check the battery's power level. If the battery is dead or running low, it may not provide enough power to light the bulb. Use a voltage tester to check the battery level, or simply replace the battery. If the battery is the problem, the light should illuminate once the new battery is installed.
Warning
- Do not touch the bulb when it is on as it will be extremely hot.
